|Model:||Aerial Work Platform||Material:||Aluminum|
portable work platforms,
mobile aerial work platform

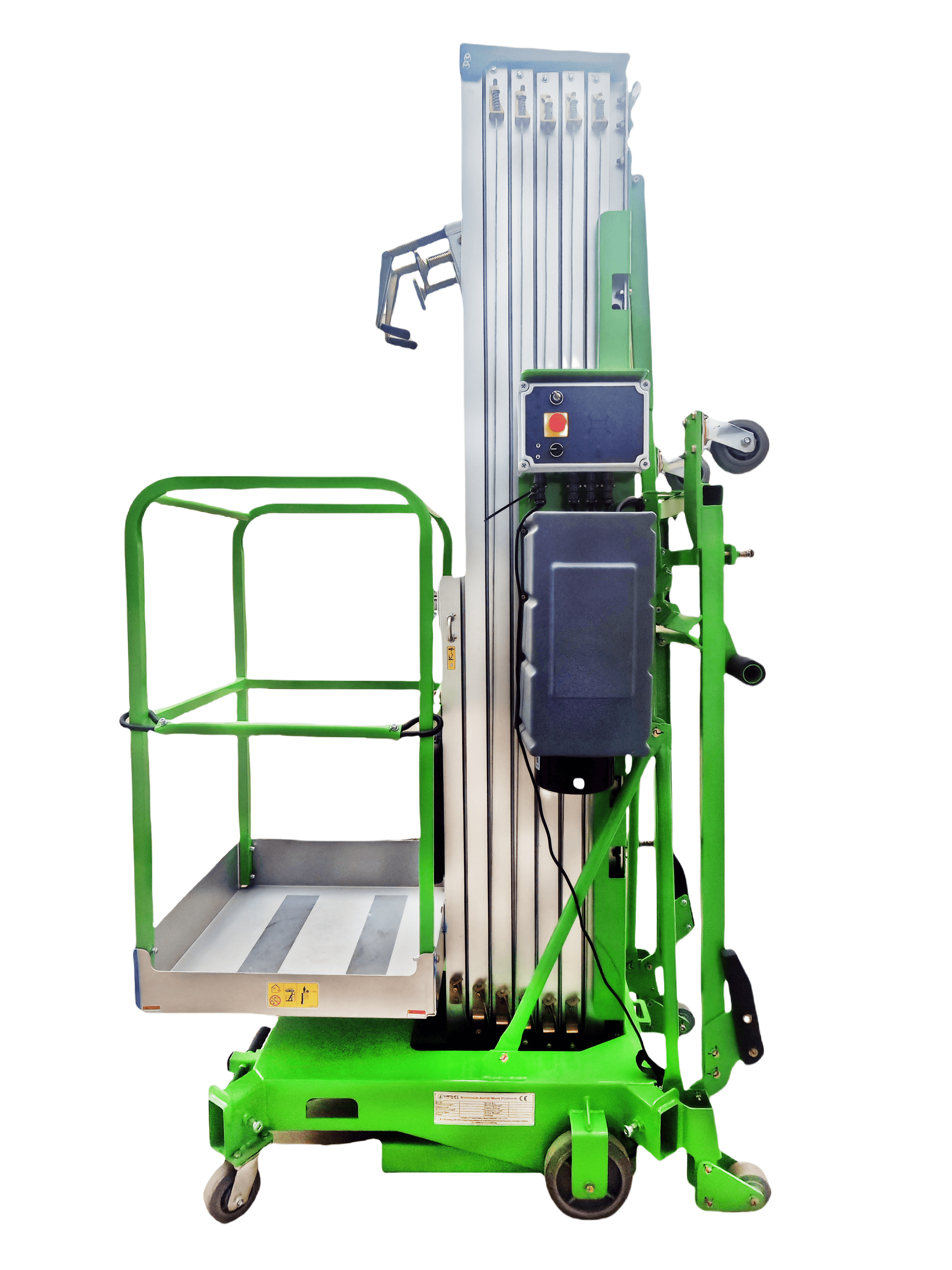

10M Portable Aerial Work Platform 160Kg Loading
|Name||Portable Aerial Work Platform||Brand Name||CHEN LIFT|
|Loading Capacity||160Kg||Platform Height||8m|
|Platform Size||0.69*0.68m||Color||Red or Optional|
Portable Aerial Work Platforms are specially designed for the working place that always changes and for long distance transportation purpose. The structure is in single mast. The outrigger is detachable. It can be easily loading or unloading on a pickup or truck.
Smaller size and titling feature makes the machine be quite suitable for those who need to transport the Aerial Work Platform through narrower and shorter places.
It is used for single person aerial working purpose. They are made up of high grade aluminum profile and equipped with the universal wheels, easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable. It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground.
It is easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.
1. Most rigid aluminum alloy profile
2. Multi-guide pulley on mast
3. Sliding mid-rail standard
4. Tilt back frame
5. Durable base system
6. Chassis with level gauge
7. AC power to the platform
8. Dual activated up/down switch
9. Easily rolls through a narrow space
10. Small outrigger footprint
11 .Outrigger storage socket
12. Easy loading in pickup trucks
13. Tie down attachment points
14. Forklift pockets
1. Auxiliary platform lowering
2. Emergency stop button
3. Over load protection
4. LED lights confirm proper set-up
|Working height Max.||12.0m|
|Platform height Max.||10.0m|
|Basket Size ( E*F)||0.69*0.68m|
|Width, stowed (D)||0.74m|
|Height, stowed (A)||1.97m|
|Height, tilted back (B)||/|
|Length, stowed (C)||1.42m|
|Length, tilted back (J)||——|
|Outrigger footprint (I*K)||1.99*1.72m|
|Wall access front/side(H/G)||0.23/0.55m|
|Power source AC/DC||220V/110V/12V|
· Smaller Size:
1) Side installation of hydraulic power pack and motor instead of on chassis reduces the size of the machine.
2) Detachable outriggers can be disassembled during transportation and placed in the outrigger socket at the other side of the machine. On one hand it can reduce the transporting size, on the other hand it can avoid impingement to the outriggers during transportation and tilting.
· Easier Transportation

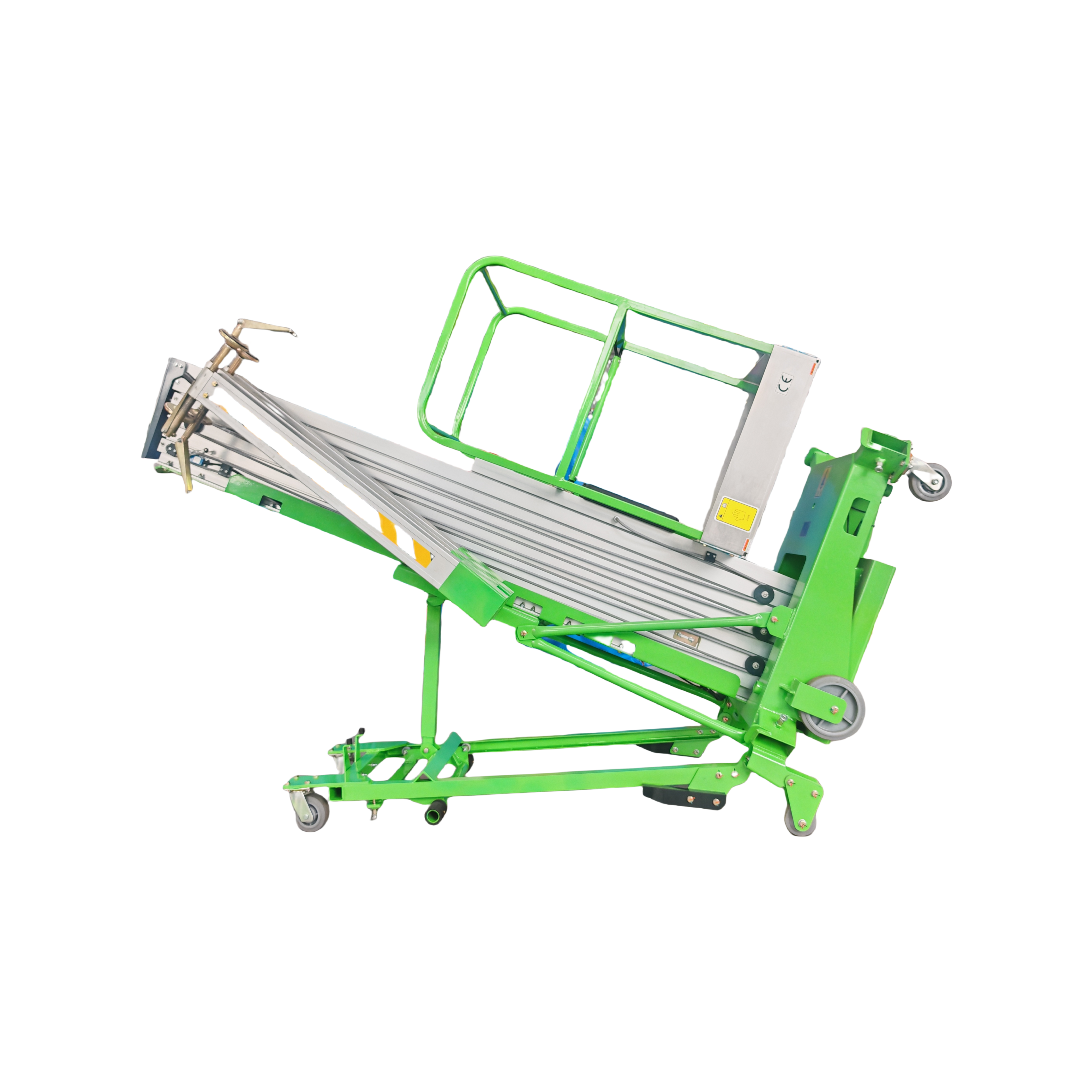

1) Tilting feature helps the machine pass narrower space and load the machine on the truck easier.
2) Handler helps the operator pushes the machine to other place more convenient.
3) Truck loading bar is in the front of the machine and can be pulled out for easier loading on the truck.
· More Convenient and safety operation
1) Ground and Up Control Boxes, the machine can be controlled by both boxes but when one works the other can not. The convert of the two control systems is realized by the switch on the ground control box.
2) LED Lights, there has four LED lights on the ground control panel represents four outriggers. Only the represented outrigger is opened the LED will light. And the machine can not be lifted unless all the lights are on.
3) AC Power to Platform helps operator to use other facilities on the platform on high.
