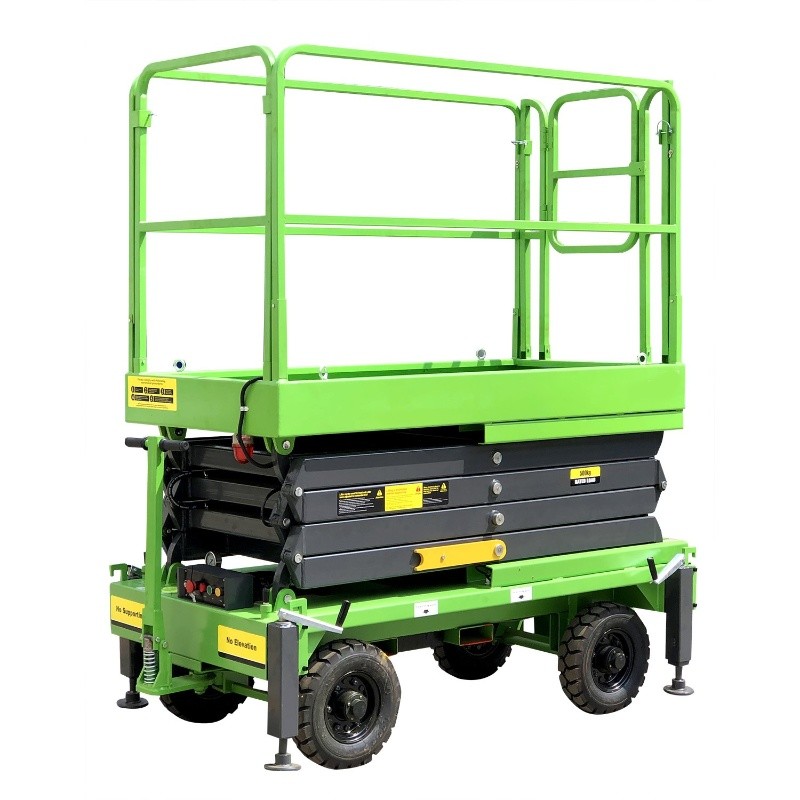

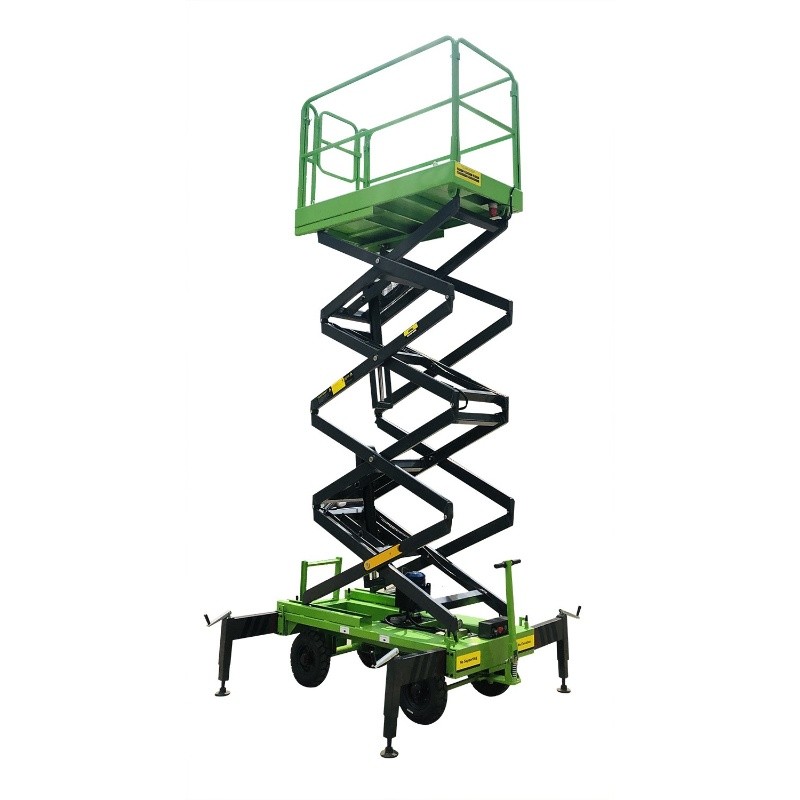

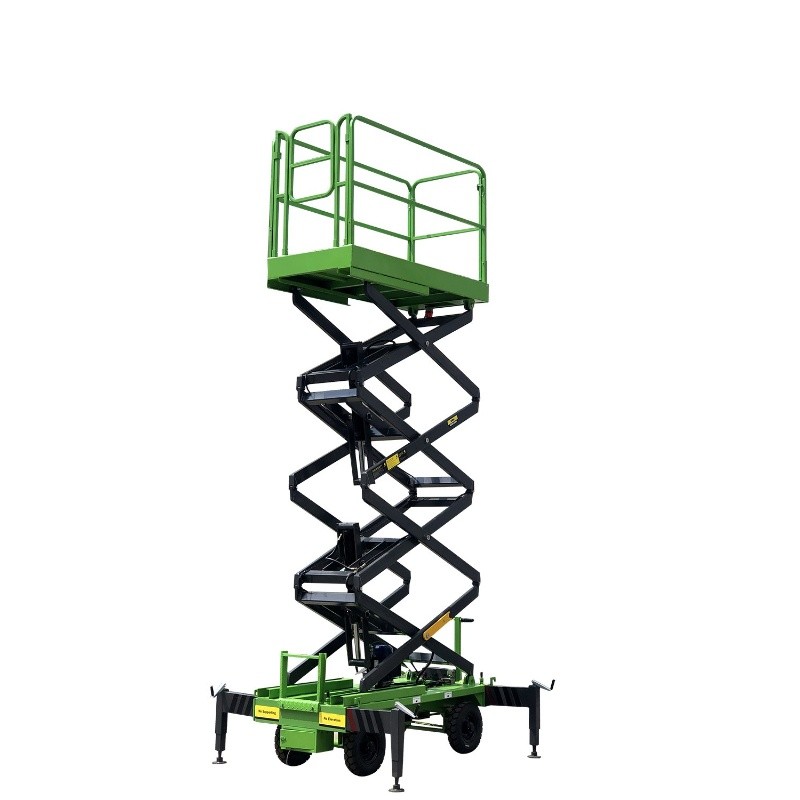

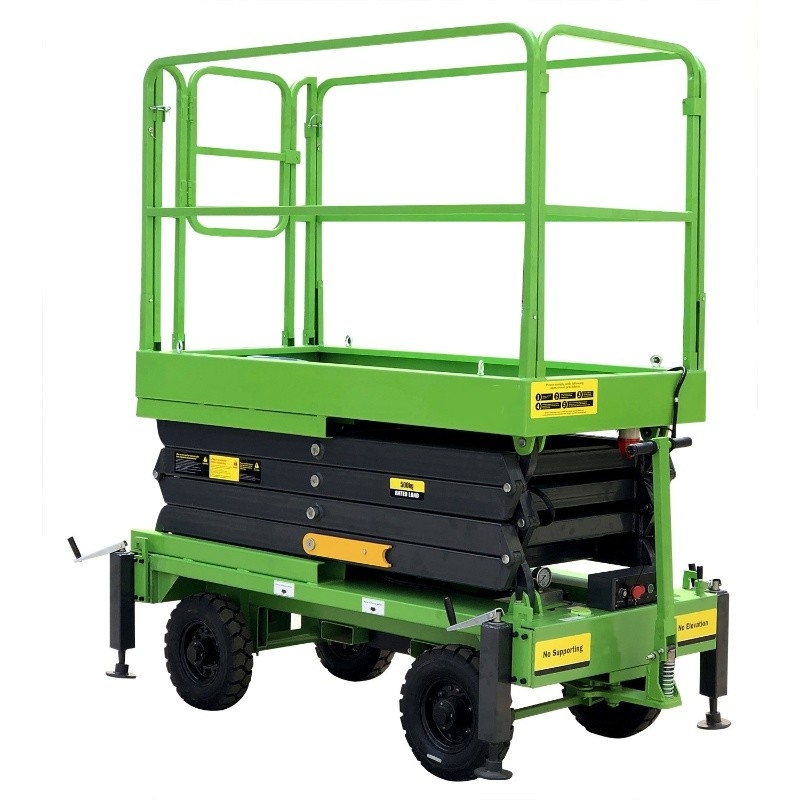

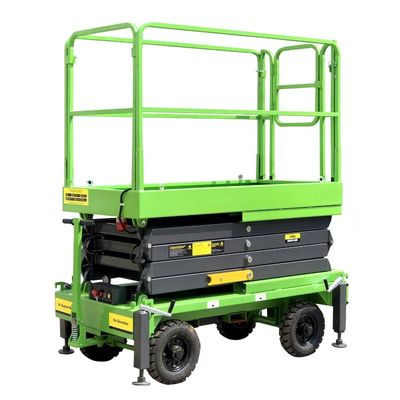

10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning

10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning

  • 10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning
  • 10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning
  • 10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning
  • 10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning
  • 10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning
10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE ISO9001:2008 IPAF member
Model Number: XE100R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 300kg Platform Height: 10m
Platform Size: 2.25*1.15m Pulling Power: 0.75Kw
Lifting Power: 3kw Lifting Time: 88s
Overall Size: 2.65*1.35*1.50m Weight: 1360kg
High Light:

mobile hydraulic lift

,

hydraulic working platform



10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning



Quick Detail:



Name Scissor Lift with Motorized Device Brand Name Xunte
Loading Capacity 300Kg Platform Height 10m
Platform Size 2.25*1.15m Color Blue or Optional
Lifting Power 3kw Motorized Power 0.75kw



Description:



Scissor lift with Motorized Device are also called as Self propelled elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters.

They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4. The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,NOK sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø600-9 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger



Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



Why choose Xunte Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning 010m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning 1





10m 300Kg Scissor Lift with Motorized Device Electric Aerial Work Platform for Painting Cleaning 2



Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:



Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
