|Place of Origin:||China|
|Certification:||CE ISO9001:2008 IPAF member|
|Model Number:||SJZ 0.45-9|
|Minimum Order Quantity:||1 set|
|Packaging Details:||PVC Film Wrapped in Pallets or in wooden Case|
|Delivery Time:||30 days after receipt of deposit|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 sets/month|
|Model:||SJZ 0.45-9||Extension Length:||1m|
|Extension Loading:||100kg||Loading Capacity:||450kg|
|Maximum Height:||9m||Overall Dimension:||2.40*1.39*1.85m|
mobile hydraulic lift,
hydraulic aerial work platform

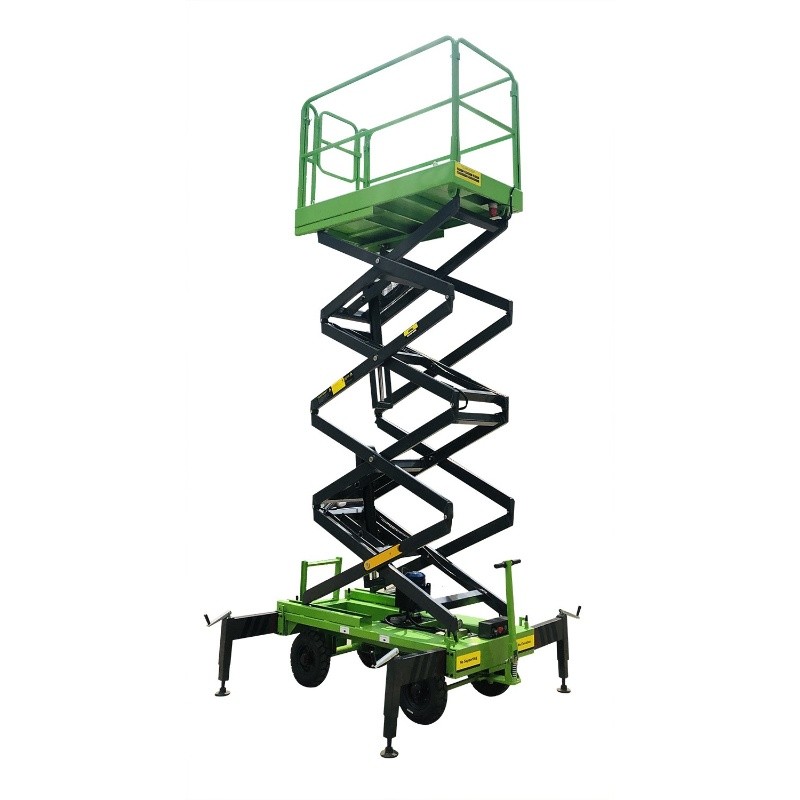

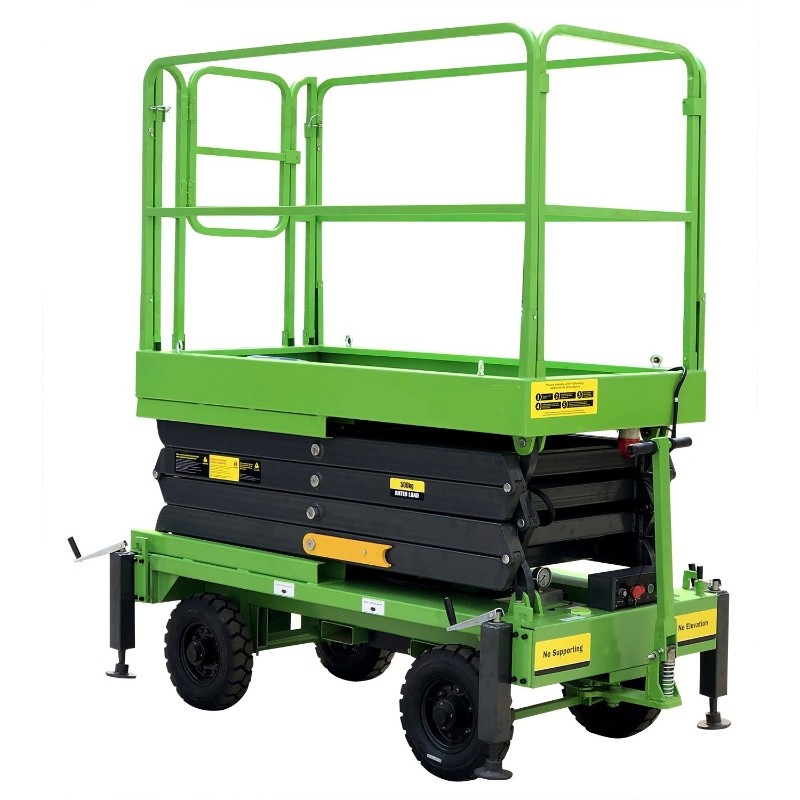

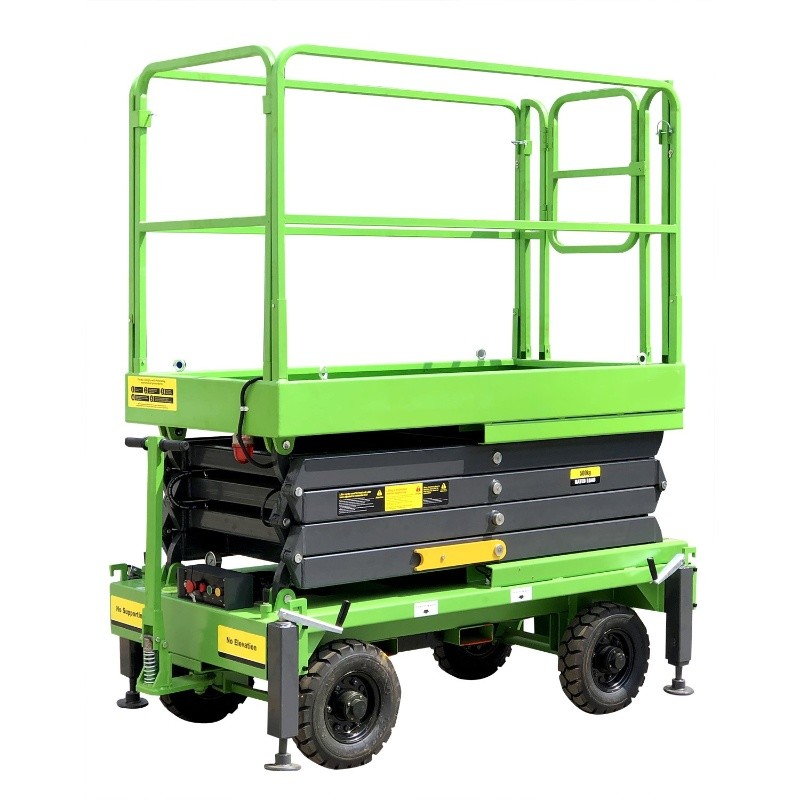

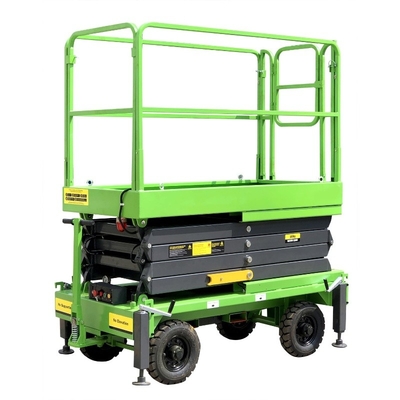

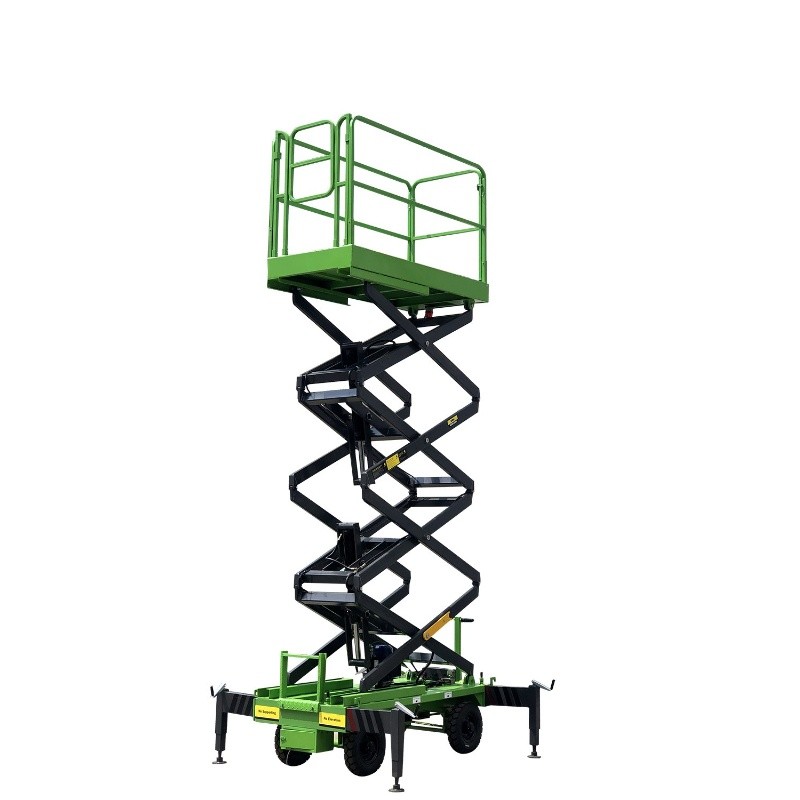

9m Hydraulic Scissor Lift With Motorized Device Electric Lifting Table 450kg
|Name||Scissor Lift With Motorized Device||Brand Name||Xunte|
|Loading Capacity||450kg||Platform Height||9m|
|Platform Size||1800mm*1000mm||Color||Blue or Optional|
|Lifting Power||2.2kw||Motorized Power||0.75kw|
Mobile Scissor lifts are also called as mobile elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.
The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.
1. Pointing control of lifting up and down
2. Manganese steel lifting arm in high strength with rectangle shape
3. Anti-skid floor in platform
4. The control panels are available on the platforms and ground.
5. Fine grinding cylinder in good sealing performance
6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.
1. The operation voltage on the platform is 24V
2. Emergency stop button on the platform and ground
3. Auxiliary platform lowering
4. Telescopic legs on the chassis
5. Hose burst valve safety
6. Rain-proof design electric cabinet
7. Fence on the platform
1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.
Why choose Xunte Mobile Scissor Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
Communication with Customers
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1.Strict quality control system on the whole process of production
2.Imported key arts to ensure the high quality of our products
3.Advanced equipment and tools for examination and quality control
4.100% strict examining products before shipment
5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: it is 30days after order confirmation
A: What spare parts that you can offer?
B: We provide following spare parts freely for your maintenance of the machine:
|"O" Rubber Seals Φ11||3|
A: How long is your quality guarantee period?
B: We have one year warranty.
