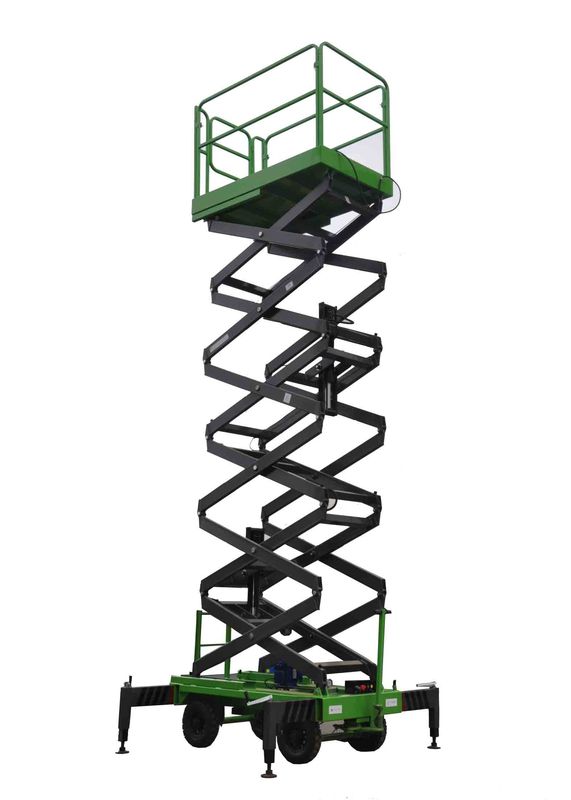

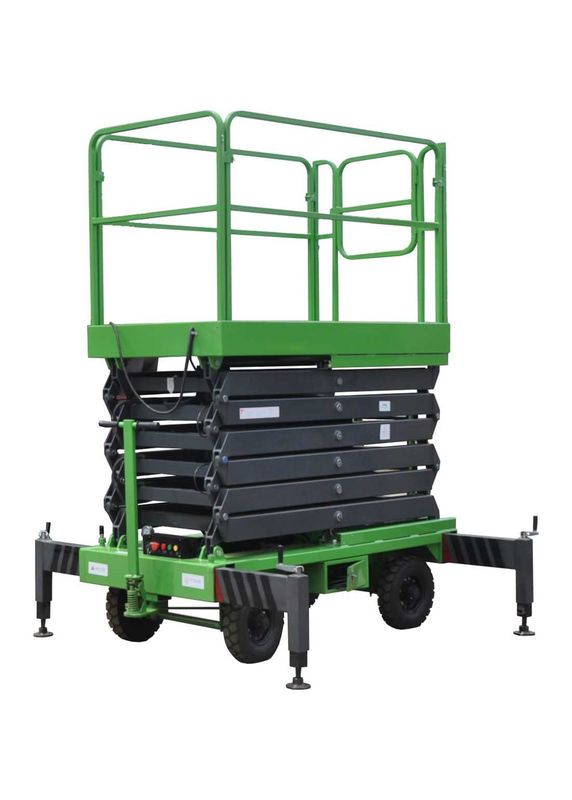

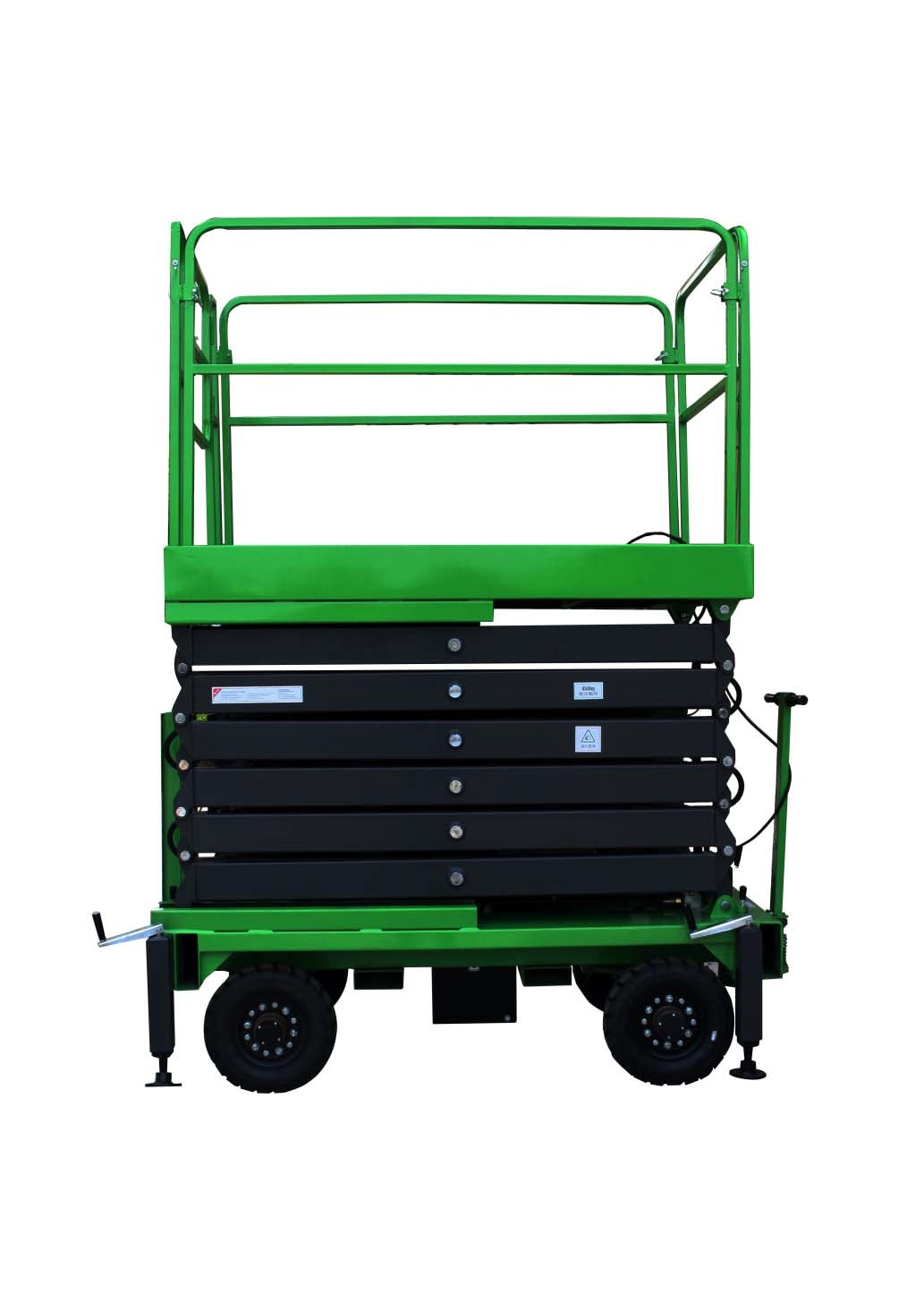

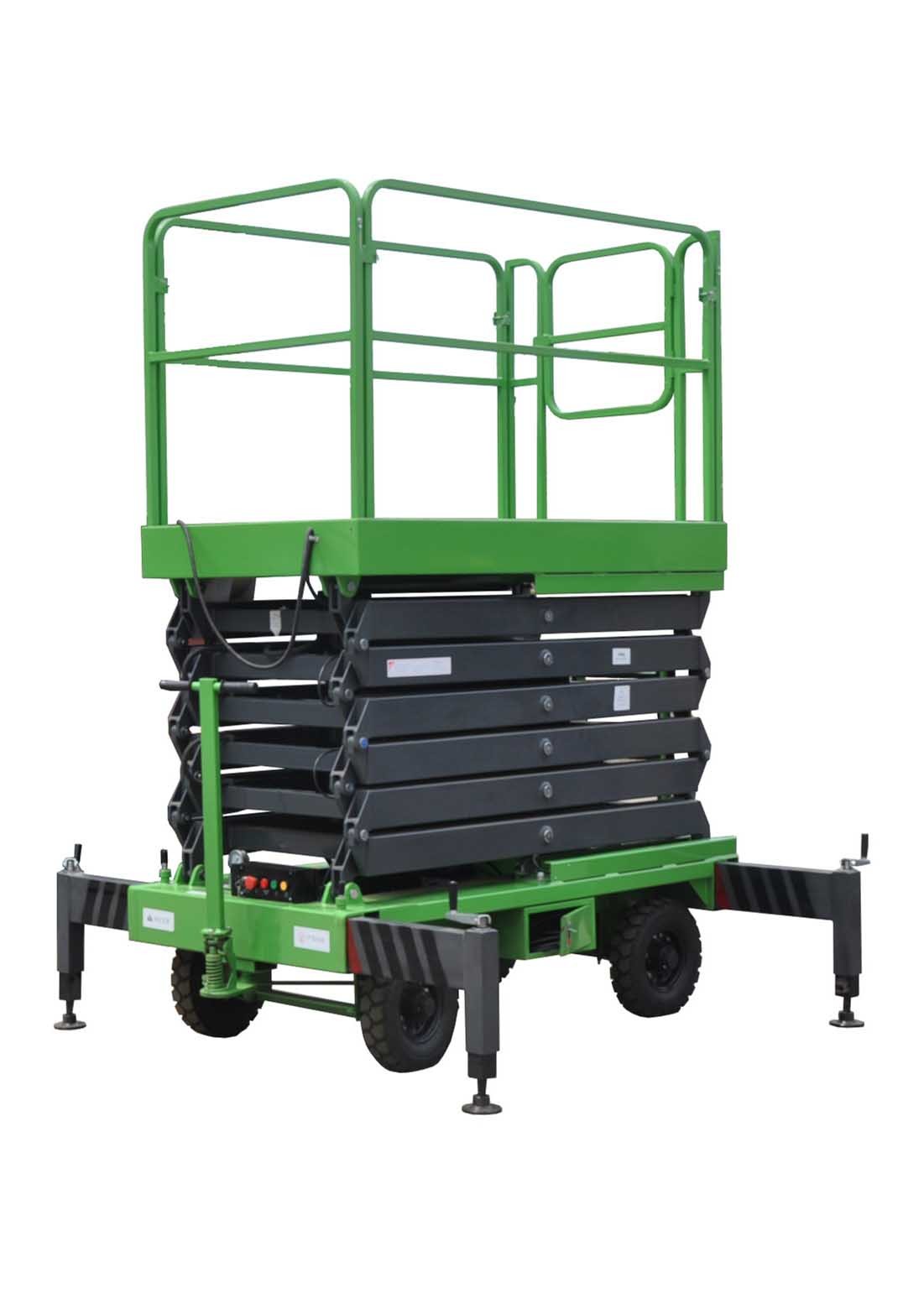

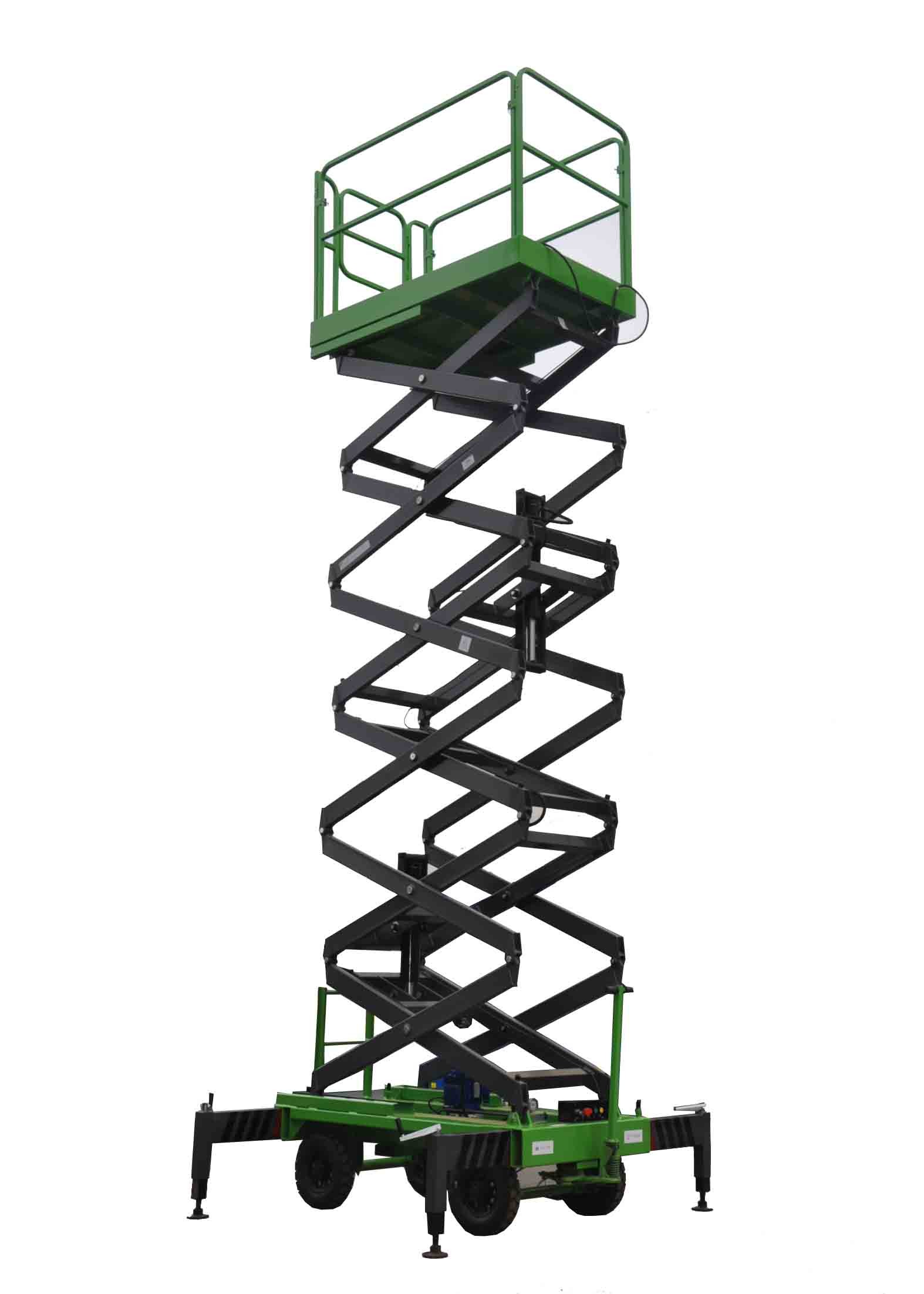

6 meters height Extension mobile hydraulic scissor lift with motorized device loading capacity at 1000Kg

6 meters height Extension mobile hydraulic scissor lift with motorized device loading capacity at 1000Kg

  • 6 meters height Extension mobile hydraulic scissor lift with motorized device loading capacity at 1000Kg
  • 6 meters height Extension mobile hydraulic scissor lift with motorized device loading capacity at 1000Kg
  • 6 meters height Extension mobile hydraulic scissor lift with motorized device loading capacity at 1000Kg
  • 6 meters height Extension mobile hydraulic scissor lift with motorized device loading capacity at 1000Kg
  • 6 meters height Extension mobile hydraulic scissor lift with motorized device loading capacity at 1000Kg
  • 6 meters height Extension mobile hydraulic scissor lift with motorized device loading capacity at 1000Kg
6 meters height Extension mobile hydraulic scissor lift with motorized device loading capacity at 1000Kg
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE ISO9001:2008 IPAF member
Model Number: SJZ1-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 days after receipt of deposit
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Model: SJZ1-6 Loading Capacity: 1000kg
Maximum Height: 6m Platform Size: 1.8*1m
Overall Dimension: 1.85*1.24*1.1m Lifting Time: 80s
Weight: 960kg
High Light:

mobile hydraulic lift

,

hydraulic aerial work platform

6 meters height Extension mobile hydraulic scissor lift with motorized device loading capacity at 1000Kg





Quick Detail:



Name Mobile Scissor Lift Brand Name Xunte
Loading Capacity 1000Kg Platform Height 6m
Platform Size 1.8*1m Color Customizable
Lifting Power 2.2Kw Power Supply AC/DC
Motorized Power 0.75Kw
Loading Capacity on Extension Platform
100kg
Extension Platform Length
1m





Description:



Mobile Scissor lifts are also called as mobile elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform





Major Parameters

  • Model: SJZ1-6with Extension
  • Loading Capacity 1000kg
  • Maximum Height 6000mm
  • Minimum Height 1250mm
  • Platform Size 1800*1000mm
  • Lifting Power 2.2kw
  • Motorized Power: 0.75Kw
  • Power Voltage DC24V
  • Lifting Time 80s
  • Cylinder Ф80(2Pcs)
  • Gear Pump 6ml/r
  • Total Weight 960kg
  • Measurement 1800*1240*1100mm



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø400-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger



Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose Xunte Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
