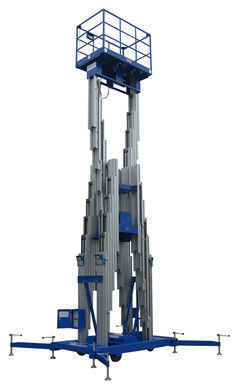

Six Mast 18m Aerial Work Platform Aluminum Profile 150Kg

Six Mast 18m Aerial Work Platform Aluminum Profile 150Kg

  • Six Mast 18m Aerial Work Platform Aluminum Profile 150Kg
  • Six Mast 18m Aerial Work Platform Aluminum Profile 150Kg
Six Mast 18m Aerial Work Platform Aluminum Profile 150Kg
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE
Model Number: GTWY18-420 (ME1800-6)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Lift Capacity: 150kg Platform Height: 18m
Working Height: 20m Platform Size: 1.45x0.90m
High Light:

mobile aerial work platform

,

aerial work platform

Six Mast 18m Aerial Work Platform Aluminum Profile 150Kg


Quick Detail:


Name Mobile Aerial Work Platform Brand Name Bestmax
Loading Capacity 250Kg Platform Height 18m
Platform Size 1.45*0.9m Color Blue or Optional
Motor Power 2.2Kw Power Supply AC/DC



Descriptions

Insulated Aerial Work Platform is designed for using the machine in insulated situation like plants or other place with electricity for protecting the operators consideration. The platform is made up of insulated materials and all the type and height aerial work platform can be made into this type.


Applications:

It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 16m to 20m and lifting capacity is 150Kg.The power sources could be 220V, 380V or chargeable battery.


Main Features:

1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multi-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over load protection
10 .Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch
13. Optional extended platform
14. Entry ladder



Specifications:



MODEL GTWY18-420 (ME1800-6)
PRODUCTIVITY US Metric
Lift capacity 331lbs 150kg
Working height 65ft 7.40 in 20m
Platform floor height 59ft 0.66 in 18m
Platform length 5ft 1.02 in 1.55m
Platform width 3ft 3.37in 1.00m
Ground Clearance 5.91in 0.15m
Lifting Power 2.2kw
Lifting Speed 0.09-0.1m/s
Motorized Power 0.75Kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 7ft 5.76in 2.28m
Overall width 4ft 9.09in 1.45m
Overall height 7ft 11.28in 2.42m
Outrigger footprint:
A Length 10ft 5.98in 3.20m
B Width 9ft 10.11in 3.00m
C Corner access 3.94in 0.10m
D Wall access front 1ft 3.74in 0.4m
E Wall access side 2ft 9.46in 0.85m
Weight 4079lbs 1850kg

Six Mast 18m Aerial Work Platform Aluminum Profile 150Kg 0




Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet


Competitive Advantage:


· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience




Communication with Customers

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material

A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


A: What is the delivery time for your goods?
B: it is 30days after order confirmation

A: What spare parts that you can offer?
B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1


A: How long is your quality guarantee period?
B: We have one year warranty.
