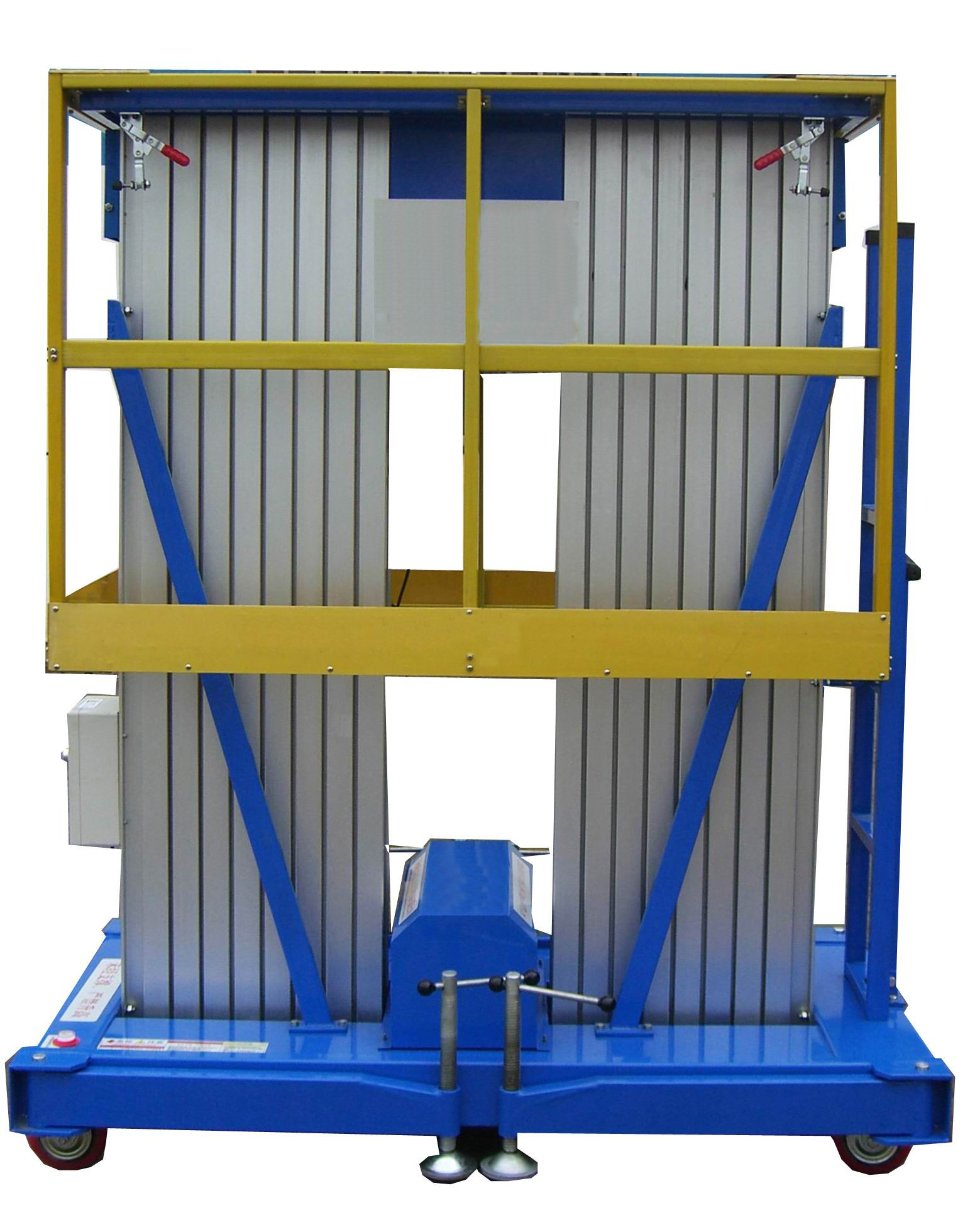

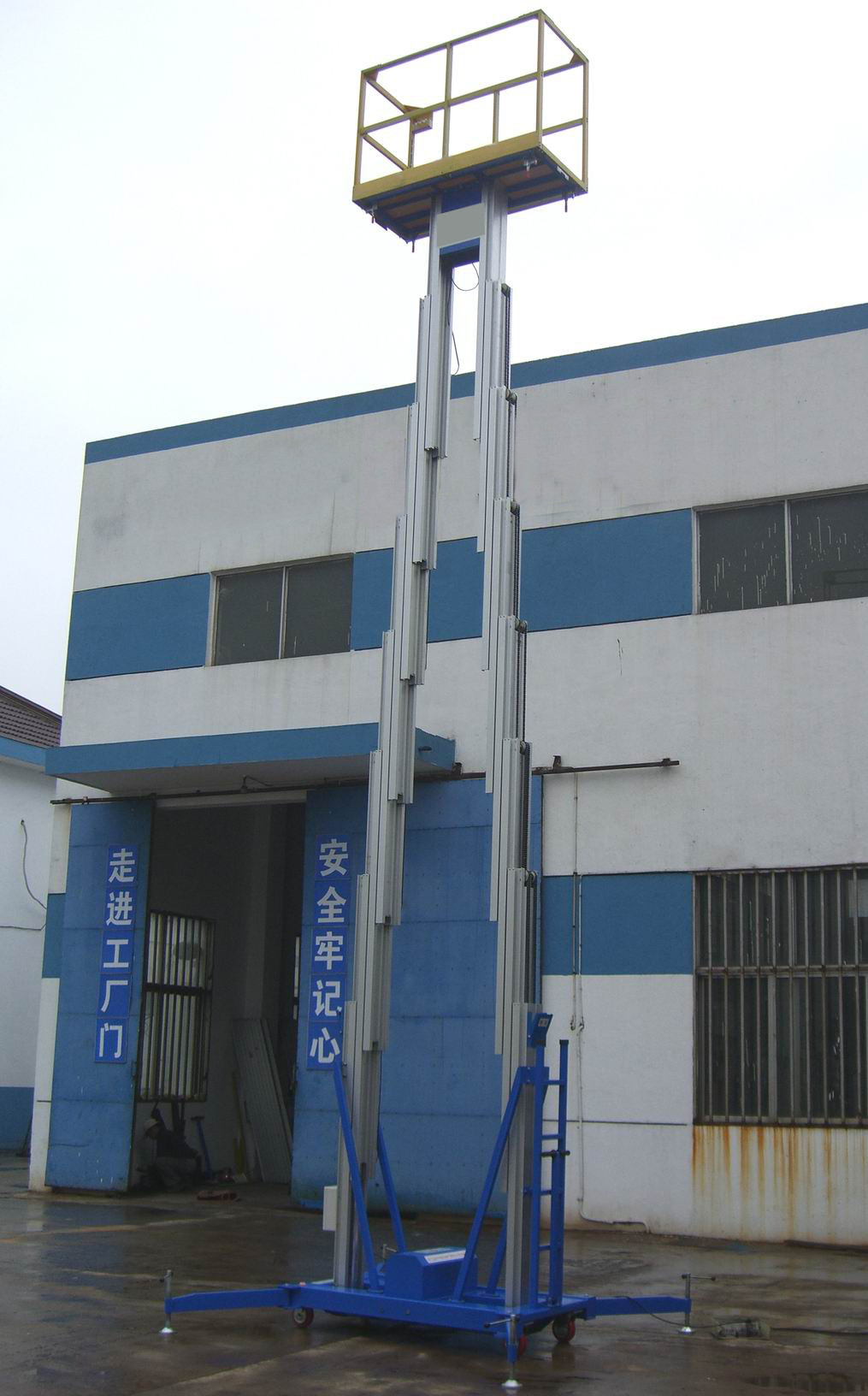

Height 8m Dual Mast Aerial Work Platform Insulated Type

Height 8m Dual Mast Aerial Work Platform Insulated Type

  • Height 8m Dual Mast Aerial Work Platform Insulated Type
  • Height 8m Dual Mast Aerial Work Platform Insulated Type
Height 8m Dual Mast Aerial Work Platform Insulated Type
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY8-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
High Light:

mobile aerial work platform


hydraulic aerial work platform

Height 8m Dual Mast Aerial Work Platform Insulated Type



Quick Detail:


Name Mobile Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 200Kg Platform Height 8m
Platform Size 1.18*0.62m Color Orange or Optional
Motor Power 1.10Kw Power Supply AC/DC





Insulated Aerial Work Platform can prevent the current to conduct to person, and it equips all fuctions the standard machine has, so it can be used even not in a plant.





It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 14m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.



Main Features:


1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10. Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch





Lift capacity 441lbs 200kg
Working height 31ft 9.89in 9.7m
Platform floor height 26ft 2.96in 8m
Platform length 3ft 10.45in 1.18m
Platform width 2ft 0.41in 0.62m
Ground Clearance 2.36in 0.06m
Lifting Power 1.1kw
Lifting Speed 0.09-0.1m/s
Motorized Power 0.75Kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 4ft 6.33in 1.38m
Overall width 2ft 9.46in 0.85m
Overall height 6ft 6.74in 2.00m
Outrigger footprint:
A Length 6ft 0.83in 1.85m
B Width 5ft 10.07in 1.78m
C Corner access 3.94in 0.10m
D Wall access front 9.45in 0.24m
E Wall access side 1ft 8.67in 0.525m
Weight 1058lbs 480kg

Height 8m Dual Mast Aerial Work Platform Insulated Type 0



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet


Competitive Advantage:


· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience



Communication with Customers


A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material


A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


A: What is the delivery time for your goods?

B: it is 30days after order confirmation


A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1


A: How long is your quality guarantee period?

B: We have one year warranty.
