Single Mast Manual Pushing Vetical Lift with Tilting Function Aerial Work Platform

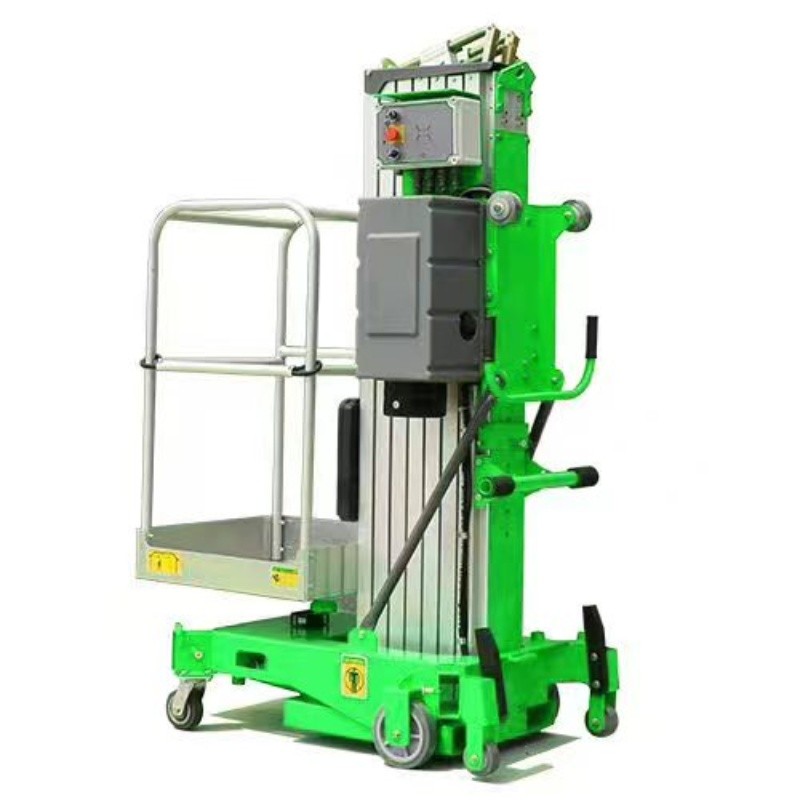

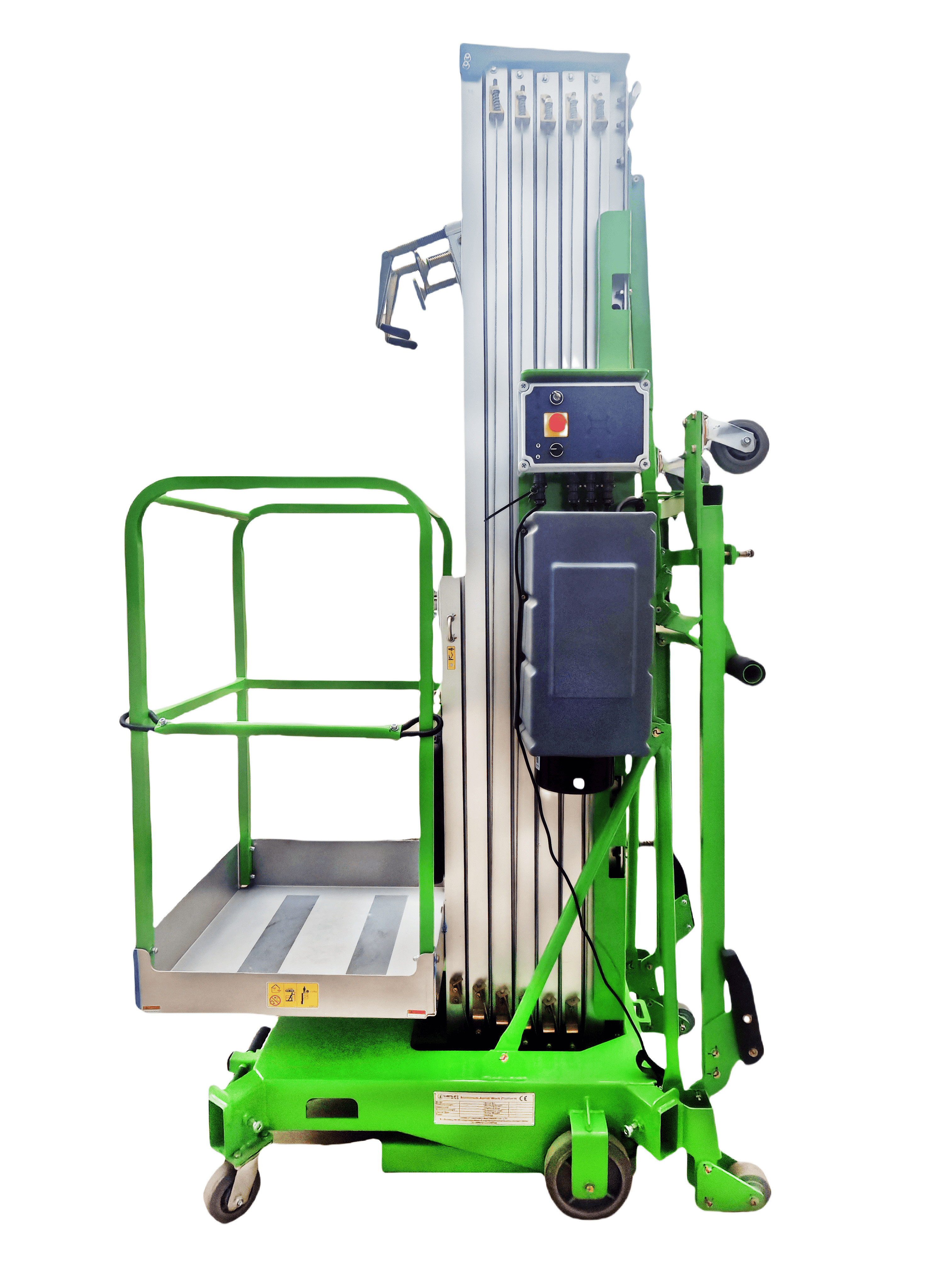

MT Portable Single Mast Mobile Vertical Lift Aerial Work Platform

The Single Mast Vertical Lift is mainly used for the installation and maintenance of the narrow spaces such as workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and more. It is easily to go through the regular doors and elevators.
Power supply standard is AC version (110V or 220V or 380V) and DC chargeable battery version (12V ) or AC &DC version are both optional. DC battery version always comes with battery charger, batteries can be recharged by automatic, built-in charger, and battery discharge indicator warns of low charge conditions.

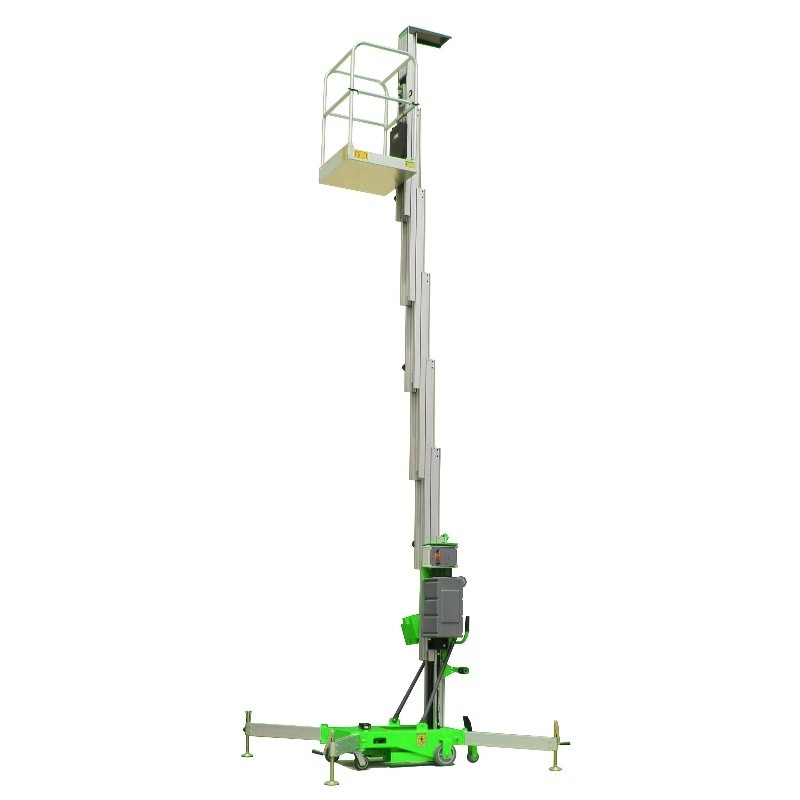

The lifting height ranges from 1.99m to 12m for different size Vertical Lift and the loading capacity varies from 120Kg to 150Kg.

Standard Configuration
●Platform Control With Deadman Switch
●Emergency Stop Button both  on PLatform and Ground

●Easily Loading to Pickup Truck
●Outrigger Interlock

●Forklift Pocket
●Emergency Lowing System

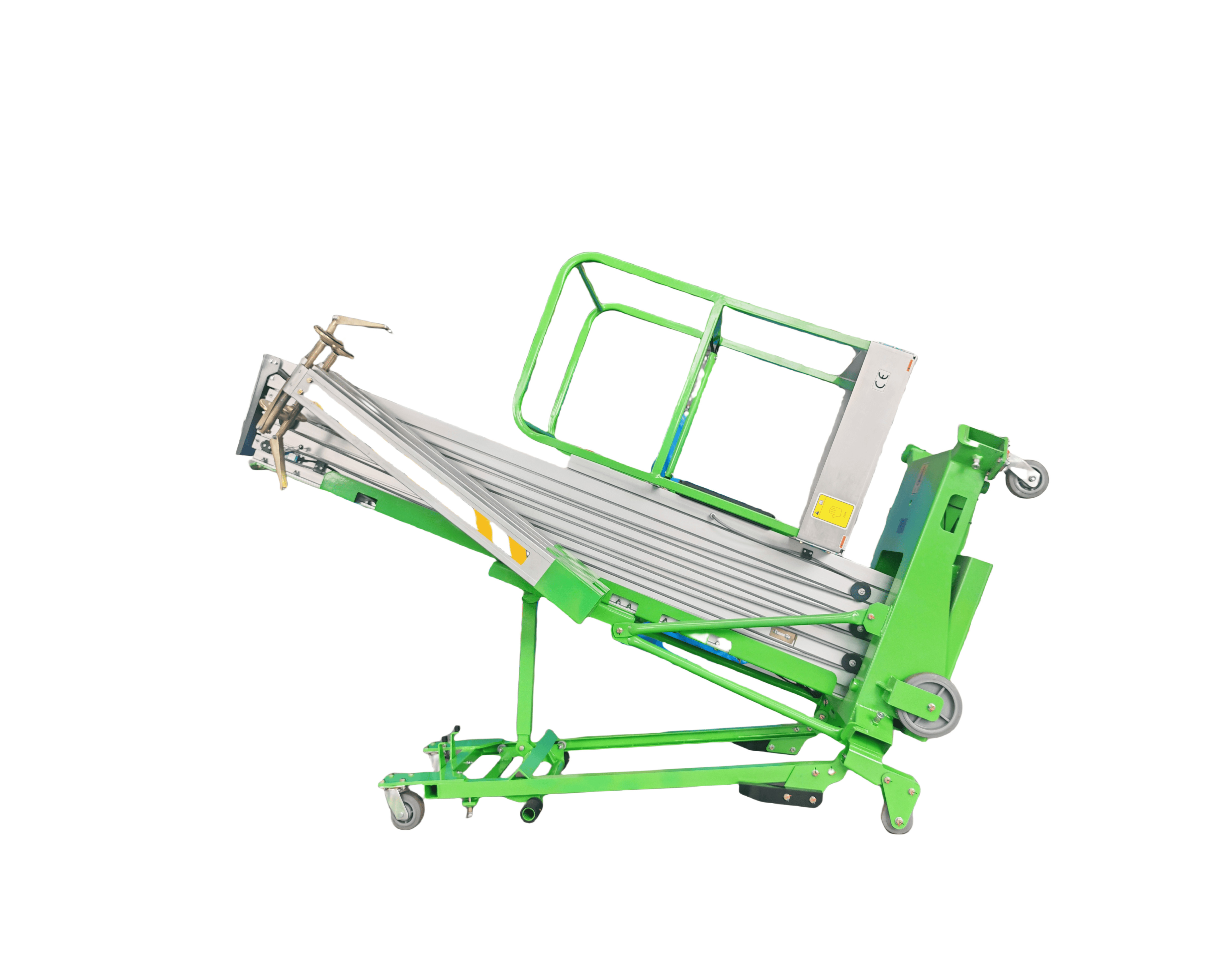

●Tilting Back Frame
●Detachable Outriggers

Optional Configuration

●Explosion-Proof System
●Motorized Device With Horn

●Isolation Platform
●Anti-Collision Sensor

●Over Loading Sensor
●Air Tube to PLatform

●PLatform Working Light

●PLatform Positioning Laser Lights

●Horn on PLatform

●Saloon-door Style Entry Gates / Top Open Door
