Place of Origin: | China |
Brand Name: | CHEN LIFT |
Certification: | CE |
Model Number: | GTWY12-200 (ME1200-2) |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Packed with Pallet, Wrapped with Film |
Delivery Time: | 30day after down payment |
Payment Terms: | T/T L/C |
Supply Ability: | 200 sets per month |
Loading Capacity: | 200kg | Platform Height: | 12m |
---|---|---|---|
Working Height: | 14m | Platform Size: | 1.52*0.62m |
Motor Power: | 1.10Kw | Lifting Time: | 100s |
Overall Size: | 1.76*1.0*2.0m | Outrigger Size: | 2.1*2.0m |
Weight: | 830kg | ||
Highlight: | mobile aerial work platform,hydraulic aerial work platform |

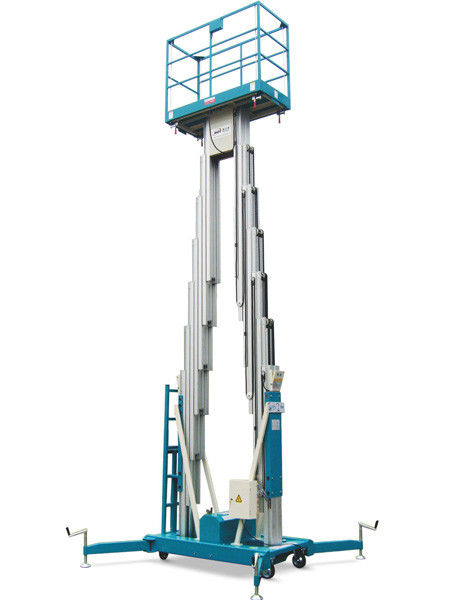

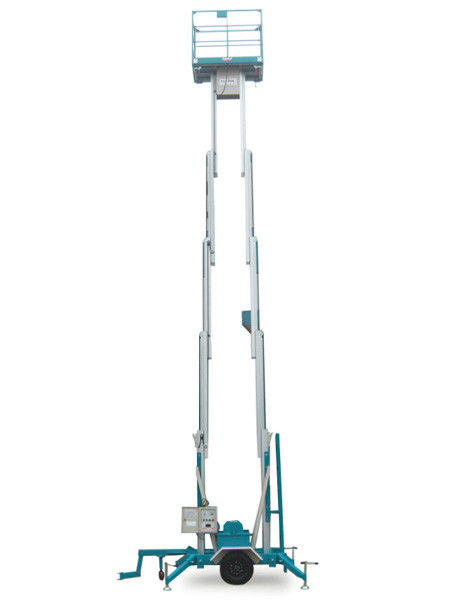

Insulated 12m Heavy Load Hydraulic Aerial Work Platform with Dual Mast
Quick Detail:
Name | Mobile Aerial Work Platform | Brand Name | CHEN LIFT |
Loading Capacity | 200Kg | Platform Height | 12m |
Platform Size | 1.52*0.62m | Color | Orange or Optional |
Motor Power | 1.10Kw | Power Supply | AC/DC |
Descriptions
Insulated Aerial Work Platform is designed for using the machine in insulated situation like plants or other place with electricity for protecting the operators consideration. The platform is made up of insulated materials and all the type and height aerial work platform can be made into this type.
Applications:
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 20m and lifting capacity varies from 125kg to 300kg.The power sources could be 220V, 380V or chargeable battery.
Main Features:
1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multi-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over load protection
10. Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch
Specifications:
MODEL | GTWY12-200 (ME1200-2) | |
PRODUCTIVITY | US | Metric |
Lift capacity | 441lbs | 200kg |
Working height | 45ft 11.18in | 14m |
Platform floor height | 39ft 4.44in | 12m |
Platform length | 4ft 11.84in | 1.52m |
Platform width | 2ft 0.41in | 0.62m |
Ground Clearance | 1.97in | 0.05m |
Lifting Power | 1.1kw | |
Lifting Speed | 0.09-0.1m/s | |
Motorized Power | 1.5Kw | |
Descending Speed | 0.08m/s | |
Anti Wind Capacity | Max. force 5 | |
Overall length | 5ft 9.29in | 1.76m |
Overall width | 3ft 3.37in | 1.00m |
Overall height | 6ft 6.74in | 2.00m |
Outrigger footprint: | ||
A Length | 6ft 10.68in | 2.10m |
B Width | 6ft 6.74in | 2.00m |
C Corner access | 3.94in | 0.10m |
D Wall access front | 1ft 0.59in | 0.32m |
E Wall access side | 2ft 1.59in | 0.65m |
Weight | 1830lbs | 830kg |
Optional Configuration:
Competitive Advantage:
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Contact Person: Mr. Aijun Liu
Tel: 0086-13951119762
Fax: 86-512-67339762
