Durable 200Kg Loading Hydraulic Lift Platform Towing Type Lifting 8m Dual Mast

Durable 200Kg Loading Hydraulic Lift Platform Towing Type Lifting 8m Dual Mast

  • Durable 200Kg Loading Hydraulic Lift Platform Towing Type Lifting 8m Dual Mast
  • Durable 200Kg Loading Hydraulic Lift Platform Towing Type Lifting 8m Dual Mast
  • Durable 200Kg Loading Hydraulic Lift Platform Towing Type Lifting 8m Dual Mast
Durable 200Kg Loading Hydraulic Lift Platform Towing Type Lifting 8m Dual Mast
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE
Model Number: GTWY8-200 (ME800-2)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Loading Capacity: 200kg Platform Height: 8m
Working Height: 10m Platform Size: 1.18*0.62m
Lifting Power: 1.1kw Overall Size: 1.54*1.00*2.00m
Outrigger Footprint: 1.77*1.82m Weight: 904kg
High Light:

hydraulic working platform

,

hydraulic aerial work platform

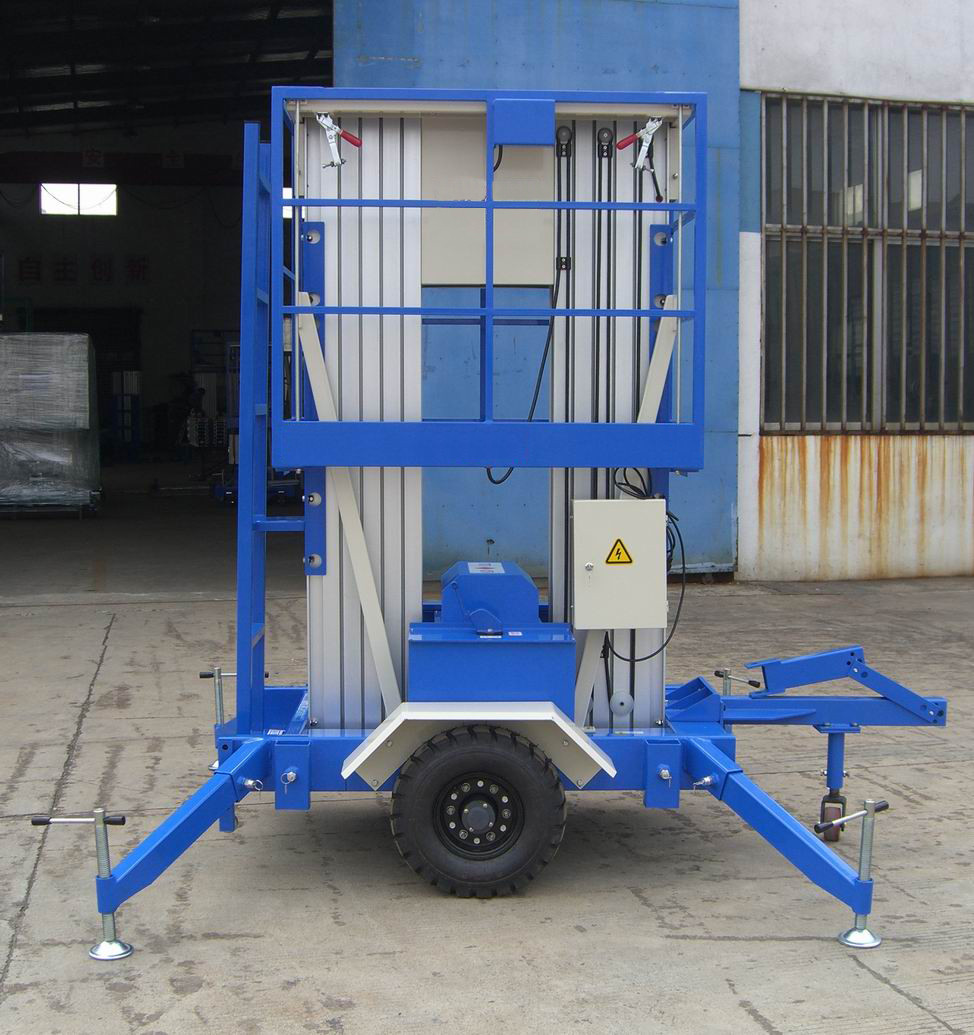

Durable 200Kg Loading Hydraulic Lift Platform Towing Type Lifting 8m Dual Mast





Quick Detail:



Name Mobile Aerial Work Platform Brand Name Xunte
Loading Capacity 200Kg Platform Height 8m
Platform Size 1.18*0.62m Color Orange or Optional
Motor Power 1.10Kw Power Supply AC/DC





Descriptions

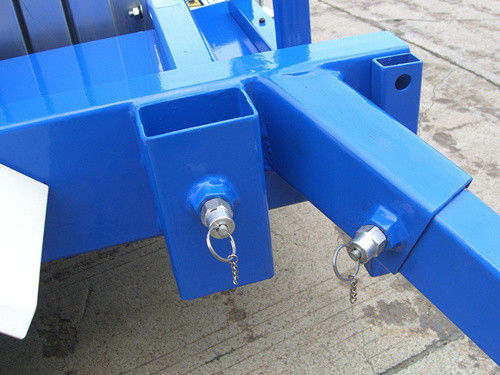

Towing Aerial Work Platform has outrigger sockets for placing outriggers while transorting. And the power supply for this kind machine is DC Power for the outside working consideration.





Applications:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 14m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.





Main Features:



1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10. Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch





Specifications:



MODEL GTWY8-200 (ME800-2)
PRODUCTIVITY US Metric
Lift capacity 441lbs 200kg
Working height 32ft 9.71in 10m
Platform floor height 26ft 2.96in 8m
Platform length 4ft 3.18in 1.30m
Platform width 2ft 0.41in 0.62m
Ground Clearance 1.97in 0.05m
Lifting Power 1.1kw
Lifting Speed 0.09-0.1m/s
Motorized Power 0.75Kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 5ft 0.63in 1.54m
Overall width 3ft 3.37in 1.00m
Overall height 6ft 6.74in 2.00m
Outrigger footprint:
A Length 5ft 11.65in 1.82m
B Width 5ft 9.69in 1.77m
C Corner access 3.94in 0.10m
D Wall access front 9.45in 0.24m
E Wall access side 1ft 8.67in 0.525m
Weight 1193lbs 904kg

Durable 200Kg Loading Hydraulic Lift Platform Towing Type Lifting 8m Dual Mast 0





Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet



Competitive Advantage:



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1



A: How long is your quality guarantee period?

B: We have one year warranty.
