9M Platform Height 130KG Loading Capacity Single Mast Aluminum Aerial Work Platform for Star Hotels / Business Hall

9M Platform Height 130KG Loading Capacity Single Mast Aluminum Aerial Work Platform for Star Hotels / Business Hall

  • 9M Platform Height 130KG Loading Capacity Single Mast Aluminum Aerial Work Platform for Star Hotels / Business Hall
  • 9M Platform Height 130KG Loading Capacity Single Mast Aluminum Aerial Work Platform for Star Hotels / Business Hall
  • 9M Platform Height 130KG Loading Capacity Single Mast Aluminum Aerial Work Platform for Star Hotels / Business Hall
9M Platform Height 130KG Loading Capacity Single Mast Aluminum Aerial Work Platform for Star Hotels / Business Hall
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY9-100 (ME900-1)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Lift Capacity: 130kg Platform Height: 9m
Working Height: 11m Platform Size: 0.60x0.55m
Weight: 400kg
High Light:

mobile aerial work platform

,

aerial work platform

9M Platform Height 130KG Loading Capacity Single Mast Aluminum Aerial Work Platform for Star Hotels / Business Hall​





Quick Detail:



Name Mobile Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 130Kg Platform Height 9m
Platform Size 0.60*0.55m Color Blue or Optional
Motor Power 0.75kw Power Supply AC/DC





Description:

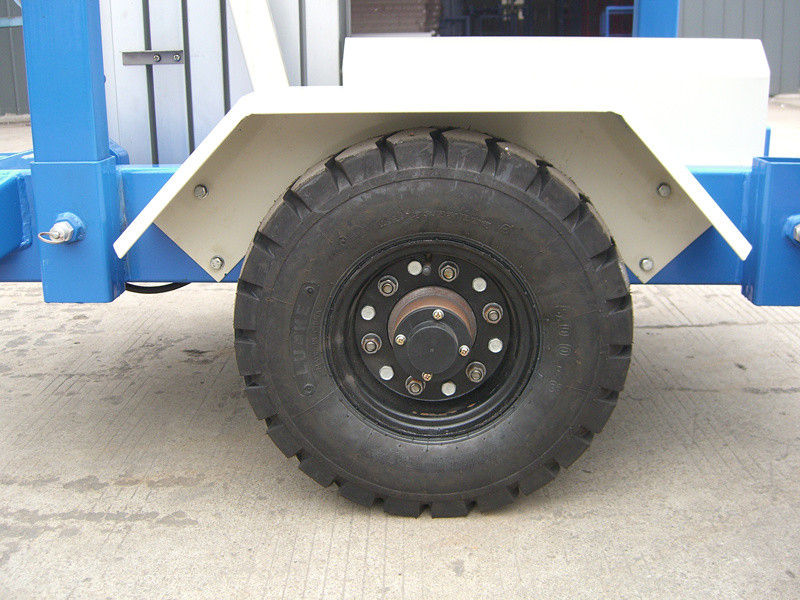

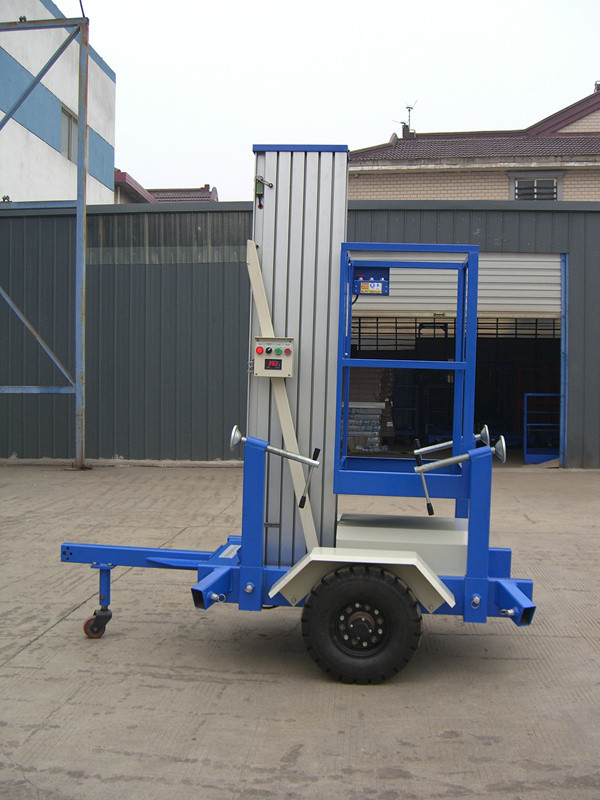

Towing Aerial Work Platform with detachable outriggers which need to detached during trasportation to avoid damage. Not like our standard machines, it is equipped with two inflated wheel and has towing bar at tthe back of the machine.





Applications:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 4m to 9m and lifting capacity varies from 100kg to 125kg.The power sources could be 220V, 380V or chargeable battery.





Main Features:



1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10. Built-in pressure release valve

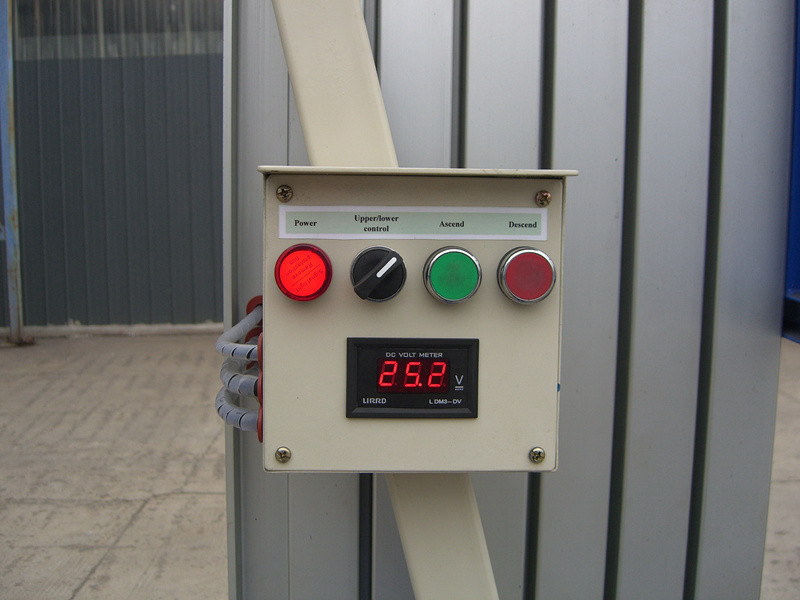

11. Dual activated up/down switch

12. Locking Key Switch





Specification:



MODEL GTWY9-100 (ME900-1)
PRODUCTIVITY US Metric
Lift capacity 287lbs 130kg
Working height 36ft 1.07in 11m
Platform height 29ft 6.33in 9m
Platform length 1ft 11.62in 0.60m
Platform width 1ft 9.65in 0.55m
Ground Clearance 1.97in 0.05m
Lifting Power 0.75kw
Lifting Speed 0.09-0.1m/s
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 4ft 9.09in 1.45m
Overall width 2ft 9.46in 0.85m
Overall height 6ft 6.74in 2.00m
Outrigger footprint:
A Length 6ft 0.83in 1.93m
B Width 5ft 10.07in 1.77m
C Corner access 3.94in 0.10m
D Wall access front 9.45in 0.24m
E Wall access side 1ft 7.68in 0.50m
Weight 882Ibs 400kg

9M Platform Height 130KG Loading Capacity Single Mast Aluminum Aerial Work Platform for Star Hotels / Business Hall 0





Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet



Competitive Advantage:



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
