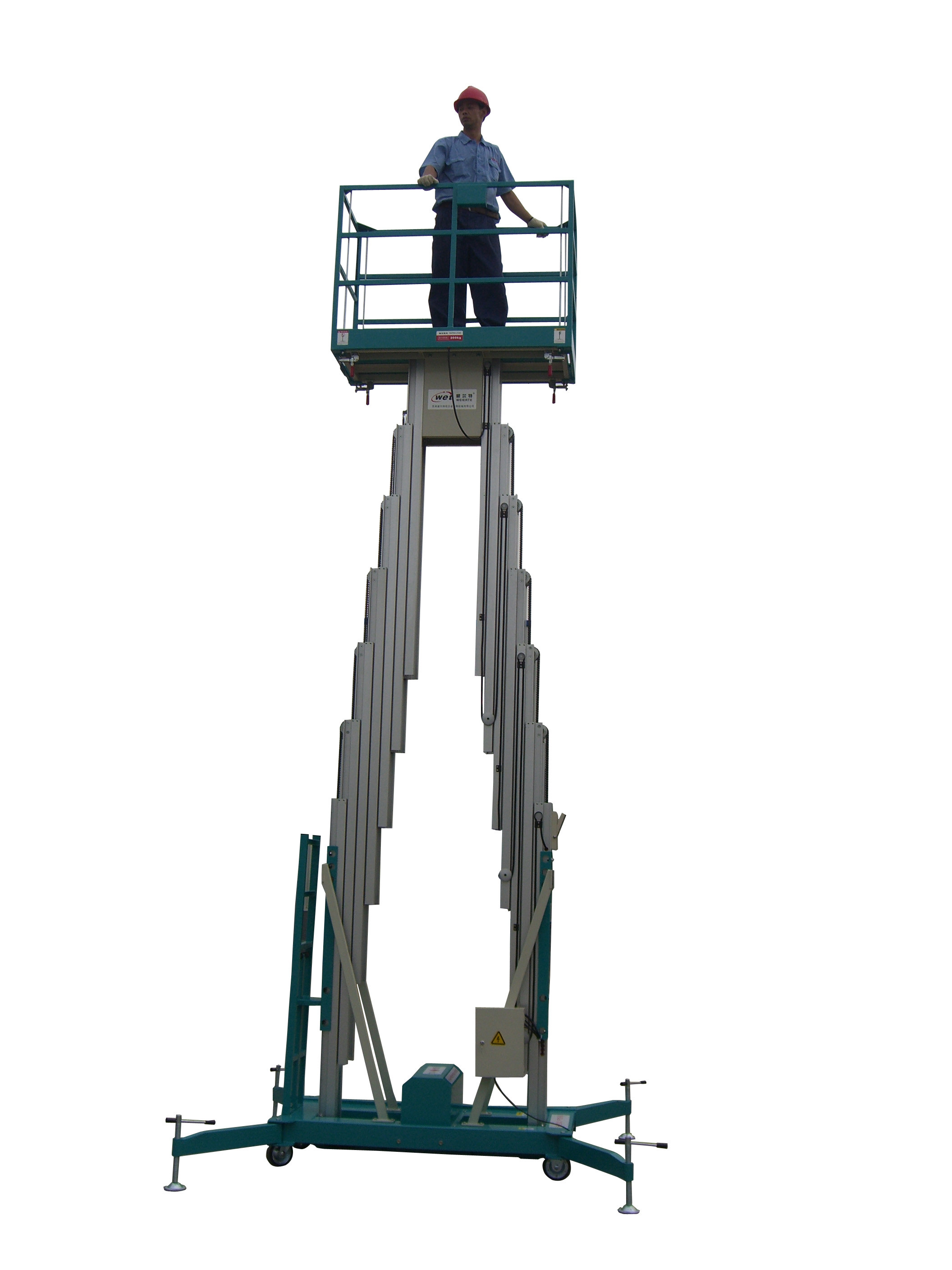

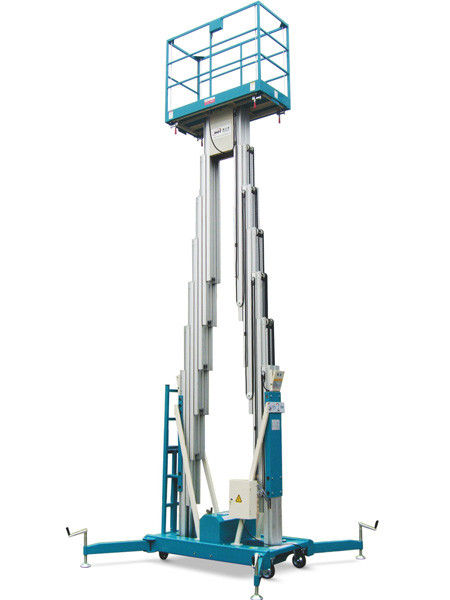

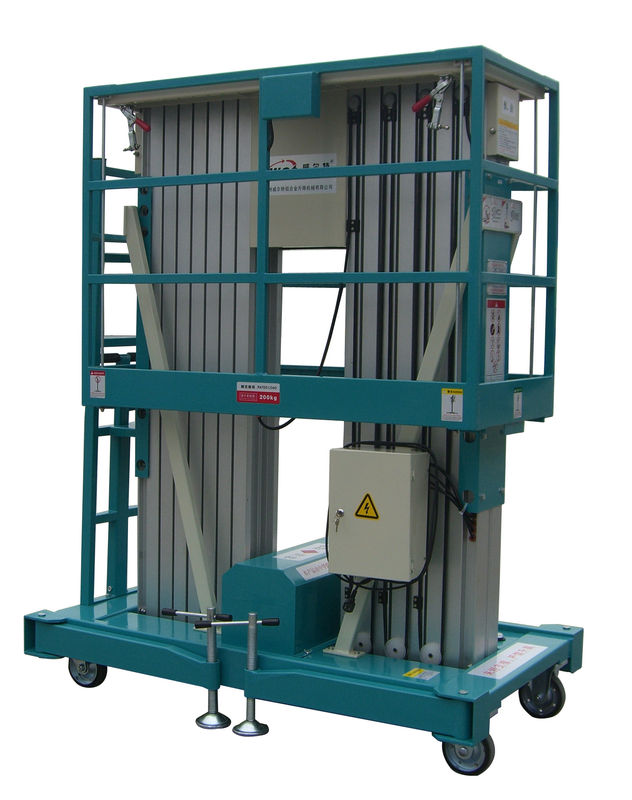

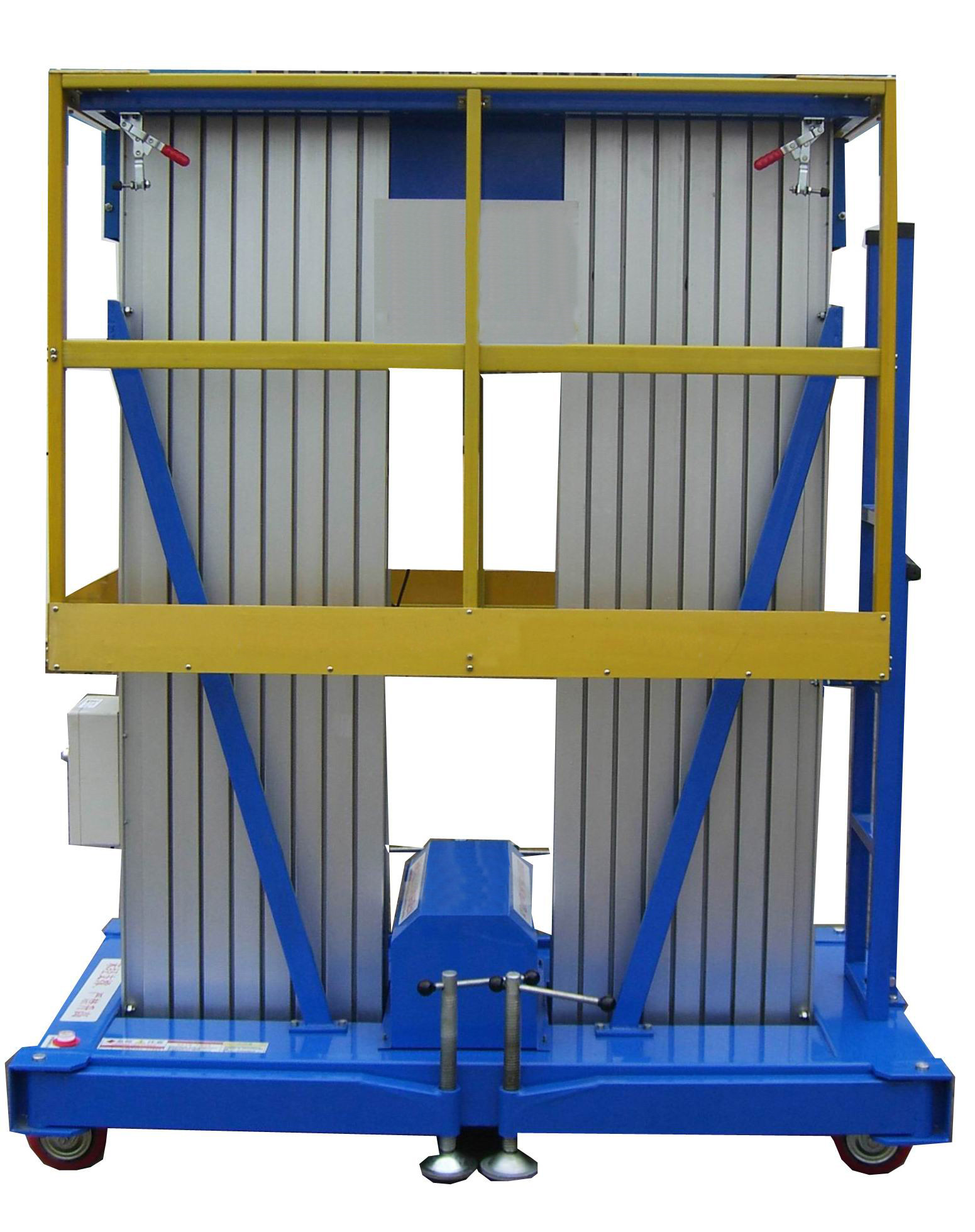

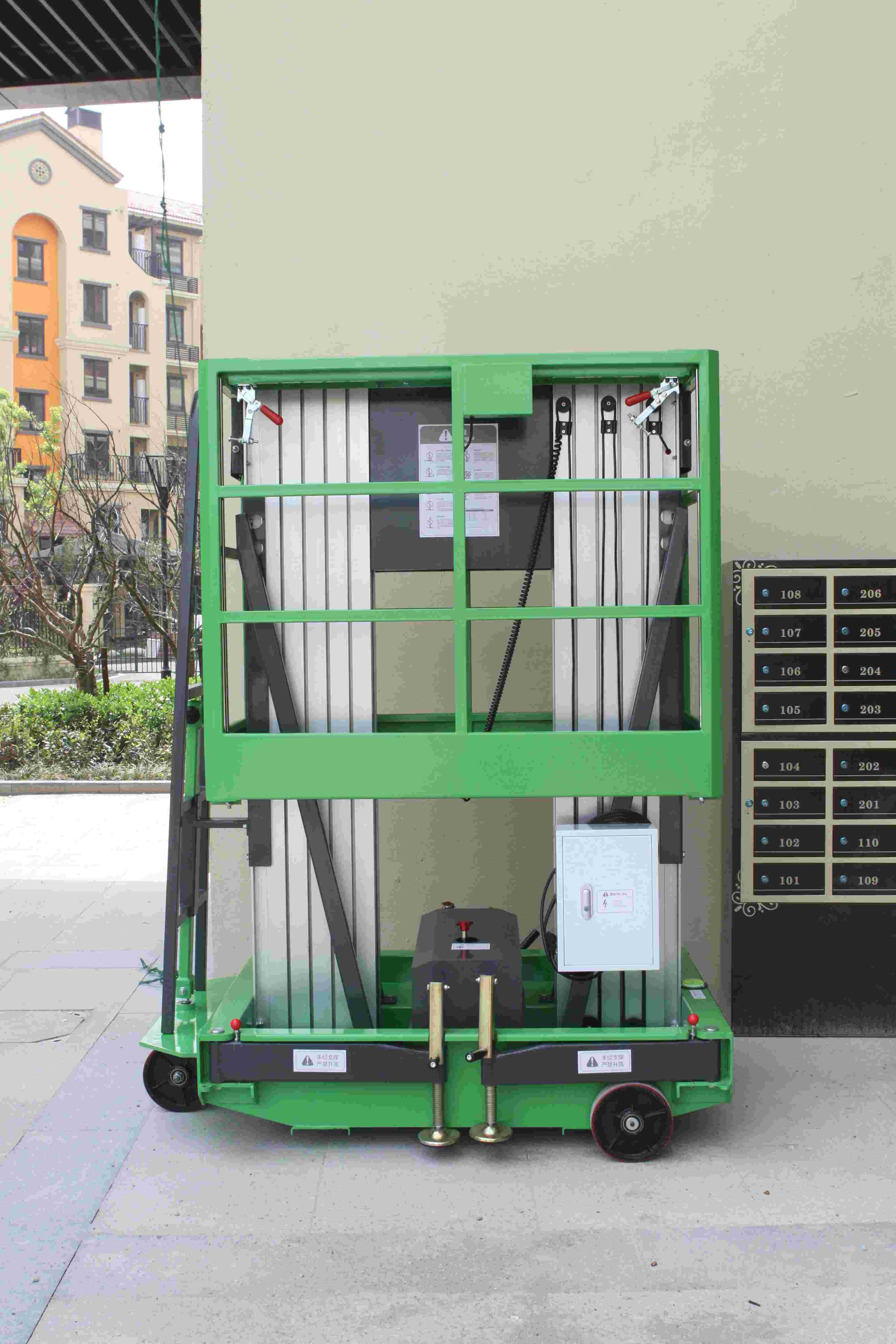

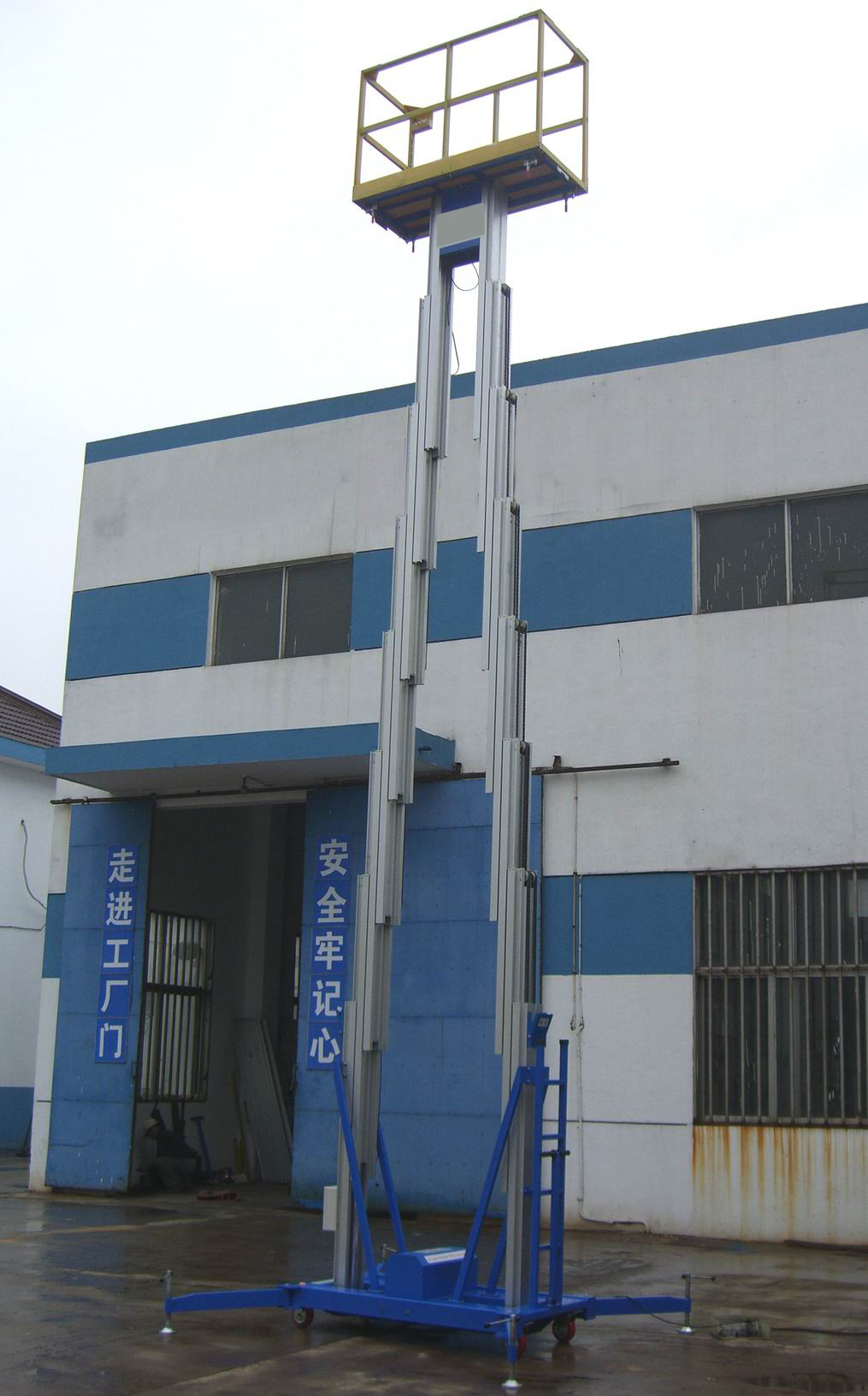

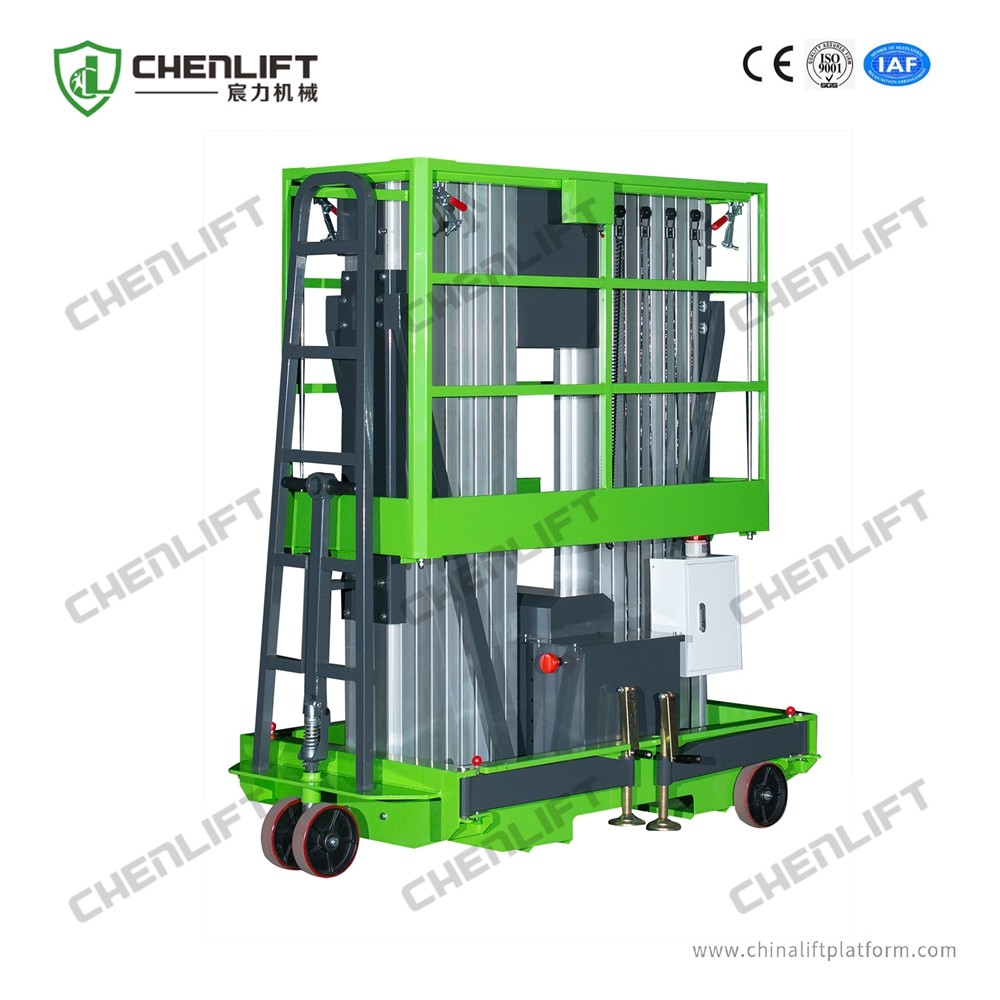

Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg

Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg

  • Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg
  • Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg
  • Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg
  • Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg
  • Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg
  • Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg
  • Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg
  • Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg
Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE
Model Number: GTWY12-200 (ME1200-2)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Loading Capacity: 200kg Platform Height: 12m
Working Height: 14m Platform Size: 1.52*0.62m
Overall Size: 1.76*1.00*2.00m Outrigger Size: 2.10*2.00m
Lifting Time: 100s Motor Power: 1.1kw
Weight: 850kg
High Light:

mobile hydraulic lift

,

hydraulic working platform



Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg



Quick Detail:



Name Towing Aerial Work Platform Brand Name Xunte
Loading Capacity 200Kg Platform Height 12m
Platform Size 1.52*0.62m Color Blue or Optional
Motor Power 1.10Kw Power Supply AC/DC



Descriptions



Double Mast Towing Aerial Work Platform has all the fuctions the standard double mast aerial work platform has. Towing Type can be transported for long distance for it can be attached to as vehile and its unique tyre.



Applications:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity varies from 125kg to 200kg.The power sources could be 220V, 380V or chargeable battery.



Main Features:



1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10. Built-in pressure release valve

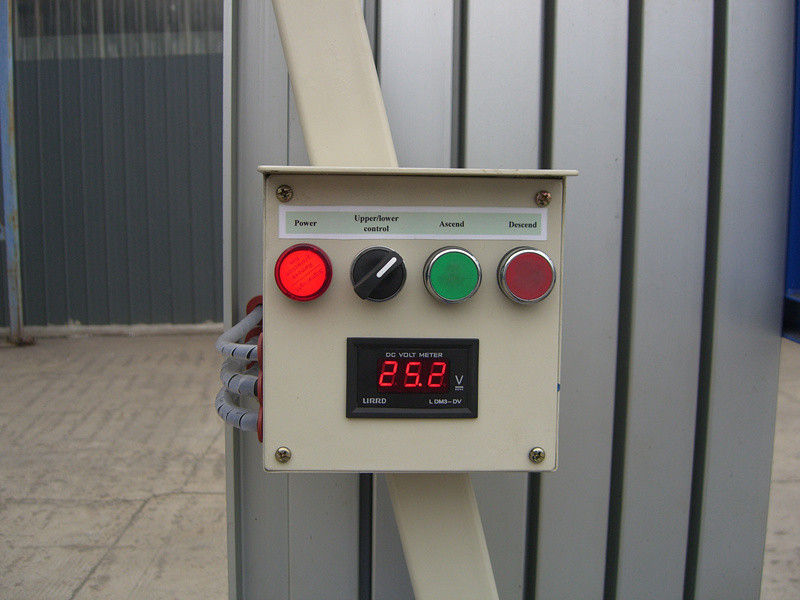

11. Dual activated up/down switch

12. Locking Key Switch



Specifications:



MODEL GTWY12-200 (ME1200-2)
PRODUCTIVITY US Metric
Lift capacity 441lbs 200kg
Working height 45ft 551in 14m
Platform floor height 39ft 472in 12m
Platform length 4ft  59.84in 1.52m
Platform width 2ft 24.41in 0.62m
Ground Clearance 1.97in 0.05m
Lifting Power 1.1kw
Lifting Speed 0.09-0.1m/s
Motorized Power 0.75Kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 5ft 69.29in 1.76m
Overall width 3ft 39.37in 1.00m
Overall height 6ft 78.74in 2.00m
Outrigger footprint:
A Length 6ft 82.68 in 2.10m
B Width 6ft 78.74in 2.00m
C Corner access 3.94in 0.10m
D Wall access front 1ft 12.59in 0.32m
E Wall access side 2ft 25.59in 0.65m
Weight 1830lbs 850kg



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet



Competitive Advantage:



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg 0Towing Hydraulic Lift Double Mast Aerial Work Platform 12m And Loading 200Kg 1





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:



Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1



A: How long is your quality guarantee period?

B: We have one year warranty.
