|Place of Origin:||China|
|Brand Name:||CHEN LIFT|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wrapped in pallet or in wooden case|
|Delivery Time:||30 days after down payment|
|Payment Terms:||T/T, L/C|
|Supply Ability:||200 sets per month|
|Loading Capacity:||150Kg||Platform Height:||18m|
|Platform Size:||1.45*1.10m||Lifting Power:||2.2Kw|
|Overall Size:||2.28*1.60*2.42m||Outrigger Footprint:||3.20*3.00m|
hydraulic aerial work platform,
aerial work platform

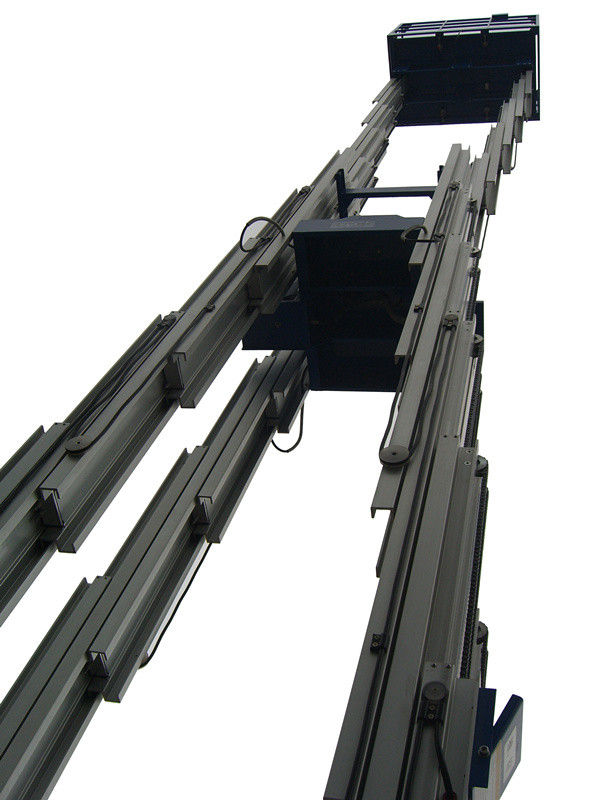

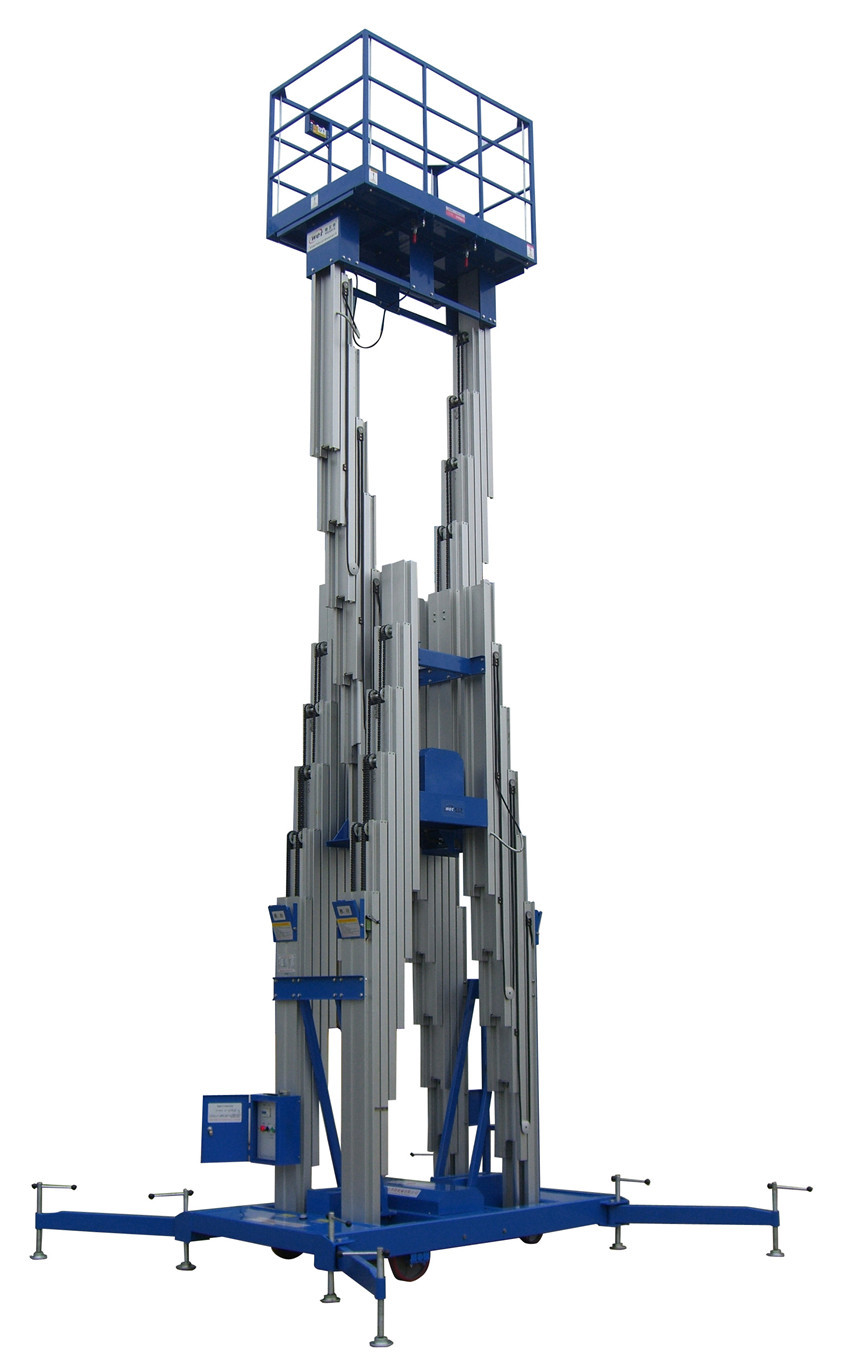

18m Aerial Work Platform Multi Mast Aluminum Profile 150Kg Loading Capacity
|Name||Mobile Aerial Work Platform||Brand Name||CHEN LIFT|
|Loading Capacity||150Kg||Platform Height||18m|
|Platform Size||1.45*1.10m||Color||Blue or Optional|
|Motor Power||2.20Kw||Power Supply||AC/DC|
Multi Mast Aluminum Aerial Work Platforms are suitable for single person to work on the platform which is made up of high grade aluminum profile in six groups of mast supporting the platform synchronous lifting with four founded mast combined with two upper mast. It is also equipped with univeral wheels, two sets of control panels and ladder.
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 16m to 20m and lifting capacity is 150Kg.The power sources could be 220V, 380V or chargeable battery.
1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multi-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over load protection
10 .Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch
13. Optional extended platform
14. Entry ladder
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
Communication with Customers:
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
A: What is the delivery time for your goods?
B: it is 30days after order confirmation
A: What spare parts that you can offer?
B: Find the list below which we are offering with the machine when shipment for free:
|O-shape rubber ring||40×3.1||4|
|O-shape rubber ring||11×1.9||2|
|O-shape rubber ring||40×30×6||1|
A: How long is your quality guarantee period?
B: We have one year warranty.
