14m Height Extension Platform Telescopic Boom Lift for Street Light , 250Kg

14m Height Extension Platform Telescopic Boom Lift for Street Light , 250Kg

  • 14m Height Extension Platform Telescopic Boom Lift for Street Light , 250Kg
  • 14m Height Extension Platform Telescopic Boom Lift for Street Light , 250Kg
14m Height Extension Platform Telescopic Boom Lift for Street Light , 250Kg
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY14-300 (ME1400-3)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30day after down payment
Payment Terms: T/T
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Loading Capacity: 250kg Platform Height: 14m
Working Height: 16m Platform Size: 1.60*0.88m
Motor Power: 2.20Kw Lifting Power: 112s
Overall Size: 1.92*1.0*2.0m Outrigger Size: 2.5*2.4m
Weight: 1150kg
High Light:

hydraulic aerial work platform

,

aerial work platform



14m Height Extension Platform Telescopic Boom Lift for Street Light , 250Kg





Quick Detail:



Name Mobile Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 250Kg Platform Height 14m
Platform Size 1.60*0.88m Color Blue or Optional
Motor Power 2.20Kw Power Supply AC/DC





Descriptions

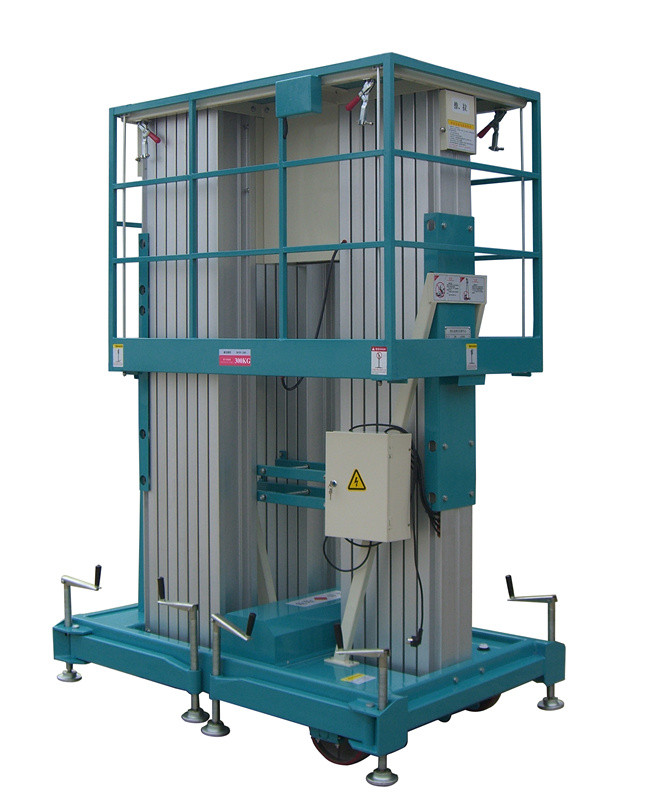

Triple Mast Aerial Work Platforms all also called Personal Lift, which enables people to work in the heights. It also can be used as the goods lift. And for this machine we usually suggest our customer to choose the Motorized Device, because it can save peoples force a lot while moving it.





Applications:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 10m to 14m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.





Main Features:



1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10 .Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch

13. Optional extended platform

14. Entry ladder





Specifications:



MODEL GTWY14-300 (ME1400-3)
PRODUCTIVITY US Metric
Lift capacity 551lbs 250kg
Working height 52ft 5.92in 16m
Platform floor height 45ft 11.18in 14m
Platform length 5ft 2.99in 1.60m
Platform width 2ft 10.65in 0.88m
Ground Clearance 5.91in 0.15m
Lifting Power 2.2kw
Lifting Speed 0.09-0.1m/s
Motorized Power 2.2kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 6ft 3.59in 1.92m
Overall width 3ft 7.31in 1.1m
Overall height 7ft 10.49in 2.4m
Outrigger footprint:
A Length 8ft 2.43in 2.5m
B Width 7ft 10.49in 2.4m
C Corner access 3.94in 0.10m
D Wall access front 11.42in 0.29m
E Wall access side 2ft 1.98in 0.66m
Weight 2525lbs 1150kg

14m Height Extension Platform Telescopic Boom Lift for Street Light , 250Kg 0





Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet



Competitive Advantage:



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1



A: How long is your quality guarantee period?

B: We have one year warranty.
