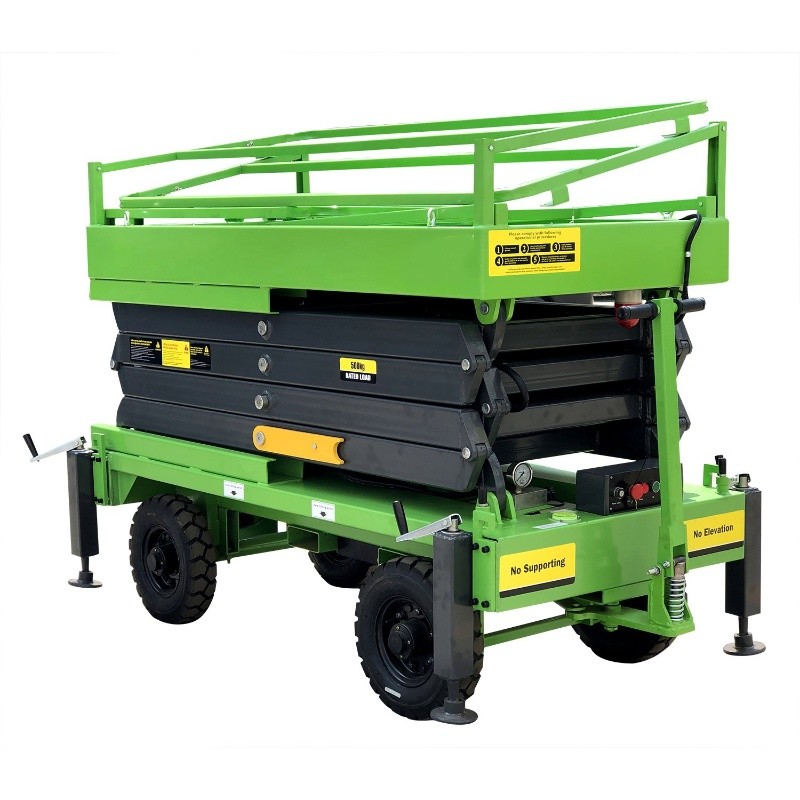

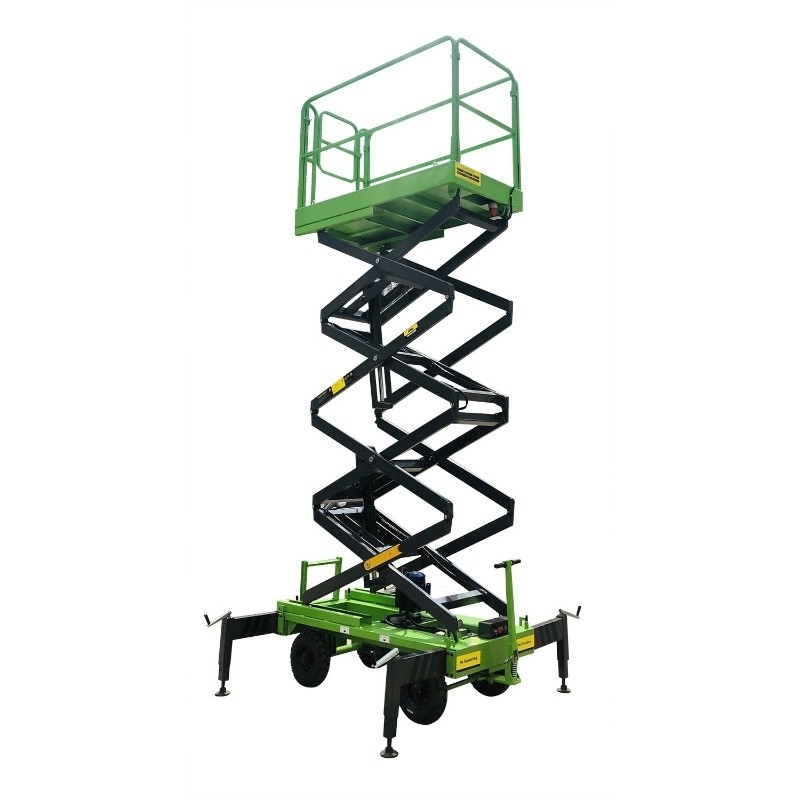

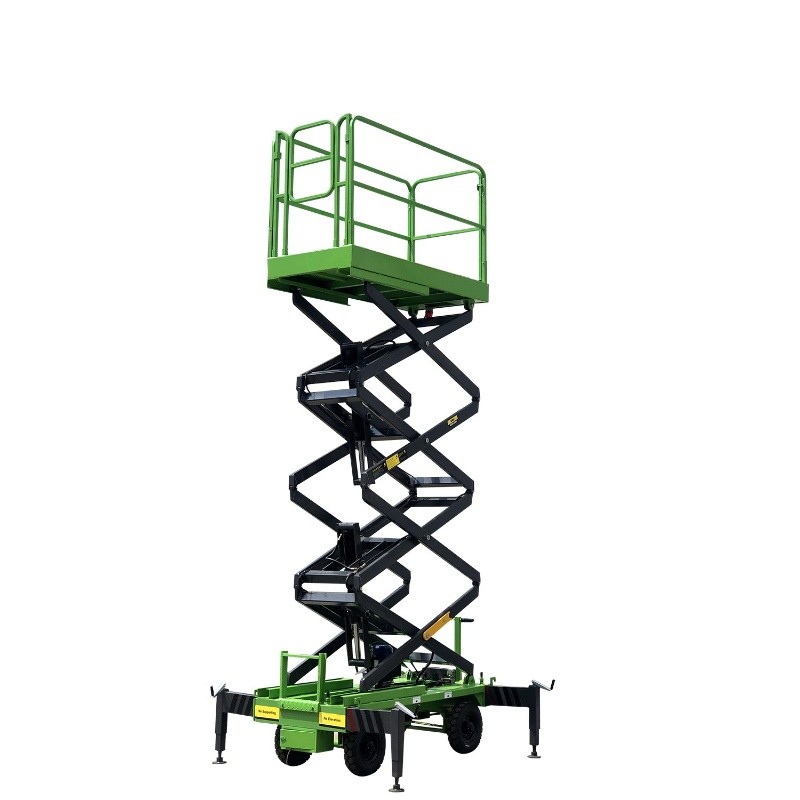

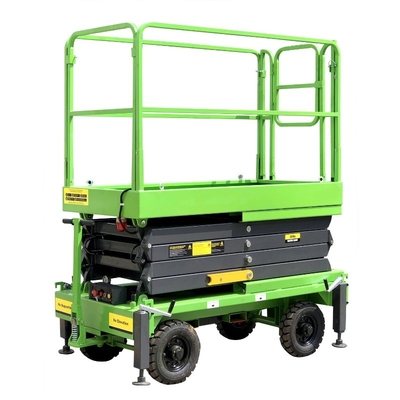

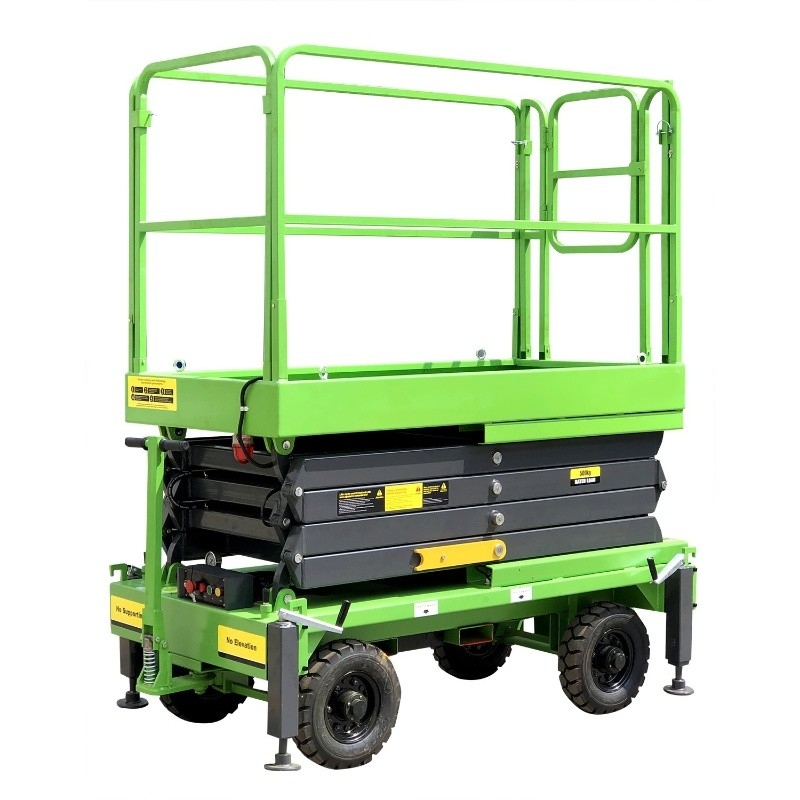

6 Meters Hydraulic Mobile Scissor Lift with 450Kg Loading Capacity

6 Meters Hydraulic Mobile Scissor Lift with 450Kg Loading Capacity

  • 6 Meters Hydraulic Mobile Scissor Lift with 450Kg Loading Capacity
  • 6 Meters Hydraulic Mobile Scissor Lift with 450Kg Loading Capacity
  • 6 Meters Hydraulic Mobile Scissor Lift with 450Kg Loading Capacity
6 Meters Hydraulic Mobile Scissor Lift with 450Kg Loading Capacity
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE ISO9001: 2008 IPAF member
Model Number: SJY0.45-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 days after receipt of deposit
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Model No.: SJY0.45-6 Loading Capacity: 450kg
Max. Height: 6m Min. Height: 0.95m
Platform Size: 1.85*0.88m Lifting Time: 54s
Weight: 650kg Measurement: 1.90*1.12*0.95mm
Motor Power: 1.1kw
Highlight:

mobile hydraulic lift

,

hydraulic aerial work platform



6 Meters Hydraulic Mobile Scissor Lift with 450Kg Loading Capacity



Parameter:



Loading Capacity 450kg
Maximum Height 6000mm
Minimum Height 950mm
Platform Size 1850mm*880mm
Lifting Power 1.1kw
Power Voltage 1phase/220V/50HZ or 3phases/380V/50HZ
Lifting Time 54s
Cylinder Ф80(2pcs)
Gear Pump 6ml/r
Total Weight 650kg
Measurement 1900*1120*950mm



Description:



Mobile Scissor lifts are also called as mobile scissor aerial work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Anti-skid checkered plate
  • Tire: Ø200 poiyurethane wheel
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet

Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



Why to choose Xunte Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience



6 Meters Hydraulic Mobile Scissor Lift with 450Kg Loading Capacity 0



6 Meters Hydraulic Mobile Scissor Lift with 450Kg Loading Capacity 1



Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:



Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
