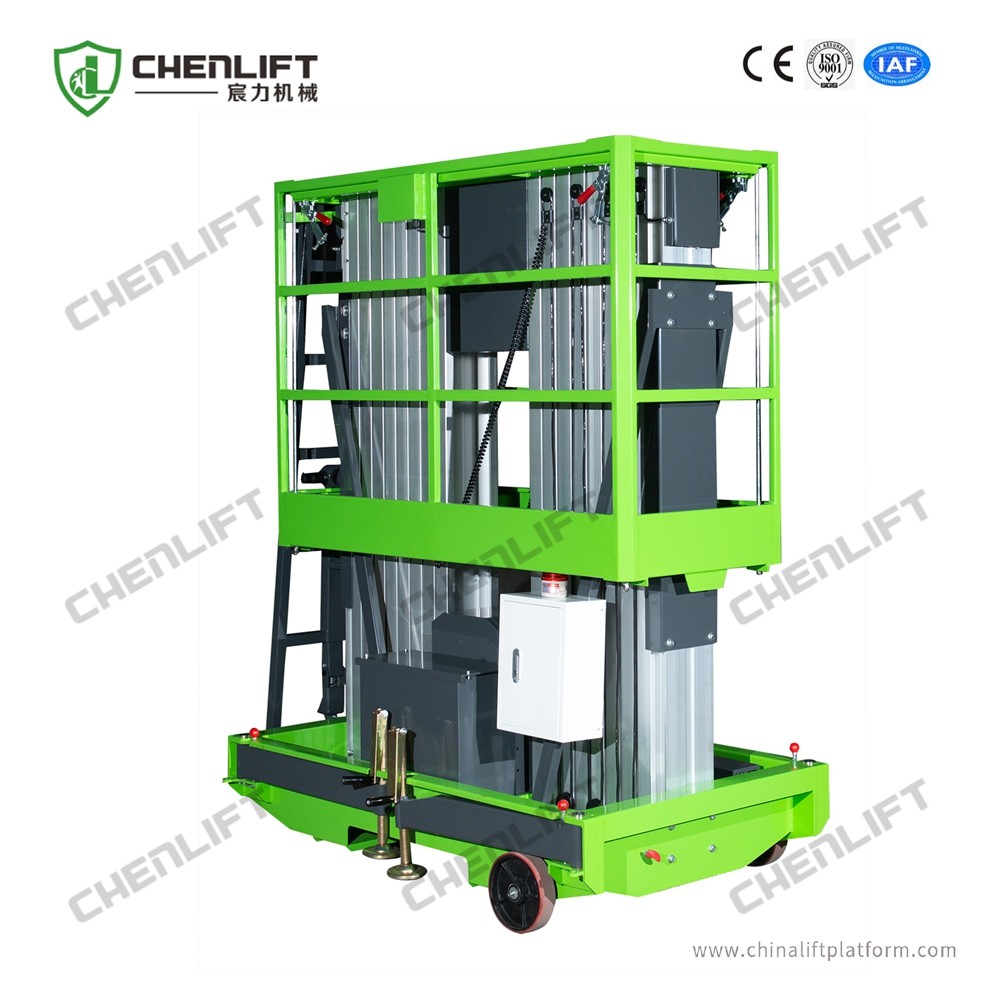

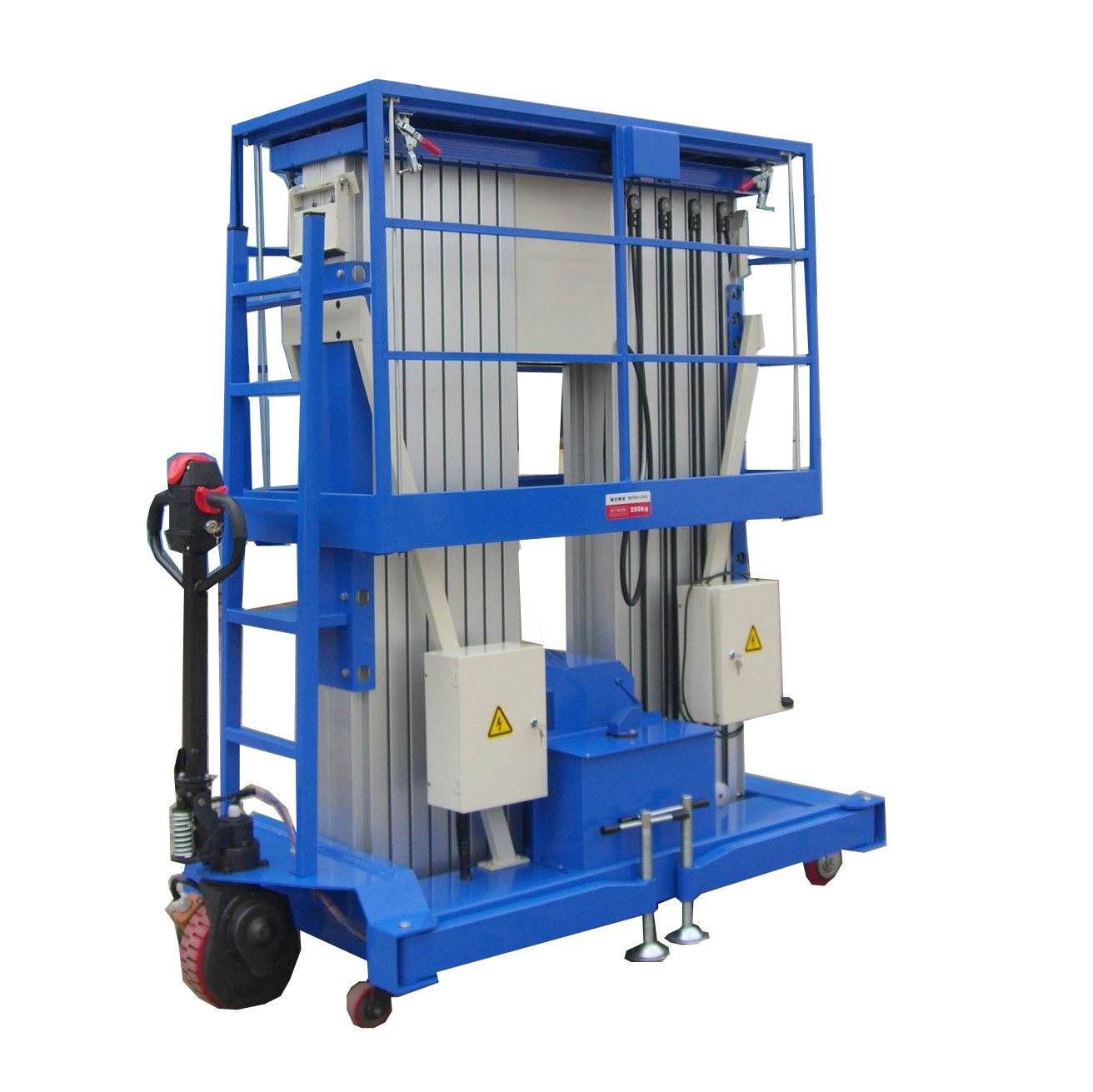

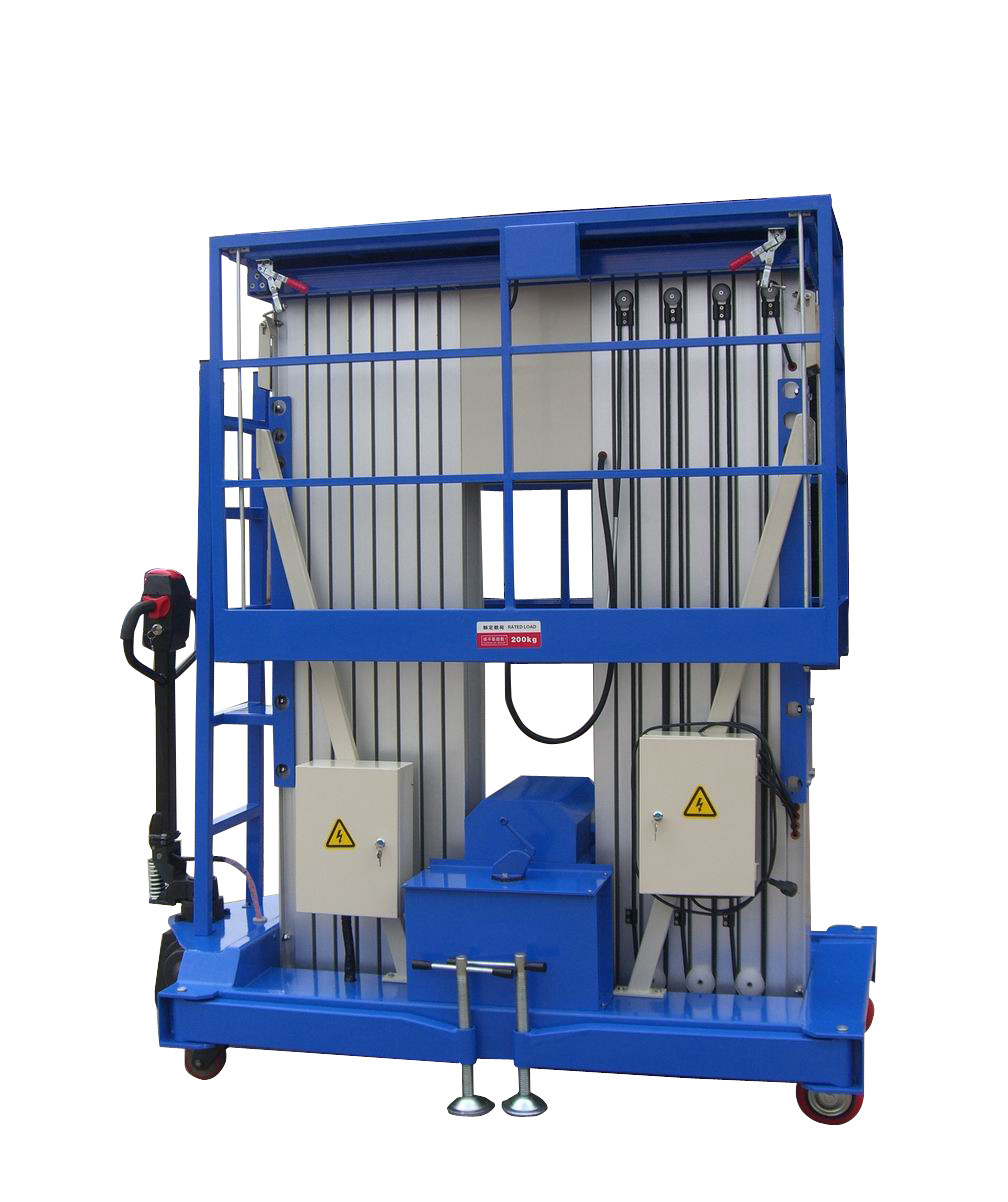

Maximum Height 9m Mobile Aerial Work Plaform with Electrical Wheel

Maximum Height 9m Mobile Aerial Work Plaform with Electrical Wheel

  • Maximum Height 9m Mobile Aerial Work Plaform with Electrical Wheel
  • Maximum Height 9m Mobile Aerial Work Plaform with Electrical Wheel
  • Maximum Height 9m Mobile Aerial Work Plaform with Electrical Wheel
  • Maximum Height 9m Mobile Aerial Work Plaform with Electrical Wheel
Maximum Height 9m Mobile Aerial Work Plaform with Electrical Wheel
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY9-200 (ME900-2)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packed with Pallet, Wrapped with Film
Delivery Time: 30day after down payment
Payment Terms: T/T L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Loading Capacity: 200kg Platform Height: 9m
Working Height: 11m Platform Size: 1.30*0.62m
Extension Platform Length: 0.8m Motor Power: 1.1kw
Lifting Time: 80s Overall Size: 1.54*1.*2.0m
Outrigger Footprint: 1.82*1.77m Weight: 730kg
High Light:

mobile aerial work platform

,

hydraulic aerial work platform



Maximum Height 9m Mobile Aerial Work Plaform with Electrical Wheel





Quick Detail:



Name Mobile Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 200Kg Platform Height 9m
Platform Size 1.30*0.62m Color Blue or Optional
Motor Power 1.10Kw Power Supply AC/DC
Extension Platform Length 0.8m Extension Platform Loading Capacity  50Kg





Descriptions

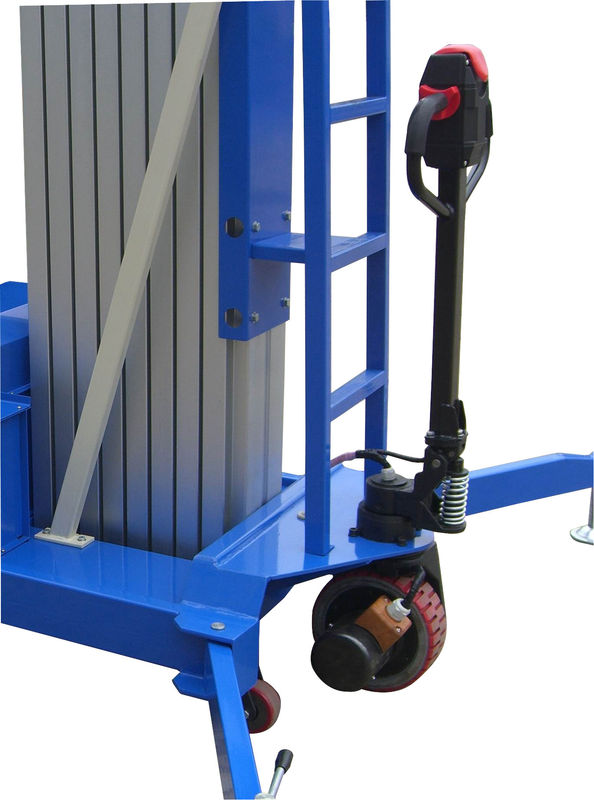

Mobile aluminum aerial work platform with motorized pulling device, compared with mast aluminum AWP, it is equipped with the electric motorized device with moving and turning function. It is in manually traction; easily move, saving manpower and time. Driven by hydraulic motor, turning and lifting by battery in DC power, no external power required. It brings more efficiency and convenience as an ideal and most useful aerial working facility. The electric Self-propelled device can be configured in any of the lifts.





Applications:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.





Main Features:



1.Most rigid aluminum alloy profile

2.Auxiliary platform lowering

3.Multi-guide pulley on mast

4.Durable base system

5.Chassis with level gauge

6.DC working power on the platform

7.Easily rolls through a narrow space

8.Emergency stop button

9.Over load protection

10.Built-in pressure release valve

11.Dual activated up/down switch

12.Locking Key Switch

13.Optional extended platform

14.Entry ladder





Specifications:



MODEL GTWY9-200 with Extension (ME900-2)
PRODUCTIVITY US Metric
Lift capacity 441lbs 200kg
Working height 36ft 1.07in 11m
Platform floor height 29ft 6.33in 9m
Platform length 4ft 3.18n 1.30m
Platform width 2ft 0.41in 0.62m
Ground Clearance 1.97in 0.05m
Lifting Power 1.1kw
Lifting Speed 0.09-0.1m/s
Motorized Power 0.80Kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 5ft 0.63in 1.54m
Overall width 23t 3.37in 1.00m
Overall height 6ft 6.74in 2.00m
Outrigger footprint:
A Length 6ft 2.02in 1.82m
B Width 5ft 9.69in 1.77m
C Corner access 3.94in 0.10m
D Wall access front 11.42in 0.29m
E Wall access side 2ft 0.02in 0.61m
Weight 1609lbs 730kg

Maximum Height 9m Mobile Aerial Work Plaform with Electrical Wheel 0





Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet



Competitive Advantage:



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1



A: How long is your quality guarantee period?

B: We have one year warranty.
