Place of Origin: | China |
Brand Name: | CHEN LIFT |
Certification: | CE |
Model Number: | GTWY9-200 (ME900-2) |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wrapped in pallet or in wooden case |
Delivery Time: | 30day after down payment |
Payment Terms: | T/T L/C |
Supply Ability: | 200 sets per month |
Loading Capacity: | 200kg | Platform Height: | 9m |
---|---|---|---|
Working Height: | 11m | Platform Size: | 1.38*0.62m |
Motor Power: | 1.10Kw | Lifting Time: | 80s |
Overall Size: | 1.54*1.0*2.0m | Outrigger Size: | 1.82*1.77m |
Weight: | 730kg | ||
High Light: | hydraulic aerial work platform,aerial work platform |

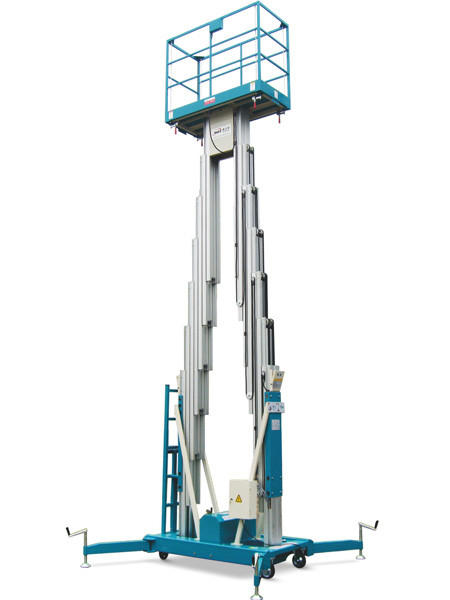

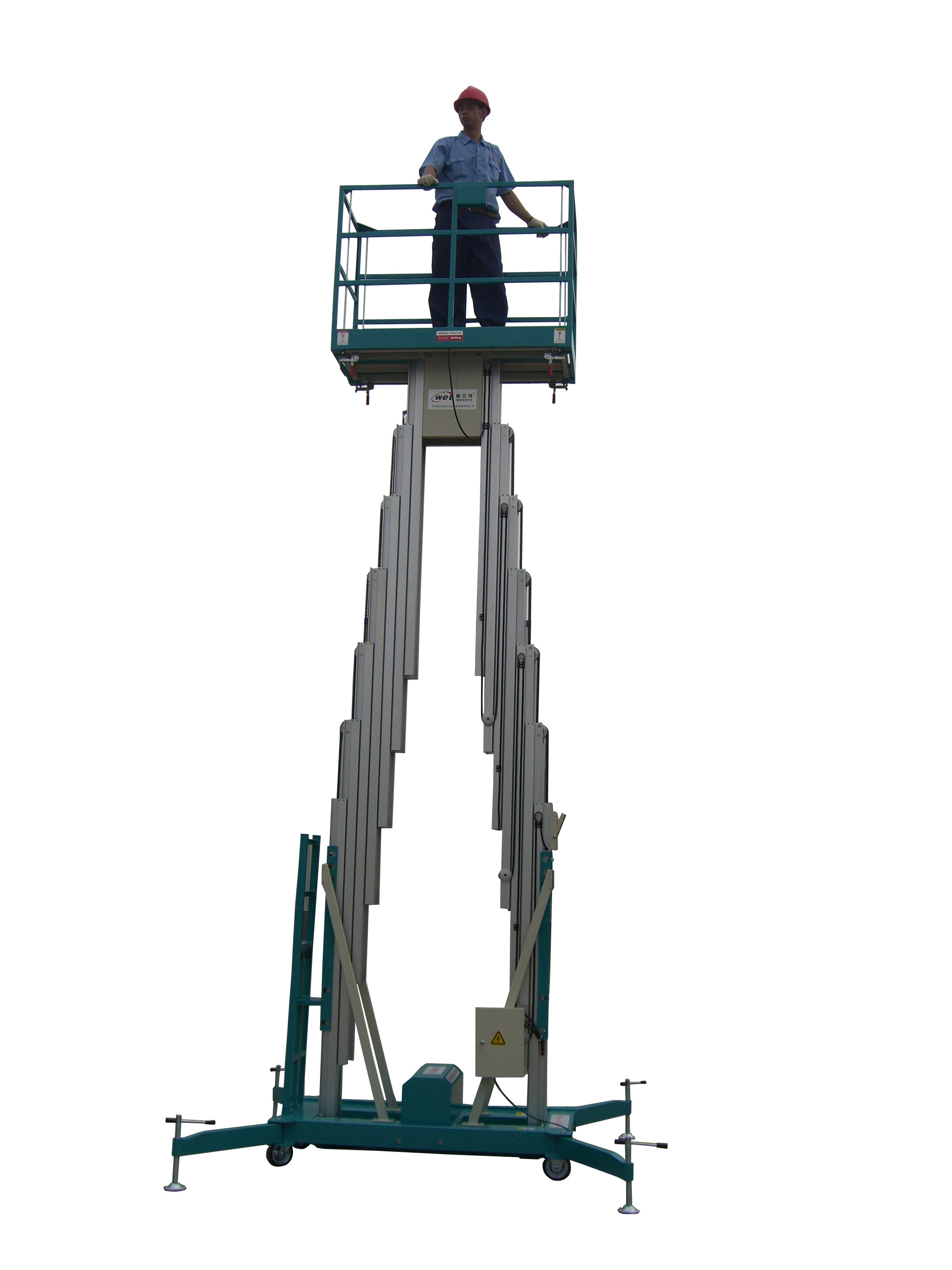

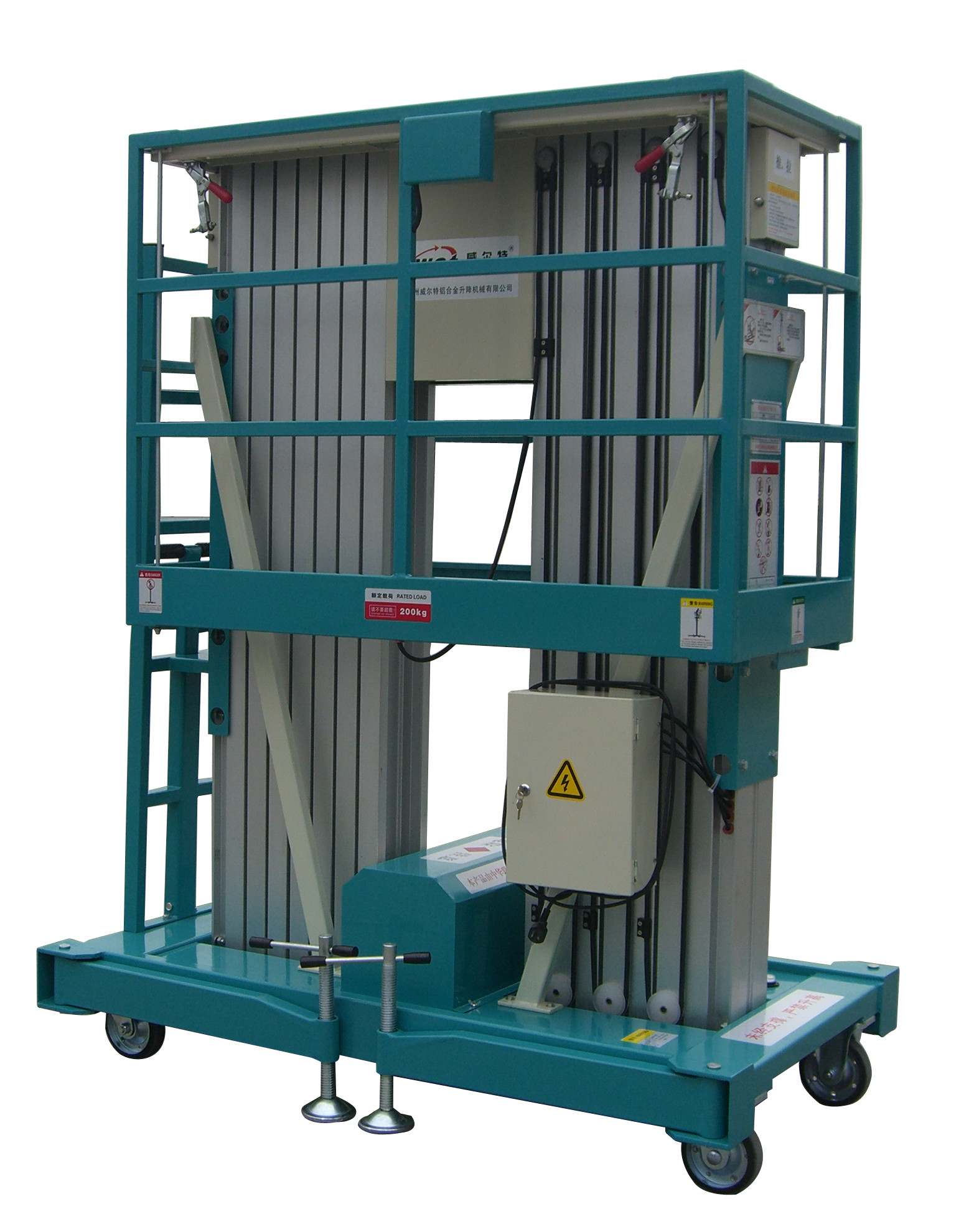

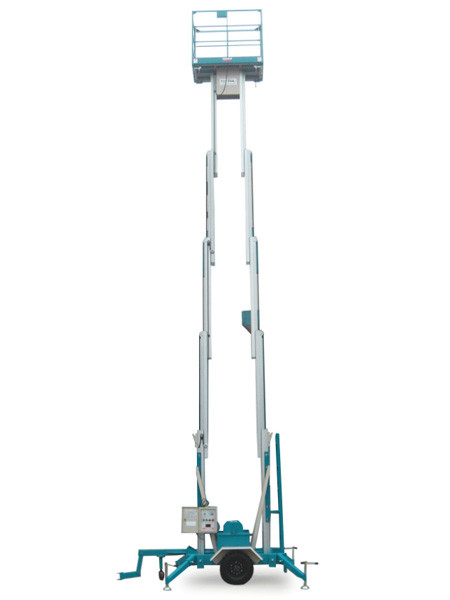

9m Lifting Height And 200Kg Lifting Weight Mobile Aerial Work Platform Aluminum Double Mast
Quick Detail:
Name | Mobile Aerial Work Platform | Brand Name | CHEN LIFT |
Loading Capacity | 200Kg | Platform Height | 9m |
Platform Size | 1.38*0.62m | Color | Optional |
Motor Power | 1.10Kw | Power Supply | AC/DC |
Descriptions
Double Mast Aluminum Aerial Work Platforms are used for one or two person to work on the plaform, as it is made up of high-strength aluminumalloy, this aerial work platform is equipped with light weight and high stability at the same time.
Applications:
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity is 200kg.The power sources could be 220V, 380V or chargeable battery.
Main Features:
1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multi-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over load protection
10 .Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch
13. Optional extended platform
14. Entry ladder
Specifications:
MODEL | GTWY9-200 (ME900-2) | |
PRODUCTIVITY | US | Metric |
Lift capacity | 441lbs | 200kg |
Working height | 36ft 1.07in | 11m |
Platform floor height | 29ft 6.33in | 9m |
Platform length | 4ft 3.18in | 1.30m |
Platform width | 2ft 0.41in | 0.62m |
Ground Clearance | 1.97in | 0.05m |
Lifting Power | 1.1kw | |
Lifting Speed | 0.09-0.1m/s | |
Motorized Power | 0.80Kw | |
Descending Speed | 0.08m/s | |
Anti Wind Capacity | Max. force 5 | |
Overall length | 5ft 0.63in | 1.54m |
Overall width | 3ft 3.37in | 1.00m |
Overall height | 6ft 6.74in | 2.00m |
Outrigger footprint: | ||
A Length | 6ft 2.02in | 1.82m |
B Width | 5ft 9.69in | 1.77m |
C Corner access | 3.94in | 0.10m |
D Wall access front | 11.42in | 0.29m |
E Wall access side | 2ft 0.02in | 0.61m |
Weight | 1609lbs | 730kg |
Optional Configuration:
Competitive Advantage:
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
Communication with Customers
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
A: What is the delivery time for your goods?
B: it is 30days after order confirmation
A: What spare parts that you can offer?
B: Find the list below which we are offering with the machine when shipment for free:
Item | Model | Quantity |
O-shape rubber ring | 40×3.1 | 4 |
O-shape rubber ring | 11×1.9 | 2 |
O-shape rubber ring | 40×30×6 | 1 |
Spanner | 1 | |
screwdriver | 4# | 1 |
A: How long is your quality guarantee period?
B: We have one year warranty.
Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Contact Person: Mr. Aijun Liu
Tel: 0086-13951119762
Fax: 86-512-67339762
