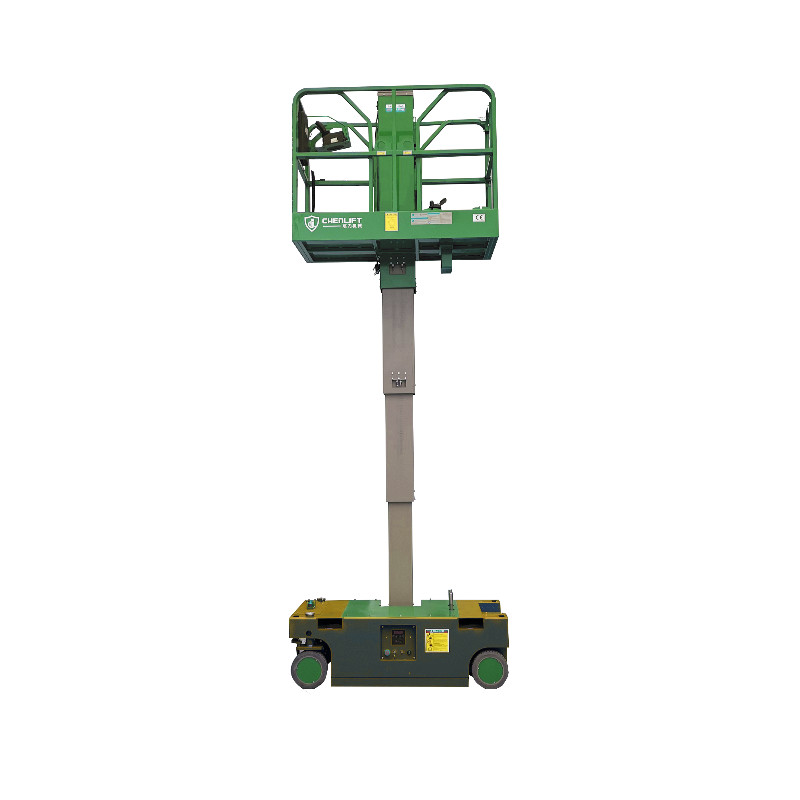

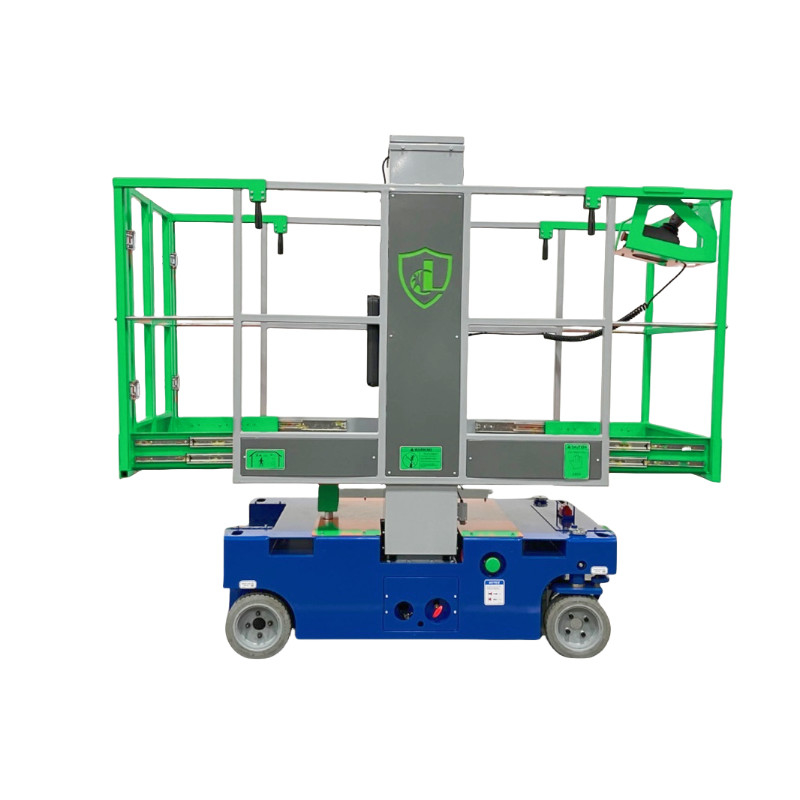

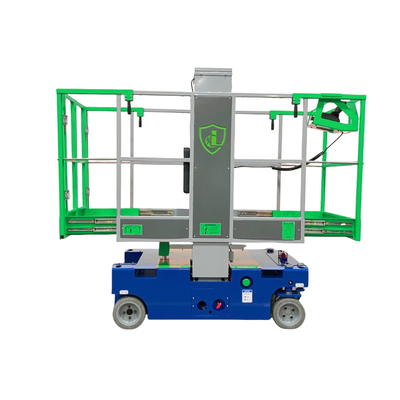

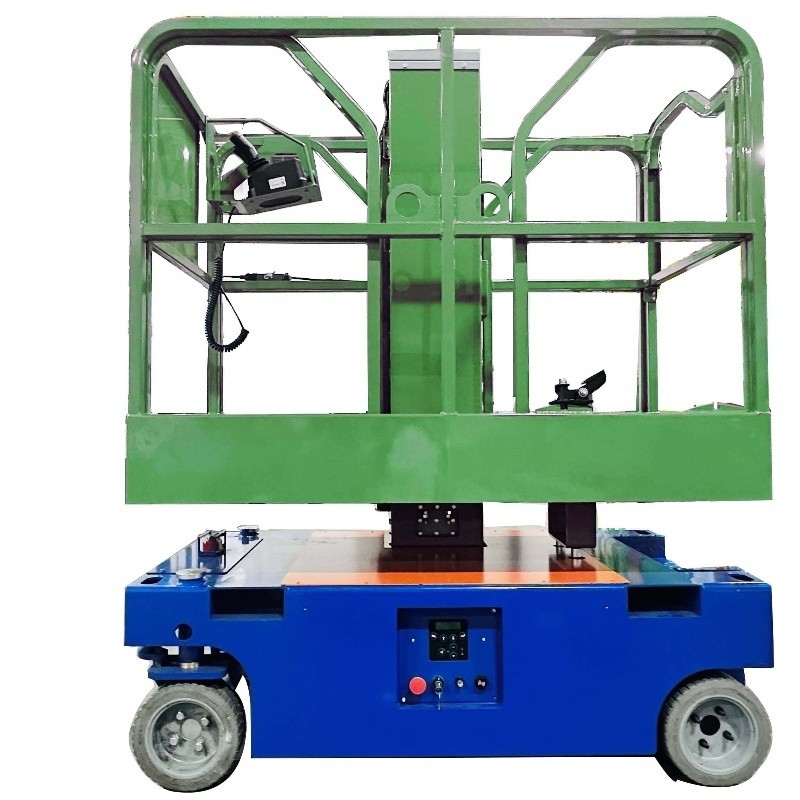

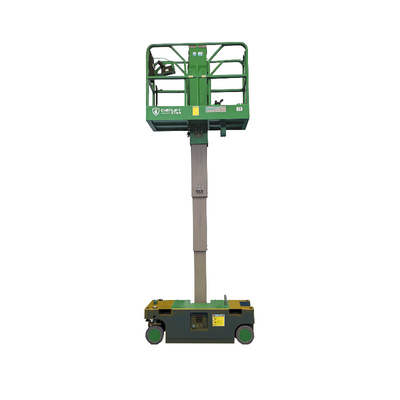

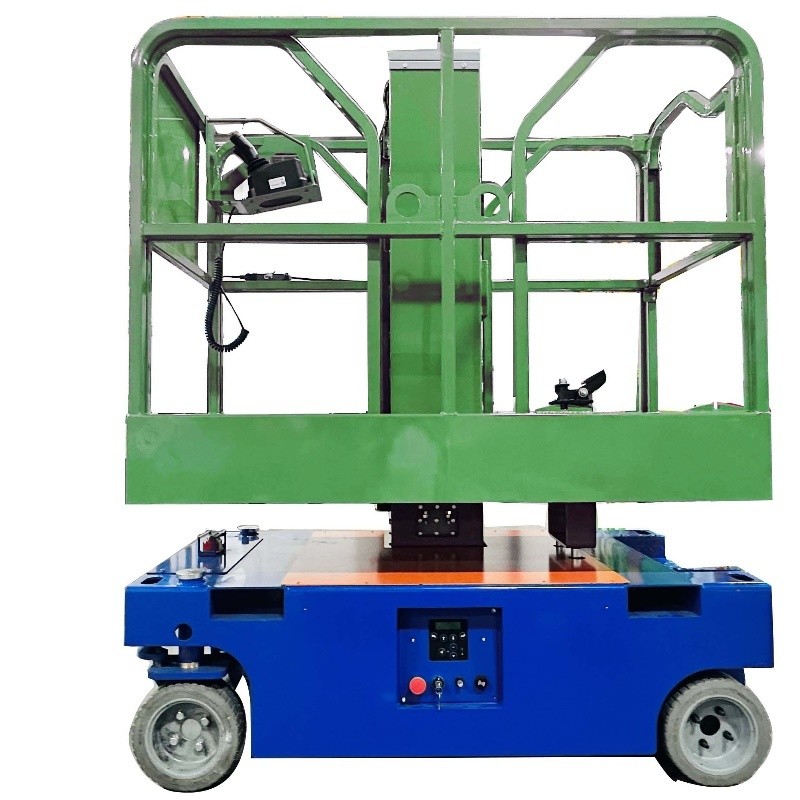

MD400 Oil Free Fully Electric Self Propelled Vertical Lift

Basic Information
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: MD400
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packed with Pallet, Wrapped with Film
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 200 sets/month
Detail Information
Highlight:

hydraulic drum lift

,

forklift drum handler


Product Description

Product Description:

CHEN LIFT launched a range of fully oil-free machines ,comprising vertical mast lifts with no hydraulic oil



Standard Configuration:

*Oil Free

*CAN BUS Protocol

*Proportional Joystick Control

*Self-locking Gates

*Drivable at Full Heigh

*Non-Marking Tires

*Dual Wheel Automatic Braking

*Emergency Descent System

*Fault Diagnose System

*Tilt Alarm/Motion Alarm/Horn/Hour meter

*Extension Platform for both two sides

*Overloading sensor

*Forklift Slot

*Pothole Protection



Optional Configuration:

*AC Power to Platform

*Platform Working Light

*Platform Positioning Laser Lights

*Wireless Tracking



Specification:

Model MD400
Max. Working Height-A 6m
Max. Platform Height-B 4m
Platform Size 1.5*0.8m
Platform Extension 0.4+0.4m
Stowed Length-C 2.30m
Stowed Width-D 0.8m
Stowed Height-E 1.99m
Wheelbase 1.11m
Ground Clearance 0.07m
Lift Capacity

230kg

Platform Extension Capacity 120kg
Travel Speed(Stowed) 4km/h
Travel Speed(Raised) 0.8km/h
Turning Radius-Inside 0.5m
Turning Radius-Outside 1.2m
Up/Down Speed 20S/25S
Gradeability 25%
Maximum Working Slope(Side/Width) 1.5°/3°
Tyre 305*100
Battery 2*12V/100Ah
Charger 24V30A
Total Weight 920kg

























Company Introduction:

Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
