9m Platform Height 300kg Load Battery Powered Vehicle Mounted Scissor Lift

9m Platform Height 300kg Load Battery Powered Vehicle Mounted Scissor Lift

  • 9m Platform Height 300kg Load Battery Powered Vehicle Mounted Scissor Lift
9m Platform Height 300kg Load Battery Powered Vehicle Mounted Scissor Lift
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJDC0.3-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Max Platform Height: 9m Max Working Height: 11m
Load Capacity: 450kg Platform Size: 1800*1000 Mm
Lifting Time: 80s Weight: 2800kg
High Light:

truck mounted manlift

,

vehicle mounted scissor lift

9m Platform Height 300kg Load Battery Powered Vehicle Mounted Scissor Lift



Quick Detail:



Name Truck-mounted Scissor Lift Brand Name CHENLIFT
Loading Capacity 300Kg Lifting Height 9m
Platform Size 1.80*1.00m Color Red Color or Optional
Lifting Power 1.5Kw Power Supply AC





Description:



Truck-mounted Scissor Lifts are aerial working platform which combine with an automobile, the lifts are driven by DC or the engines of the vehicle The lifting platform is movable everywhere due to the vehicle can be driven as wishes. It is suitable for the aerial working for long distance and the frequently changing places.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



Main Features:

  • Power by the vehicle or battery , without the external power supply
  • The control panels are available both on the platform and the pedestal
  • Different models are available with the maximum working height at 6m to 16m
  • Pointing control of lifting up and down.
  • Manganese steel lifting arm in high strength with rectangle shape
  • Anti-skid floor in platform
  • The control panels are available on the platforms and ground.

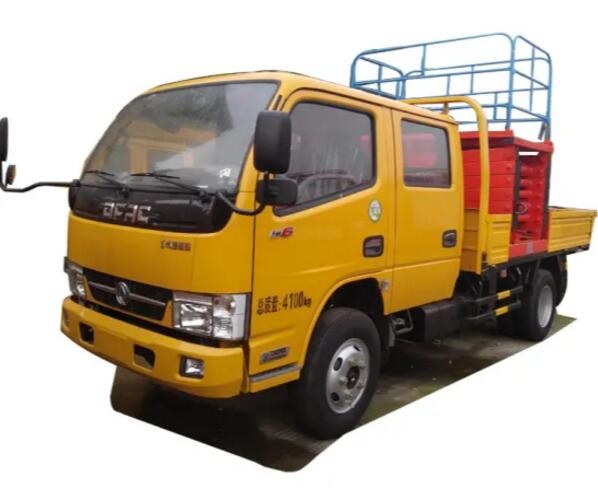

9m Platform Height 300kg Load Battery Powered Vehicle Mounted Scissor Lift 0

Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform



Major Parameters



  • Model: SJDC0.3-9
  • Loading Capacity 300kg
  • Maximum Height 9000mm
  • Minimum Height 1650mm
  • Platform Size 1800*1000mm
  • Lifting Power 1.5kw
  • Power Voltage DC24V
  • Lifting Time 80s
  • Cylinder Ф100(2Pcs)
  • Gear Pump 6ml/r
  • Total Weight 2800kg
  • Measurement 1850*1240*1650mm



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

  • Manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Farm or the other open field.

2. Aerial Working Purpose: machine maintenance, painting, cleaning, light replacement etc.



Why to choose our Mounted Truck Scissor Lift?



· High Quality

· Reasonable Price

· Good after Sales Service

· 1 Year Warranty

· More Than 10 Years Experience
