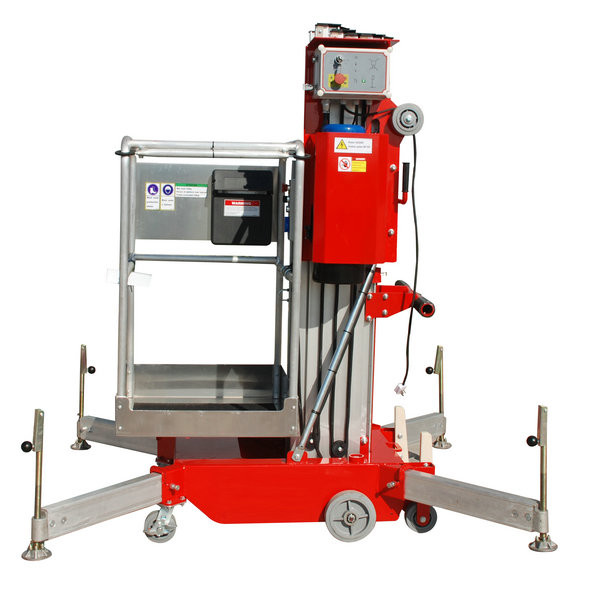

160Kg 6m Lifting Height Mobile Portable Aerial Work Platform with Aluminum Profile

160Kg 6m Lifting Height Mobile Portable Aerial Work Platform with Aluminum Profile

  • 160Kg 6m Lifting Height Mobile Portable Aerial Work Platform with Aluminum Profile
  • 160Kg 6m Lifting Height Mobile Portable Aerial Work Platform with Aluminum Profile
  • 160Kg 6m Lifting Height Mobile Portable Aerial Work Platform with Aluminum Profile
  • 160Kg 6m Lifting Height Mobile Portable Aerial Work Platform with Aluminum Profile
  • 160Kg 6m Lifting Height Mobile Portable Aerial Work Platform with Aluminum Profile
160Kg 6m Lifting Height Mobile Portable Aerial Work Platform with Aluminum Profile
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE
Model Number: GTWZ20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets or in wooden case
Delivery Time: 30 days after down payment
Payment Terms: T/T L/C
Supply Ability: 50sets per month
Contact Now
Detailed Product Description
Loading Capacity: 160kg Platform Height: 6m
Working Height Max.: 8m Platform Size: 0.69x0.68m
Width, Stowed (D): 0.74m Height, Stowed (A): 1.97m
Length, Stowed (C): 1.27m Outrigger Footprint (I*K): 1.77*1.49m
Wall Access Front/side(H/G): 0.18/0.45m Weights AC/DC: 335kg/375kg
High Light:

portable work platforms

,

mobile aerial work platform



160Kg 6m lifting height Mobile Portable Aerial Work Platform with aluminum profile





Quick Detail:



Name Portable Aerial Work Platform Brand Name Xunte
Loading Capacity 160Kg Platform Height 6m
Platform Size 0.69*0.68m Color Red or Optional
Power Supply AC/DC





Description:



Portable Aerial Work Platforms are specially designed for the working place that always changes and for long distance transportation purpose. The structure is in single mast. The outrigger is detachable. It can be easily loading or unloading on a pickup or truck.



Smaller size and titling feature makes the machine be quite suitable for those who need to transport the Aerial Work Platform through narrower and shorter places.



It is used for single person aerial working purpose. They are made up of high grade aluminum profile and equipped with the universal wheels, easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable. It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground.



It is easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.





Applications:

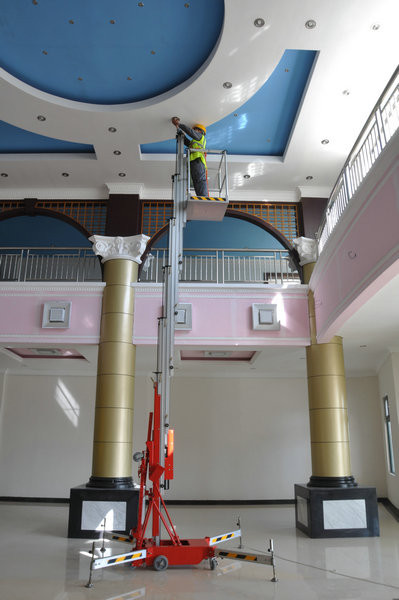

It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.





Main Features:



1. Most rigid aluminum alloy profile

2. Multi-guide pulley on mast

3. Sliding mid-rail standard

4. Tilt back frame

5. Durable base system

6. Chassis with level gauge

7. AC power to the platform

8. Dual activated up/down switch

9. Easily rolls through a narrow space

10. Small outrigger footprint

11 .Outrigger storage socket

12. Easy loading in pickup trucks

13. Tie down attachment points

14. Forklift pockets





Safety Precaution



1. Auxiliary platform lowering

2. Emergency stop button

3. Over load protection

4. LED lights confirm proper set-up





Specifications:



Model GTWZ20
Working height Max. 8.0m
Platform height Max. 6.0m
Lift capacity 160kg
Basket Size ( E*F) 0.69*0.68m
Width, stowed (D) 0.74m
Height, stowed (A) 1.97m
Height, tilted back (B) /
Length, stowed (C) 1.27m
Length, tilted back (J) ——
Outrigger footprint (I*K) 1.77*1.49m
Wall access front/side(H/G) 0.18/0.45m
Power source AC/DC 220V/110V/12V
Weights AC/DC 335kg/375kg

160Kg 6m Lifting Height Mobile Portable Aerial Work Platform with Aluminum Profile 0



Competitive Advantage:



· Smaller Size:



1) Side installation of hydraulic power pack and motor instead of on chassis reduces the size of the machine.

2) Detachable outriggers can be disassembled during transportation and placed in the outrigger socket at the other side of the machine. On one hand it can reduce the transporting size, on the other hand it can avoid impingement to the outriggers during transportation and tilting.



· Easier Transportation

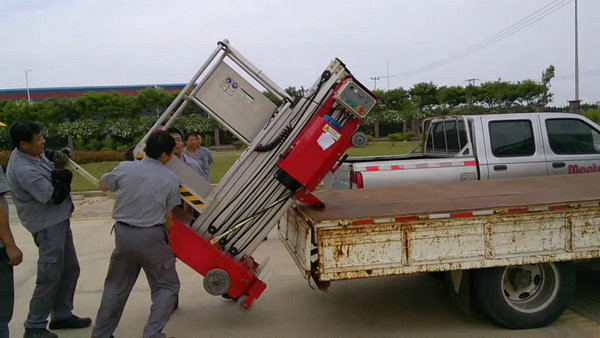

1) Tilting feature helps the machine pass narrower space and load the machine on the truck easier.

2) Handler helps the operator pushes the machine to other place more convenient.

3) Truck loading bar is in the front of the machine and can be pulled out for easier loading on the truck.



· More Convenient and safety operation



1) Ground and Up Control Boxes, the machine can be controlled by both boxes but when one works the other can not. The convert of the two control systems is realized by the switch on the ground control box.

2) LED Lights, there has four LED lights on the ground control panel represents four outriggers. Only the represented outrigger is opened the LED will light. And the machine can not be lifted unless all the lights are on.

3) AC Power to Platform helps operator to use other facilities on the platform on high.
