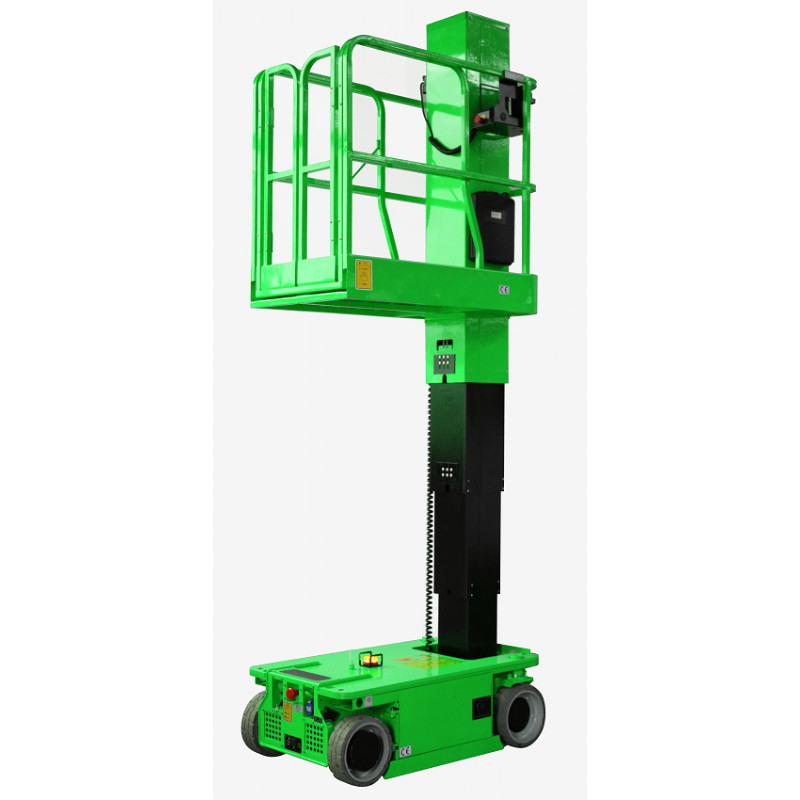

4.8m Max Height Self Propelled Vertical Lifting Platform 1.1KM/H

4.8m Max Height Self Propelled Vertical Lifting Platform 1.1KM/H

  • 4.8m Max Height Self Propelled Vertical Lifting Platform 1.1KM/H
4.8m Max Height Self Propelled Vertical Lifting Platform 1.1KM/H
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: MH480
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packed with Pallet, Wrapped with Film
Delivery Time: 30 days after receipt of deposit
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Model: MH480 Loading Capacity: 227kg
Platform Height Max: 4.8m Working Height Max: 6.8m
Platform Size: 1.8*0.7m Power Source: 2*12V/ 100Ah
Weight: 980kg Color: Customized
Gradeability: 25%
High Light:

4.8m Vertical Lifting Platform

,

1.1KM/H Vertical Lifting Platform

,

Self Propelled Lifting Platform



4.8m Max Platform Height Self Propelled Vertical Boom with CE certificated

Description:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity is 200kg.The power sources could be 220V, 380V or chargeable battery.


It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.





Competitive Advantage:



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience



Specification:

套筒桅柱式平台/SELF-PROPELLED VERTICAL BOOM
型号/Model MH360 MH480
最大工作高度MAX. WORKING HEIGHT 5.6M 6.8M
最大平台高度MAX.PLATFORM HEIGHT 3.6M 4.8M
平台载重LOADING CAPACITY 227KG 227KG
延伸平台载重EXT. PLATFORM CAPACITY 114KG 114KG
整车长度OVERALL LENGTH 1.36M 1.36M
整车宽度OVERALL WIDTH 0.76M 0.76M
整车高度OVERALL HEIGHT 1.7M 1.98M
平台尺寸PLATFORM DIMESION 1.8M*0.7M 1.8M*0.7M
延伸平台长度EXT. PLATFORM LENGTH 0.51M 0.51M
轴距WHEEL BASE 1.04M 1.04M
最小内转弯半径INNER TURNING RADIUS 0M 0M
最小外转弯半径OUTER TURNING RADIUS 1.4M 1.4M
行驶速度(收拢状态)TRAVEL SPEED(STOWED) 4KM/H 4KM/H

行驶速度(起升状态)TRAVEL SPEED(RAISED)

1.1KM/H 1.1KM/H
上升/下降速度UP/DOWN SPEED 31/32 SEC 41.5/42 SEC
最大爬坡能力GRADEABILTY 25% 25%
轮胎(驱动轮)DRIVE TYPES Ф305*100MM Ф305*100MM
驱动电机DRIVE MOTORS 2*24VDC/0.5KW 2*24VDC/0.5KW
起升电机LIFTING MOTOR 24VDC/1.3KW 24VDC/1.3KW
蓄电池BATTERY 2*12V/100AH 2*12V/100AH
充电器CHARGER 24V/15A 24V/15A
整机重量WEIGHT 810KG 980KG



4.8m Max Height Self Propelled Vertical Lifting Platform 1.1KM/H 0

Company Introduction



ChenLift is an ISO 9001 accredited company which has been focusing on manufacturing&exporting Aerial Work Platform Battery-powered Forklifts and warehouse equipment for many years in China. With the strong capacity of R&D and manufacture, nowadays ChenLift becomes one of the leading brand of battery-powered warehouse equipment at home&abroad.
