CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | CHEN LIFT |
| Certification: | CE ISO9001:2008 IPAF member |
| Model Number: | MH480 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packed with Pallet, Wrapped with Film |
| Delivery Time: | 30 days after receipt of deposit |
| Supply Ability: | 100 set/ month |
| Model: | MH480 | Loading Capacity: | 227kg |
|---|---|---|---|
| Platform Height Max: | 4.8m | Working Height Max: | 6.8m |
| Platform Size: | 1.8*0.7m | Power Source: | 2*12V/ 100Ah |
| Weight: | 980kg | Color: | Customized |
| Gradeability: | 25% | ||
| High Light: | 4KM/H Vertical Lift Elevator,4.8m Self Propelled Vertical Lift Elevator,CE Industrial Vertical Platform Lift |
||

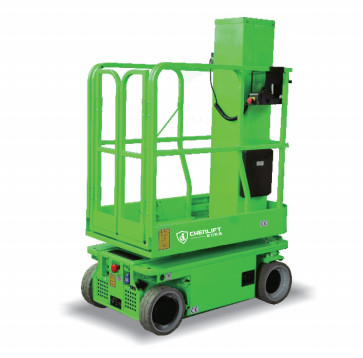

4.8m Max Platform Height Self Propelled Vertical Boom with CE certificated
Description:
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.
Competitive Advantage:
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
Specification:
| 套筒桅柱式平台/SELF-PROPELLED VERTICAL BOOM | ||
| 型号/Model | MH360 | MH480 |
| 最大工作高度MAX. WORKING HEIGHT | 5.6M | 6.8M |
| 最大平台高度MAX.PLATFORM HEIGHT | 3.6M | 4.8M |
| 平台载重LOADING CAPACITY | 227KG | 227KG |
| 延伸平台载重EXT. PLATFORM CAPACITY | 114KG | 114KG |
| 整车长度OVERALL LENGTH | 1.36M | 1.36M |
| 整车宽度OVERALL WIDTH | 0.76M | 0.76M |
| 整车高度OVERALL HEIGHT | 1.7M | 1.98M |
| 平台尺寸PLATFORM DIMESION | 1.8M*0.7M | 1.8M*0.7M |
| 延伸平台长度EXT. PLATFORM LENGTH | 0.51M | 0.51M |
| 轴距WHEEL BASE | 1.04M | 1.04M |
| 最小内转弯半径INNER TURNING RADIUS | 0M | 0M |
| 最小外转弯半径OUTER TURNING RADIUS | 1.4M | 1.4M |
| 行驶速度(收拢状态)TRAVEL SPEED(STOWED) | 4KM/H | 4KM/H |
|
行驶速度(起升状态)TRAVEL SPEED(RAISED) |
1.1KM/H | 1.1KM/H |
| 上升/下降速度UP/DOWN SPEED | 31/32 SEC | 41.5/42 SEC |
| 最大爬坡能力GRADEABILTY | 25% | 25% |
| 轮胎(驱动轮)DRIVE TYPES | Ф305*100MM | Ф305*100MM |
| 驱动电机DRIVE MOTORS | 2*24VDC/0.5KW | 2*24VDC/0.5KW |
| 起升电机LIFTING MOTOR | 24VDC/1.3KW | 24VDC/1.3KW |
| 蓄电池BATTERY | 2*12V/100AH | 2*12V/100AH |
| 充电器CHARGER | 24V/15A | 24V/15A |
| 整机重量WEIGHT | 810KG | 980KG |
Why choose CHEN LIFT Self-propelled Vertical Lift?
· Key-type lock sliding
Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out
· Platform work light (optional)
The professional platform work lights allows construction of the user easier lighting and operating
