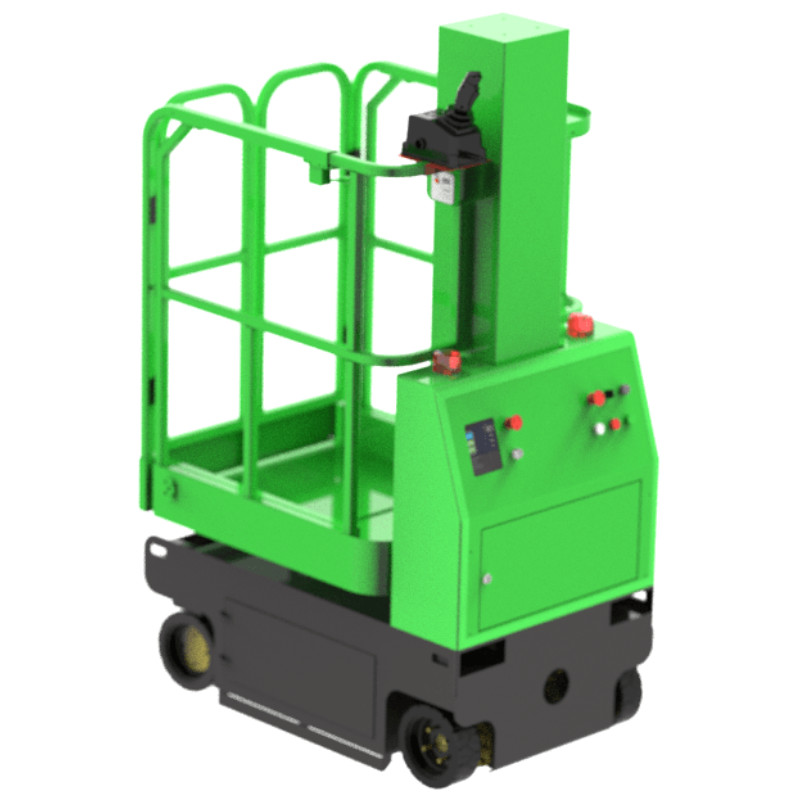

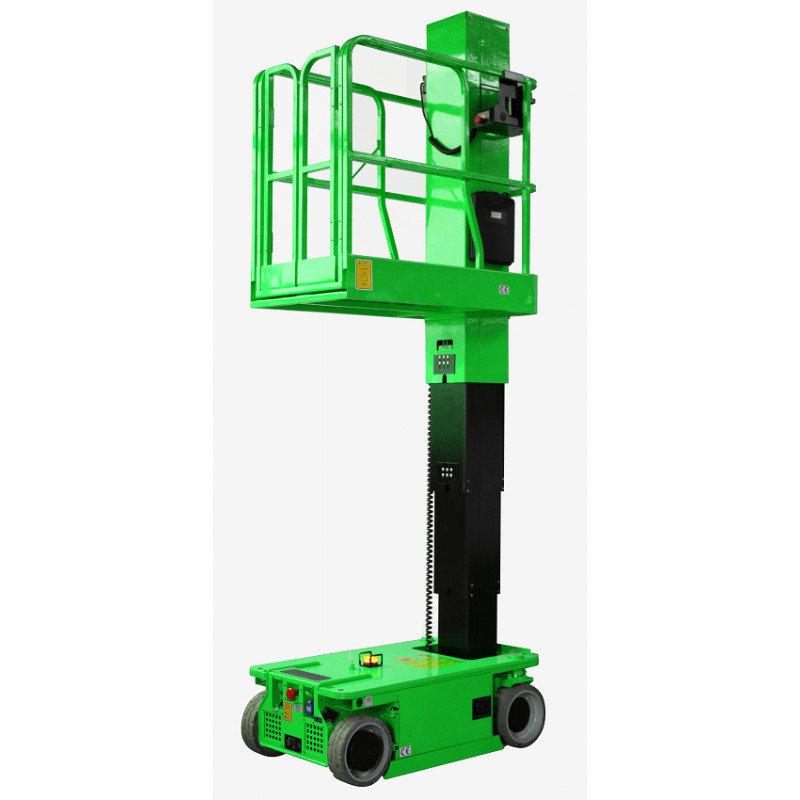

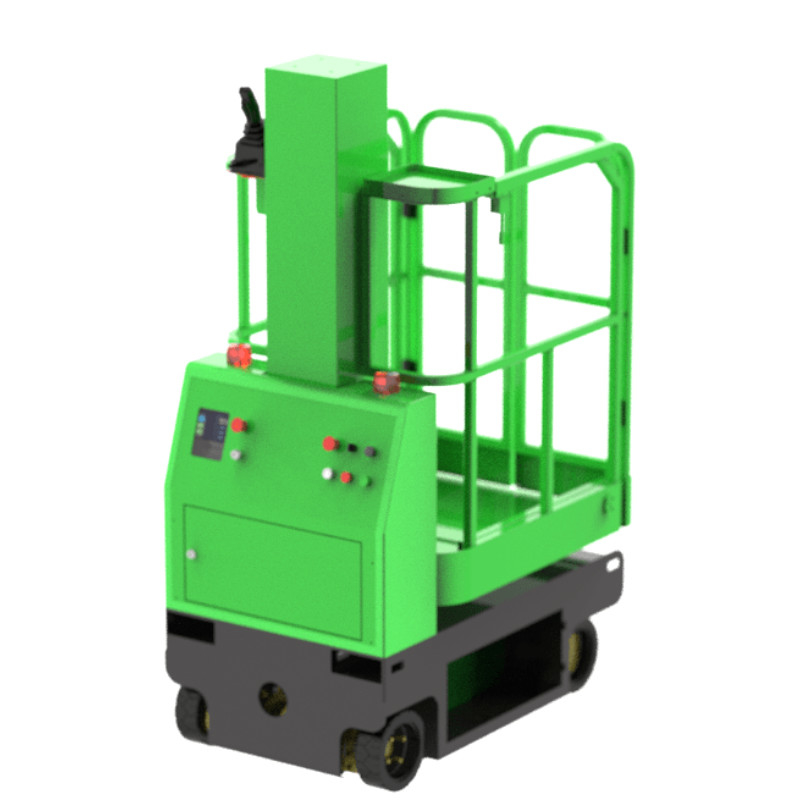

ISO9001 Hydraulic DriveLifting Work Platform Self Propelled Vertical Boom

ISO9001 Hydraulic DriveLifting Work Platform Self Propelled Vertical Boom

  • ISO9001 Hydraulic DriveLifting Work Platform Self Propelled Vertical Boom
ISO9001 Hydraulic DriveLifting Work Platform Self Propelled Vertical Boom
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: MH360
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packed with Pallet, Wrapped with Film
Delivery Time: 30 days after receipt of deposit
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Model: MH360 Loading Capacity: 227kg
Platform Height Max: 3.6m Working Height Max: 5.6m
Platform Size: 1.8*0.7m Power Source: 2*12V/ 100Ah
Weight: 810kg Color: Customized
Gradeability: 25%
High Light:

3.6m Hydraulic Lifting Work Platform

,

ISO9001 Outdoor Lifting Platform

,

MH480 Lifting Work Platform



3.6m Max Platform Height Self Propelled vertical boom with CE certificated

Description:



Explosion Proof Aerial Work Platform is designed for using the machine in the places like gas and petrol station, underground mine. There are three parts made into explosion proof type: electric box, socket and plug. And all the aluminum aerial work platform can be made into this explosion proof type.



Machine Features:


1. Battery Operated with Hydraulic Drive Motor
2. Extension Platform to reach the site quickly
3. Fork Lift Slots for easy transportation
4. Automatic display of fault code for easy maintenance
5. Low Noise, Non-Pollution and Strong Adapability for various using sites



Competitive Advantage:



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience



Specification:



套筒桅柱式平台/SELF-PROPELLED VERTICAL BOOM
型号/Model MH360 MH480
最大工作高度MAX. WORKING HEIGHT 5.6M 6.8M
最大平台高度MAX.PLATFORM HEIGHT 3.6M 4.8M
平台载重LOADING CAPACITY 227KG 227KG
延伸平台载重EXT. PLATFORM CAPACITY 114KG 114KG
整车长度OVERALL LENGTH 1.36M 1.36M
整车宽度OVERALL WIDTH 0.76M 0.76M
整车高度OVERALL HEIGHT 1.7M 1.98M
平台尺寸PLATFORM DIMESION 1.8M*0.7M 1.8M*0.7M
延伸平台长度EXT. PLATFORM LENGTH 0.51M 0.51M
轴距WHEEL BASE 1.04M 1.04M
最小内转弯半径INNER TURNING RADIUS 0M 0M
最小外转弯半径OUTER TURNING RADIUS 1.4M 1.4M
行驶速度(收拢状态)TRAVEL SPEED(STOWED) 4KM/H 4KM/H
行驶速度(起升状态)TRAVEL SPEED(RAISED) 1.1KM/H 1.1KM/H
上升/下降速度UP/DOWN SPEED 31/32 SEC 41.5/42 SEC
最大爬坡能力GRADEABILTY 25% 25%
轮胎(驱动轮)DRIVE TYPES Ф305*100MM Ф305*100MM
驱动电机DRIVE MOTORS 2*24VDC/0.5KW 2*24VDC/0.5KW
起升电机LIFTING MOTOR 24VDC/1.3KW 24VDC/1.3KW
蓄电池BATTERY 2*12V/100AH 2*12V/100AH
充电器CHARGER 24V/15A 24V/15A
整机重量WEIGHT 810KG 980KG











ISO9001 Hydraulic DriveLifting Work Platform Self Propelled Vertical Boom 0

Why choose CHEN LIFT Self-propelled Vertical Lift?



· Key-type lock sliding

Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out



· Platform work light (optional)

The professional platform work lights allows construction of the user easier lighting and operating
