Place of Origin: | China |
Brand Name: | CHEN LIFT |
Certification: | CE ISO9001:2008 IPAF member |
Model Number: | MH360 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Packed with Pallet, Wrapped with Film |
Delivery Time: | 30 days after receipt of deposit |
Supply Ability: | 100 set/ month |
Model: | MH360 | Loading Capacity: | 227kg |
---|---|---|---|
Platform Height Max: | 3.6m | Working Height Max: | 5.6m |
Platform Size: | 1.8*0.7m | Power Source: | 2*12V/ 100Ah |
Weight: | 810kg | Color: | Customized |
Gradeability: | 25% | ||
High Light: | Tilting Protection Elevated Work Platform 3.6m,24VDC Lifting Work Platform,Auxiliary Lowering Boom Lift Platform |

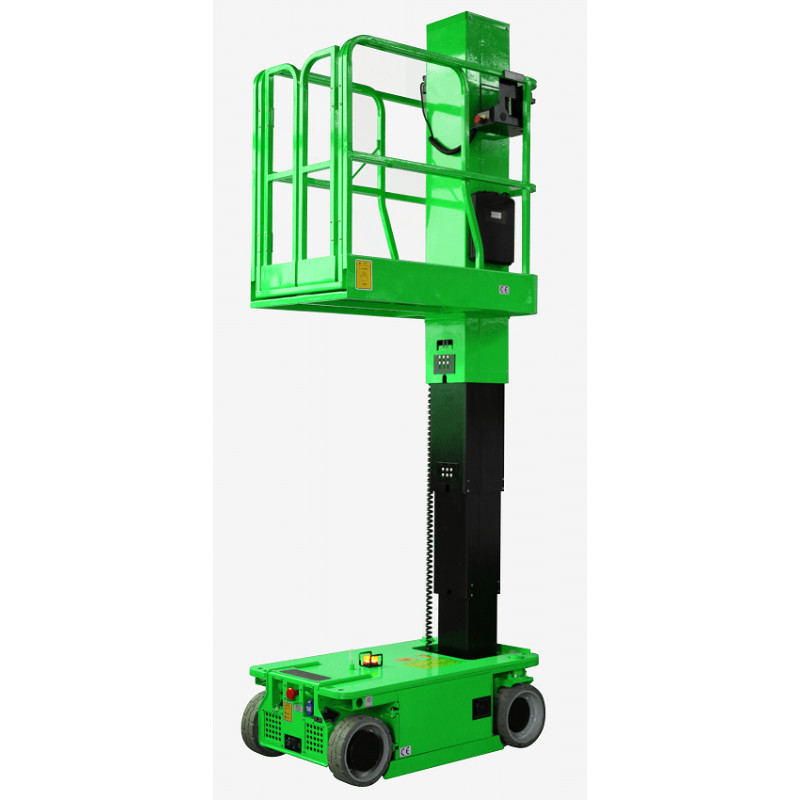

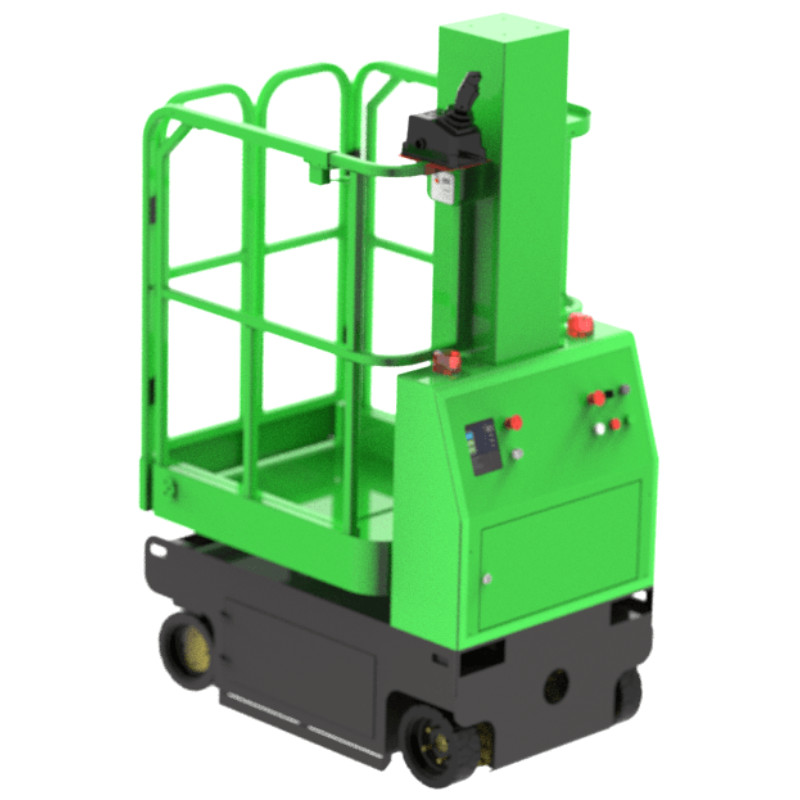

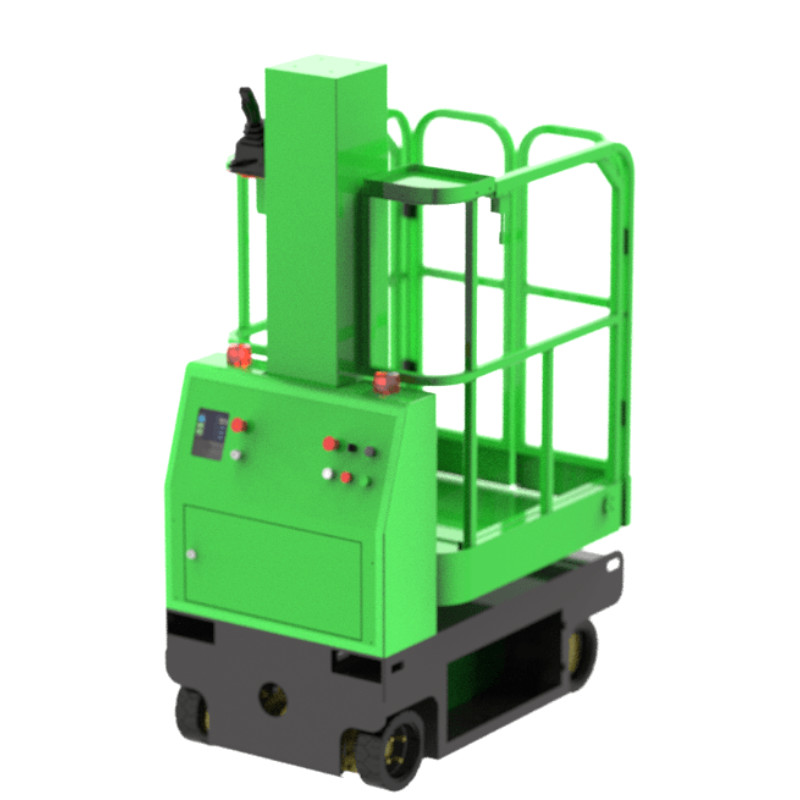

Low Noise Self Propelled Lift Platform Elevated Lift Platform Height 3.6m
Description:
The product is a self-propelled vertical mast lift that gives a compact footprint. It has a high-degree steer angle that provides 0 inner turning radius. Because of this, the lift can perform highly and flexibly in a limited area.
In any status whether lifted or stowed, it can be drived. with extensible platform, working light, airway tube, AC wiring to make it more competent to help finish various aerial work tasks in different situations. Its classic traditional design is popular with users.
Machine Features:
1. Battery Operated with Hydraulic Drive Motor
2. Extension Platform to reach the site quickly
3. Fork Lift Slots for easy transportation
4. Automatic display of fault code for easy maintenance
5. Low Noise, Non-Pollution and Strong Adapability for various using sites
Safety Features:
1. Auxiliary Lowering Devices
2. Anti-burst System
3. Emergency Stop Button
4. Tilting Protection System
5. No noise, zero emission, no pollution, energy saving and environmental protection
6. Automatic Braking System
7. Buzzer and Horn
Platform work light (optional)
The professional platform work lights allows construction of the user easier lighting and operating
Specification:
套筒桅柱式平台/SELF-PROPELLED VERTICAL BOOM | ||
型号/Model | MH360 | MH480 |
最大工作高度MAX. WORKING HEIGHT | 5.6M | 6.8M |
最大平台高度MAX.PLATFORM HEIGHT | 3.6M | 4.8M |
平台载重LOADING CAPACITY | 227KG | 227KG |
延伸平台载重EXT. PLATFORM CAPACITY | 114KG | 114KG |
整车长度OVERALL LENGTH | 1.36M | 1.36M |
整车宽度OVERALL WIDTH | 0.76M | 0.76M |
整车高度OVERALL HEIGHT | 1.7M | 1.98M |
平台尺寸PLATFORM DIMESION | 1.8M*0.7M | 1.8M*0.7M |
延伸平台长度EXT. PLATFORM LENGTH | 0.51M | 0.51M |
轴距WHEEL BASE | 1.04M | 1.04M |
最小内转弯半径INNER TURNING RADIUS | 0M | 0M |
最小外转弯半径OUTER TURNING RADIUS | 1.4M | 1.4M |
行驶速度(收拢状态)TRAVEL SPEED(STOWED) | 4KM/H | 4KM/H |
行驶速度(起升状态)TRAVEL SPEED(RAISED) | 1.1KM/H | 1.1KM/H |
上升/下降速度UP/DOWN SPEED | 31/32 SEC | 41.5/42 SEC |
最大爬坡能力GRADEABILTY | 25% | 25% |
轮胎(驱动轮)DRIVE TYPES | Ф305*100MM | Ф305*100MM |
驱动电机DRIVE MOTORS | 2*24VDC/0.5KW | 2*24VDC/0.5KW |
起升电机LIFTING MOTOR | 24VDC/1.3KW | 24VDC/1.3KW |
蓄电池BATTERY | 2*12V/100AH | 2*12V/100AH |
充电器CHARGER | 24V/15A | 24V/15A |
整机重量WEIGHT | 810KG | 980KG |
Why choose CHEN LIFT Self-propelled Vertical Lift?
· More quieter
All MH-series adopt high-performance battery power, pollution-free and no emissions, low noise electric pump, can also be used even in the area of high environmental requirements, such as office buildings, hotel, hospital, school and so on.
· Flexible Operation
Fully proportional joystick control, either lifting or moving, all can easily operate in the joystick.
Zero inside turning radius allowing users to use in a narrow space, and also facilitate changing positions.
