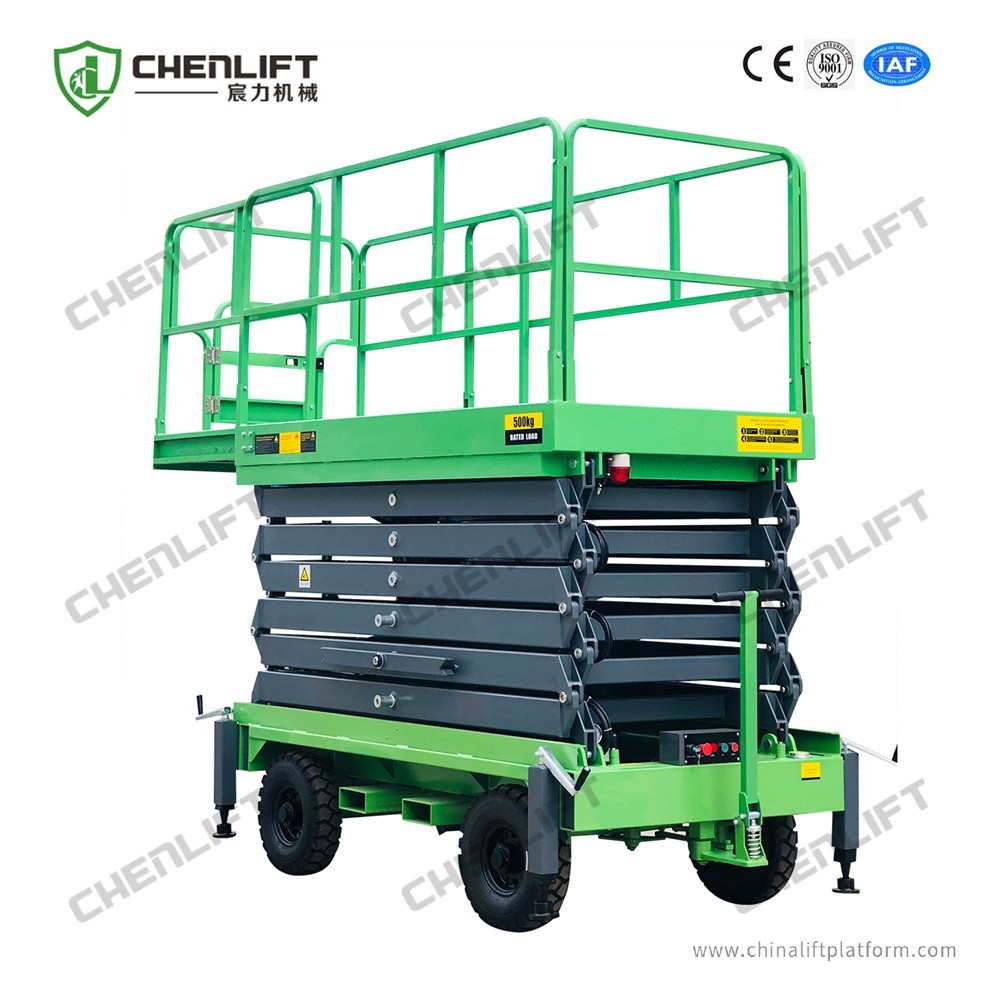

9m Four Wheel Self Propelled Hydraulic Scissor Lift Elevator Platform Mobile Table

9m Four Wheel Self Propelled Hydraulic Scissor Lift Elevator Platform Mobile Table

  • 9m Four Wheel Self Propelled Hydraulic Scissor Lift Elevator Platform Mobile Table
9m Four Wheel Self Propelled Hydraulic Scissor Lift Elevator Platform Mobile Table
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: SJZ0.3-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 300kg Platform Height: 9m
Platform Size: 1.80*1.00m Extension Platform Length: 1m
Lifting Power: 1.5kw Lifting Time: 80s
Weight: 1300kg Measurement: 1850*1240*1655mm
High Light:

9m hydraulic scissor lift elevator

,

four wheel hydraulic scissor lift elevator

,

self propelled hydraulic mobile lift table



Four Wheel Self Propelled Hydraulic Platform Lift for Warehouse / Logistics Center​



Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



Quick Detail:



Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 300kg Platform Height 9m
Platform Size 1.80*1.00m Color Red Color or Optional
Lifting Power 1.5kw Power Supply AC/DC
Extension Platform (L) 1m Total Weight 1300kg



Description:



Mobile Scissor lifts with Extension Platform are designed to lift limited weights and capable of being fully operated by a single person. The broad platform and the high loading capacity get the aerial working more efficient and more safely .







Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform and extension platform



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,NOK sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø400-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet

Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



Why choose Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience



9m Four Wheel Self Propelled Hydraulic Scissor Lift Elevator Platform Mobile Table 0



Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:



Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
