Place of Origin: | China |
Brand Name: | CHEN LIFT |
Certification: | CE,ISO |
Model Number: | SA2000 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | USD 1500-5500/ unit |
Packaging Details: | Wrapped with Film |
Delivery Time: | Within 15 day after confirmed |
Payment Terms: | T/T, L/C |
Supply Ability: | 200 units per month |
Rated Capacity: | 2000kg | Platform Size: | R1110mm |
---|---|---|---|
Base Frame Size: | 915*934mm | Lowered Height: | 240mm |
Net Weight: | 150kg | ||
Highlight: | detachable springs cargo lift table,blue palletpal cargo lift table,detachable springs level loader |

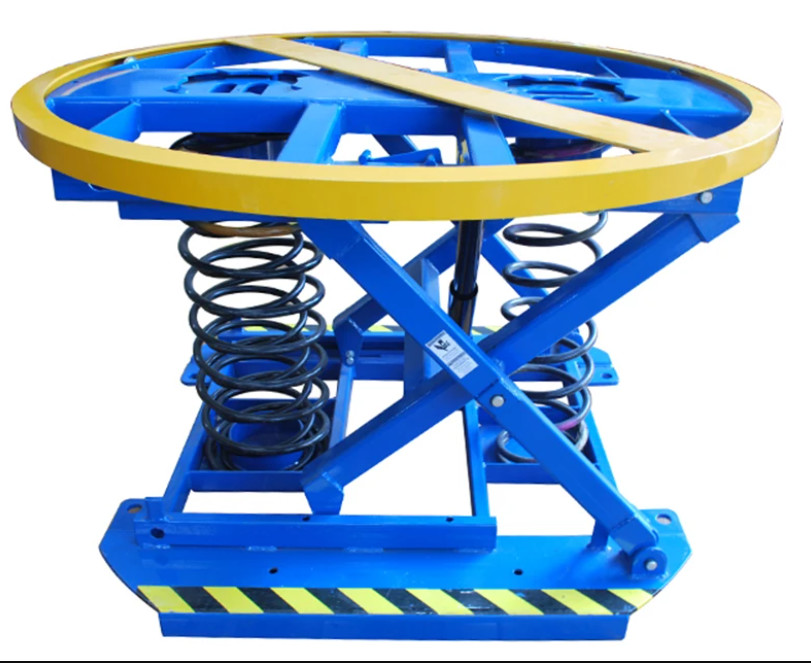

Features
• Portable ergonomic lift table minimizes workers bending and lifting
• Tubular steel frame holds loads up to 2000kgs
• Heavy-duty springs automatically adjust pallet height
• Fork pockets for relocation by fork truck
• Integrated turntable ring
• All steel frame with powder coated finish
• No electrical power or hydraulic oil is required
• Leveling feet (optional) allow use on sloping or uneven floors
• Custom size and specs available

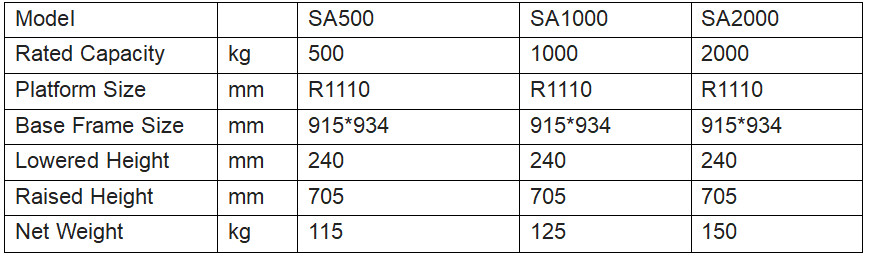

Specification
Model | SA500 | SA1000 | SA2000 | |
Rated Capacity | kg | 500 | 1000 | 2000 |
Platform Size | mm | R1110 | R1110 | R1110 |
Base Frame Size | mm | 915*934 | 915*934 | 915*934 |
Lowered Height | mm | 240 | 240 | 240 |
Raised Height | mm | 705 | 805 | 705 |
Net Weight | kg | 115 | 125 | 150 |
Details
1.Widening anti-pinvh scissors
Scissor-type bracket structure,the platform maintains a horizontal state,and the stability is good; the gap is widened in thr middle to prevent accidental pinching of other items.
2.Socket slot
The base is designed with a toothed groove to facilitate the overall movement, and the handing of the loading and unloading is convenient for the forklift to be practical and easy to operate.
3.Lifting shock absorber
The shock absorber plays a mitigating role,making the platform more stable and improving the safety performance of the whole vertical.
4.Rotating balls
The ball-type rotating platform is used for smooth rotation and easy operation in any direction of the platform.
