Place of Origin: | China |
Brand Name: | CHEN LIFT |
Certification: | CE,ISO |
Model Number: | SA2000 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | USD 1500-5500/ unit |
Packaging Details: | Wrapped with Film |
Delivery Time: | Within 15 day after confirmed |
Payment Terms: | T/T, L/C |
Supply Ability: | 200 units per month |
Rated Capacity: | 2000kg | Platform Size: | R1110mm |
---|---|---|---|
Base Frame Size: | 915*934mm | Lowered Height: | 240mm |
Raised Height: | 705mm | Net Weight: | 150kg |
High Light: | 2 ton palletpal 360,transport heavy objects palletpal 360,ce certificate palletpal 360 |

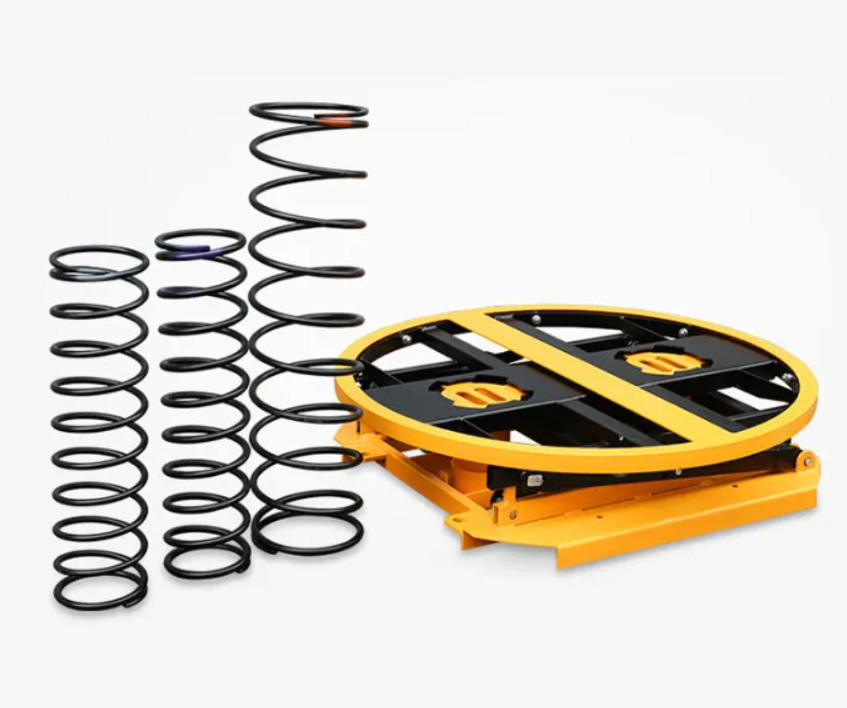

The PalletPal 360 Loader is a simple device that will automatically main-Tain a load at the ideal height for manual loading and unloading. If a palletized load Is placed on the unit, the unit gradually rises as boxes or parts are removed. This Automatically maintains the top of the load at the correct working height.
The unit may also be used for the reverse application. An empty pallet may be placed on the PalletPal 360 Loader The unit gradually lowers as boxes or parts are added.
Again, this keeps the top of the load at the correct height. Complete pallets may be loaded or unloaded using a stacker or fork lift.
Specification
Model | SA500 | SA1000 | SA2000 | |
Rated Capacity | kg | 500 | 1000 | 2000 |
Platform Size | mm | R1110 | R1110 | R1110 |
Base Frame Size | mm | 915*934 | 915*934 | 915*934 |
Lowered Height | mm | 240 | 240 | 240 |
Raised Height | mm | 705 | 705 | 705 |
Net Weight | kg | 115 | 125 | 150 |
Details

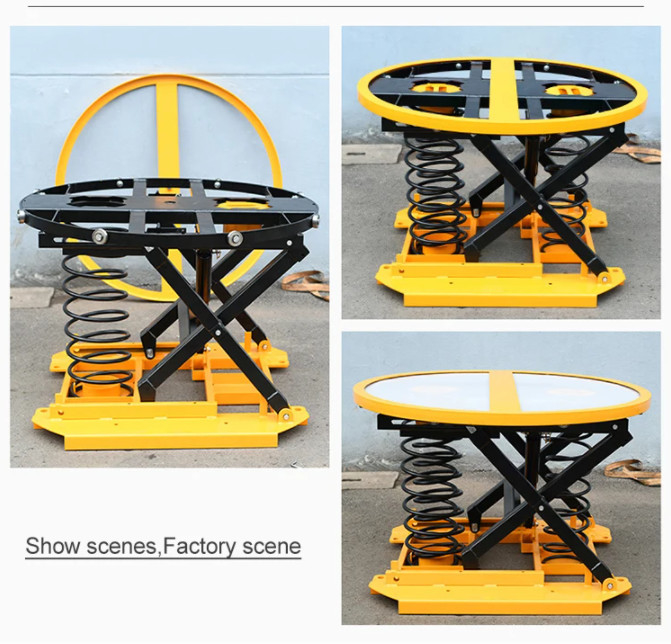

1.Widening anti-pinvh scissors
Scissor-type bracket structure,the platform maintains a horizontal state,and the stability is good; the gap is widened in thr middle to prevent accidental pinching of other items.
2.Socket slot
The base is designed with a toothed groove to facilitate the overall movement, and the handing of the loading and unloading is convenient for the forklift to be practical and easy to operate.
3.Lifting shock absorber
The shock absorber plays a mitigating role,making the platform more stable and improving the safety performance of the whole vertical.
4.Rotating balls
The ball-type rotating platform is used for smooth rotation and easy operation in any direction of the platform.
Packing and shipping
Our Company
Factory Equipments
Our Certificates
Our Clients
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
