Yellow Palletpal 1000kg Cargo Lift Table Lever Loader

Yellow Palletpal 1000kg Cargo Lift Table Lever Loader

  • Yellow Palletpal 1000kg Cargo Lift Table Lever Loader
Yellow Palletpal 1000kg Cargo Lift Table Lever Loader
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE,ISO
Model Number: SA1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1500-5500/ unit
Packaging Details: Wrapped with Film
Delivery Time: Within 15 day after confirmed
Payment Terms: T/T, L/C
Supply Ability: 200 units per month
Contact Now
Detailed Product Description
Rated Capacity: 1000kg Platform Size: R1110mm
Base Frame Size: 915*934mm Lowered Height: 240mm
Net Weight: 125kg
High Light:

1000kg cargo lift table

,

1000kg pallet loader

,

stacker cargo lift table



Palletpal Lift Table Lever Loader



The PalletPal 360 Loader is a simple device that will automatically main-Tain a load at the ideal height for manual loading and unloading. If a palletized load Is placed on the unit, the unit gradually rises as boxes or parts are removed. This Automatically maintains the top of the load at the correct working height.

The unit may also be used for the reverse application. An empty pallet may be placed on the PalletPal 360 Loader The unit gradually lowers as boxes or parts are added. Again, this keeps the top of the load at the correct height. Complete pallets may be loaded or unloaded using a stacker or fork lift.



Specification

Model   SA500 SA1000 SA2000
Rated Capacity kg 500 1000 2000
Platform Size mm R1110 R1110 R1110
Base Frame Size mm 915*934 915*934 915*934
Lowered Height mm 240 240 240
Raised Height mm 705 805 705
Net Weight kg 115 125 150



Yellow Palletpal 1000kg Cargo Lift Table Lever Loader 0Yellow Palletpal 1000kg Cargo Lift Table Lever Loader 1



Details



1.Widening anti-pinvh scissors

Scissor-type bracket structure,the platform maintains a horizontal state,and the stability is good; the gap is widened in thr middle to prevent accidental pinching of other items.



2.Socket slot

The base is designed with a toothed groove to facilitate the overall movement, and the handing of the loading and unloading is convenient for the forklift to be practical and easy to operate.

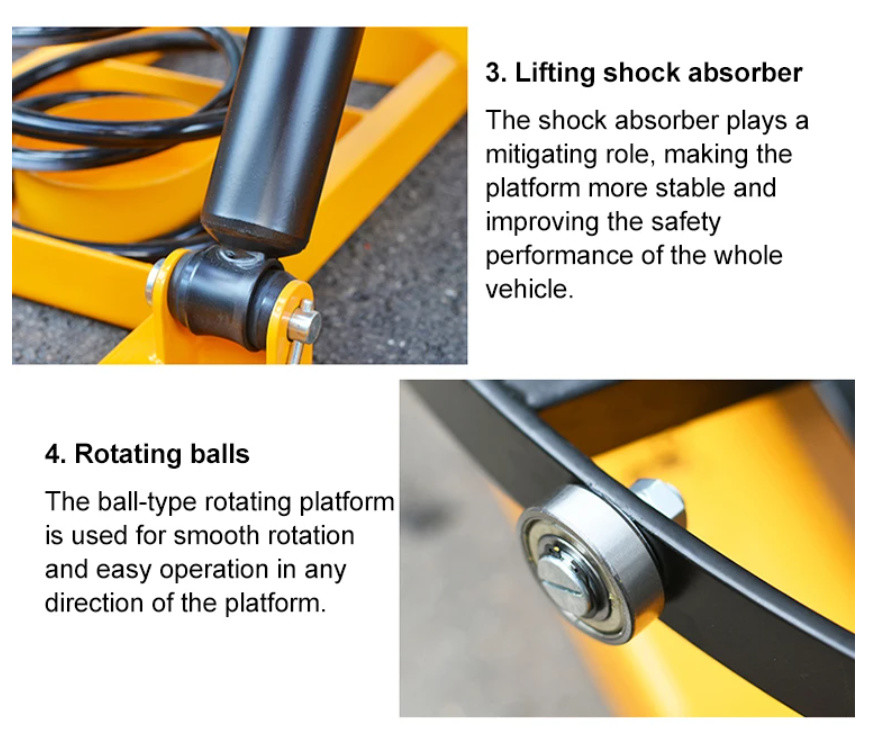

3.Lifting shock absorber

The shock absorber plays a mitigating role,making the platform more stable and improving the safety performance of the whole vertical.



4.Rotating balls

The ball-type rotating platform is used for smooth rotation and easy operation in any direction of the platform.

Yellow Palletpal 1000kg Cargo Lift Table Lever Loader 2

Yellow Palletpal 1000kg Cargo Lift Table Lever Loader 3

Our Company



Factory Equipments

Yellow Palletpal 1000kg Cargo Lift Table Lever Loader 4





Our Clients

Yellow Palletpal 1000kg Cargo Lift Table Lever Loader 5

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
