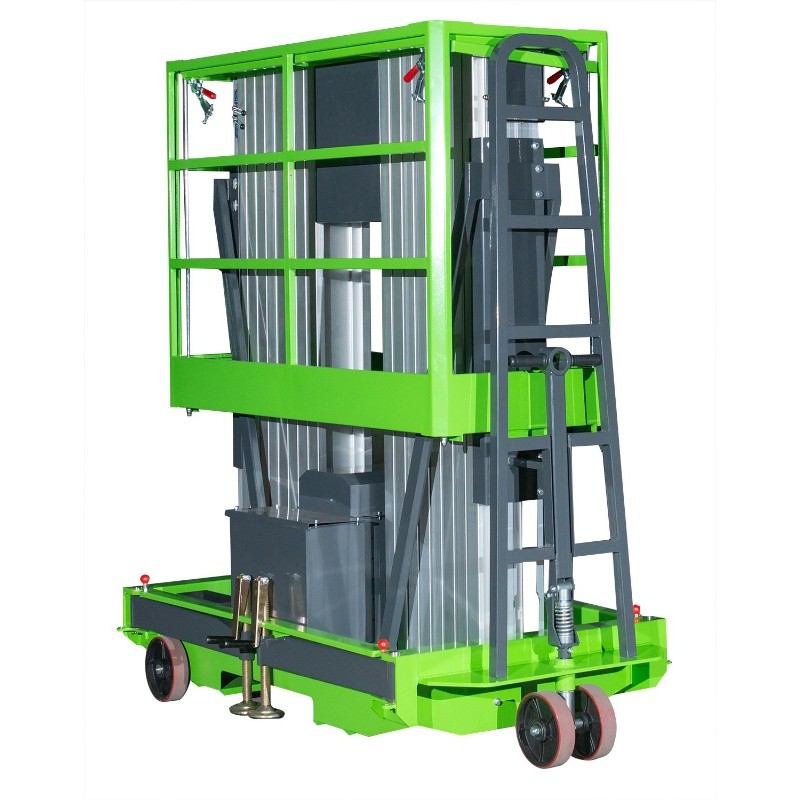

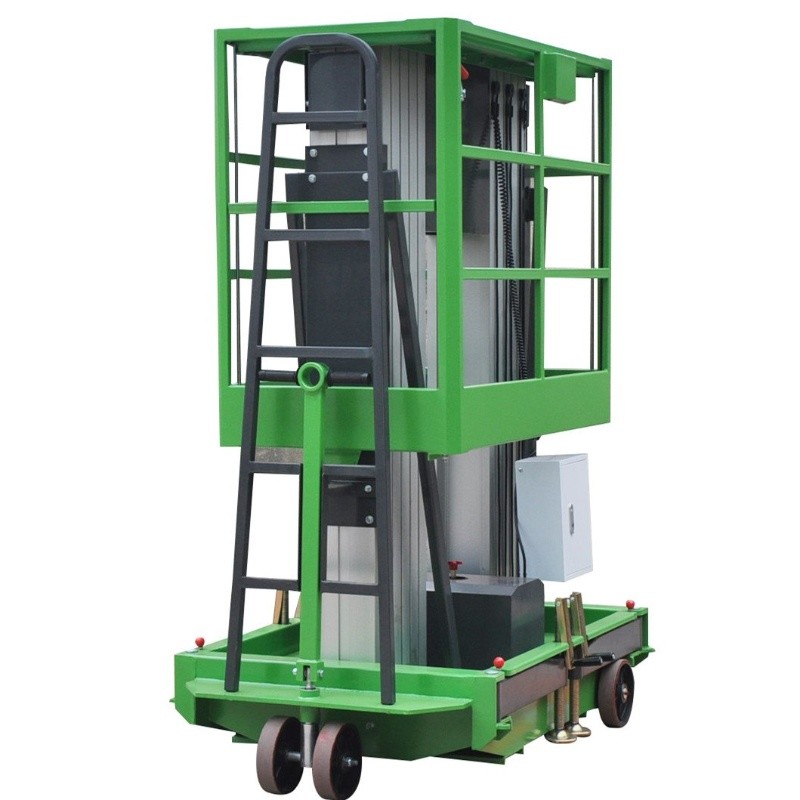

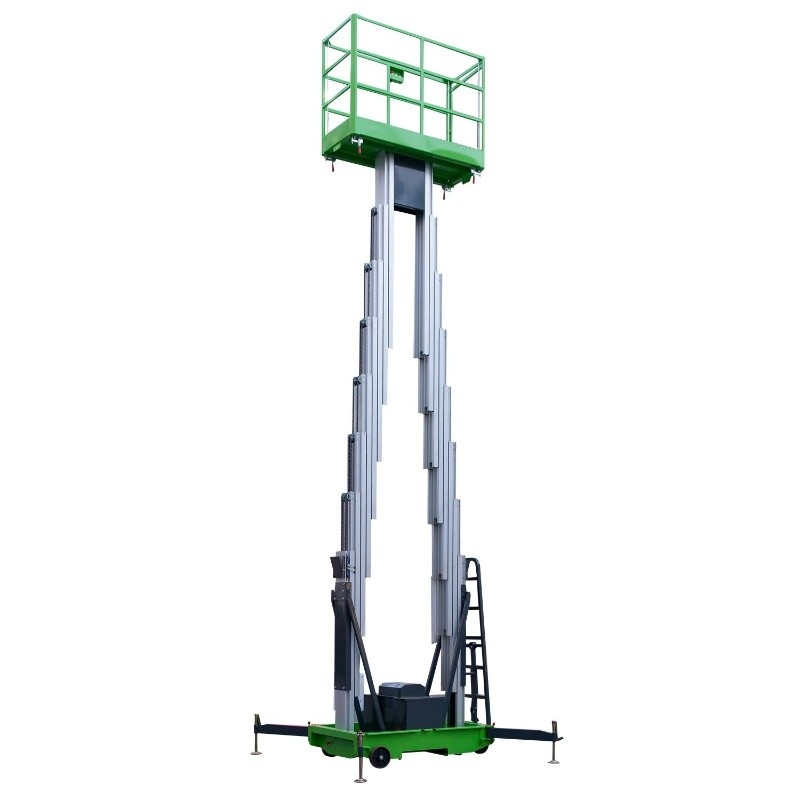

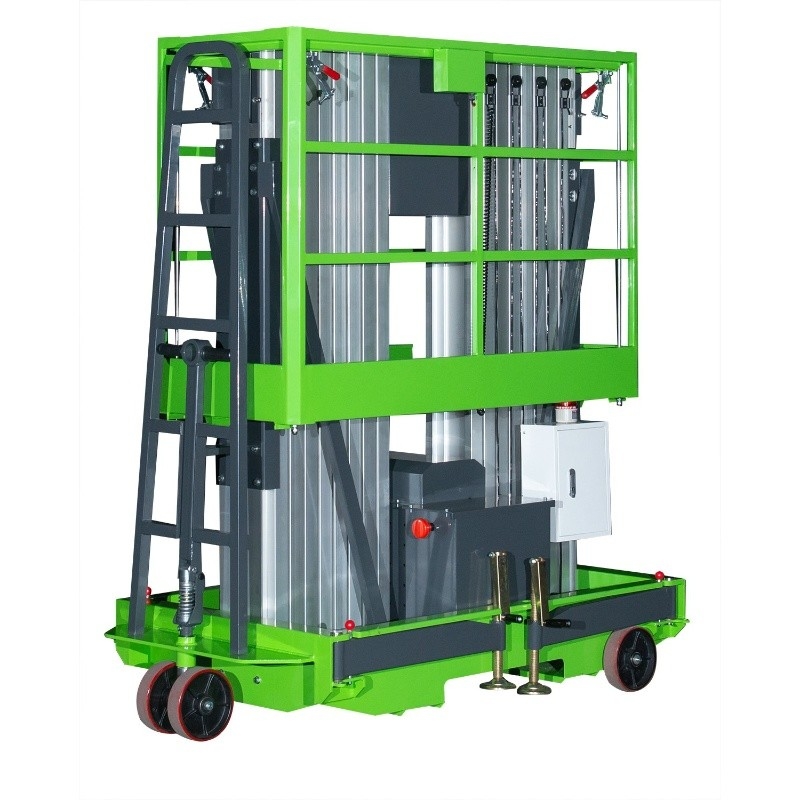

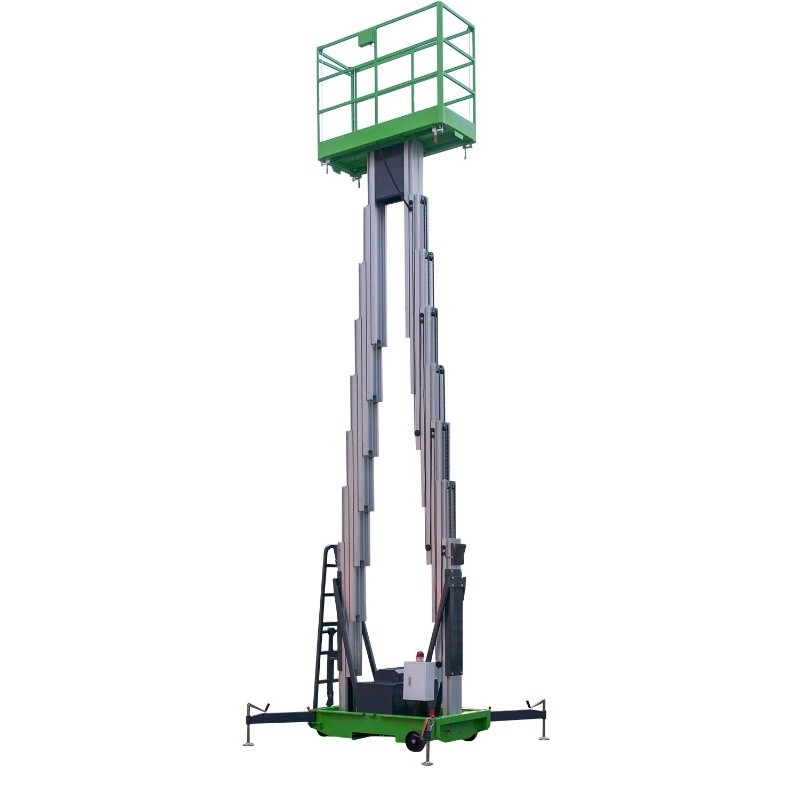

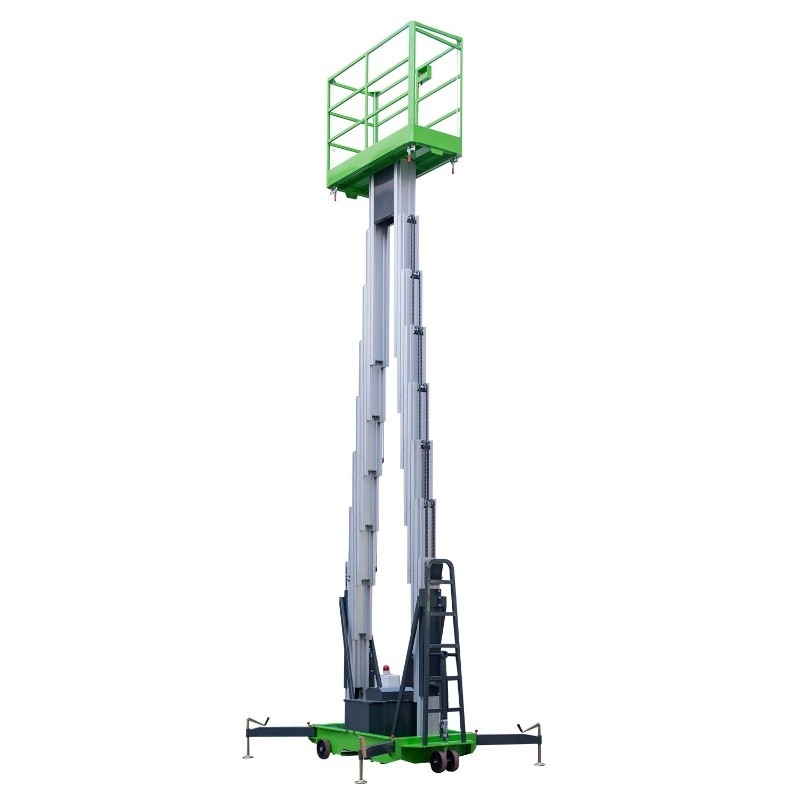

Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height

Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height

  • Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height
  • Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height
  • Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height
  • Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height
Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height
Product Details:
Place of Origin: CN
Brand Name: Bestmax Lift
Certification: ISO; IPAF; CE
Model Number: ME800-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1800-4500
Packaging Details: Packed in Pallet, Wrapped with Film
Delivery Time: Within 15 days
Payment Terms: L/C, T/T
Supply Ability: 2000 units per month
Contact Now
Detailed Product Description
Material: Aluminum Max Platform Height: 8m
Max Working Height: 10m Platform Size: 0.60*0.55 M
Standard Power: AC Optional Power: DC; AC+DC
High Light:

vertical man lift

,

industrial vertical platform lift

8m Platform Height 200kg Load Capacity Double Mast Mobile Vertical Lifting Platform​



Major Parameter of Single Mast Aluminum Aerial Work Platform

Model NO. Working Height (m) Loading Capacity (Kg) Platform
Size (m)
Lifting
Power (Kw)
Weight
(Kg)
Dimension (m)
GTWY6-100 8 130 0.60x0.55 0.75 260 1.38x0.80x1.65
GTWY8-100 10 130 0.60x0.55 0.75 300 1.38x0.80x1.98
GTWY9-100 11 130 0.60x0.55 0.75 326 1.44x0.85x1.98
GTWY10-100 12 130 0.60x0.55 0.75 400 1.44x0.85x1.98


Major Parameters of Double Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY6-200 8 200 1.18x0.62 1.1 380 1.38x0.85x2.00
GTWY8-200 10 200 1.18x0.62 1.1 480 1.38x0.95x2.00
GTWY9-200 11 200 1.38x0.62 1.1 548 1.58x0.95x2.00
GTWY10-200 12 200 1.38x0.62 1.1 610 1.68x0.95x2.00
GTWY12-200 14 200 1.48x0.62 1.1 650 1.68x0.95x2.00
GTWY14-200 16 150 1.48x0.62 1.1 650 1.68x0.95x2.00




Description
By the mast quantity: single mast, double mast, triple mast, quadruple mast and six masts (four plus two) are ranked in the product range of man pushing around aerial work platform
Features non-marking tires and anodized aluminum mast. Easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable. It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground.


Application
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.


Main Configurations of Man Pushing Around Aluminum Aerial Work Platform

Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height 0
Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height 1
Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height 2Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.



Customer Visiting



Durable Double Mast Mobile Vertical Lifting Platform For 8m Platform Height 3

Why choose Our Mobile Vertical Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 20 Years Experience
