10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast

10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast

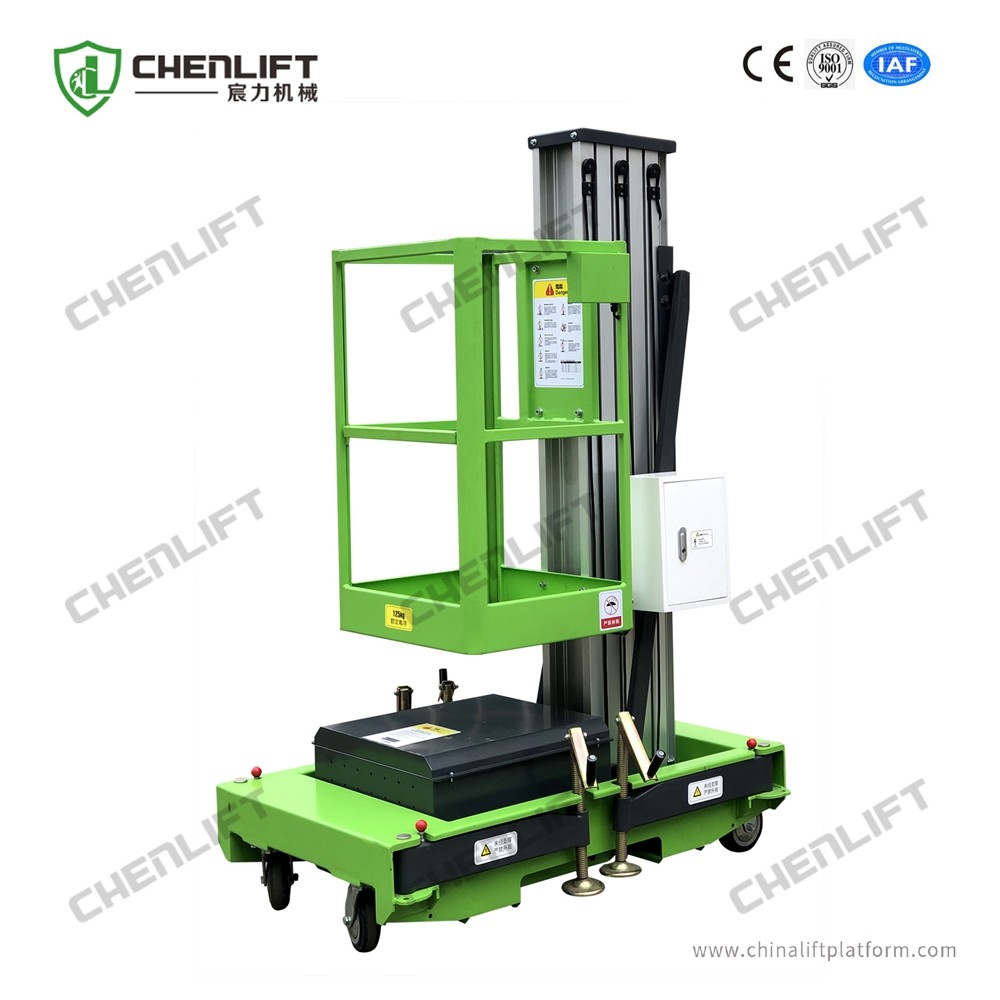

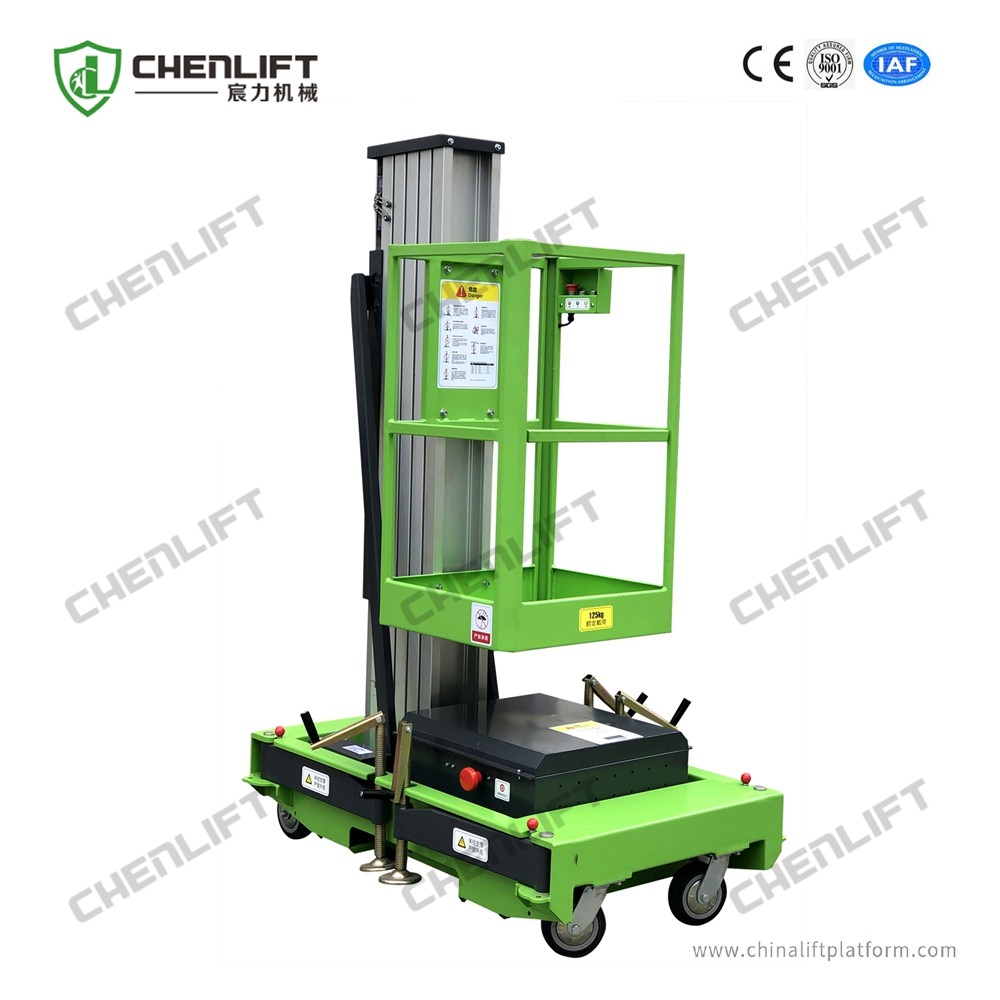

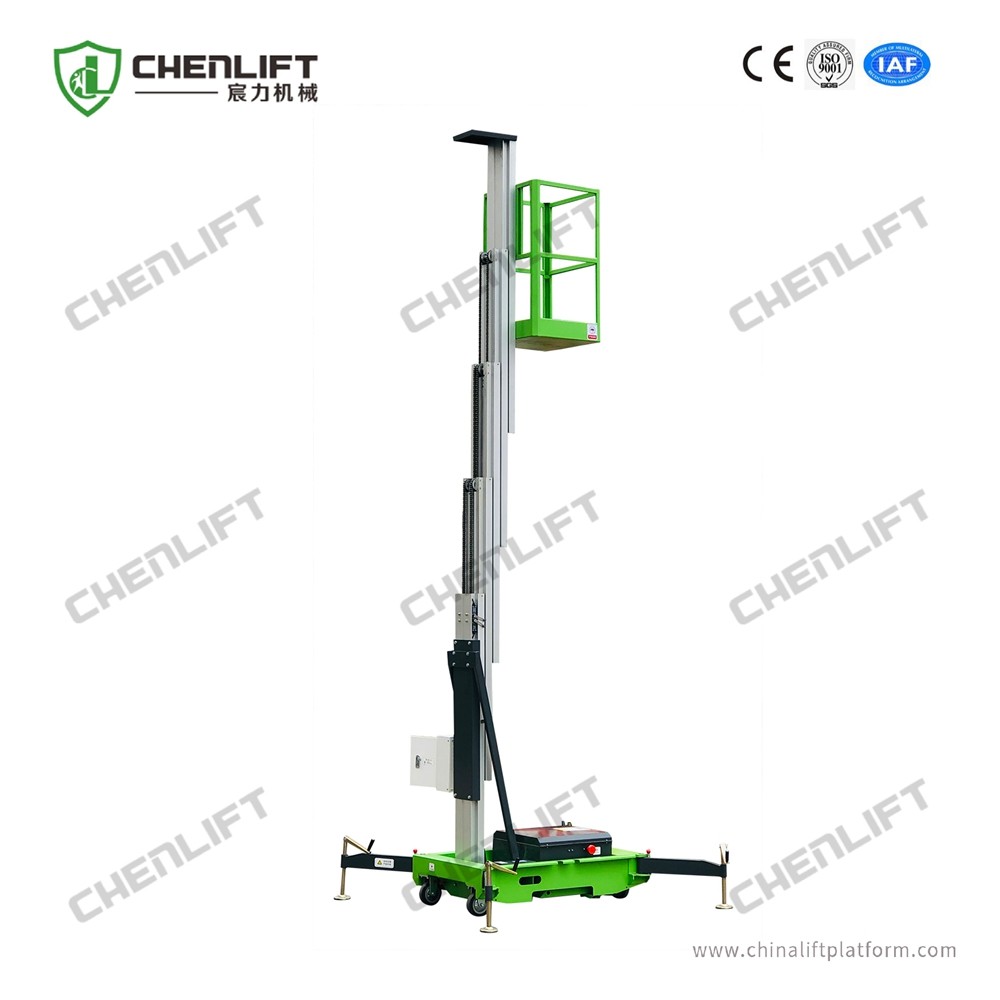

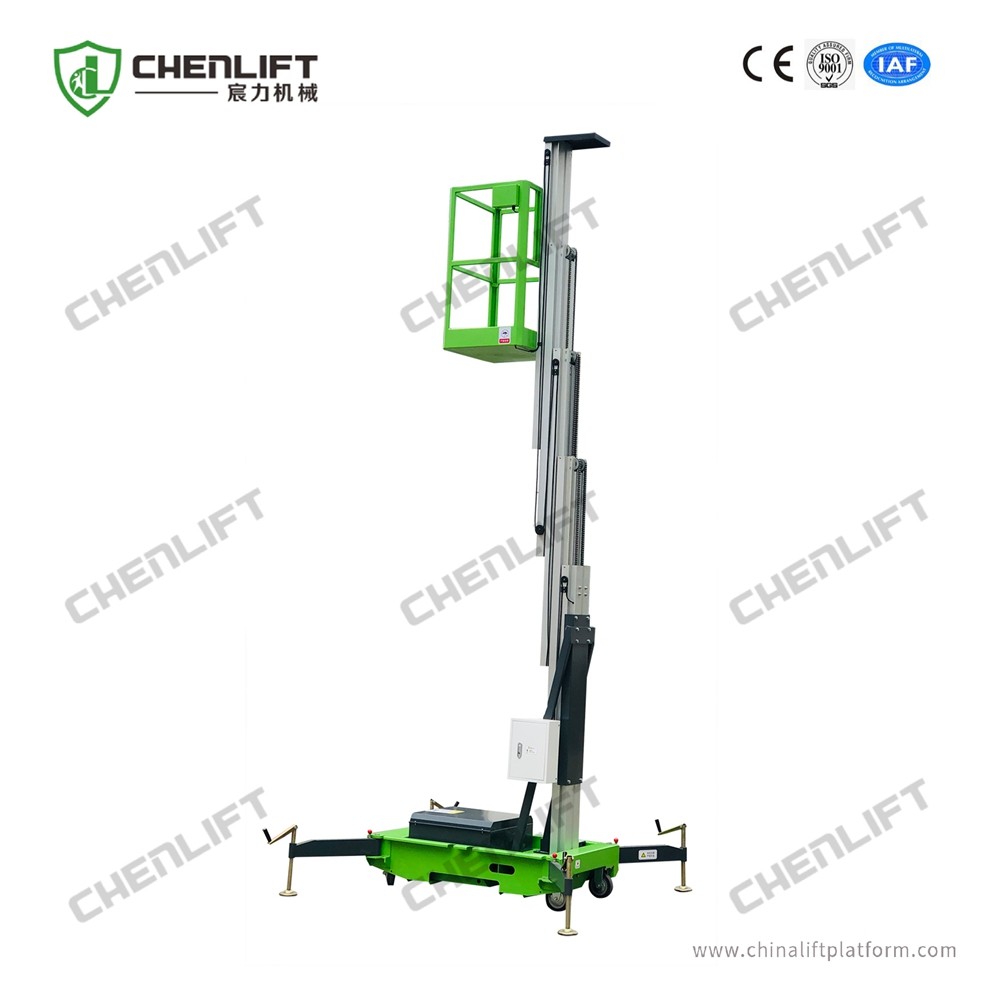

  • 10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast
  • 10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast
  • 10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast
  • 10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast
  • 10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast
10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast
Product Details:
Place of Origin: CN
Brand Name: CHEN LIFT
Certification: ISO; IPAF; CE
Model Number: ME1000-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1800-2500
Packaging Details: Packed in Pallet, Wrapped with Film
Delivery Time: Within 15 days
Payment Terms: L/C, T/T
Supply Ability: 2000 units per month
Contact Now
Detailed Product Description
Material: Aluminum Max Platform Height: 10m
Max Working Height: 12m Platform Size: 0.60*0.55 M
Standard Power: AC Optional Power: DC; AC+DC
High Light:

electric vertical lift

,

industrial vertical platform lift

10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast



Description:

Aluminum Aerial Work Platforms has light structure and small size, it can also be made into AC power supply type, all these factors enable operator to use this aerial work platform outdoors.



Applications:

It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The power sources could be 220V, 380V or chargeable battery.


Main Configurations of Man Pushing Around Aluminum Aerial Work Platform

10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast 0



Safety Features of Man pushing Around Aluminum Aerial Work Platform

  • Toe protection boards on the platform
  • Anti-skid deck on the platform
  • Auxiliary Lowering
  • Dual limit switch for safety
  • Operation voltage at 24V
  • Safety belt holding
  • Anti-burst valve on the cylinder
  • Emergency stop button both on platform and ground
  • Short Circuit and leakage protection system for AC version
  • Fuse for DC version for electric shock protection

Major Parameter of Single Mast Aluminum Aerial Work Platform

Model NO. Working Height (m) Loading Capacity (Kg) Platform
Size (m)
Lifting
Power (Kw)
Weight
(Kg)
Dimension (m)
GTWY6-100 8 130 0.60x0.55 0.75 260 1.38x0.80x1.65
GTWY8-100 10 130 0.60x0.55 0.75 300 1.38x0.80x1.98
GTWY9-100 11 130 0.60x0.55 0.75 326 1.44x0.85x1.98
GTWY10-100 12 130 0.60x0.55 0.75 400 1.44x0.85x1.98



Major Parameters of Double Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY6-200 8 200 1.18x0.62 1.1 380 1.38x0.85x2.00
GTWY8-200 10 200 1.18x0.62 1.1 480 1.38x0.95x2.00
GTWY9-200 11 200 1.38x0.62 1.1 548 1.58x0.95x2.00
GTWY10-200 12 200 1.38x0.62 1.1 610 1.68x0.95x2.00
GTWY12-200 14 200 1.48x0.62 1.1 650 1.68x0.95x2.00
GTWY14-200 16 150 1.48x0.62 1.1 650 1.68x0.95x2.00


Major Parameters of Triple Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY10-300 12 300 1.40x0.88 2.2 900 1.78x1.10x2.05
GTWY12-300 14 300 1.40x0.88 2.2 950 1.78x1.10x2.05
GTWY14-300 16 250 1.53x0.88 2.2 980 1.90x1.10x2.32


Major Parameters of Quadruple Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY10-400 12 300 1.40x0.80 2.2 950 1.78x1.25x2.05
GTWY12-400 14 300 1.40x0.80 2.2 980 1.78x1.25x 2.32
GTWY14-400 16 200 1.40x0.80 2.2 1000 1.90x1.25x2.32
GTWY16-400 18 200 1.40x0.80 2.2 1100 2.28x1.35x2.82


Major Parameters of Six Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY16-420 18 150 1.45x0.90 2.2/1.1 1200 2.28x1.35x2.18
GTWY18-420 20 150 1.45x0.90 2.2/1.1 1400 2.28x1.35x2.42
GTWY20-420 22 150 1.55x0.90 2.2/1.1 1780 2.50x1.40x2.62
GTWY22-420 24 150 1.55x0.90 2.2/1.1 2000 3.00x1.60x2.82



10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast 1



Company Introduction

10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast 2
Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.



10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast 3

10m Platform Height 130kg Load Capacity Mobile Vertical Lifting Platform With Single Mast 4
