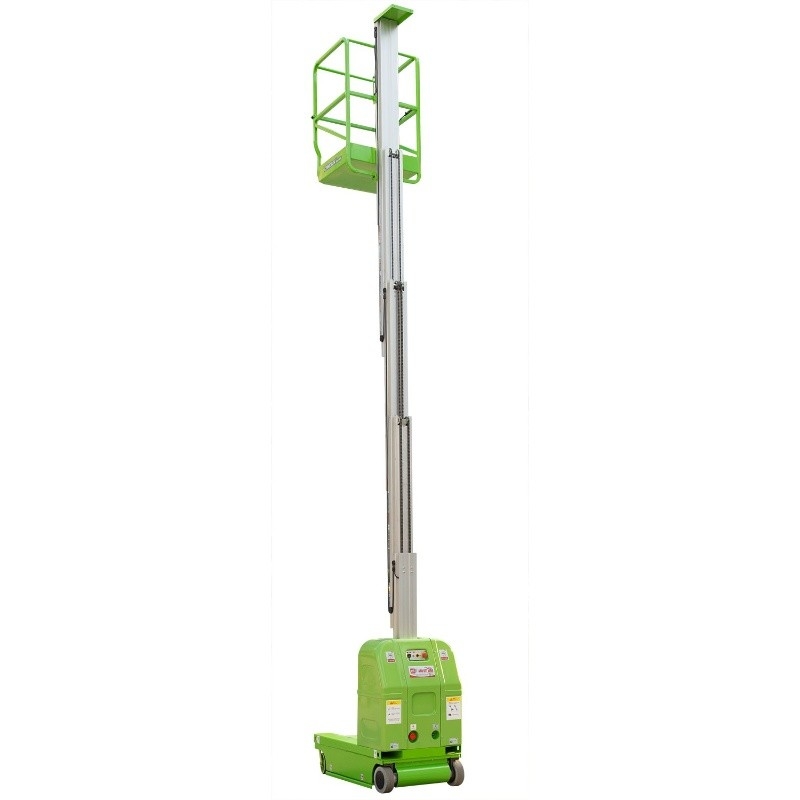

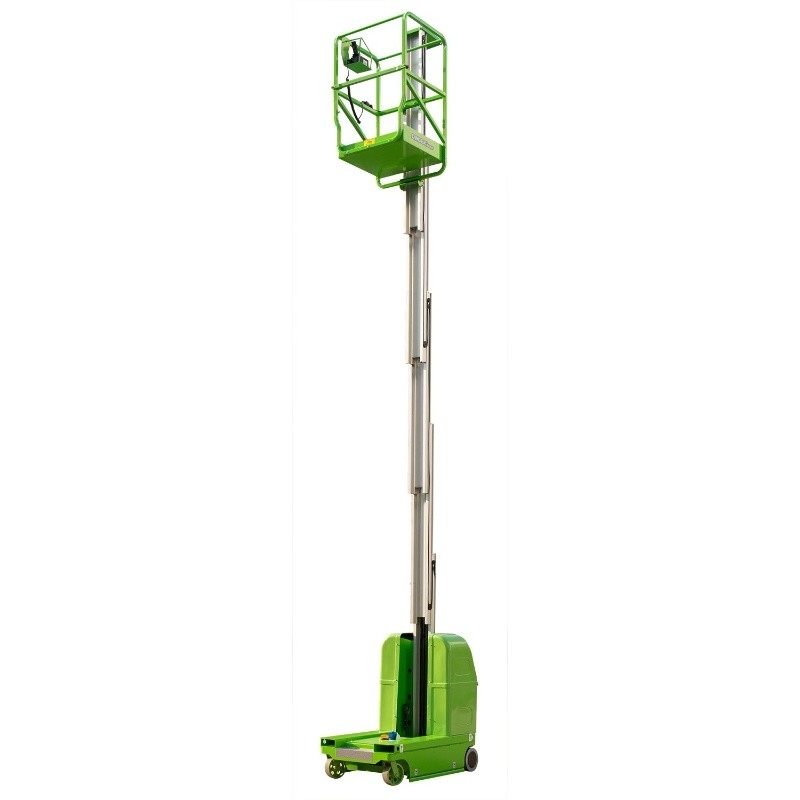

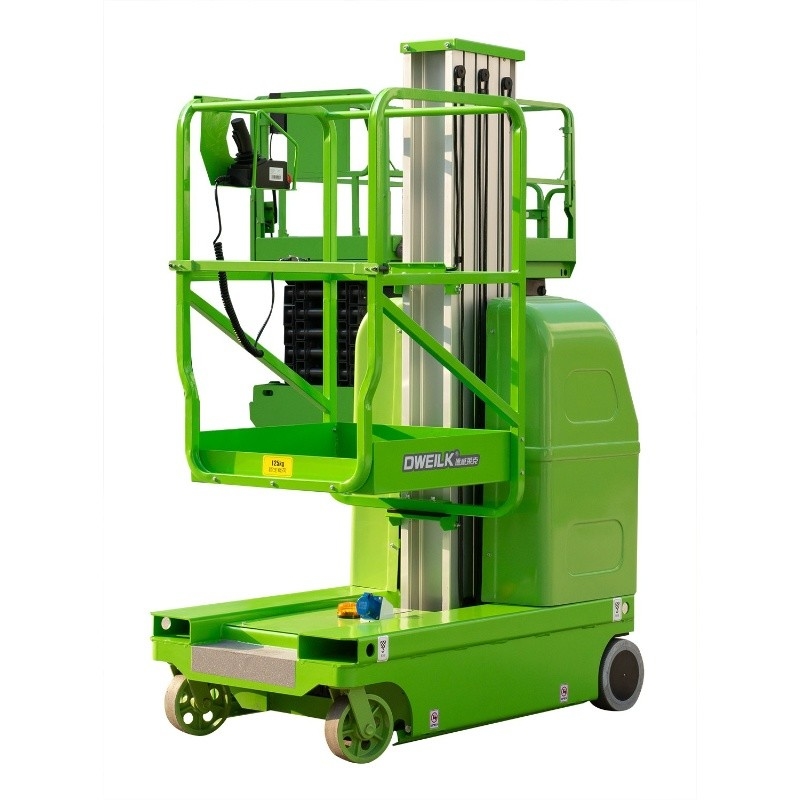

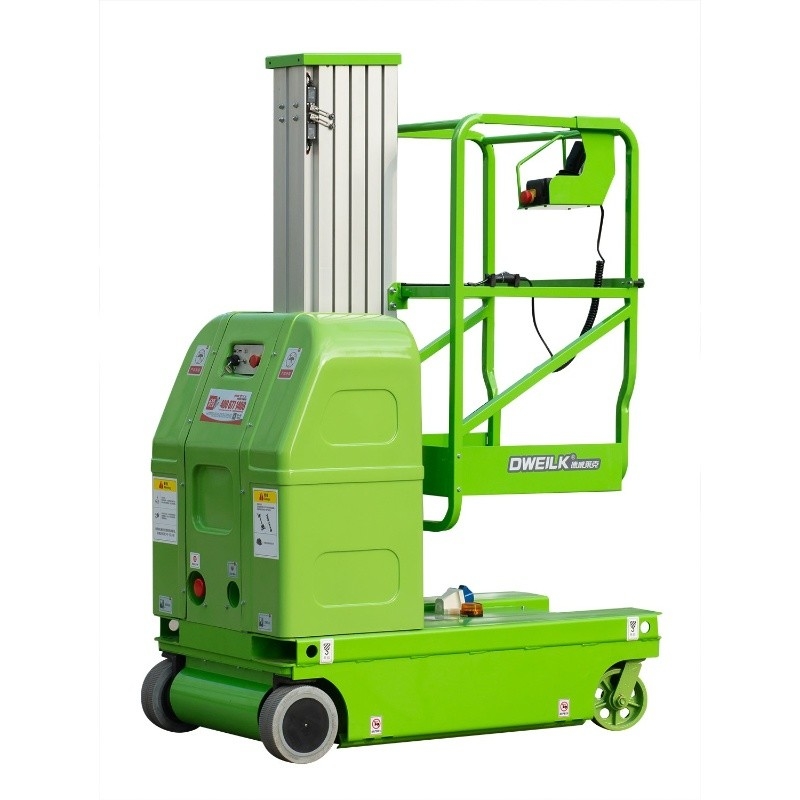

8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform

8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform

  • 8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform
  • 8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform
  • 8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform
8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform
Product Details:
Place of Origin: Original from China
Brand Name: Bestmax Lift
Certification: CE ISO9001:2008 IPAF member
Model Number: MG600-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 days after receipt of deposit
Supply Ability: 100 set/ month
Contact Now
Detailed Product Description
Model: MG600-1 Lift Capacity: 125kg
Platform Height Max: 6m Platform Size: 0.78*0.70m
Power Source: 2*12V/115Ah Charger: 24V/12A
Weight: 850kg Color: Customizable
High Light:

electric vertical lift

,

vertical man lift

8m Working Height Vertical Lifting Platform Self-propelled Vertical Lift Single Mast

Description:
Self-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground.

It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.


Specification:
Swivel Turning Type

Model MG600-1 MG750-1 MG750-2 MG900-2
Lift Capacity 125Kg 125Kg 200Kg 150Kg
Platform Height Max 6m 7.5m 7.5m 9m
Stowed Length 1.36m 1.36m 1.5m 1.5m
Stowed Width 0.79m 0.79m 1.0m 1.0m
Stowed Height 1.98m 1.98m 1.99m 1.99m
Platform Size 0.78*0.70m 0.78*0.70m 1.00m*0.70m 1.00m*0.70m
Ground Clearance 0.05m 0.05m 0.05m 0.05m
Wheelbase 1.15m 1.15m 1.28m 1.28m
Gradeability 25% 25% 25% 25%
Maximum Working Slope 1.5° 1.5° 1.5° 1.5°
Driving Wheel 0.23*0.08m 0.23*0.08m 0.25*0.08m 0.25*0.08m
Front Tire 8in 8in 8in 8in
Driving Motor 0.4Kw 0.4Kw 0.5Kw 0.5Kw
Lifting Motor 2Kw 2Kw 2Kw 2Kw
Power Source 2*12V/120Ah 2*12V/120Ah 2*12V/120Ah 2*12V/120Ah
Charger 24V/12A 24V/12A 24V/12A 24V/12A
Weight 850Kg 880Kg 1100Kg 1250Kg


Standard Configuration for Self-Propelled Economical Vertical Lift
1. Proportional controls
2. DC power supply
3. Drivable at full height
4. Beacon
5. Non marking tyre
6. 2WD
7. Automatic braking system
8. Anti burst valve on cylinder
9. Emergency stop button
10. Auxiliary lowering
11. On board Diagnostic system
12. Tilt sensor with alarm
13. Forklift pockets
14. Charger protection
15. All motion alarm
16. Horn
17. Double wheel brake
18. Hydraulic braking release
19. Anti-dust cover on the mast
20. Powder coating painting

Optional Configuration for Self-Propelled Economical Vertical Lift
1. AC power to platform
2. Overload sensor with alarm
3. Platform working light
4. Air tube to the platform
5. Platform extension
6. Self -lock gate on platform(Hinge type top open door)
7. Hour meter
8. Machine Body cover
9. Wireless tracking


8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform 08m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform 1

Company Introduction
As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform 2



8m Working Height Vertical Lifting Platform , Single Mast Aerial Work Platform 3
