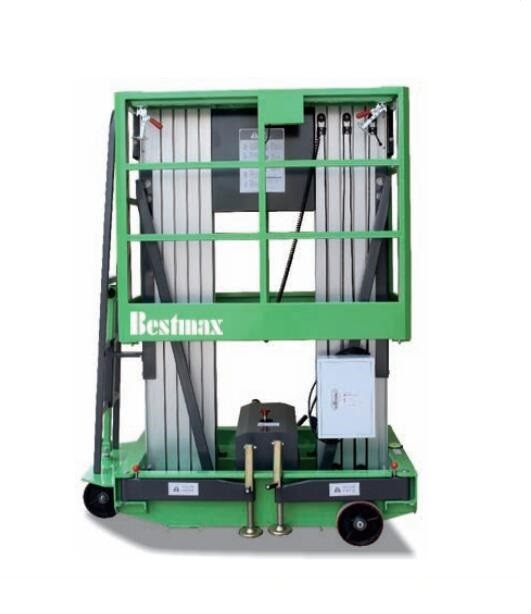

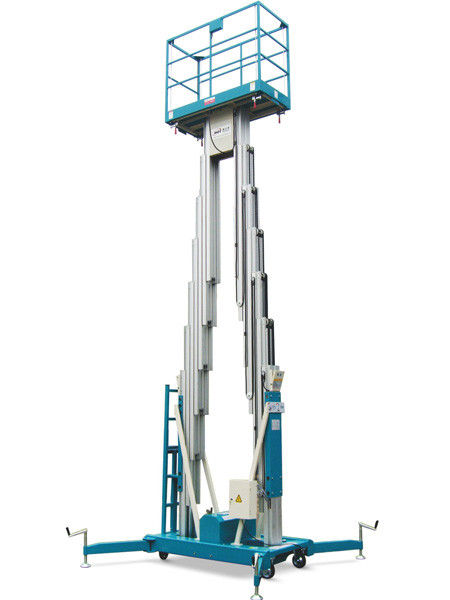

9 Meters Height Double Mast Aerial Work Platform With Small Loading Capacity 200Kg

9 Meters Height Double Mast Aerial Work Platform With Small Loading Capacity 200Kg

  • 9 Meters Height Double Mast Aerial Work Platform With Small Loading Capacity 200Kg
  • 9 Meters Height Double Mast Aerial Work Platform With Small Loading Capacity 200Kg
9 Meters Height Double Mast Aerial Work Platform With Small Loading Capacity 200Kg
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: ME900-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30 days after down payment
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Lift Capacity: 200kg Platform Height: 9m
Working Height: 11m Platform Size: 1.30*0.62m
Lifting Motor: 1.1kw Overall Size: 1.54*1.00*2.00m
High Light:

mobile aerial work platform

,

aerial work platform



9 Meters Height Double Mast Aerial Work Platform With Small Loading Capacity 200Kg



Quick Detail:

Name Mobile Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 200Kg Platform Height 9m
Platform Size 1.30*0.62m Color Green or Optional
Motor Power 1.1Kw Power Supply AC/DC



Description:

Aluminum Aerial Work Platforms has light structure and small size, it can also be made into AC power supply type, all these factors enable operator to use this aerial work platform outdoors.



Applications:

It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 4m to 9m and lifting capacity varies from 100kg to 125kg.The power sources could be 220V, 380V or chargeable battery.



Main Features:

1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10. Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet



Competitive Advantage:

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience



9 Meters Height Double Mast Aerial Work Platform With Small Loading Capacity 200Kg 09 Meters Height Double Mast Aerial Work Platform With Small Loading Capacity 200Kg 1

Communication with Customers:

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1



A: How long is your quality guarantee period?

B: We have one year warranty.
