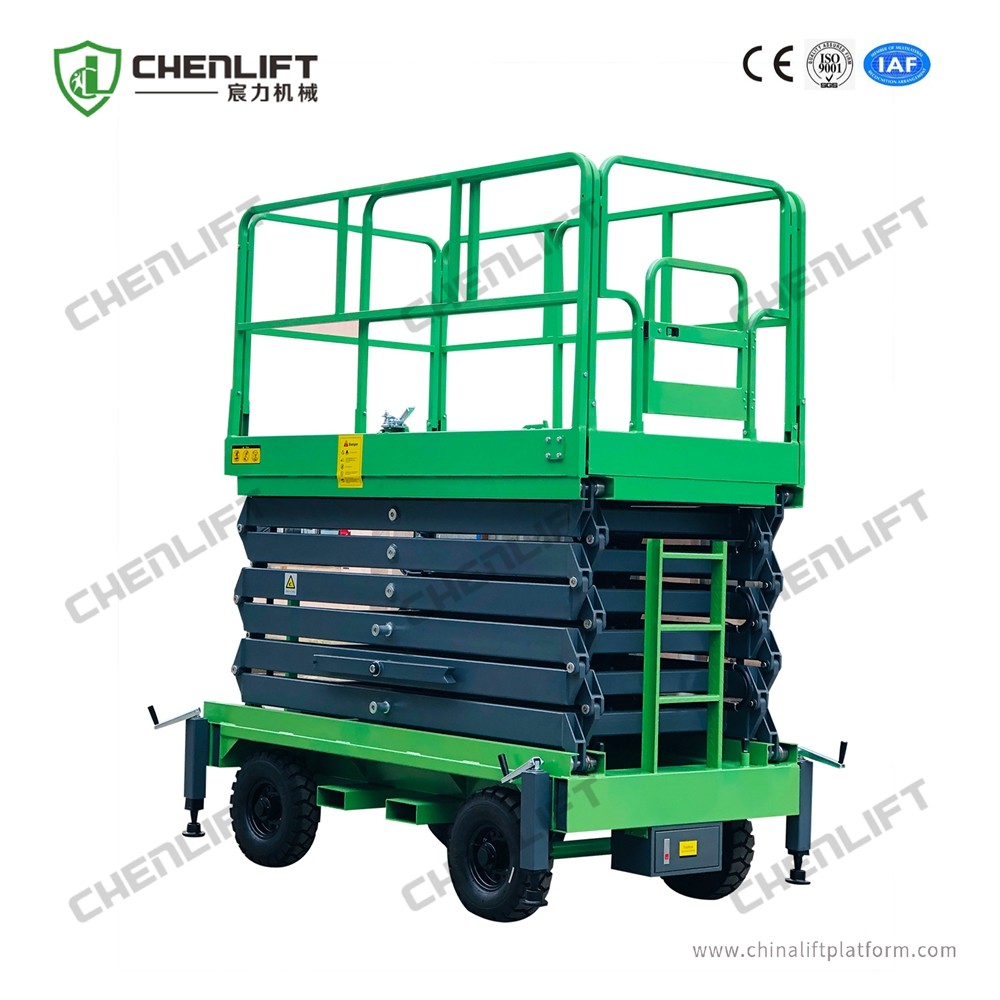

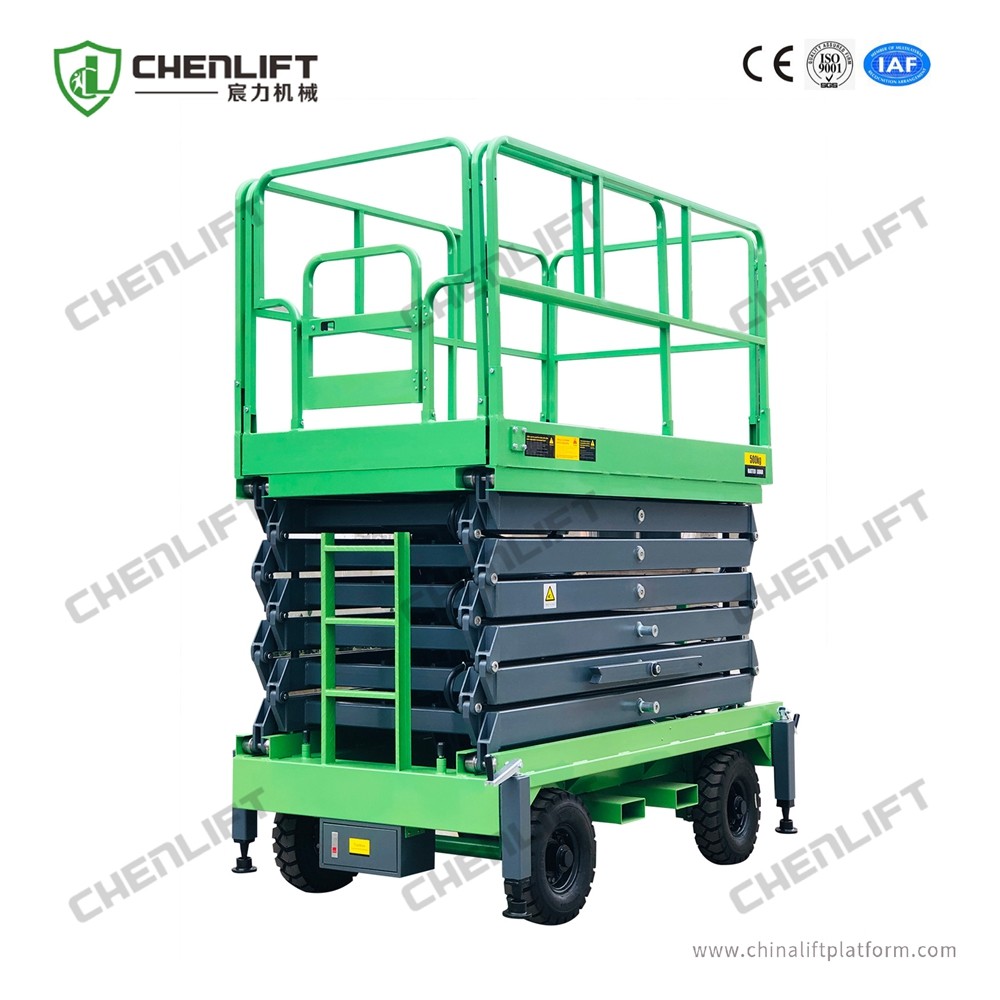

16 Meters Hydraulic Lift Platform Scissor Lift 300Kg For Working At Height In Green

16 Meters Hydraulic Lift Platform Scissor Lift 300Kg For Working At Height In Green

  • 16 Meters Hydraulic Lift Platform Scissor Lift 300Kg For Working At Height In Green
  • 16 Meters Hydraulic Lift Platform Scissor Lift 300Kg For Working At Height In Green
16 Meters Hydraulic Lift Platform Scissor Lift 300Kg For Working At Height In Green
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: MK1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or Wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Loading Capacity: 300kg Platform Height: 16m
Working Height: 18m Platform Size: 2.75*1.50m
Motor Power: 3kw Power Voltage: AC380V
Weight: 2680kg Overall Size: 2.75*1.74*2.00m
High Light:

mobile hydraulic lift

,

hydraulic aerial work platform



16 Meters Hydraulic Lift Platform Scissor Lift 300Kg For Working At Height In Green



Parameter:

Loading Capacity 300kg
Platform Height 16000mm
Platform Size 2750mm*1500mm
Motor Power 3kw
Power Voltage AC380V
Lifting Time 130s
Total Weight 2680kg
Overall Size 2750*1740*2000mm



Description:

This mobile scissor lift is easy to use. The control panels are available on the platforms and ground.

They are used to provide contractors with temporary access to high-altitude areas that are inaccessible to various workplaces, such as maintenance, construction projects or fire crews emergency access.

The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



Main Features:
1. Pointing control of lifting up and down.
2. Manganese steel lifting arm in high strength with rectangle shape
3. Anti skid floor in platform
4. The control panels are available on the platforms and ground
5. Fine grinding cylinder in good sealing performance
6. Neatly folding guardrails
7. Battery and battery charger in bulit
8. Optional extension platform



Major Parameters:

  • Model: MK1600
  • Loading Capacity  300kg
  • Maximum Platform Height  16000mm
  • Maximum Working Height 18000mm
  • Platform Size  2750*1500mm
  • Lifting Power 3kw
  • Power Voltage  AC380V
  • Lifting Time  130s
  • Total Weight  2680kg
  • Overall Size 2750*1740*2000mm



Configurations:

· Electric system: Schneider contactor, SANLICO button, CHNT electrical

· Hydraulic System: Hycman brand power pack, sealing

· Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B

· Platform Surface: Anti-skid checkered plate

· Tyre: 6inch and 8inch

· High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose


Safety Precautions​:
1. The operation voltage on the platform is 24V
2. Emergency stop button on the platform and ground
3. Auxiliary lowering device
4. Hose burst valve safety
5. Rain-proof design electirc cabinet
6. Fold-able fence on the platform
7. Outrigger on the chassis for more stability​



Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



Why choose CHEN LIFT Mobile Scissor Lift?

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

Communication with Customers:

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1
