Place of Origin: | Original from China |
Brand Name: | CHEN LIFT |
Certification: | CE ISO9001:2008 IPAF member |
Model Number: | MG600-1S |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wrapped in pallets/ wooden case |
Delivery Time: | 30 days after receipt of deposit |
Supply Ability: | 100 set/ month |
Model: | MG600-1S | Lift Capacity: | 125kg |
---|---|---|---|
Platform Height: | 6m | Platform Size: | 0.78*0.70m |
Working Height: | 8m | Charger: | 24V/12A |
Weight: | 1102kg | Color: | Customizable |
Highlight: | mobile aerial work platform,hydraulic aerial work platform |

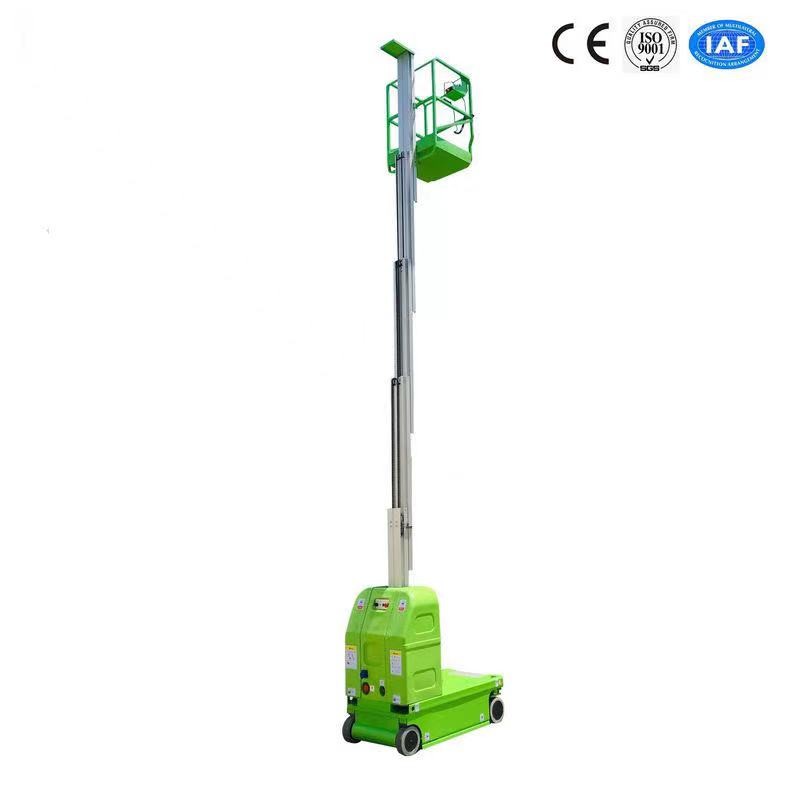

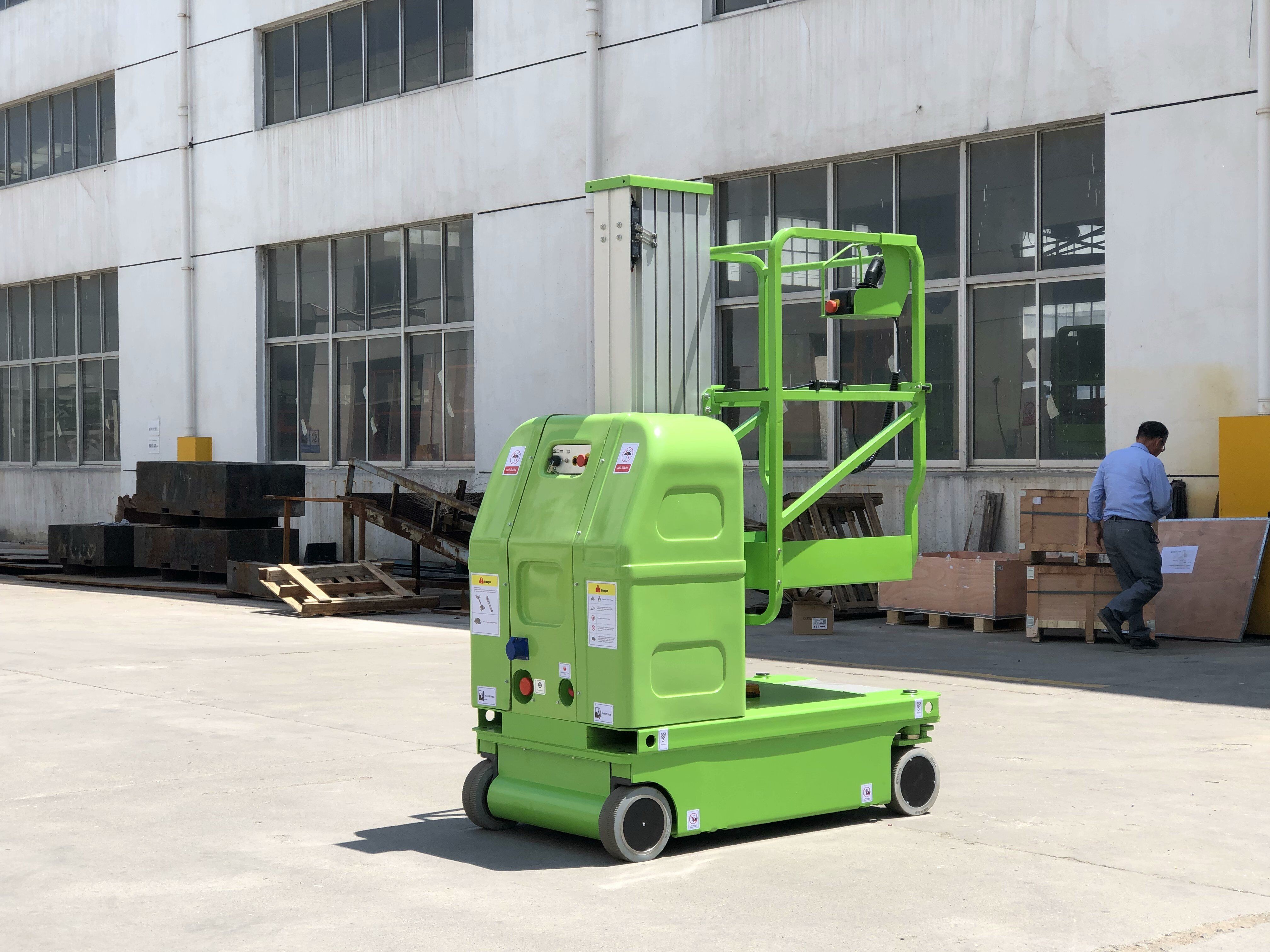

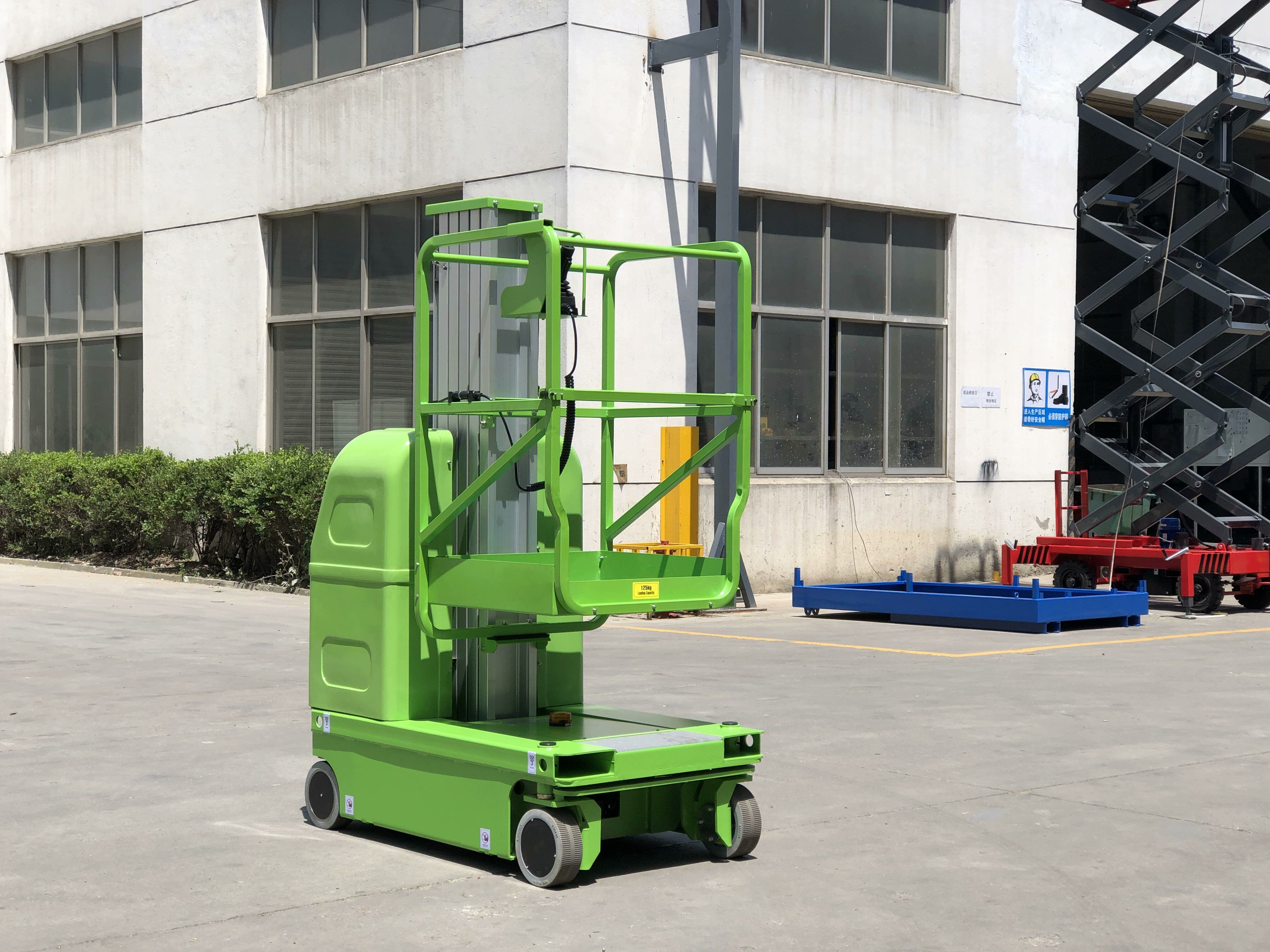

Self-Propelled Aluminum Aerial Work Platform Single Mast 6 Meters High Lift Capacity 125kg
Description:
Self-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.
Specification:
Model | MG600-1S |
Lift capacity | 125kg |
Platform height max | 6m |
Stowed length | 1.36m |
Stowed width | 0.79m |
Stowed height | 1.98m |
Platform size | 0.78*0.70m |
Ground clearance | 0.05m |
Wheelbase | 1.15m |
Gradeability | 25% |
Maximum working slope | 1.5° |
Driving wheel | φ0.23*0.08m |
Front tire | 8in |
Driving motor | 2*24V/0.4kw |
Lifting motor | 24V/2kw |
Power source | 2ˣ12V/120Ah |
Charger | 24V/12A |
Weight | 850kg |
Standard Configurations:
Proportional Control
Power Supply
Traceless Tyre
4*2 Driving
Automatic Brake System
Auxiliary Lowering System
Emergency Stop System
Anti-burst System
Tilting Protection System
Buzzer
Horn
Fork Lift Slots
Charging Protection System
Optional Configurations:
AC Power to Platform
Platform Working Light
Extension Platform
Why choose CHEN LIFT Self-Propelled Aluminum Aerial Work Platform?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· One year warranty
Communication with Customers
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
