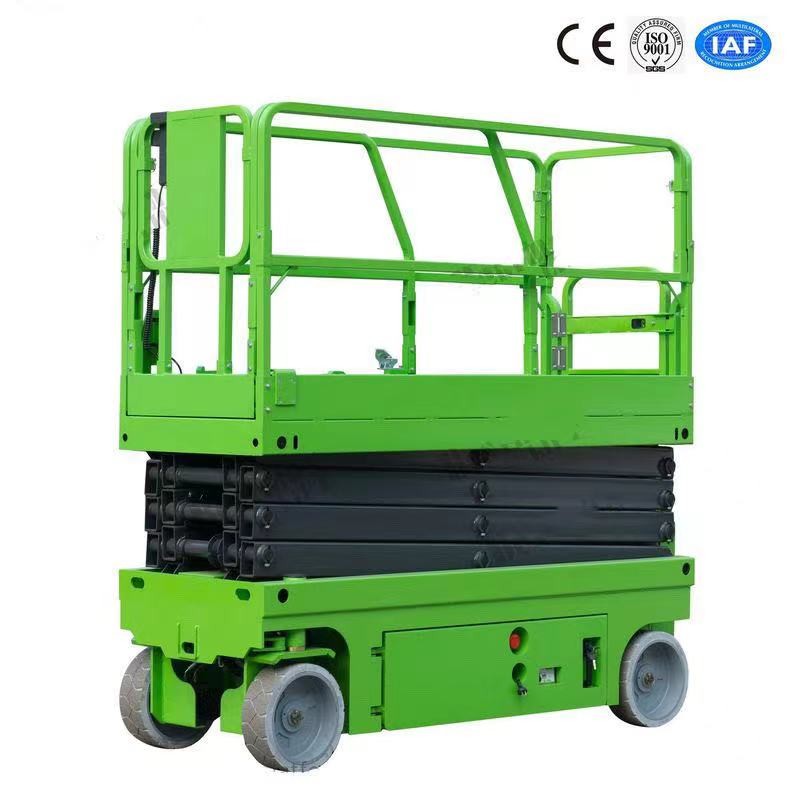

8 Meters Platform Height Self Propelled Scissor Lift With Lifting Capacity 230Kg Man Lifts

8 Meters Platform Height Self Propelled Scissor Lift With Lifting Capacity 230Kg Man Lifts

    • 8 Meters Platform Height Self Propelled Scissor Lift With Lifting Capacity 230Kg Man Lifts
    • 8 Meters Platform Height Self Propelled Scissor Lift With Lifting Capacity 230Kg Man Lifts
    • 8 Meters Platform Height Self Propelled Scissor Lift With Lifting Capacity 230Kg Man Lifts
  • 8 Meters Platform Height Self Propelled Scissor Lift With Lifting Capacity 230Kg Man Lifts

    Product Details:

    Place of Origin: Original of China
    Brand Name: Bestmax Lift
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MX800SN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 day after receipt of deposit
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets/ month
    Contact Now
    Detailed Product Description
    Model: MX800SN Material: Q345 Steel
    Platform Size: 2.27*0.81m Measurement: 2.43*0.81*1.87m
    Battery: 4*6V/225Ah Total Weight: 2100kg
    Color: Customizable Driving: Hydraulic Motor
    Lift Capacity: 230kg Extension Loading: 113kg





    8 Meters Platform Height Self Propelled Scissor Lift With Lifting Capacity 230Kg Man Lifts



    Description:



    Bestmax Lift Self-propelled Electric Scissor Lift  has simple structure, smooth driving, faster speed, lower noise, deeply loved by users who always work outdoor, to provide you with a flexible mobility, operability.



    It is unique in carrying capacity and wide platform that can bring more workers and tool set. It can greatly improve the working efficiency to assist finish various aerial work tasks in different situations as it can travel in any status whether lifted or stowed. Smart, flexible, quick, it can be operated by one single to control on the platform and no human power needed to move it.



    Parameters



    Model

    MX800SN

    Load capacity

    230kg

    Extension load capacity

    113kg

    Max Worker number

    2

    Working height

    10m

    Platform floor height

    8m

    Measurement

    2.43*0.81*1.87m

    Extension platform size

    2.27*0.81m

    Ground clearance(stowed)

    0.1m

    Ground clearance(raised)

    0.019m

    Wheel base 1.87m

    Turning Radius(inside)

    0m

    Turning Radius(outside)

    2.1m

    Lifting / drive motor 24V/3.3kW
    Travelling speed(stowed) 3.0km/h
    Travelling speed(raised) 1.0km/h
    Lifting/ lowering speed 40/30sec
    Batteries 4*6V/225Ah
    Charger 24V/ 30A
    Gradeability 25%
    Max working slope 1.5°/3°
    Tyre Size 380*129
    Weight 2100kg





    All Specification

    Model MX580S MX600SN MX800SN MX800S MX1000S MX1200S
    Load 230 kg 230 kg 230 kg 450 kg 320 kg 230 kg
    Extension Load 113 kg 113 kg 113 kg 113 kg 113 kg 113 kg
    Platform Height 5.8 m 6 m 8 m 8 m 10 m 11.8 m
    Working Height 7.8 m 8 m 10 m 10 m 12 m 13.8 m
    Platform Size 1.67*0.74m 2.27*0.81m 2.27*0.81m 2.27*1.12m 2.27*1.12m 2.27*1.12m
    Platform Extension Length 0.9 m 0.9 m 0.9 m 0.9 m 0.9 m 0.9 m
    Lift/Drive Motor 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/4.5 kw






    Standard Configurations:

    1. Proportional Control
    2. Inter-lock door on the platform (spring loaded gate)
    3. Extension platform
    4. Hydraulic type braking system
    5. Hydraulic motor driving
    6. Trace-less tyre
    7. 2 Wheel Driving
    8. All motion alarm
    9. Flashing beacon
    10. Emergency stop button
    11. Fault diagnose system
    12. Automatic pothole protection
    13. Fold-able Fence
    14. 25% grad-ability
    15. Maintenance support bar
    16. Auxiliary Lowering
    17. Hour meter
    18. Battery Indicator
    19. Anti-burst valve
    20. Lateral Forklift pockets
    21. Drivable at full height
    22. Automatic charging (Over charging protection)
    23. Compact Turning Radius
    24. Swing out Tray
    25. Anchorage point (hook)
    26. Tilting level sensor with alarm
    27. Toe protection
    28. Battery (Trojan brand)
    29. Drive speed interlock limits speed while elevated
    30. Battery charging indicator
    31. Lifting hook
    32. Powder coating painting


    Optional Configuration:

    1. Working light on the platform
    2. Air-tube to the platform
    3. AC power to the platform
    4. Overloading Sensor with alarm
    5. Wireless tracking
    6. Over hoisting(top limit protection auto stop device)
    7. Tool box
    8. Anti-collision system

    8 Meters Platform Height Self Propelled Scissor Lift With Lifting Capacity 230Kg Man Lifts
