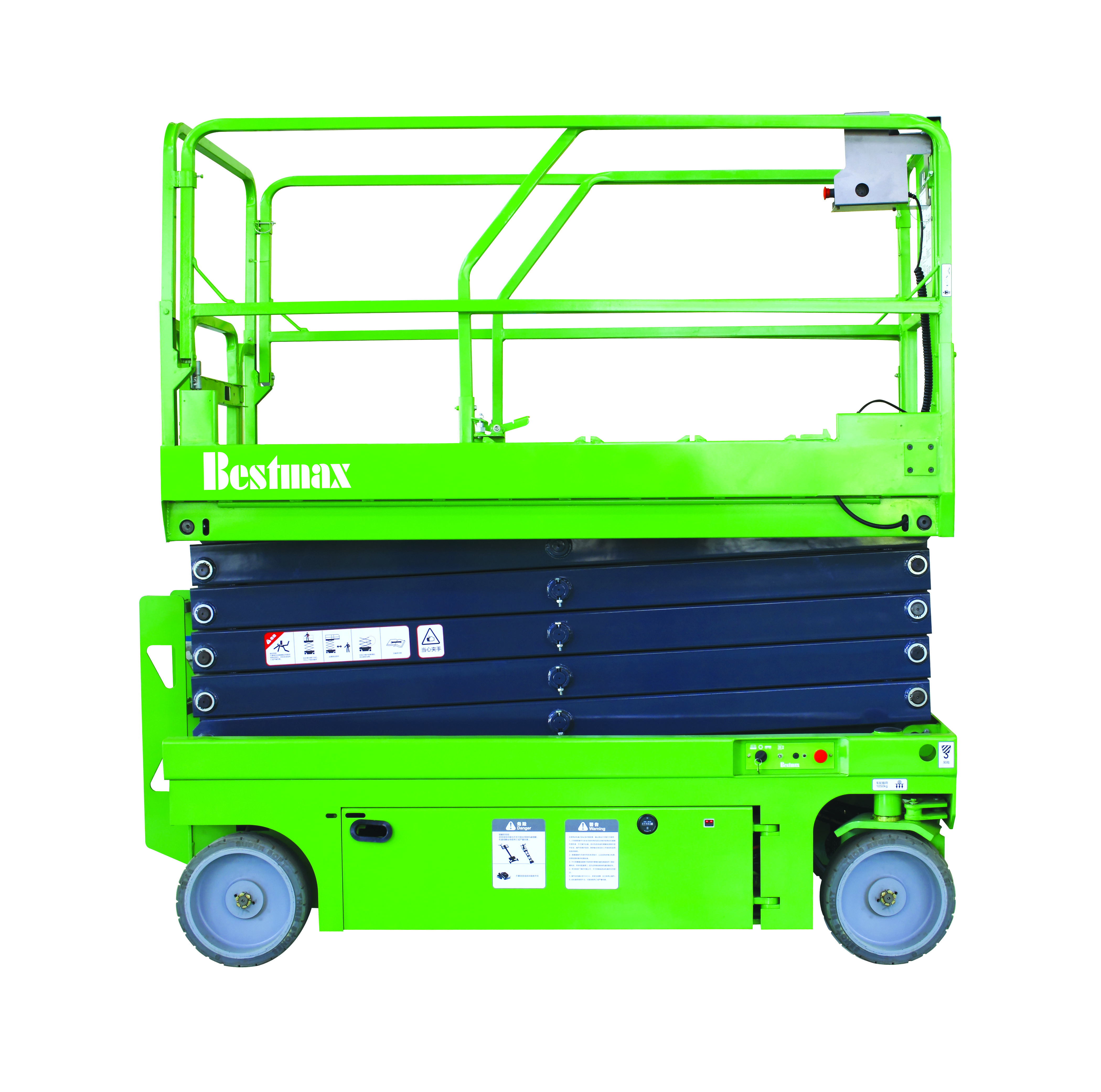

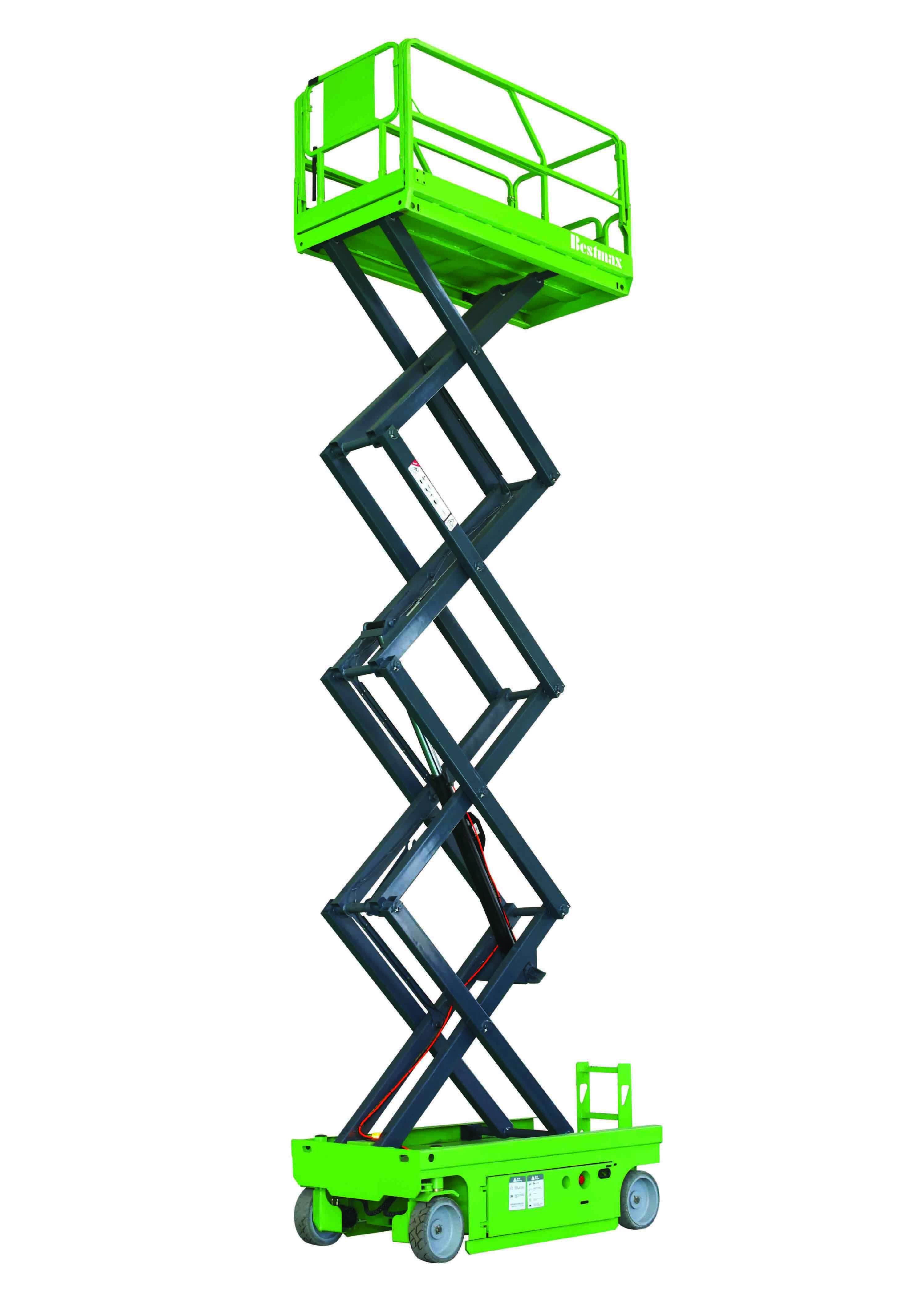

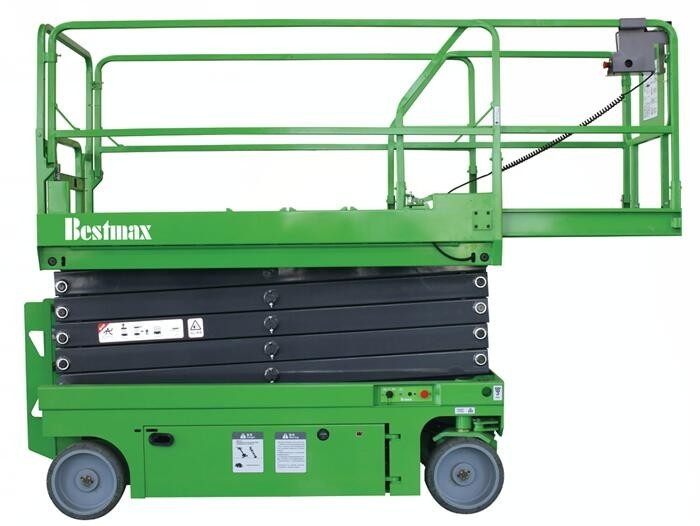

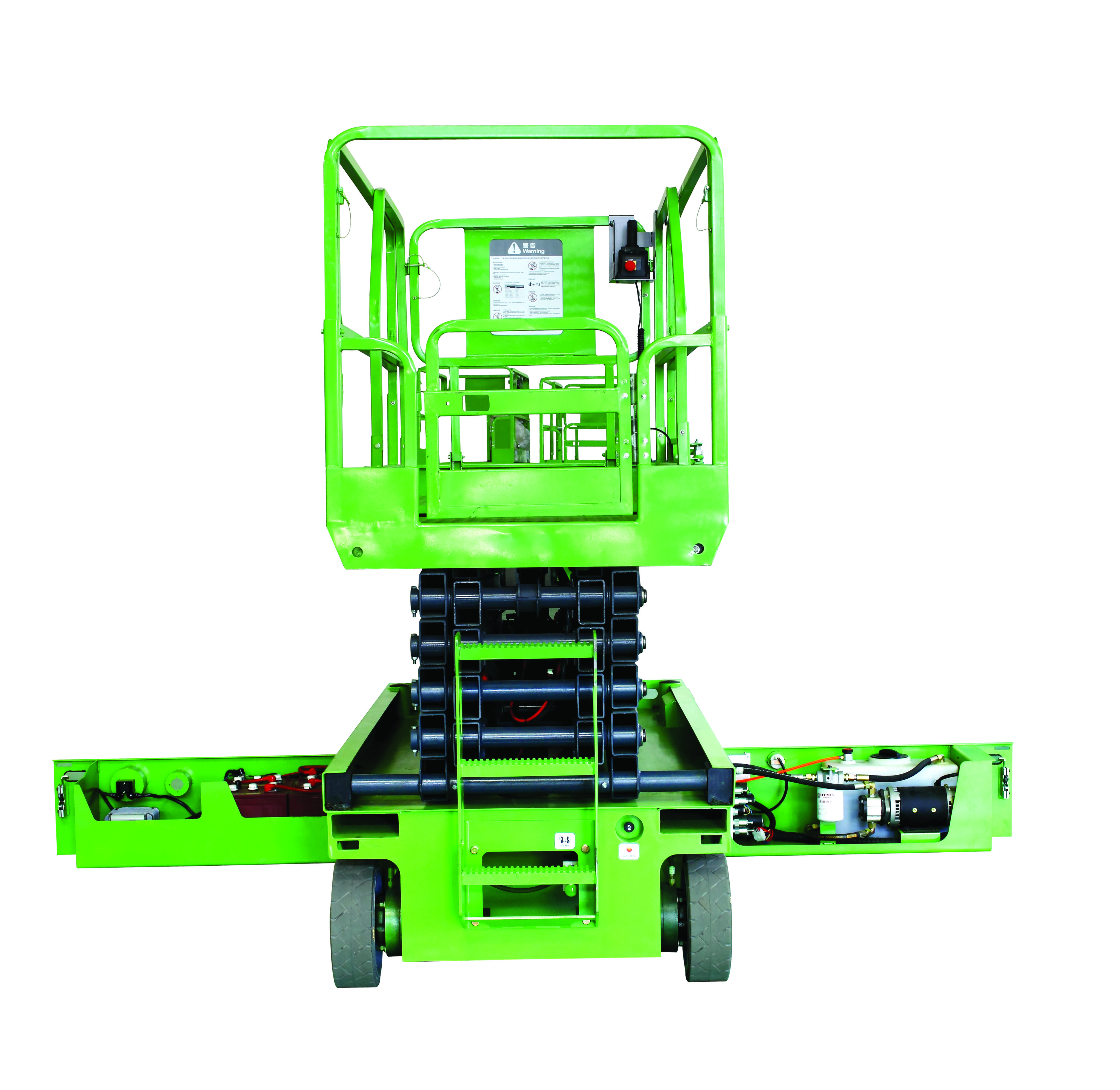

Hydraulic Self Propelled Scissor Lift Electric X-lift 8 Meters 450Kg Loading Capacity

Hydraulic Self Propelled Scissor Lift Electric X-lift 8 Meters 450Kg Loading Capacity

    • Hydraulic Self Propelled Scissor Lift Electric X-lift 8 Meters 450Kg Loading Capacity
    • Hydraulic Self Propelled Scissor Lift Electric X-lift 8 Meters 450Kg Loading Capacity
    • Hydraulic Self Propelled Scissor Lift Electric X-lift 8 Meters 450Kg Loading Capacity
    • Hydraulic Self Propelled Scissor Lift Electric X-lift 8 Meters 450Kg Loading Capacity
  • Hydraulic Self Propelled Scissor Lift Electric X-lift 8 Meters 450Kg Loading Capacity

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MX800S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 450Kg Platform Height: 8m
    Platform Size: 2.27*1.12m Lifting Power: 3.3Kw
    Working Height: 10m Weight: 1360kg



    Hydraulic Self Propelled Scissor Lift Electric X-lift 8 Meters 450Kg Loading Capacity



    Quick Detail:

    Name Self Propelled Scissor Lift Brand Name Bestmax
    Loading Capacity 450Kg Platform Height 8m
    Platform Size 2.27*1.12m Color Green or Optional
    Lifting Power 3.3kw Power Supply AC/DC



    Description:

    Scissor lifts are also called as scissor aerial work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



    The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



    Main Features:

    1. Pointing control of lifting up and down.

    2. Manganese steel lifting arm in high strength with rectangle shape

    3. Anti-skid floor in platform

    4 The control panels are available on the platforms and ground.

    5. Fine grinding cylinder in good sealing performance

    6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



    Safety Precaution:

    1. The operation voltage on the platform is 24V

    2. Emergency stop button on the platform and ground

    3. Auxiliary platform lowering

    4. Telescopic legs on the chassis

    5. Hose burst valve safety

    6. Rain-proof design electric cabinet

    7. Fence on the platform



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø400-8 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



    Applications:

    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





    Hydraulic Self Propelled Scissor Lift Electric X-lift 8 Meters 450Kg Loading Capacity
