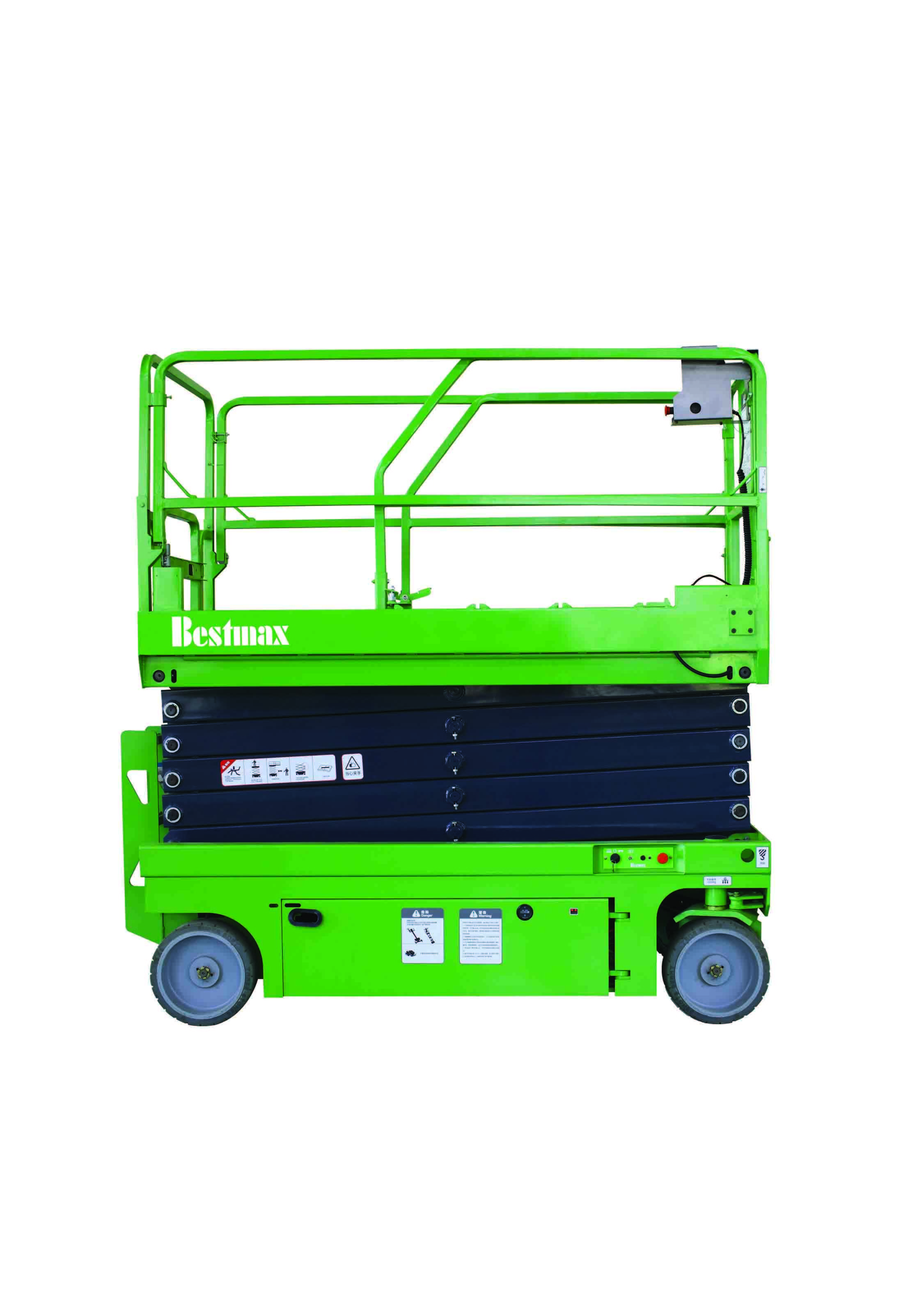

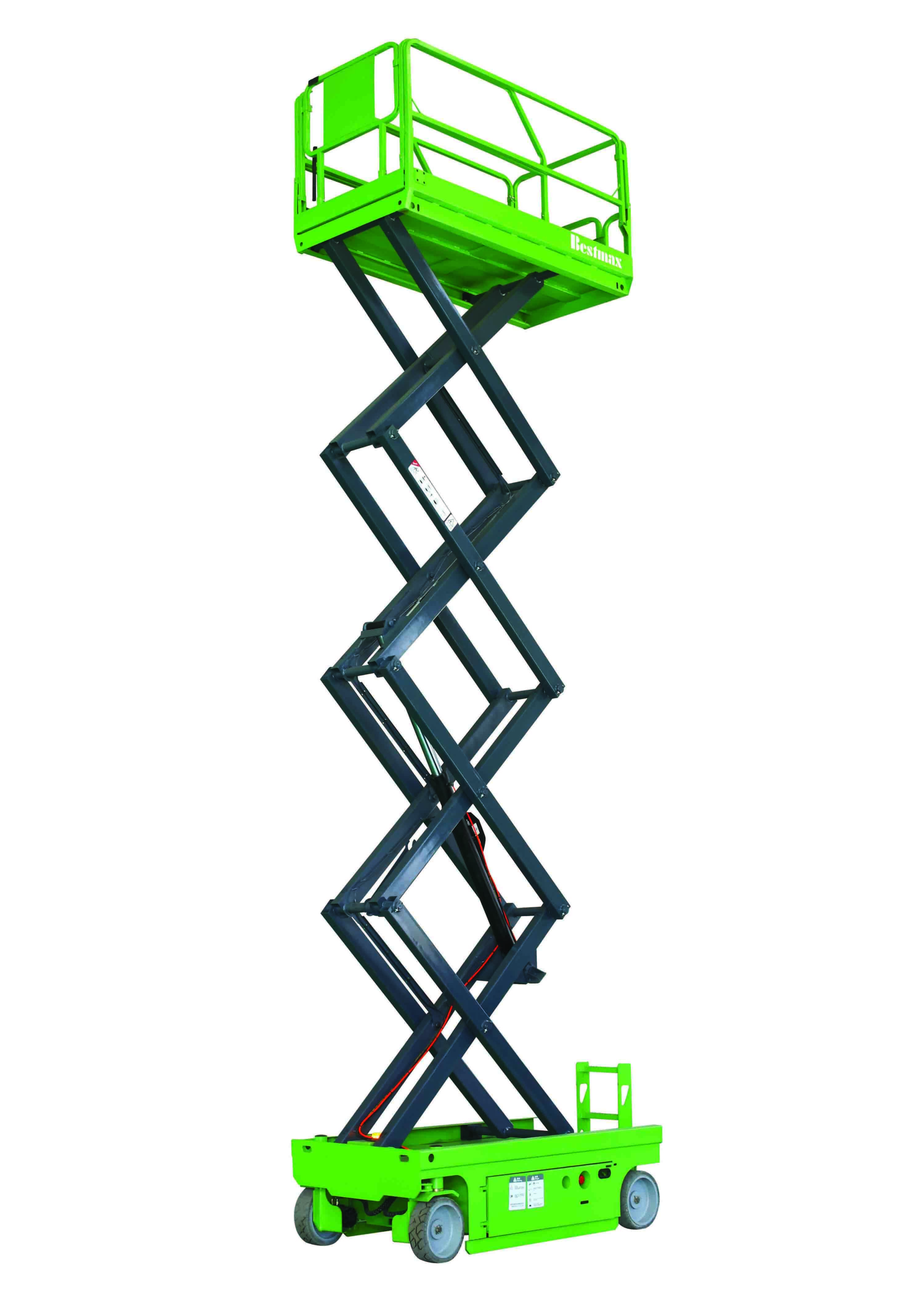

Material Handling Self Propelled Scissor Lift Hydraulic Motor Drive Max 450kg

Material Handling Self Propelled Scissor Lift Hydraulic Motor Drive Max 450kg

    • Material Handling Self Propelled Scissor Lift Hydraulic Motor Drive Max 450kg
    • Material Handling Self Propelled Scissor Lift Hydraulic Motor Drive Max 450kg
    • Material Handling Self Propelled Scissor Lift Hydraulic Motor Drive Max 450kg
  • Material Handling Self Propelled Scissor Lift Hydraulic Motor Drive Max 450kg

    Product Details:

    Place of Origin: Original of China
    Brand Name: BestMax
    Certification: ISO,CE
    Model Number: MX800S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 day after receipt of deposit
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets/ month
    Contact Now
    Detailed Product Description
    Model: MX800S Material: Q345 Steel
    Platform Size: 2.27*1.12m Measurement: 2.43*1.15*1.76m
    Battery: 4*6V/ 225Ah Total Weight: 2175kg
    Platform Height Max: 8m Working Height Max: 10m



    Material handling Self Propelled Scissor Lift hydraulic motor drive max 450kg



    Description:



    Our Self-propelled Electric Scissor Lift  has excellent structure, smooth driving, faster speed, lower noise, deeply loved by users who always work outdoor. It is unique in carrying capacity and wide platform that can bring more workers and tool set. Whether indoors and outdoors it can be used. It can greatly improve the working efficiency to assist finish various aerial work tasks in different situations as it can travel in any status whether lifted or stowed. Smart, flexible, quick, it can be operated by one single to control on the platform and no human power needed to move it.



    Parameters



    Model

    MX800S

    Load capacity

    450kg

    Exension load capacity

    113kg

    Max Worker number

    2

    Working height

    10m

    Platform floor height

    8m

    Measurement

    2.43 m * 1.15m * 1.76m

    Extension platform size

    2.27*1.12m

    Ground clearance(stowed)

    0.1m

    Ground clearance(raised)

    0.19m

    Wheel base 1.87m

    Turning Radius(inside)

    0m

    Turning Radius(outside)

    2.2m

    Lifting / drive motor 24V/3.3kW
    Travelling speed(stowed) 3.0km/h
    Travelling speed(raised) 0.8km/h
    Lifting/ lowering speed 28/38sec
    Batteries 4*6V/225Ah
    Charger 24V/ 25Ah
    gradeability 25%
    Max working slop 1.5°/3°
    Tyre 15*5
    Weight 2175kg





    Flexible Operation

    Fully proportional control, either lifting or moving, all can easliy operating in the joystick. Zero inside turning radius, allowing users to use in a narrow space, and also facilitate changing positions. It has two kinds of moving speed to secure move quickly and lift safe.



    Easy Mantenance

    It give full consideration to the convenience of the user in their daily work. It has fault diagnosis system help the user can find the failure point one time. And also reduce the losses caused by forgotten maintenance.



    Built-In Safety Features

    It can be controlled from either the ground or platform and has a battery charge indicator. It also has an emergency stop button, a descent alarm, an electronic horn, and a manual platform lowering valve for safety.



    Platform Swing Gate

    Platform Swing Gate make enter and out space more large, no restrictions to the guardrails.

    Foldable guardrail make the machine can be easily through standard doors when move during working area.



    Airway tube to platform

    User can be optional airway tube to platform to make sure pneumatic tools and equipment can be used in the platfrom



    AC wiring to platform

    AC wiring and socket to platform to meet the customers demand to make sure the electic tools can be used in the platform.



    Key-type lock sliding

    Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out.



    Platform work light (optional)

    The professional platform work lights allows construction of the user easier lighting and operating.



    Motion alarm and Horn

    The machine is equipped with motion alarm and horn when moving to remind arond person to take necessary procaution.



    Standard Configuration:



    Proportional control                             Auto-brake system

    Auto-lock door on platform                  Extension Platform

    Drivable when lifted                             Traceless tire

    4 x 2 Driving                                        Auxiliary lowering device

    Emergency stop button                       Horn

    Fault diagnosis system                       Tilting protection system

    Action buzzer                                      Time Recorder

    Supporting bar                                    Fork Lift Slot

    Charging protection system                Strobe light

    Detachable fence                                Automatic pothole protection



    Optional Configuration:

    • Overload protection sensor with alarm
    • DC Power connection to the platform
    • Working light on the platform
    • Airway tube to the platform



    Material Handling Self Propelled Scissor Lift Hydraulic Motor Drive Max 450kg





    Why choose Xunte Self Propelled Scissor Lift?
    · High Quality product
    · Reasonable Price
    · Easy payment mode
    · Timely delivery
    · Good after Service
    · Client-centric approach
    · one year warranty



    Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
