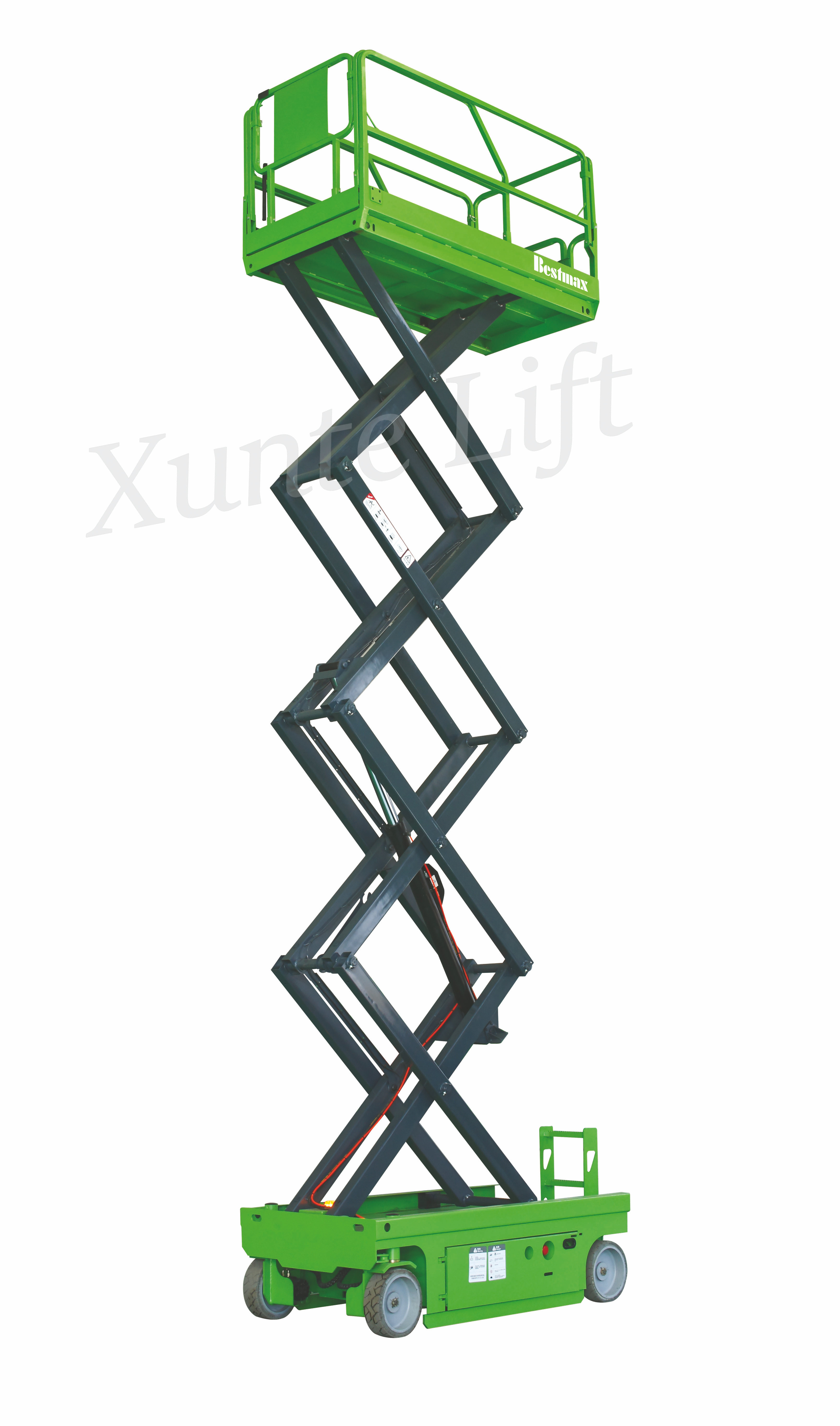

DC Motor Drive Self Propelled Platform Electric Aerial Work Platform Max 13.8m with CE Certificate

DC Motor Drive Self Propelled Platform Electric Aerial Work Platform Max 13.8m with CE Certificate

    • DC Motor Drive Self Propelled Platform Electric Aerial Work Platform Max 13.8m with CE Certificate
    • DC Motor Drive Self Propelled Platform Electric Aerial Work Platform Max 13.8m with CE Certificate
    • DC Motor Drive Self Propelled Platform Electric Aerial Work Platform Max 13.8m with CE Certificate
  • DC Motor Drive Self Propelled Platform Electric Aerial Work Platform Max 13.8m with CE Certificate

    Product Details:

    Place of Origin: Original of China
    Brand Name: BestMax
    Certification: ISO,CE
    Model Number: MX1200S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 day after receipt of deposit
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets/ month
    Contact Now
    Detailed Product Description
    Model: MX1200S Material: Q345 Steel
    Platform Size: 2.27*1.12m Measurement: 2.43*1.15*2.03m
    Battery: 4*12V/ 260Ah Total Weight: 2880kg
    Lift Mechanism: Scissor Lift Color: Green, Blue, As Per Customers' Requirements
    Loading Capacity: 320kg Max. Lifting Height: 13.8m
    Feature: Self-propelled Scissor Lift



    Aerial work platform max 13.8m Self Propelled Scissor Lift DC Motor drive



    Description:



    Xunte Self-propelled Electric Scissor Lift (DC motor driving)  MX1200R has excellent structure, smooth driving, faster speed, lower noise, friendly to environment, deeply loved by users who always work outdoor, to provide you with a flexible mobility, operability. Suitable for rough-terrain ground, solid tires make the work more stability. Fully proportional control system, make the operate more easily. Stronger power, tt can reach safe work height of 14m and unique in carrying capacity and wide platform that can bring more workers and tool set. With it to assist finish various aerial work tasks in different situations, work effiency will be greatly improved.



    Parameters



    Model

    MX1200S

    Load capacity

    320kg

    Exension load capacity

    113kg

    Max Worker number

    2

    Working height

    13.8m

    Platform floor height

    11.8m

    Measurement

    2.43*1.15*2.03m

    Extension platform size

    2.27*1.12m

    Ground clearance(stowed)

    0.1m

    Ground clearance(raised)

    0.19m

    Wheel base 1.87m

    Turning Radius(inside)

    0m

    Turning Radius(outside)

    2.2m

    Lifting motor 24V/4.5W
    Drive motor 24V/1.5W
    Travelling speed(stowed) 4.0km/h
    Travelling speed(raised) 0.8km/h
    Lifting/ lowering speed 84/38sec
    Batteries 4*12V/300Ah
    Charger 24V/ 25A
    gradeability 25%
    Max working slop 1.5°/3°
    Tyre 15*5
    Weight 2880kg





    Flexible Operation

    Fully proportional control, either lifting or moving, all can easily operating in the joystick. Zero inside turning radius, allowing users to use in a narrow space, and also facilitate changing positions. It has two kinds of moving speed to secure move quickly and lift safe.



    Easy Maintenance

    It give full consideration to the convenience of the user in their daily work. It has fault diagnosis system help the user can find the failure point one time. And also reduce the losses caused by forgotten maintenance.



    Traceless tire

    Configured with traceless tire to protect the ground surface and suitable for indoor application. The wheels and tires are very very tough and rigid able to travel through uneven terrain and rough surface.



    Platform Swing Gate

    Platform Swing Gate make enter and out space more large, no restrictions to the guardrails.

    Fold-able guardrail make the machine can be easily through standard doors when move during working area.



    Airway tube to platform

    User can be optional airway tube to platform to make sure pneumatic tools and equipment can be used in the platform.



    AC wiring to platform

    AC wiring and socket to platform to meet the customers demand to make sure the electric tools can be used in the platform.



    Key-type lock sliding

    Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out



    Platform work light (optional)

    The professional platform work lights allows construction of the user easier lighting and operating.



    Motion alarm and Horn

    The machine is equipped with motion alarm and horn when mowing to remind arond person to take necessary precaution. Action buzzer.



    Safety Precaution:

    • Auxiliary lowering device
    • Auto-brake system
    • Tilting protection system
    • Automatic pothole protection
    • Emergency stop button
    • Charging protection system
    • Auto-lock door on platform
    • Overload protection sensor with alarm (optional)



    DC Motor Drive Self Propelled Platform Electric Aerial Work Platform Max 13.8m with CE Certificate





    Why choose Xunte Self Propelled Scissor Lift?
    · High Quality product
    · Reasonable Price
    · Easy payment mode
    · Timely delivery
    · Good after Service
    · Client-centric approach
    · one year warranty



    Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
