Home ProductsSelf Propelled Scissor Lift

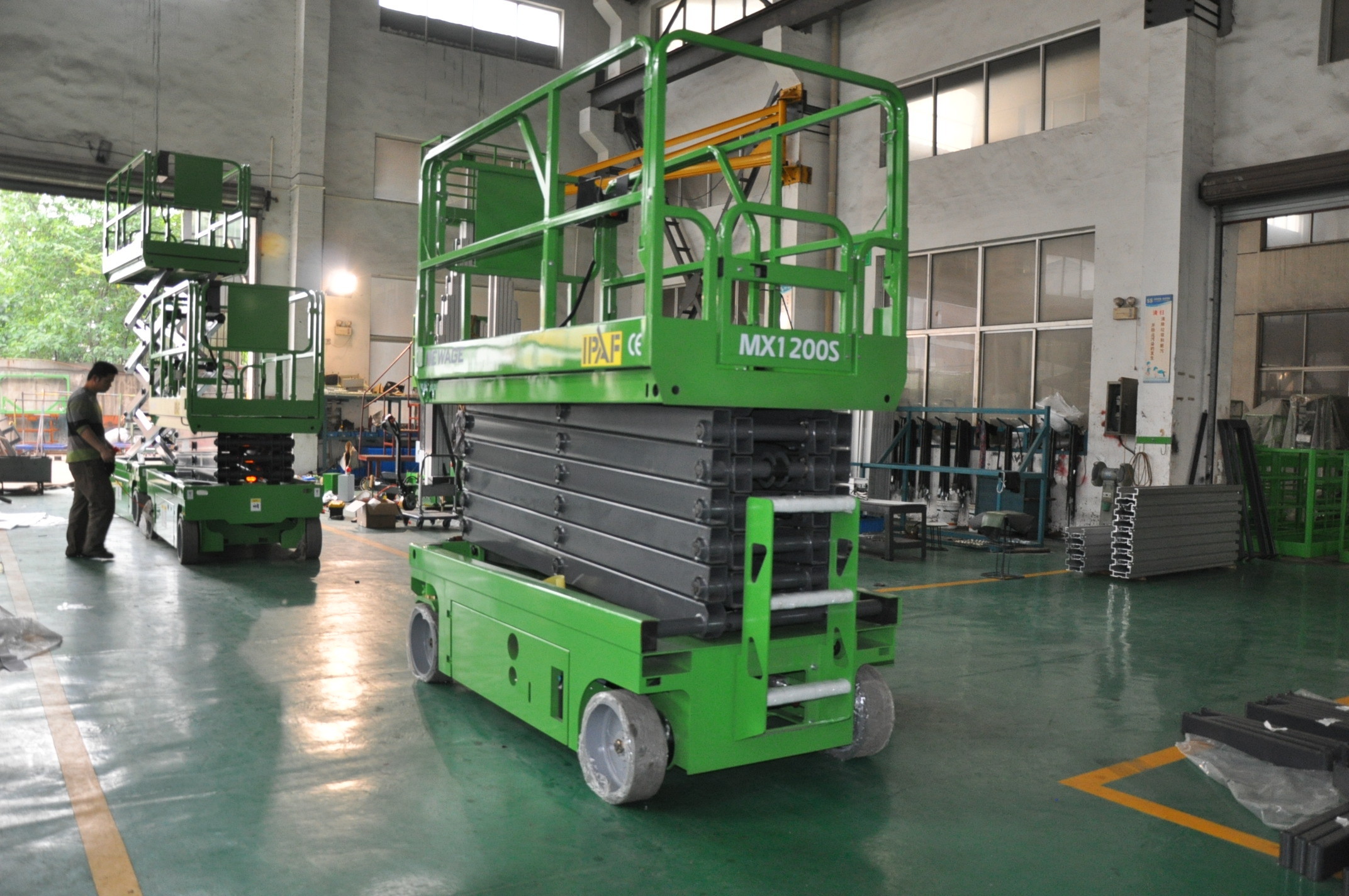

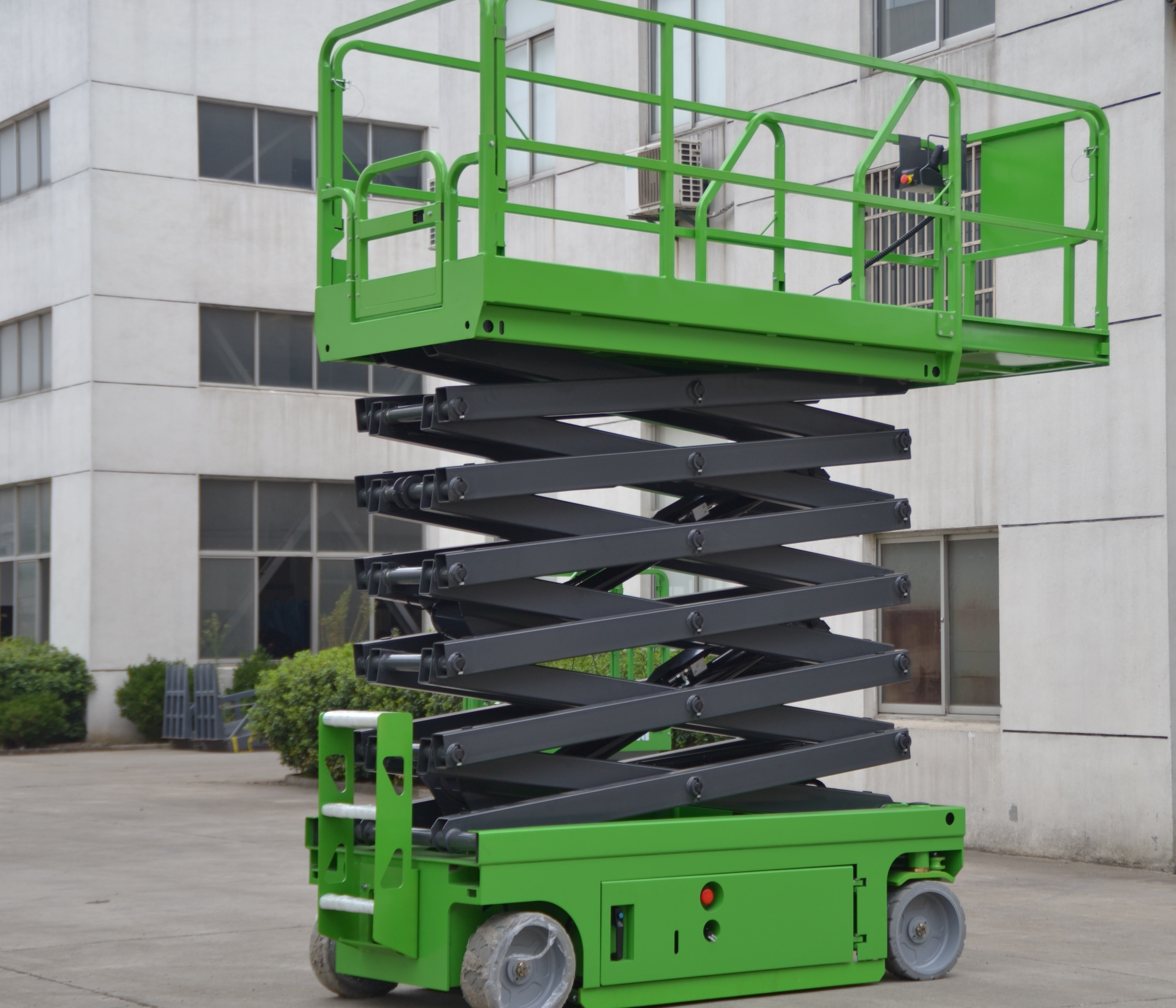

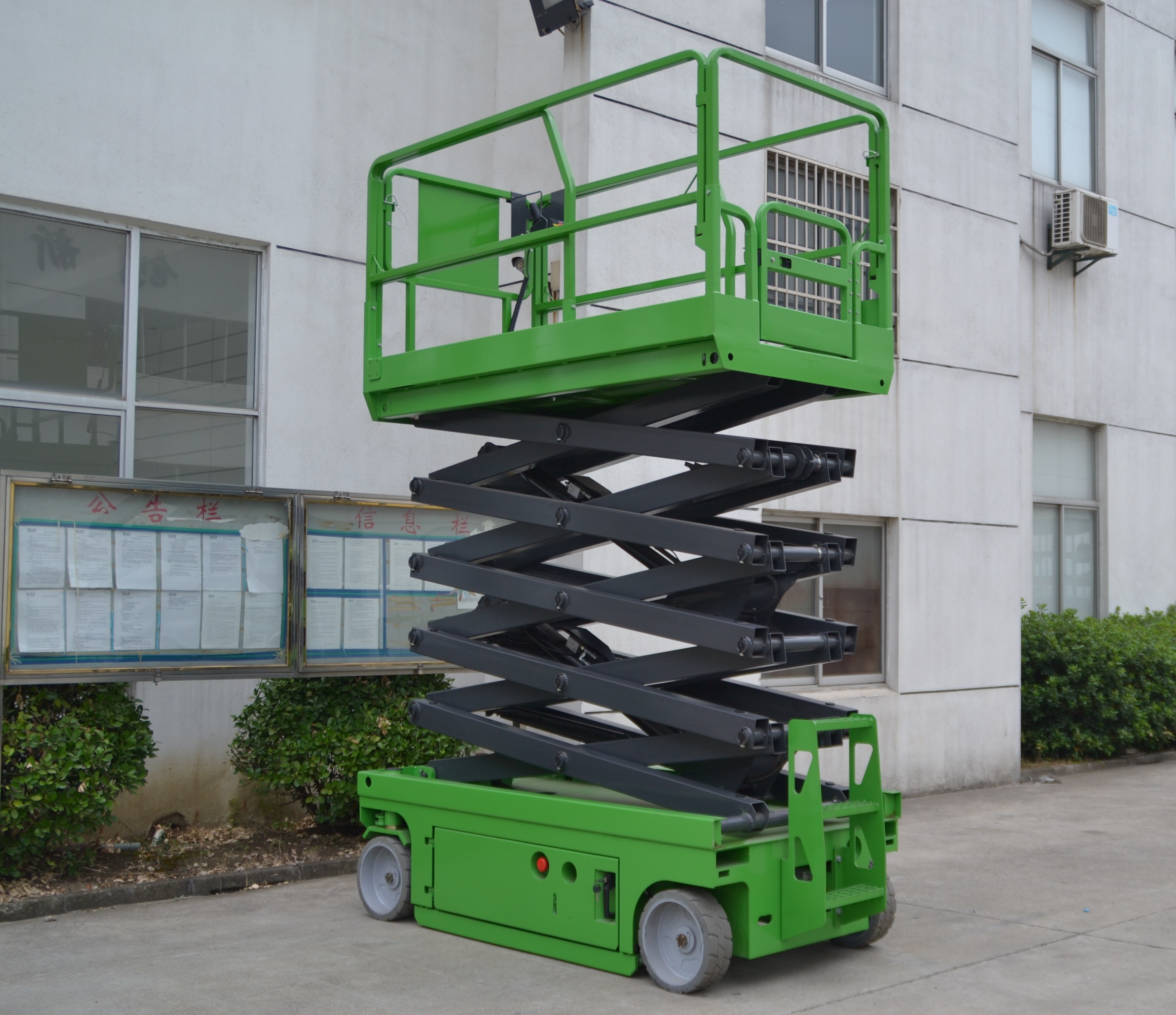

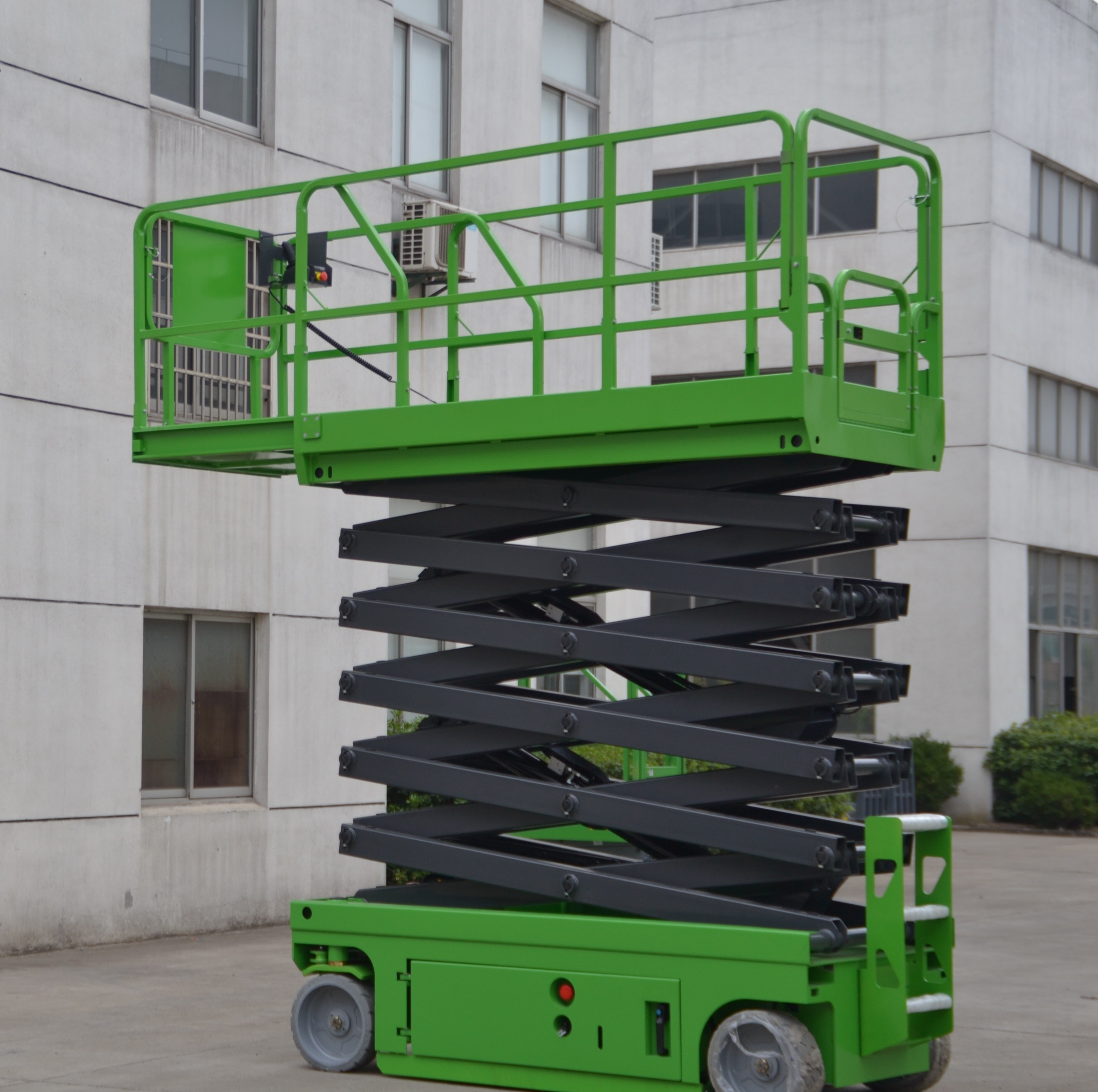

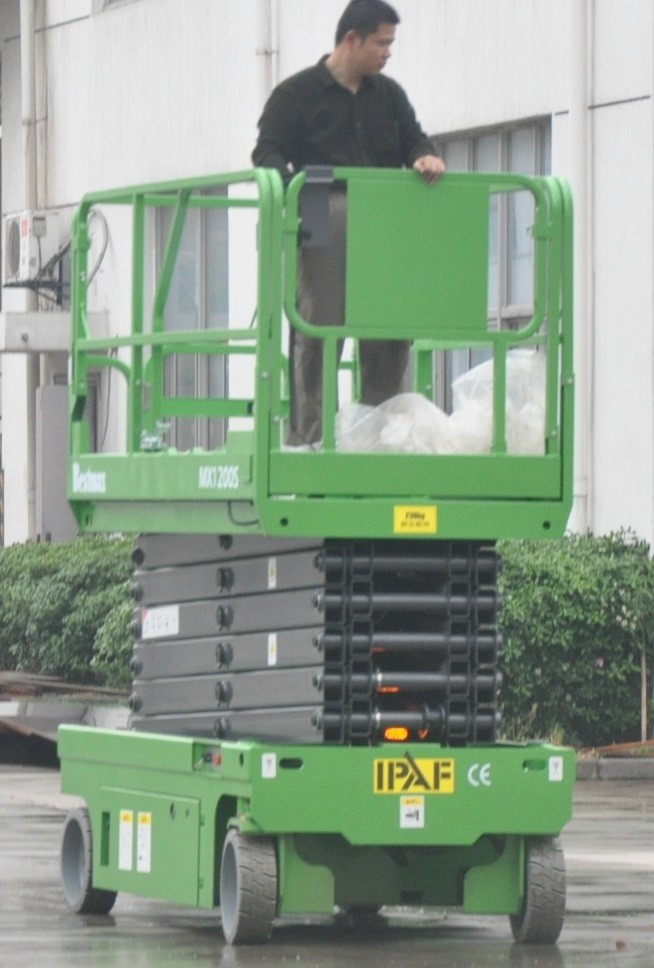

Hydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial Work

Hydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial Work

    • Hydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial Work
    • Hydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial Work
    • Hydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial Work
    • Hydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial Work
    • Hydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial Work
  • Hydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial Work

    Product Details:

    Place of Origin: Original of China
    Brand Name: BestMax
    Certification: ISO, CE
    Model Number: MX1200S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 day after receipt of deposit
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets/ month
    Contact Now
    Detailed Product Description
    Model: MX1200S Material: Q345 Steel
    Platform Size: 2.27*1.12m Measurement: 2.43*1.15*2.55m
    Battery: 4*6V/ 260Ah Total Weight: 2830kg
    Platform Height: 11.8m Working Height: 13.8m
    Loading Capacity: 320kg Extension Loading: 113kg



    Hydraulic Motor Drive Self Propelled Scissor Lift Access Platform max 13.8m



    Description:



    Our Self-propelled Electric Scissor Lift  has excellent structure, smooth driving, faster speed, lower noise, deeply loved by users who always work outdoor, to provide you with a flexible mobility, operability. It is unique in carrying capacity and wide platform that can bring more workers and tool set. Whether indoors and outdoors it can be used. It can greatly improve the working efficiency to assist finish various aerial work tasks in different situations as it can travel in any status whether lifted or stowed. Smart, flexible, quick, it can be operated by one single to control on the platform and no human power needed to move it.



    Parameters



    Model

    MX1200S

    Load capacity

    320kg

    Extension load capacity

    113kg

    Max Worker number

    2

    Working height

    13.8m

    Platform floor height

    11.8m

    Measurement

    2.43*1.15*2.03m

    Extension platform size

    2.27*1.12m

    Ground clearance(stowed)

    0.1m

    Ground clearance(raised)

    0.019m

    Wheel base 1.87m

    Turning Radius(inside)

    0m

    Turning Radius(outside)

    2.2m

    Lifting / drive motor 24V/4.5kw
    Travelling speed(stowed) 3.0km/h
    Travelling speed(raised) 1.0km/h
    Lifting/ lowering speed 70/45sec
    Batteries 4*6V/260Ah
    Charger 24V/ 30A
    Gradeability 25%
    Max working slop 1.5°/3°
    Tyre 15*5
    Weight 2830KG



    Flexible Operation

    Fully proportional control, either lifting or moving, all can easily operating in the joystick. Zero inside turning radius, allowing users to use in a narrow space, and also facilitate changing positions. It has two kinds of moving speed to secure move quickly and lift safe.



    Easy Maintenance

    It give full consideration to the convenience of the user in their daily work. It has fault diagnosis system help the user can find the failure point one time. And also reduce the losses caused by forgotten maintenance.



    Platform Swing Gate

    Platform Swing Gate make enter and out space more large, no restrictions to the guardrails.

    Fold-able guardrail make the machine can be easily through standard doors when move during working area.



    Airway tube to platform

    User can be optional airway tube to platform to make sure pneumatic tools and equipment can be used in the platform



    AC wiring to platform

    AC wiring and socket to platform to meet the customers demand to make sure the electric tools can be used in the platform.



    Key-type lock sliding

    Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out



    Platform work light (optional)

    The professional platform work lights allows construction of the user easier lighting and operating



    Motion alarm and Horn

    The machine is equipped with motion alarm and horn when moving to remind around person to take necessary precaution.



    Standard Configuration

    Proportional control                             Auto-brake system

    Auto-lock door on platform                  Extension Platform

    Drivable when lifted                             Traceless tire

    4 x 2 Driving                                        Auxiliary lowering device

    Emergency stop button                       Horn

    Fault diagnosis system                       Tilting protection system

    Action buzzer                                      Time Recorder

    Supporting bar                                    Fork Lift Slot

    Charging protection system                Strobe light

    Detachable fence                                Automatic pothole protection



    Optional Configuration



    Overload protection sensor with alarm

    DC Power connection to the platform

    Working light on the platform

    Airway tube to the platform

    Hydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial WorkHydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial WorkHydraulic Motor Drive Self Propelled Cherry Picker Electric Scissor Lift Access Platform for Aerial Work



    Why choose Our Self Propelled Scissor Lift?


    · High Quality product
    · Reasonable Price
    · Easy payment mode
    · Timely delivery
    · Good after Service
    · Client-centric approach
    · One year warranty
