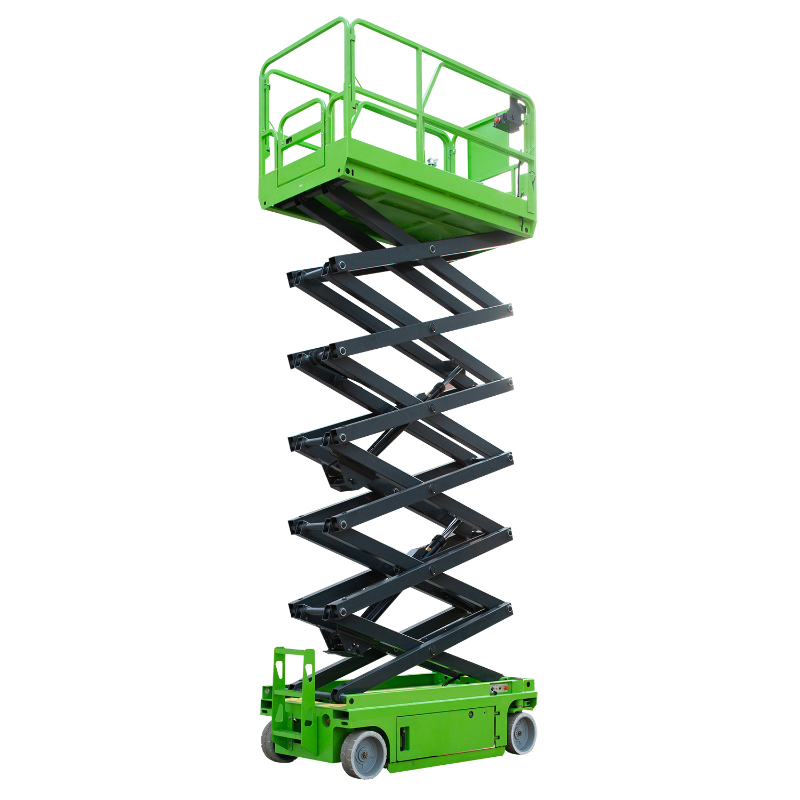

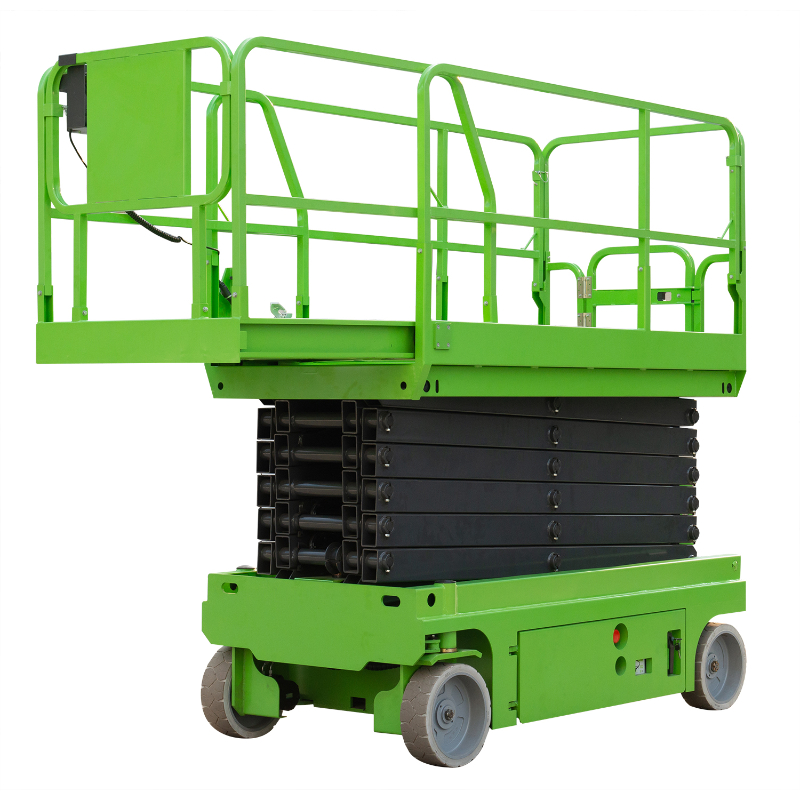

10m Working Height Hydraulic Self Propelled Scissor Lift with Extension Platform

10m Working Height Hydraulic Self Propelled Scissor Lift with Extension Platform

    • 10m Working Height Hydraulic Self Propelled Scissor Lift with Extension Platform
    • 10m Working Height Hydraulic Self Propelled Scissor Lift with Extension Platform
    • 10m Working Height Hydraulic Self Propelled Scissor Lift with Extension Platform
    • 10m Working Height Hydraulic Self Propelled Scissor Lift with Extension Platform
  • 10m Working Height Hydraulic Self Propelled Scissor Lift with Extension Platform

    Product Details:

    Place of Origin: Original of China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MX800S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 day after receipt of deposit
    Payment Terms: T/T, L/C
    Supply Ability: 100 units/ month
    Contact Now
    Detailed Product Description
    Loading Capacity: 450Kg Lift Height: 8m
    Platform Size: 2.27*1.12m Platform Height: 8 M
    Working Height: 10m Exension Load Capacity: 113kg
    Extension Length: 0.90m Lift/Drive Motor: 24V/3.3kw
    Overall Size: 2.43* 1.15*1.76 M Weight: 2175kg

    10m Working Height Hydraulic Self Propelled Scissor Lift with Extension Platform



    Description:

    1. Self propelled scissor lift, with automatic walking function, can be in different work condition, do not need external power supply, do not need artificial traction.

    2. Mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk, easily moved, spacious working platforms, high working efficiency.

    3. Scissor lift can be move while extended and controlled from platform by the operator.

    4. Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowed working conditions such as construction site, elevator, and narrow corridor. Lift-down, turning, forward and backward movements can be easily operated by one person.


    Specification
    Model MX580S MX600SN MX800SN MX800S MX1000S MX1200S
    Load 230 kg 230 kg 230 kg 450 kg 320 kg 230 kg
    Extension Load 113 kg 113 kg 113 kg 113 kg 113 kg 113 kg
    Platform Height 5.8 m 6 m 8 m 8 m 10 m 11.8 m
    Working Height 7.8 m 8 m 10 m 10 m 12 m 13.8 m
    Platform Size 1.67*0.74m 2.27*0.81m 2.27*0.81m 2.27*1.12m 2.27*1.12m 2.27*1.12m
    Platform Extension Length 0.9 m 0.9 m 0.9 m 0.9 m 0.9 m 0.9 m
    Lift/Drive Motor 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/3.3 kw 24v/4.5 kw





    Standard Configuration:

    proportional control                             Auto-brake system

    Auto-lock door on platform                  Extension Platform

    Drivable when lifted                             Traceless tire

    4 x 2 Driving                                        Auxiliary lowering device

    Emergency stop button                       Horn

    Fault diagnosis system                       Tilting protection system

    Action buzzer                                      Time Recorder

    Supporting bar                                    Fork Lift Slot

    Charging protection system                strobe light

    Detachable fence                                Automatic pothole protection



    Optional Configuration:

    • Overload protection sensor with alarm
    • DC Power connection to the platform
    • Working light on the platform
    • Airway tube to the platform



    10m Working Height Hydraulic Self Propelled Scissor Lift with Extension Platform



    Why choose Our Self Propelled Scissor Lift?
    · High Quality product
    · Reasonable Price
    · Easy payment mode
    · Timely delivery
    · Good after Service
    · Client-centric approach
    · One year warranty



    Our Service
    1. We can design the customized the machines based on your requirement.
    2. After knowing your detailed need, the right models will be recommened to you with good price.
    3. Shipment can be arranged from our port to your destination port.
    4. Opetion video can be sent to you if needed.
    5. Parts of machines can be sent to you by express within 7 days if needed.



    Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
