Automatic Scissor Lift Small Size 8m Electrical Driving 230kg Aerial Working Platform

    • Automatic Scissor Lift Small Size 8m Electrical Driving 230kg Aerial Working Platform
    • Automatic Scissor Lift Small Size 8m Electrical Driving 230kg Aerial Working Platform
    • Automatic Scissor Lift Small Size 8m Electrical Driving 230kg Aerial Working Platform
    • Automatic Scissor Lift Small Size 8m Electrical Driving 230kg Aerial Working Platform
    • Automatic Scissor Lift Small Size 8m Electrical Driving 230kg Aerial Working Platform
  • Automatic Scissor Lift Small Size 8m Electrical Driving 230kg Aerial Working Platform

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MX800SN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: wrapped in PVC film with pallet
    Delivery Time: 30 days after the order confirmed
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Platform Height: 8m Loading Caacity: 230kg
    Extension Loading: 113kg Extension Length: 0.9m
    Drive: Hydraulic Motor Working Height: 10m
    Weight: 2100kg Overall Size: 2.43*0.81*1.87m
    Platform Size: 2.27*0.81m



    8m 230kg Automatic Scissor Lift Electrical Driving Aerial Working Platform



    Quick Detail:



    Name

    Self-propelled  Scissor Lift

    Model

    MX800SN

    Loading Capacity

    230kg

    Platform Height

    8m

    Platform Size

    2.27*0.81m

    Extension Length

    0.9m

    Gradeability

    25%

    Lifting Power

    3.3kw

    Lifting Time

    40s

    Descending Time

    30s



    Description:



    The width of this 8m Self-propelled Scissor Lift is shorter than the MX800R, it is the main reason that the loading capacity of this 8m self-propelled scissor lift is lighter than the MX800R Model. This modification can enable the machine to pass the narrow place.



    Main Features:



    1. Passive pothole protection to let the machine keeping stable during moving.

    2. It can travel 25% grade slope.

    3. Proportional Design enhances the stability of the machine and makes it look good

    4. Fully Electrical Control.

    5. Alarm indicates lifting and descending.

    6. Folded fence for easy stock and transportation

    7. Extension Platform which can enlarge the working space.

    8. With time recorder on the platform to remind the working time of this machine.



    Safety Precaution:



    1. The operation voltage on the platform is 24V

    2. Both Platform Control and Ground Control Panels have Emergency Stop Button

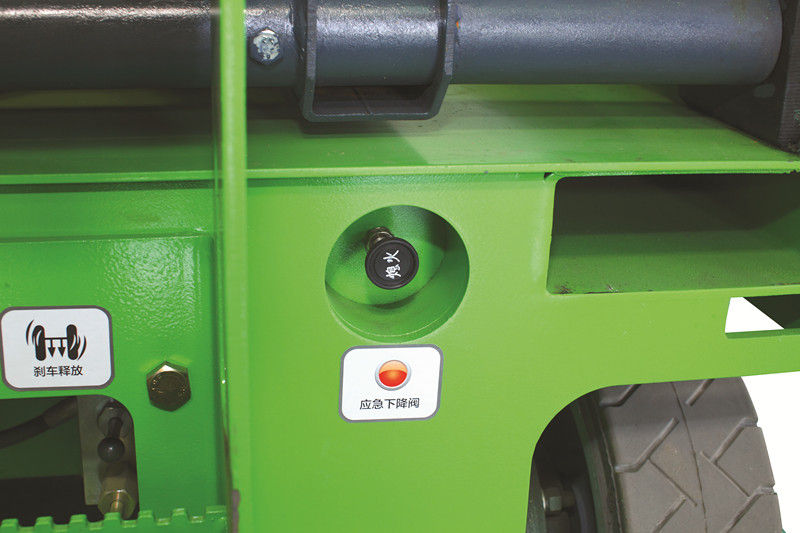

    3. Auxiliary platform lowering device in the chassis

    5. Anti-burst Valve in cylinder

    6. Tilting Protection System

    7. Automatic Braking System

    8. Inter-lock door on the platform

    9. Automatic Pothole Protection

    10. Charging Protection System



    Main Configurations:

    1. Fully Electrical

    2. Extension Platform

    3. 4*2 Driving

    4. Buzzer & Strobe Light

    5. Fork Lift Slots

    6. Strobe Light

    Optional Configuration:

    • Over Load Protection Sensor Alarm

    • AC Power Connected to the Platform

    • Working Light on the Platform

    • Airline to the Platform

    Applications:

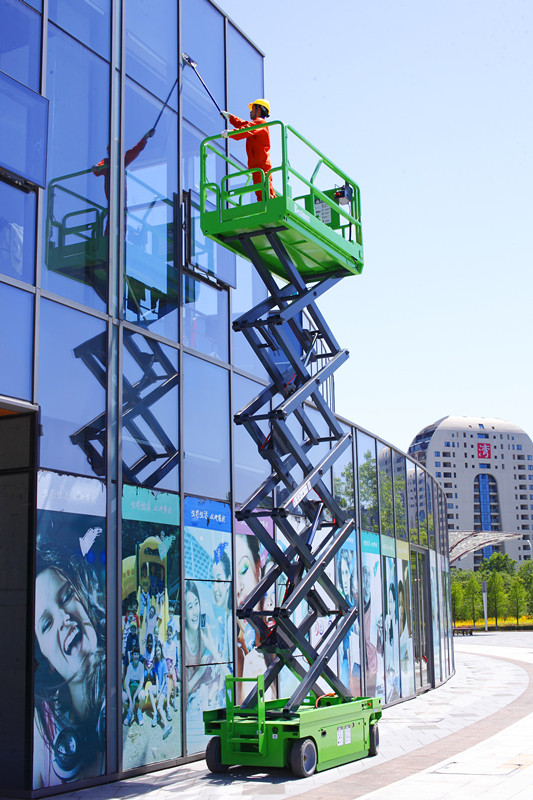

    It is widely used in shopping mall, Coach Station, and rail way station. Most people use it to replace lights, maintenance facilities like crane.



    Automatic Scissor Lift Small Size 8m Electrical Driving 230kg Aerial Working PlatformAutomatic Scissor Lift Small Size 8m Electrical Driving 230kg Aerial Working Platform
