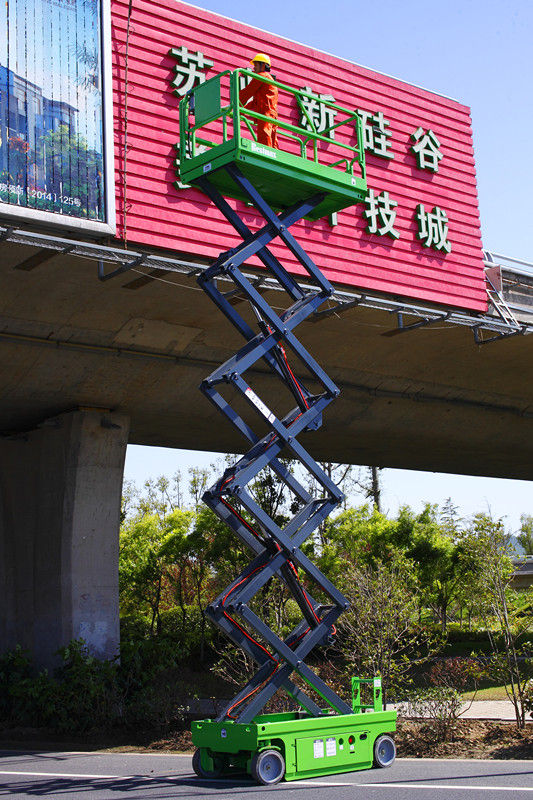

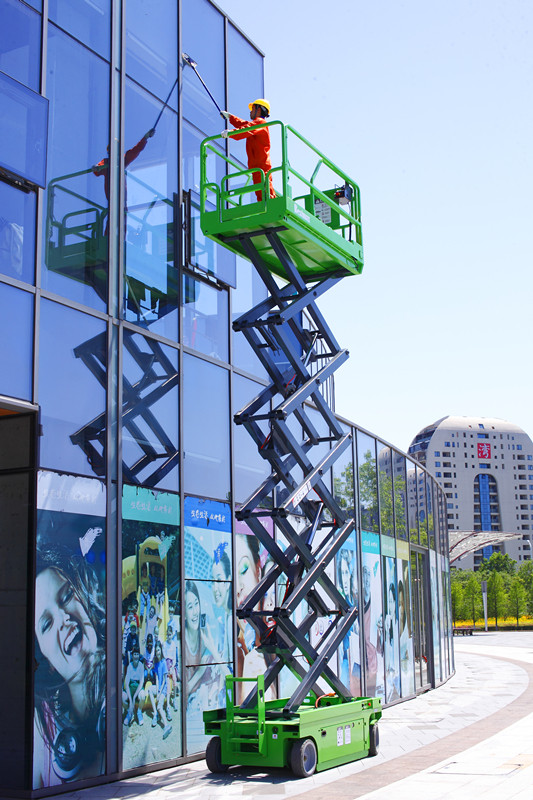

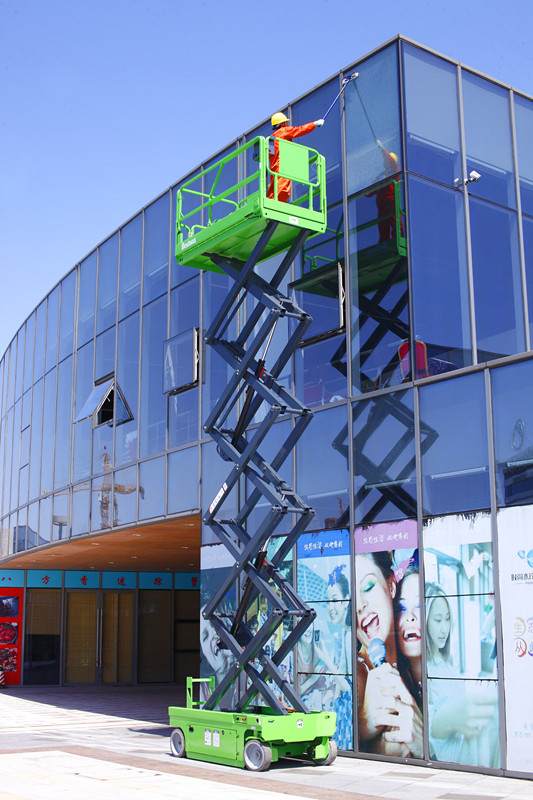

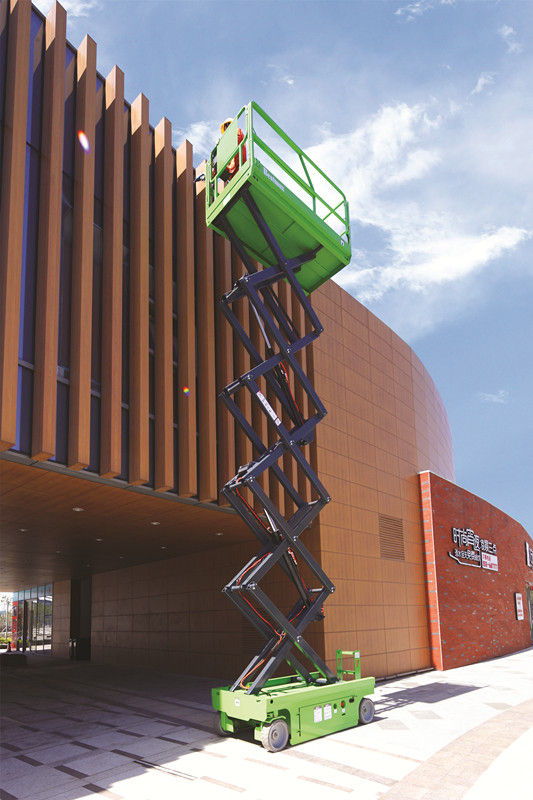

Hydraulic Motor Driving Self-propelled Scissor Lift Platform 12m Working Height

Hydraulic Motor Driving Self-propelled Scissor Lift Platform 12m Working Height

    • Hydraulic Motor Driving Self-propelled Scissor Lift Platform 12m Working Height
    • Hydraulic Motor Driving Self-propelled Scissor Lift Platform 12m Working Height
    • Hydraulic Motor Driving Self-propelled Scissor Lift Platform 12m Working Height
    • Hydraulic Motor Driving Self-propelled Scissor Lift Platform 12m Working Height
  • Hydraulic Motor Driving Self-propelled Scissor Lift Platform 12m Working Height

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MX1000S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: wrapped in PVC film with pallet
    Delivery Time: 35 days after the order confirmed
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Working Height: 12m Loading Capacity: 320kg
    Extension Loading: 113kg Extension Length: 0.9m
    Platform Height: 10m Drive: Hydraulic Motor
    Color: Green, Customized Color Is Available Platform Size: 2.27*1.12m
    Overall Size: 2.43*1.15*1.91m Power Source: 4*6V/240Ah



    Hydraulic Motor Driving Self-propelled Scissor Lift Platform 12m Working Height



    Description:

    The moving of this Self-propelled Scissor Lift is driven by Hydraulic Motor and DC is the power to the lifting of this Self-Propelled Scissor Lift. This machine is quite popular among our customers, as it compares to the Fully Electrical Scissor Lift, the price is more competitive. As there is no need for the outriggers, so it can be used in the narrow space.



    Data Sheet:

    Model MX1000S
    Working height max (m) 12
    Platform height max (m) 10
    Lift capacity (kg) 320
    Lift capacity (kg) (Platform extended) 113
    Weight (kg) CE / AUS Standard 2468
    Platform size (L×W) (m) 2.27*1.12
    Slide-out platform extention deck (m) 0.9
    Platform length extended (m) 3.17
    Stowed size (L×W) (m) 2.43*1.15
    Stowed height  (Rails Up)(m) 2.42
    Hydraulic system capacity (L) 20
    Gradeability 0.25
    Ground clearance (m) (Stowed) 0.1
    Ground clearance (m) (Raised) 0.019
    Platform occupancy max 2
    Raise / Lower time (s) 60/40
    Maximum Working Slope 2°/3°
    Lifting Motor Power 3.3kw
    Power source 4*6V/240Ah
    Tire size (mm) Ф380*129



    Main Features:

    1. Hydraulic Motor Driving

    2. Small turning radius

    3. Automatically Pothole Protection

    4. All the actions can be controlled through platform control panel

    5. Pedal Lock in the connection of the platform and extension.

    6. Fault Diagnosis System

    7. Maintenance Supporting Bar

    8. Drivable when lifted



    Safety Precaution:

    1. Horn

    2. Emergency stop button on the platform and ground

    3. Auxiliary platform lowering

    5. Hose burst valve safety

    6. Tilting Protection System

    7. Automatic Braking System

    8. Auto-lock door on the platform

    9. Automatic Pothole Protection

    10. Charging Protection System



    Main Configurations:

    1. Extension Platform

    2. 4*2 Driving

    3. Traceless Tire

    4. Fork Lift Slots

    5. Buzzer & Strobe Light

    Optional Configuration:

    • Over Load Protection Sensor Alarm

    • AC Power Connected to the Platform

    • Working Light on the Platform

    • Airway Tube to the Platform
