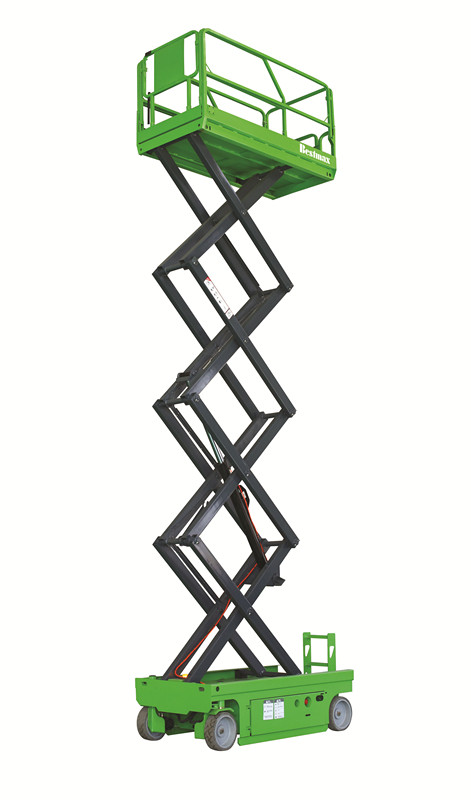

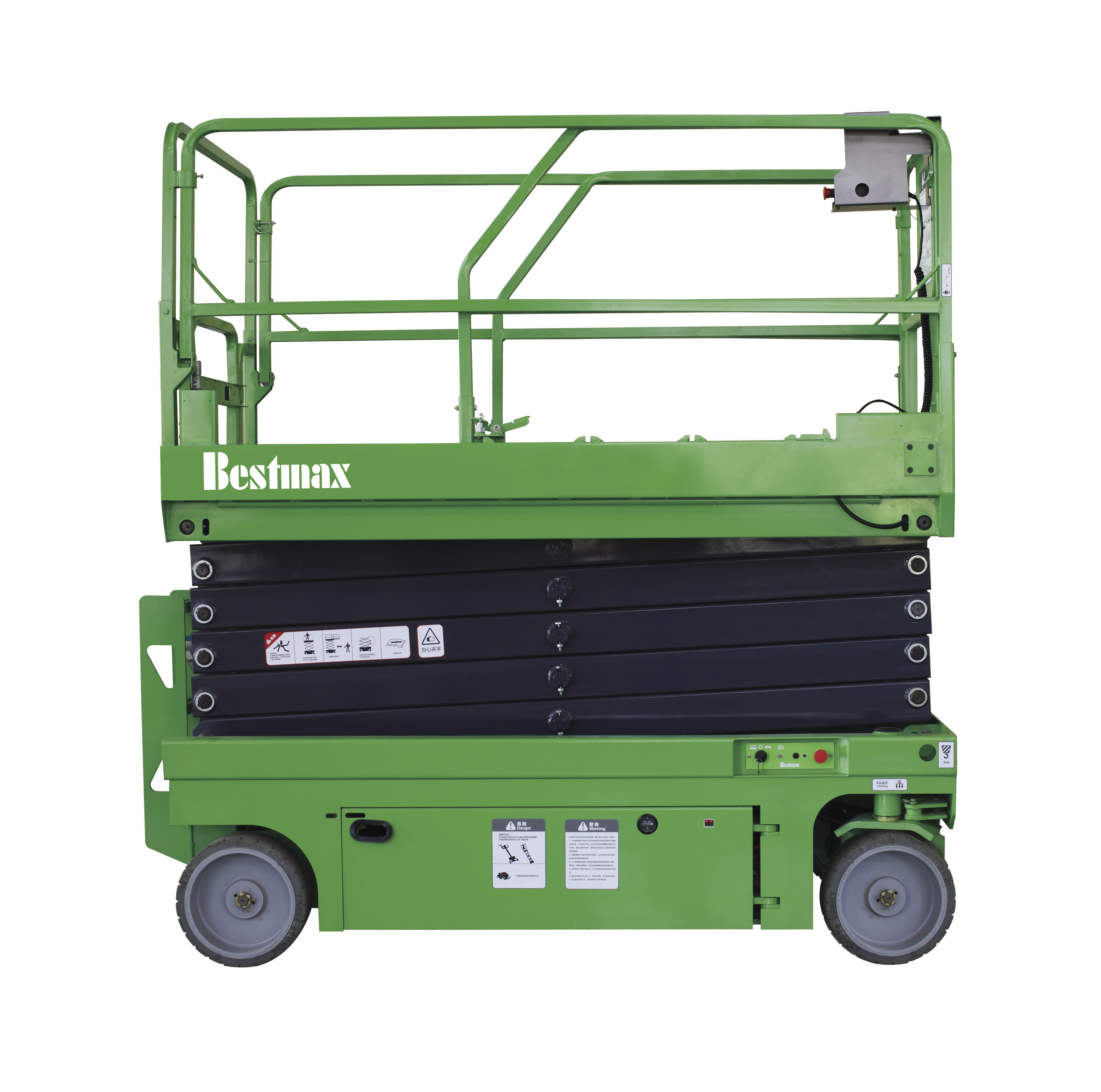

10m Self-propelled Scissor Lift with Extension Platform of Lift Capacity 320kg

10m Self-propelled Scissor Lift with Extension Platform of Lift Capacity 320kg

    • 10m Self-propelled Scissor Lift with Extension Platform of Lift Capacity 320kg
    • 10m Self-propelled Scissor Lift with Extension Platform of Lift Capacity 320kg
    • 10m Self-propelled Scissor Lift with Extension Platform of Lift Capacity 320kg
    • 10m Self-propelled Scissor Lift with Extension Platform of Lift Capacity 320kg
    • 10m Self-propelled Scissor Lift with Extension Platform of Lift Capacity 320kg
  • 10m Self-propelled Scissor Lift with Extension Platform of Lift Capacity 320kg

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MX1000S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after the order confirmed
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Model: MX1000S Loading Capacity: 320kg
    Extension Platform Loading: 113kg Extension Length: 0.9m
    Platform Height: 10m Working Height: 12m
    Platform Size: 2.27*1.12m Overall Size: 2.43*1.15*1.91m
    Power Source: 4*6V/240Ah Color: Green, Customized Color Is Available



    Fully Electrical Upright Scissor Lift Heavy Duty Scissor Lift 1.5° / 3° Tilting range



    Quick Detail:



    Name

    Self-propelled Scissor Lift

    Model

    MX1000S

    Loading Capacity

    320kg

    Platform Height

    10m

    Ground clearance (m)

    0.1

    Extension Length

    0.9m

    Max.Working Numbers

    2 person

    Extension Loading

    113kg

    Moving Power

    1.5kw

    Max. Working Slope

    1.5°/3°



    Description:

    This machine is used to lift people to the high places to work. It can provide AC power on the platform so that people can bring the electrical tools with them. Unlike an articulating lift that offers a degree of horizontal outreach, electric scissor lifts are a flat platform that travels straight up and down.



    Main Features:



    1. The structure of this machine is made up of high strength rectangular Manganese steel.

    2. When you stop pressing the button, it will stop lifting/ descending.

    3. The platform surface is anti-skid to ensure the safety of the workers.

    4. Good sealing performance oil cylinders

    5. Folding fence to let the machine pass height-restrict space

    6. No need of outriggers, so that it can work in narrow space



    Flexible Operation

    Fully proportional control, either lifting or moving, all can easliy operating in the joystick. Zero inside turning radius, allowing users to use in a narrow space, and also facilitate changing positions. It has two kinds of moving speed to secure move quickly and lift safe.



    Built-In Safety Features

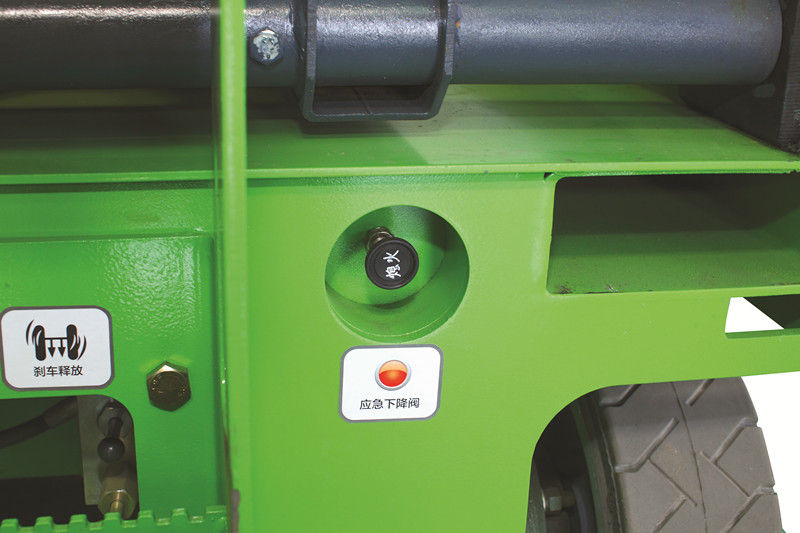

    It can be controlled from either the ground or platform and has a battery charge indicator . It also has an emergency stop button, a descent alarm, an electronic horn, and a manual platform lowering valve for safety



    Easy Maintenance

    It give full consideration to the convenience of the user in their daily work. It has fault diagnosis system help the user can find the failure point one time. And also reduce the losses caused by forgotten maintenance.



    Platform Swing Gate

    Platform Swing Gate make enter and out space more large, no restrictions to the guardrails.

    Fold-able guardrail make the machine can be easily through standard doors when move during working area.



    Airway tube to platform

    User can be optional airway tube to platform to make sure pneumatic tools and equipment can be used in the platform



    AC wiring to platform

    AC wiring and socket to platform to meet the customers demand to make sure the electric tools can be used in the platform.



    Key-type lock sliding

    Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out



    Platform work light (optional)

    The professional platform work lights allows construction of the user easier lighting and operating



    Motion alarm and Horn

    The machine is equipped with motion alarm and horn when mowing to remind arond person to take necessary precaution.



    Standard Configuration:

    Proportional control Auto-brake system

    Auto-lock door on platform Extension Platform

    Drivable when lifted Traceless tire

    4 x 2 Driving Auxiliary lowering device

    Emergency stop button Horn

    Fault diagnosis system Tilting protection system

    Action buzzer Time Recorder

    Supporting bar Fork Lift Slot

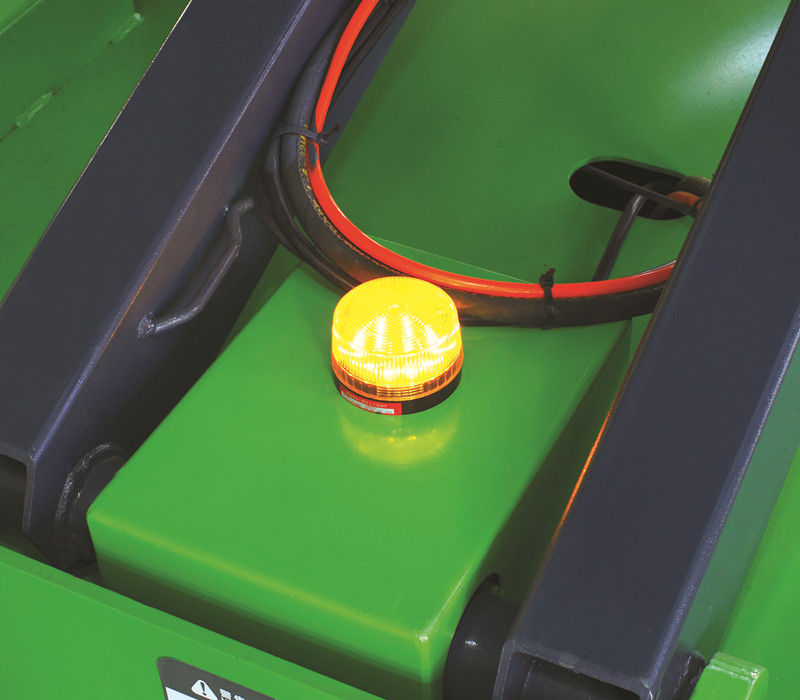

    Charging protection system strobe light

    Detachable fence Automatic pohole protection



    Optional Configuration:

    • Overload protection sensor with alarm
    • DC Power connection to the platform
    • Working light on the platform
    • Airway tube to the platform

    10m Self-propelled Scissor Lift with Extension Platform of Lift Capacity 320kg
