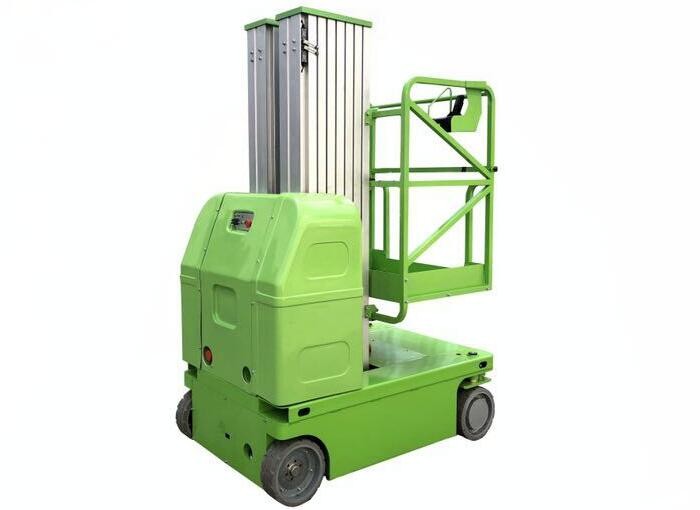

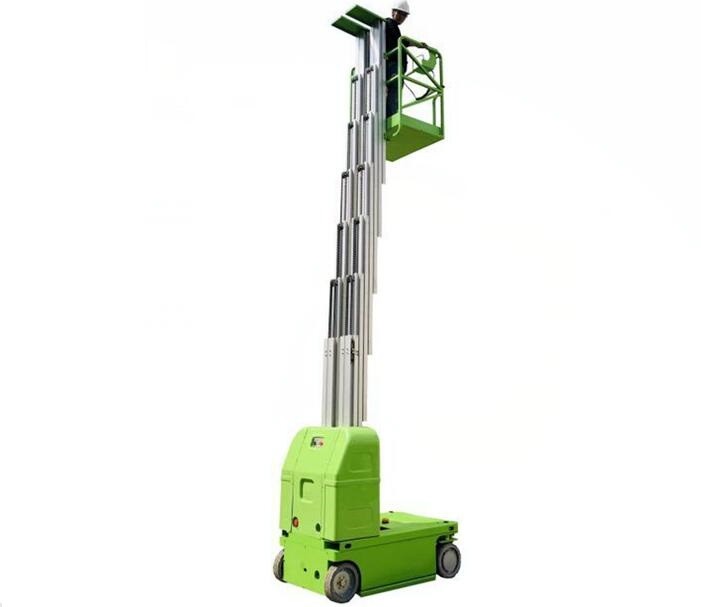

Working Height 11m Aerial Work Platform, Self propelled Vetical Lift

Working Height 11m Aerial Work Platform, Self propelled Vetical Lift

    • Working Height 11m Aerial Work Platform, Self propelled Vetical Lift
    • Working Height 11m Aerial Work Platform, Self propelled Vetical Lift
    • Working Height 11m Aerial Work Platform, Self propelled Vetical Lift
    • Working Height 11m Aerial Work Platform, Self propelled Vetical Lift
  • Working Height 11m Aerial Work Platform, Self propelled Vetical Lift

    Product Details:

    Place of Origin: Original of China
    Brand Name: Bestmax
    Certification: CE ISO9001:2008 IPAF member
    Model Number: MG900-2S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Payment Terms: T/T, L/C
    Supply Ability: 100 set/ month
    Contact Now
    Detailed Product Description
    Platform Height: 9m Platform Size: 1.00*0.70m
    Working Height: 11m Loading Capacity: 150Kg
    Lift Mechanism: Telescoping Lift Type: Vertical





    Working Height 11m Aerial Work Platform, Self propelled Vetical Lift



    Description:

    Self-Propelled Economical Vertical Lift is is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hotels, hospitals, stations, airports, warehouses and other occasions.



    Parameters:

    Model MG900-2S
    Lift capacity 150kg
    Platform height max 9m
    Stowed length 1.5m
    Stowed width 1.0m
    Stowed height 2.08m
    Platform size 1.00*0.70m
    Ground clearance 0.05m
    Wheelbase 1.28m
    Grade ability 25%
    Maximum working slope
    Driving wheel φ0.25*0.08m
    Front tire 8in
    Driving motor 2*24V/0.5kw
    Lifting motor 24V/2kw
    Power source 2ˣ12V/115Ah
    Charger 24V/12A
    Weight 1250kg



    Standard Configuration for Self-Propelled Vertical Lift

    1. Proportional controls
    2. DC power supply
    3. Drivable at full height
    4. Beacon
    5. Non marking tyre
    6. 2WD
    7. Automatic braking system
    8. Anti burst valve on cylinder
    9. Emergency stop button
    10. Auxiliary lowering
    11. On board Diagnostic system
    12. Tilt sensor with alarm
    13. Forklift pockets
    14. Charger protection
    15. All motion alarm
    16. Horn
    17. Double wheel brake
    18. Hydraulic braking release
    19. Anti-dust cover on the mast
    20. Powder coating painting


    Optional Configuration for Self-Propelled Vertical Lift
    1. AC power to platform
    2. Overload sensor with alarm
    3. Platform working light
    4. Air tube to the platform
    5. Platform extension
    6. Self -lock gate on platform(Hinge type top open door)
    7. Hour meter
    8. Machine Body cover
    9. Wireless tracking



    Working Height 11m Aerial Work Platform, Self propelled Vetical Lift





    Our Service
    1. We can design the customized the machines based on your requirement.
    2. After knowing your detailed need, the right models will be recommened to you with good price.
    3. Shipment can be arranged from our port to your destination port.
    4. Opetion video can be sent to you if needed.
    5. Parts of machines can be sent to you by express within 7 days if needed.
