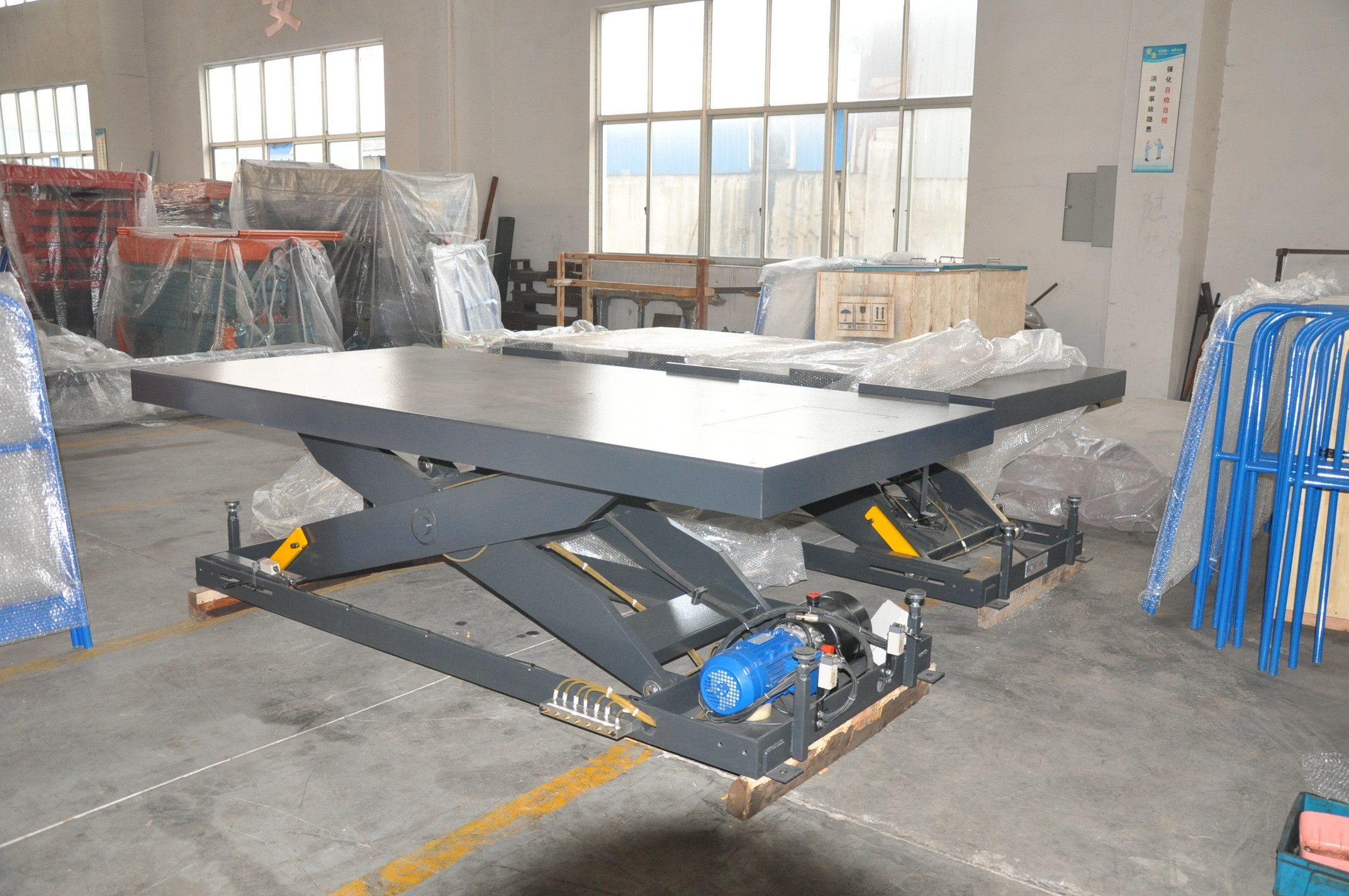

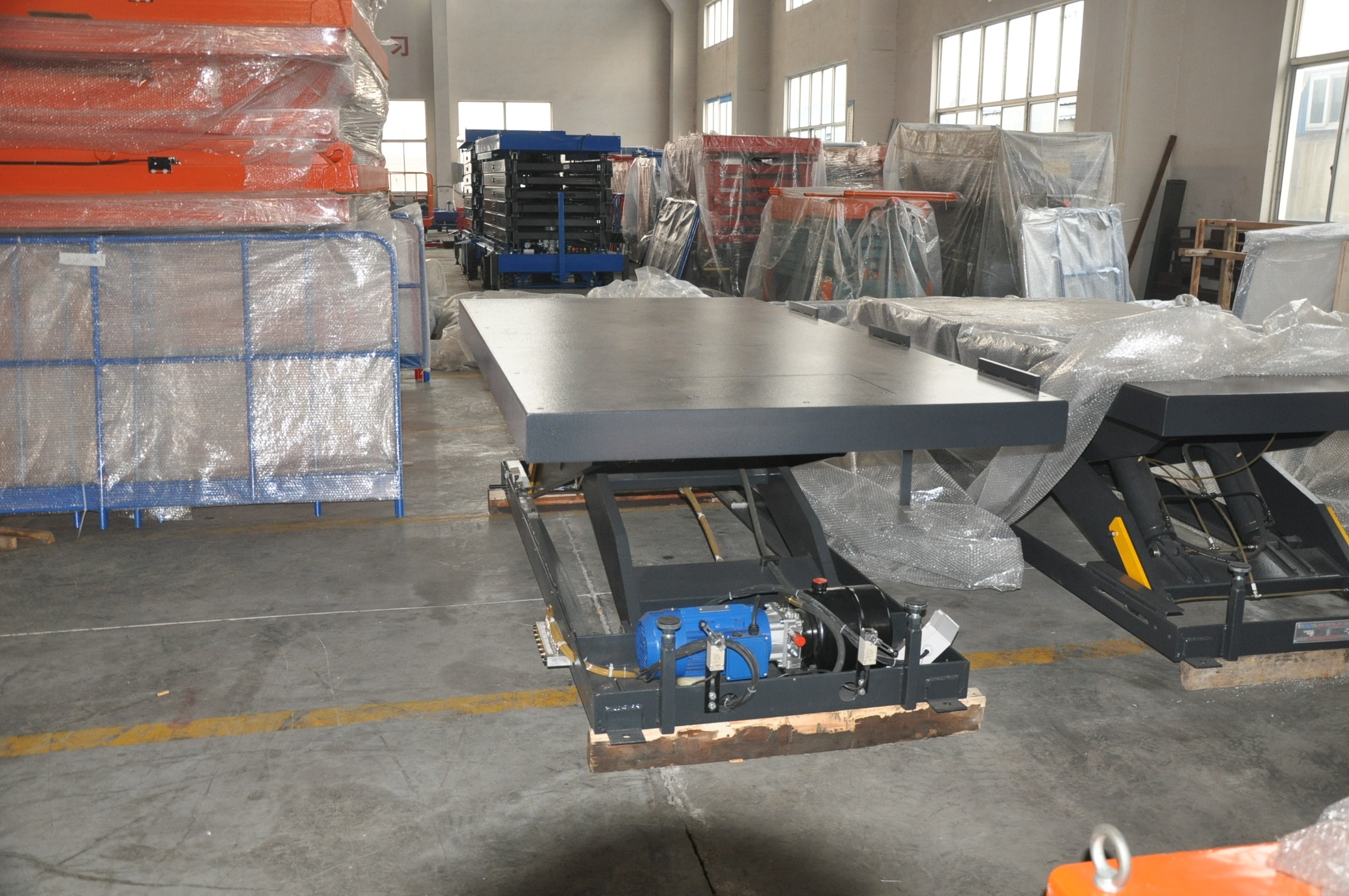

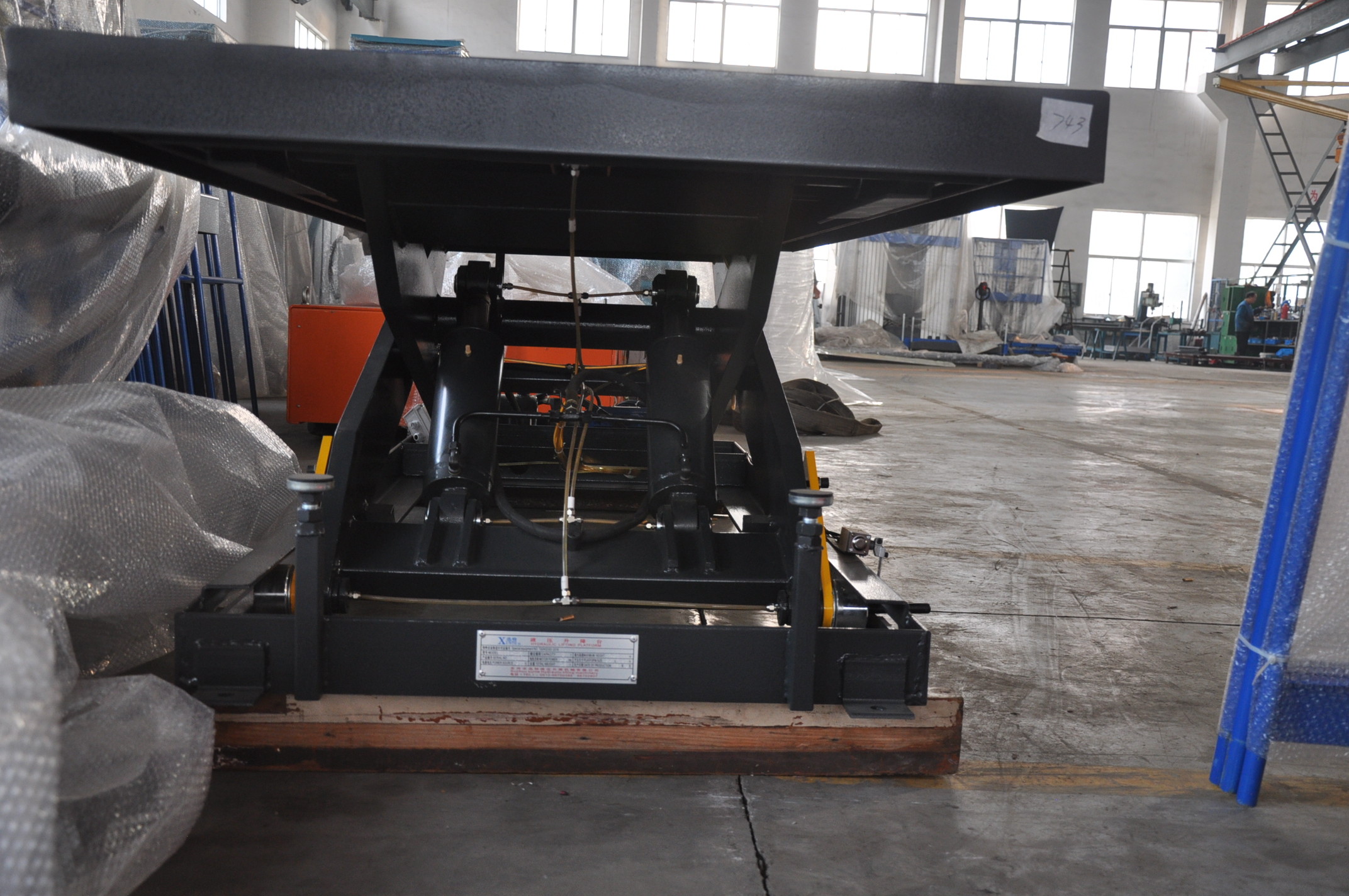

Cargo Lift Table with 3 Metric Ton Loading Capacity With Well Mancraft

Cargo Lift Table with 3 Metric Ton Loading Capacity With Well Mancraft

    • Cargo Lift Table with 3 Metric Ton Loading Capacity With Well Mancraft
    • Cargo Lift Table with 3 Metric Ton Loading Capacity With Well Mancraft
    • Cargo Lift Table with 3 Metric Ton Loading Capacity With Well Mancraft
    • Cargo Lift Table with 3 Metric Ton Loading Capacity With Well Mancraft
    • Cargo Lift Table with 3 Metric Ton Loading Capacity With Well Mancraft
  • Cargo Lift Table with 3 Metric Ton Loading Capacity With Well Mancraft

    Product Details:

    Place of Origin: China
    Brand Name: Xunten
    Certification: ISO9001:2008&CE
    Model Number: SJG3-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: in pallet with PVC film
    Delivery Time: 30 days
    Supply Ability: 60 sets per month
    Contact Now
    Detailed Product Description
    Loading Capacity: 3000kg Platform Height: 1m
    Platform Size: 1800mm*1000mm Lifting Power: 3kw
    Power Voltage: AC380V Weight: 800kg
    Measurement: 2500*1250*350mm



    Cargo Lift Table with 3 Metric Ton Loading Capacity With Well Mancraft



    Quick Detail:



    Name Scissor Lift Brand Name Xunte
    Loading Capacity 3000Kg Platform Height 1m
    Platform Size 1800mm*1000mm Color Black Color or Optional
    Lifting Power 3Kw Power Supply AC





    Description:



    Thia machine also called stationary scissor lift, it can not be moved and it is commonly seen on factory, work shop, 4S shops. This machine we are going to export to Japan, as we all known Japanese has high requirements, but we can meet their demands. This machine has good performance and apperance.





    Main Features:



    1. Pointing control of lifting up and down.

    2. Manganese steel lifting arm in high strength with rectangle shape

    3. Control Panels

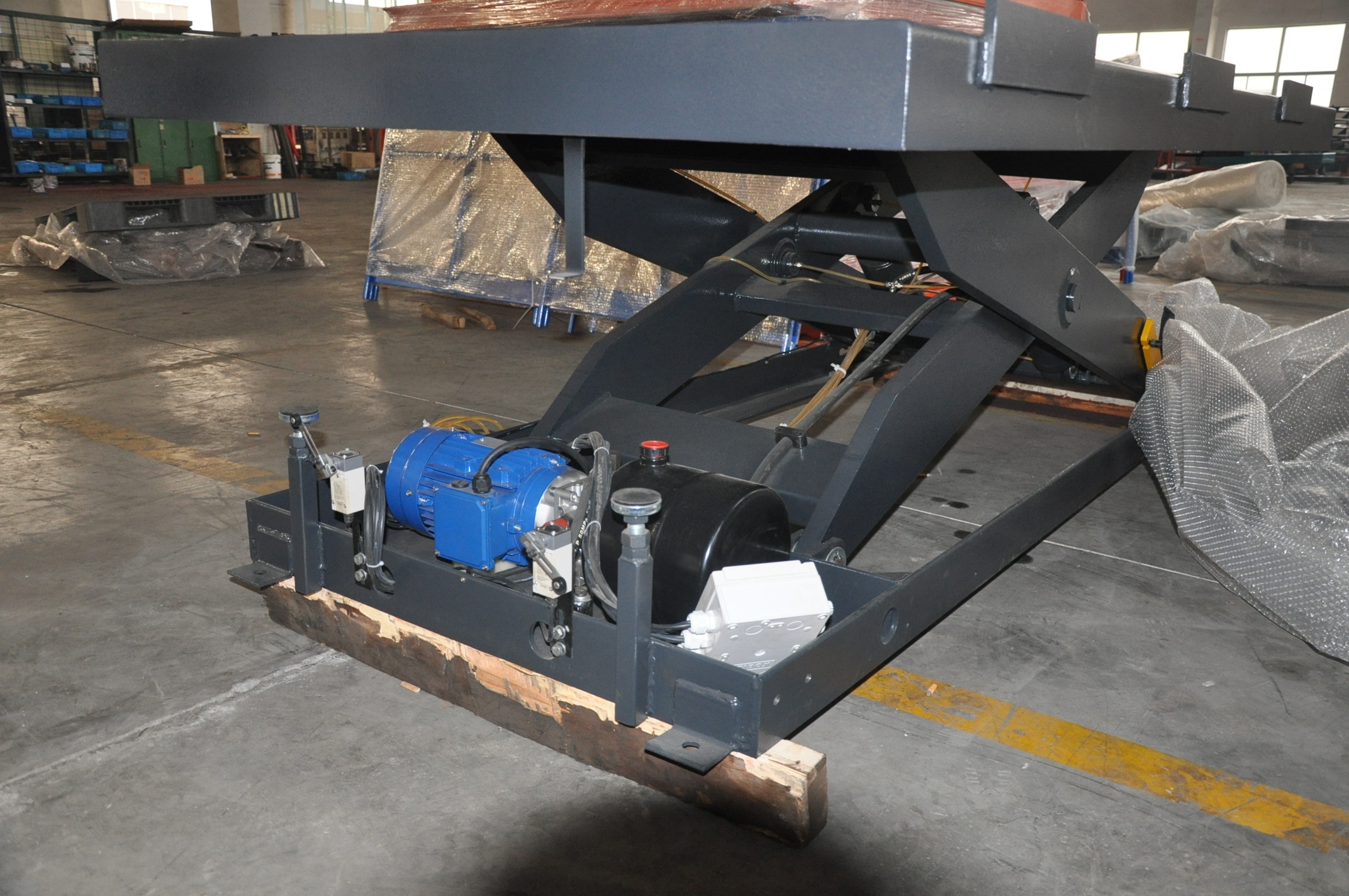

    4. Internal Hydraulic Station





    Major Parameters

    • Model:                          SJG3-1
    • Loading Capacity         3000kg
    • Maximum Height         1000mm
    • Minimum Height           350mm
    • Platform Size               2500*1250mm
    • Lifting Power                3kw
    • Power Voltage              AC380V
    • Total Weight                800kg
    • Measurement              2500*1250*350MM



    Configurations:

    • Electric system:Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System:Hycman brand power pack ,NOK sealing

    • Scissor Arm Support:Hi-strength Manganese steel rectangle tube Q345 B

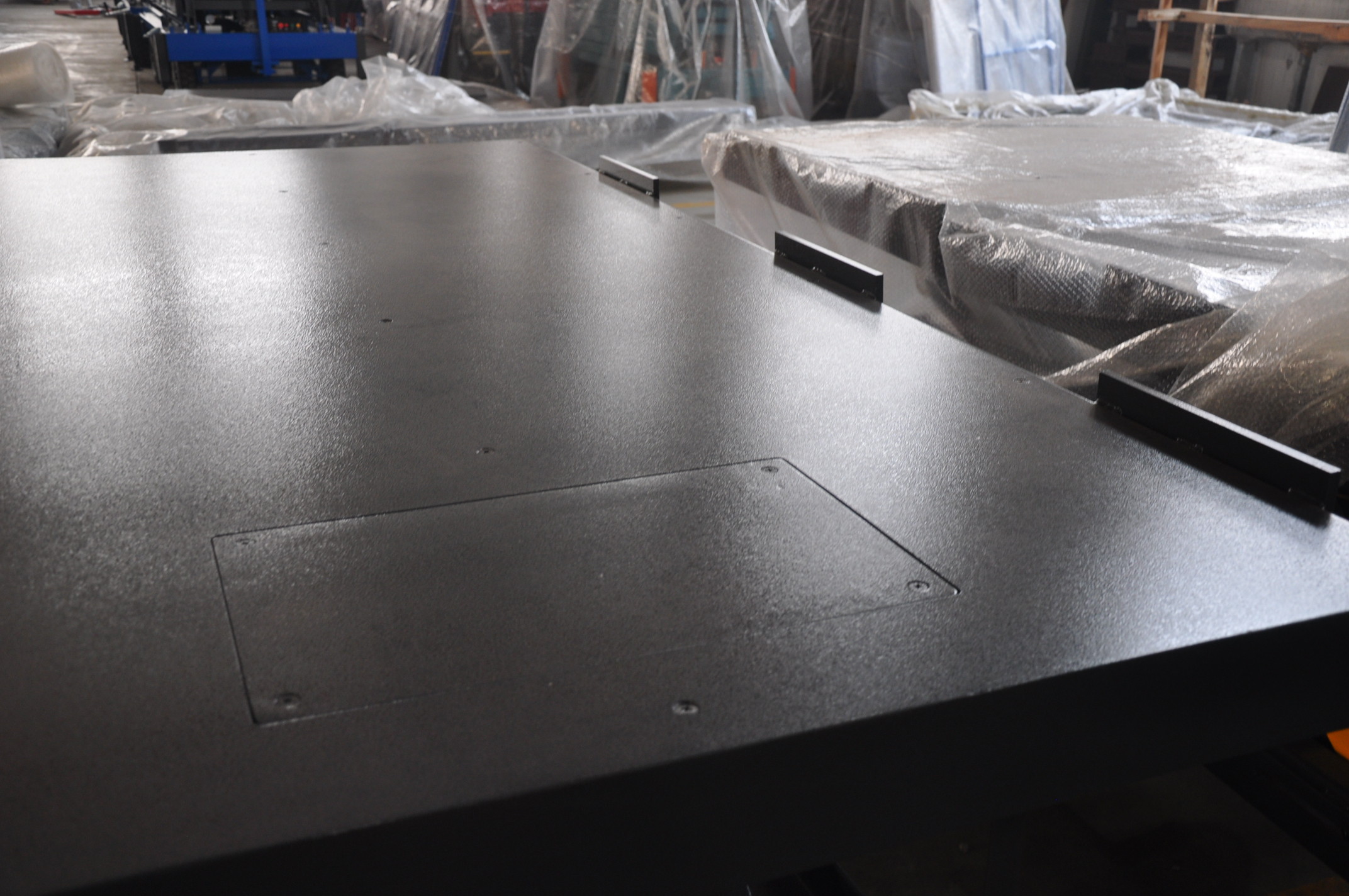

    • Platform Surface:Antiskid checkered plate

    • High-pressure Oil Pip:Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher

    • Extension Platform

    • Flame Proof Control Cabinet



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





    Why to choose Xunte Mobile Scissor Lift?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
