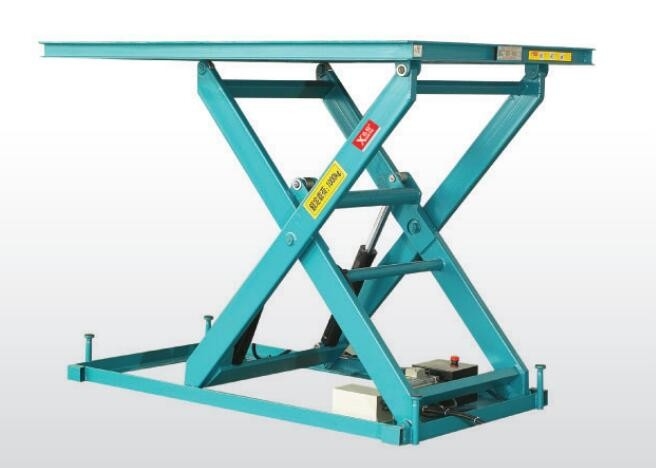

Hydraulic Stationary Scissor Lift 1 Meters 1000Kg Loading Capacity

Hydraulic Stationary Scissor Lift 1 Meters 1000Kg Loading Capacity

    • Hydraulic Stationary Scissor Lift 1 Meters 1000Kg Loading Capacity
    • Hydraulic Stationary Scissor Lift 1 Meters 1000Kg Loading Capacity
  • Hydraulic Stationary Scissor Lift 1 Meters 1000Kg Loading Capacity

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: SJG 1-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallet
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 1000Kg Vertical Travel: 1.0m
    Platform Size: 1600*1000mm Lifting Power: 1.5Kw
    Minimum Height: 300mm Voltage: 380V/50Hz


     Hydraulic Stationary Scissor Lift 1 Meters 1000Kg Loading Capacity

    Quick Detail:

    NameStationary Scissor LiftBrand NameBestmax
    Loading Capacity1000KgVertical Travel1.0m
    Platform Size1600*1000mmColorOptional
    Lifting Power1.5KwPower Supply

    AC


    Description:

    Stationary Scissor Lifts can not be moved, it only can lift the goods in the fixed locations, the platform size, loading capacity and the lifting height can be customized based on different customers’ requirements. It is widely used in the workshop, 4S Shop to load and unload good with heavy duty.

    Main Features:

    1. Easily installation and maintenance
    2. Excellent mechanical structure, which works in lower initial lifting height with maximum lifting stroke.
    3. The antiskid design endows the platforms with excellent antiskid property
    4. Fine grinding cylinder in good sealing performance
    5. Gas Shield Welding (in stronger hardness and everlasting)
    6. Built-in pressure release valve
    7. Auxiliary platform lowering when electricity off
    8. Oil less bearing mounted in the joint parts, pin roll with grease fitting.
    9. Overall hook by CNC torch flame cut

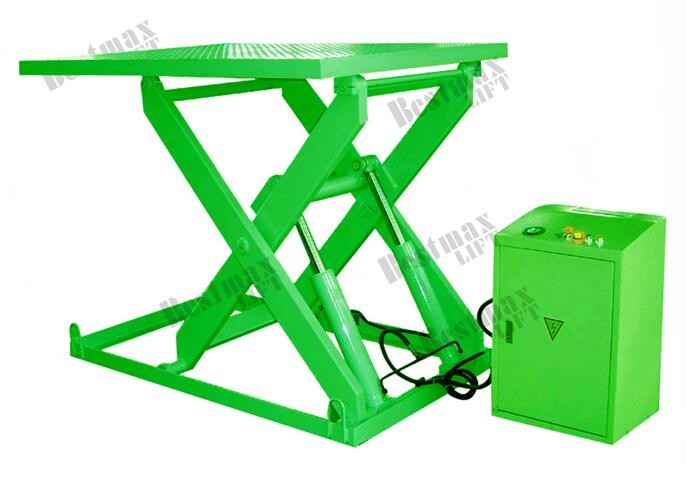

    The Hydraulic power pack can be built in or out
    Hydraulic Stationary Scissor Lift 1 Meters 1000Kg Loading Capacity


    To customize a stationary (fixed) scissor lift, below three major parameters have to be provided:
    1. LOADING CAPACITY
    2. PLATFORM SIZE
    3. MAXIMUM HEIGHT (STOWED HEIGHT+ TRAVELLIGN HEIGHT)


    Configurations:

    • Electric system:Schneider contactor, SANLICO button, CHNT electrical

    • Hydraulic System:Hycman brand power pack ,NOK sealing

    • Scissor Arm Support:Hi-strength Manganese steel rectangle tube Q345 B

    • Platform Surface:Antiskid checkered plate

    • High-pressure Oil Pip:Double wire hydraulic intensifier rubber hose


    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V; manual pump

    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher

    • Extension Platform

    • Flame Proof Control Cabinet



    Application of Stationary Scissor Lift
    For different application purpose, the stationary scissor lift can be customized upon request, hereby below showing some customization cases
    Fences can be added on the platform as required
    The material is also by the manganese steel but stainless steel can also be used in meat processing factory for example
    The table can be made to be round shape or make it to be tilting type, or with nipple on it or with roller on it.
    The organ cover can also be made for the protection purpose


    Why to choose Xunte Hydraulic Lift Platform?

    • High Quality

    • Reasonable Price

    • Good after Service

    • 1 Year Warranty

    • More Than 10 Years Experience
