Work Shop Applied Guide Rail Moving Cargo Lift Table with 2000Kg Loading and Controled by Electricity

Work Shop Applied Guide Rail Moving Cargo Lift Table with 2000Kg Loading and Controled by Electricity

    • Work Shop Applied Guide Rail Moving Cargo Lift Table with 2000Kg Loading and Controled by Electricity
    • Work Shop Applied Guide Rail Moving Cargo Lift Table with 2000Kg Loading and Controled by Electricity
    • Work Shop Applied Guide Rail Moving Cargo Lift Table with 2000Kg Loading and Controled by Electricity
    • Work Shop Applied Guide Rail Moving Cargo Lift Table with 2000Kg Loading and Controled by Electricity
  • Work Shop Applied Guide Rail Moving Cargo Lift Table with 2000Kg Loading and Controled by Electricity

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: SJG2-0.9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: in pallet
    Delivery Time: 30 days
    Supply Ability: 60 sets per month
    Contact Now
    Detailed Product Description
    Loading Capacity: 2000kg Platform Height: 0.9m
    Platform Size: 2000mm*1200mm Lifting Power: 2.2kw
    Weight: 1000kg Measurement: 2000*1200*500mm



    Work Shop Applied Guide Rail Moving Cargo Lift Table with 2000Kg Loading and Controled by Electricity





    Quick Detail:



    Name Scissor Lift Brand Name Xunte
    Loading Capacity 2000Kg Platform Height 1.4m
    Platform Size 2000mm*1200mm Color Black Color or Optional
    Lifting Power 2.2Kw Power Supply AC





    Description:



    This machine belongs to our customized machine, and this machine is applied for workshop

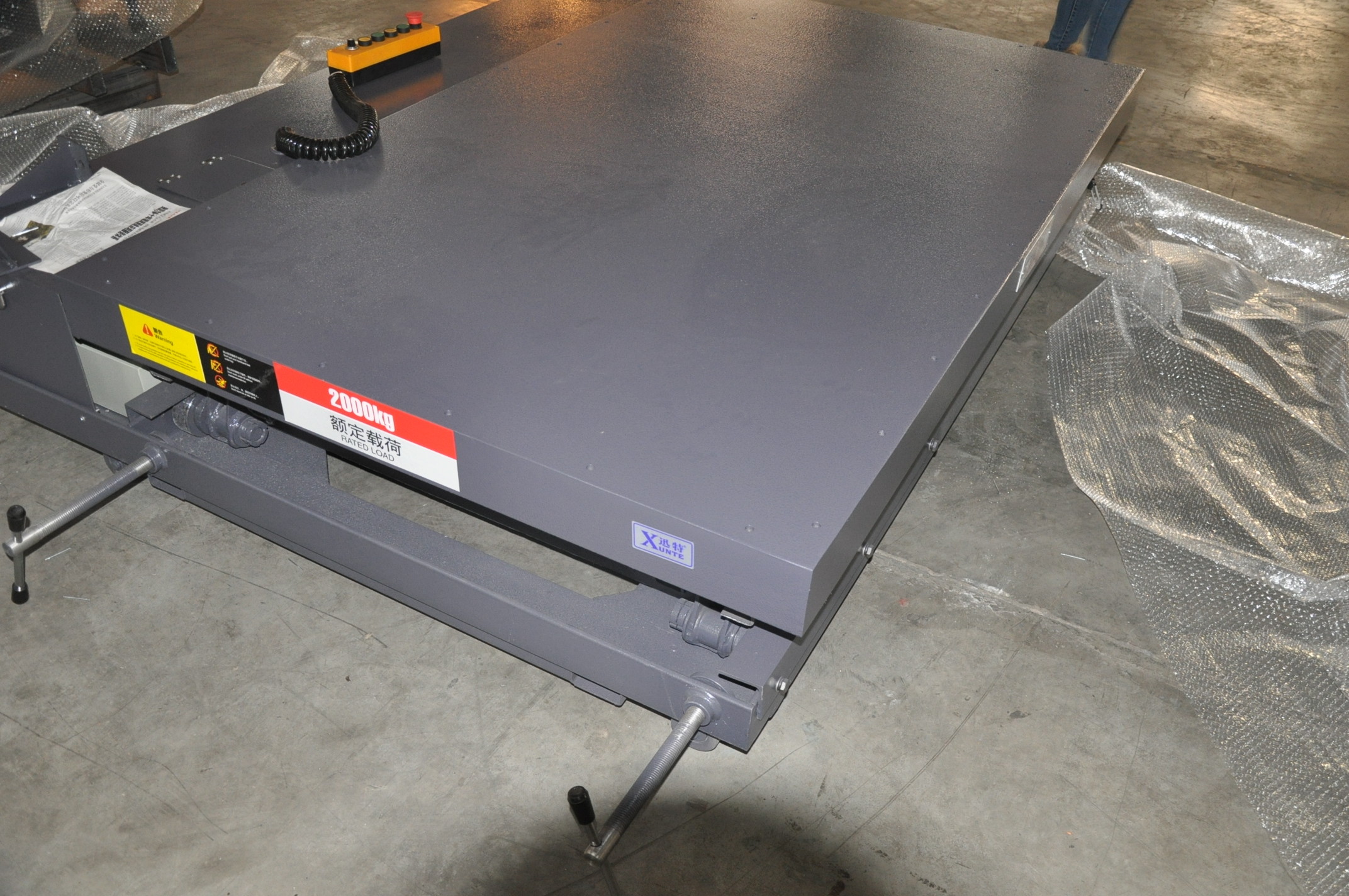

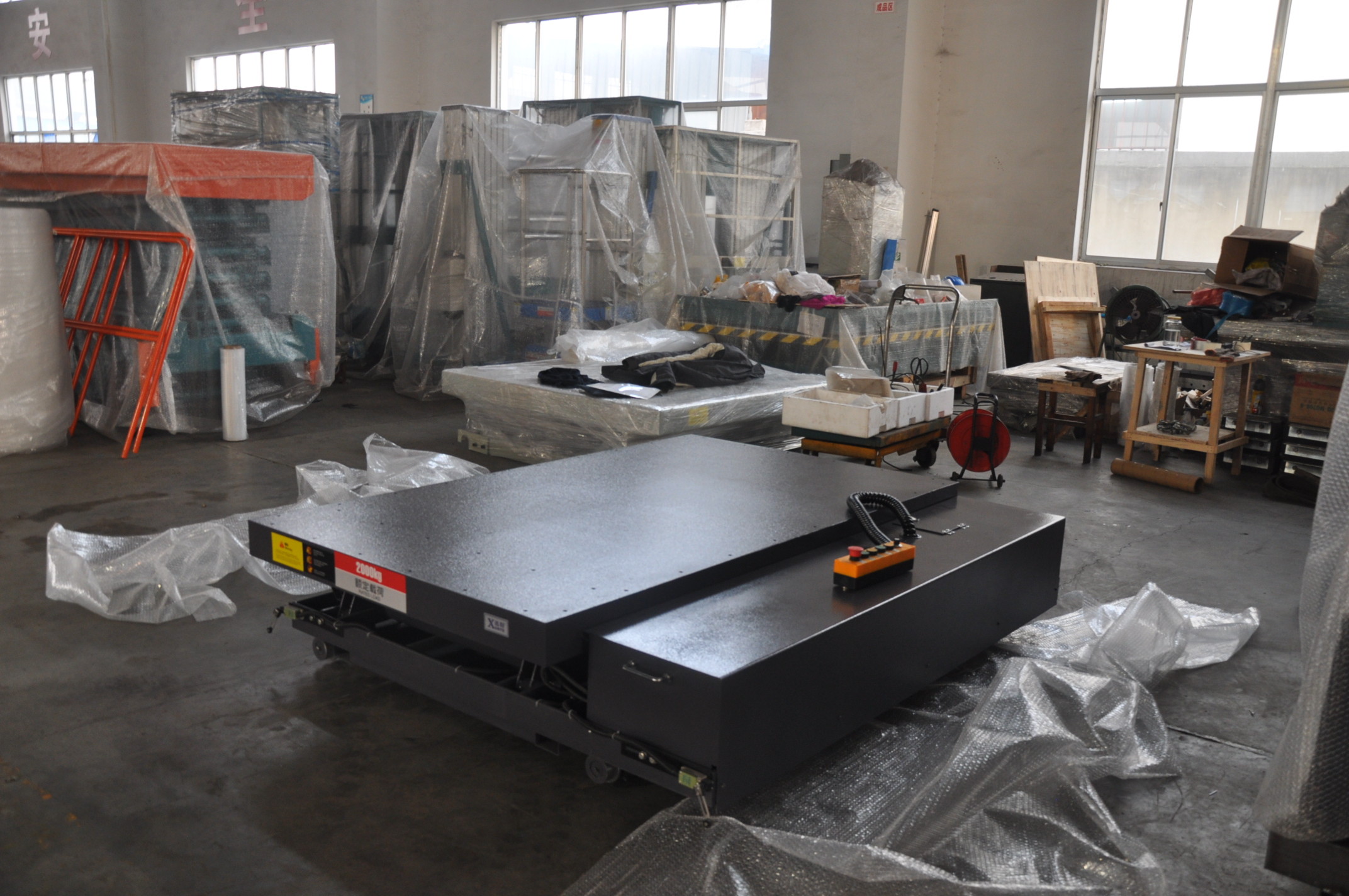

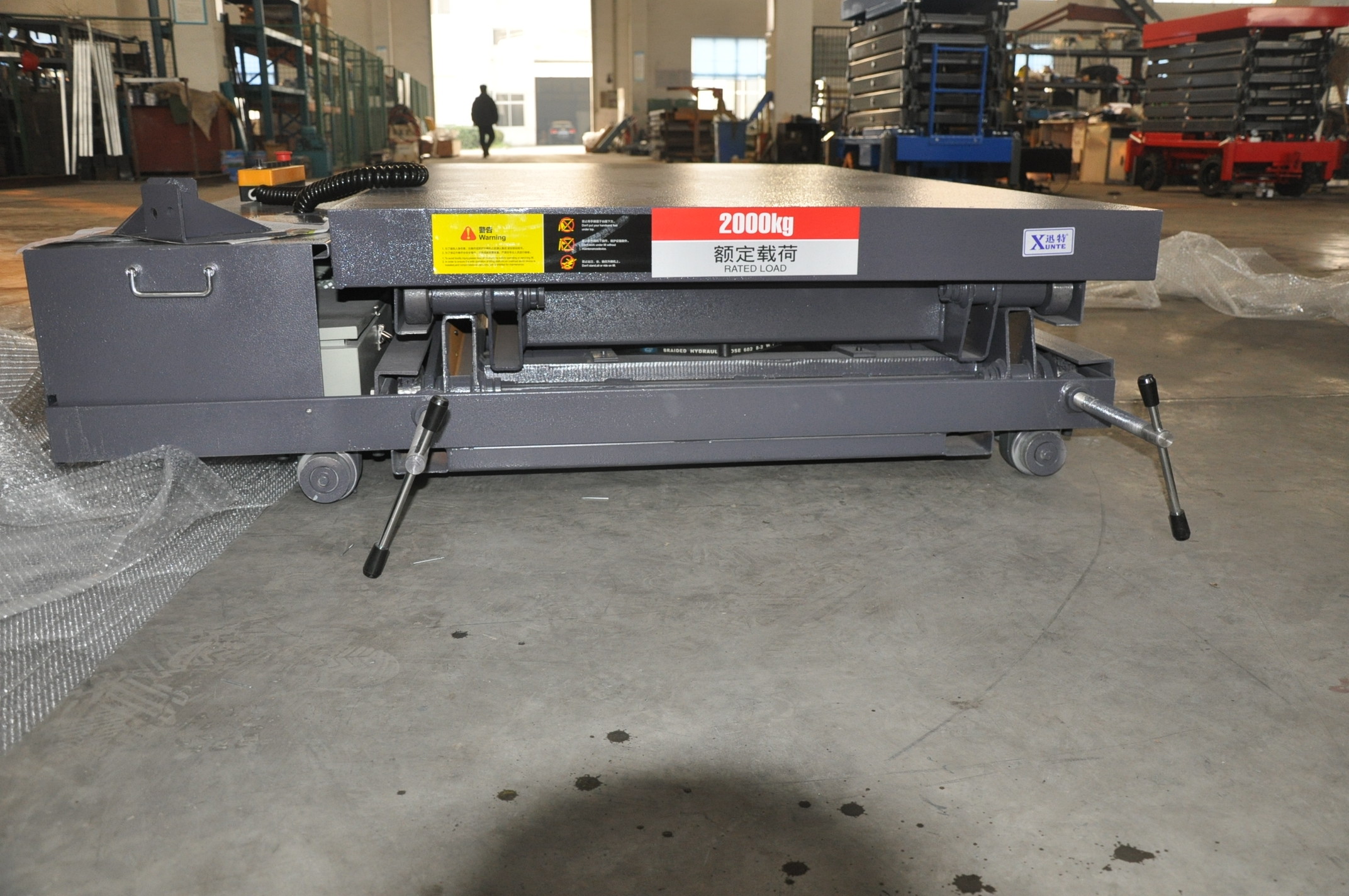

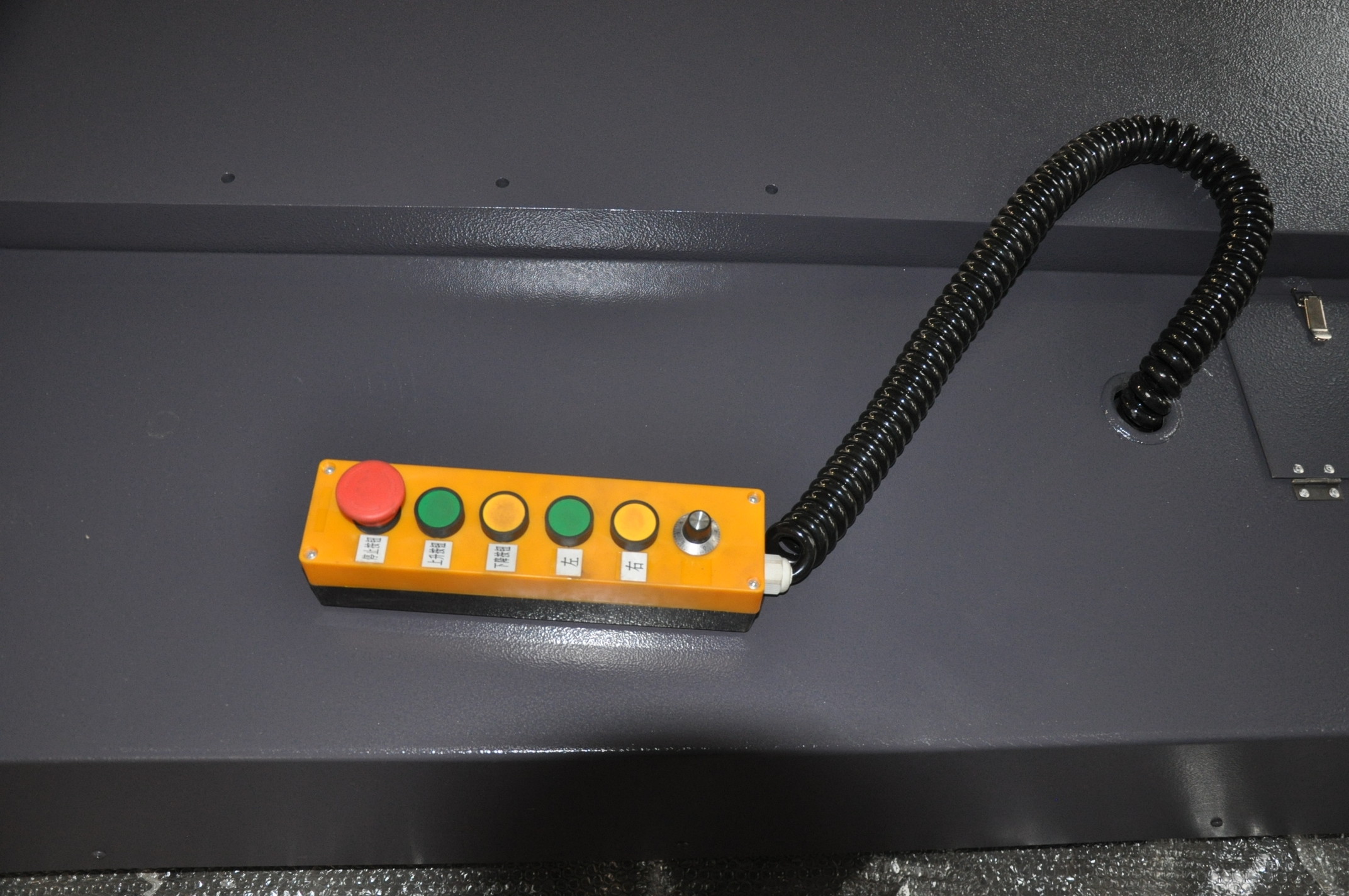

    using. It is with cstpr wheels, and from picture you can see one control panels which can control the movement of the machine travelling on the guide rail and the lifting and descending of the machine.





    Main Features:



    1. Pointing control of lifting up and down.

    2. Manganese steel lifting arm in high strength with rectangle shape

    3. Anti-skid floor in platform

    4. With guide rail wheels

    5. Control Panels





    Major Parameters

    • Model:                          SJG2-0.9
    • Loading Capacity         2000kg
    • Maximum Height         1400mm
    • Minimum Height           500mm
    • Platform Size               2000*1200mm
    • Lifting Power                2.2kw
    • Power Voltage              380V
    • Total Weight                1000kg
    • Measurement              2000*1200*500MM



    Configurations:

    • Electric system:Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System:Hycman brand power pack ,NOK sealing

    • Scissor Arm Support:Hi-strength Manganese steel rectangle tube Q345 B

    • Platform Surface:Antiskid checkered plate

    • High-pressure Oil Pip:Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher

    • Extension Platform

    • Flame Proof Control Cabinet



    Applications:



    Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.







    Why to choose Xunte Mobile Scissor Lift?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the

    products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable,

    put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
