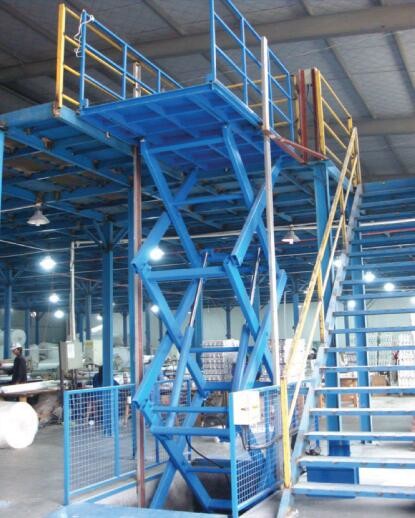

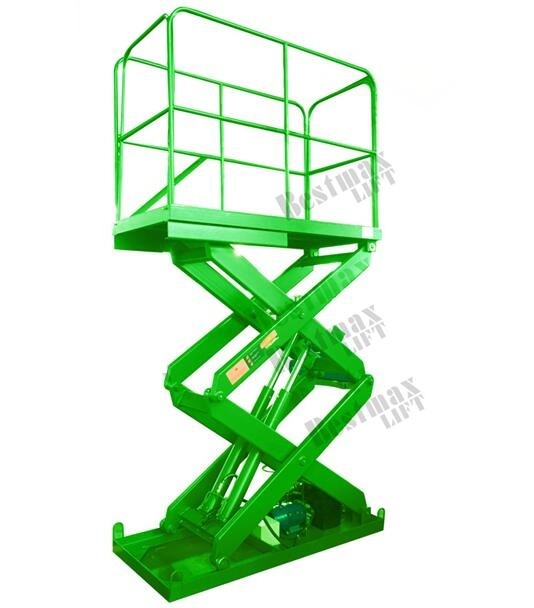

Fixed Cargo Lift Table Hydraulic Scissor Lift Platform 2000Kg Loading Capacity

Fixed Cargo Lift Table Hydraulic Scissor Lift Platform 2000Kg Loading Capacity

    • Fixed Cargo Lift Table Hydraulic Scissor Lift Platform 2000Kg Loading Capacity
    • Fixed Cargo Lift Table Hydraulic Scissor Lift Platform 2000Kg Loading Capacity
  • Fixed Cargo Lift Table Hydraulic Scissor Lift Platform 2000Kg Loading Capacity

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: SJG 2-3.2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallet
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 2000kg Lifting Height: 3.20m
    Platform Size: 2.00*1.80m Lifting Power: 3kw
    Lift Mechanism: Scissor Lift Application: Warehouse Cargo Lift



    Fixed Cargo Lift Table Hydraulic Scissor Lift Platform 2000Kg Loading Capacity



    Description:

    Cargo Lift Table are widely used for carrying the goods in stability. It is mainly used in production lines transferring goods between different heights loading and uploading, lifting for parts, assembling, the platforms, the driving types, the control panels and all the accessories are available for different working conditions and requirements.



    Major Parameter of Cargo Lift Table
    To customize a stationary (fixed) scissor lift, below three major parameters have to be provided:
    1. LOADING CAPACITY
    2. PLATFORM SIZE
    3. MAXIMUM HEIGHT (STOWED HEIGHT+ TRAVELLIGN HEIGHT)
    Type Model No. Loading Capacity
    (T)
    Stowed Height
    (mm)
    Lift Height
    (mm)
    Maximum Height
    (mm)
    Platform Size
    (mm)
    Lift Time
    (s)
    Motor Power
    (Kw)
    Weight
    (kg)
    Single-Fork SJG0.9-0.5 0.9 180 500 680 1220X700 15 0.75 400
    SJG2.65-1.2 2.65 230 1200 1430 1680X1000 39 3 650
    SJG3-1.2 3 240 1200 1440 1800X1800 40 3 1100
    Double-Forks SJG0.5-2.8 0.5 460 2800 3260 2200X1000 25 1.5 600
    SJG2.5-2 2.5 620 2000 2620 2200X1200 40 3 1300
    SJG5-1.5 5 460 1500 1960 1700X1000 50 4 1450
    Multi-Forks SJG1-4.1 1 913 4100 5013 2200X1000 39 3 1160
    SJG2-3.5 2 722 3500 4222 2100X1500 48 5.5 2100
    SJG3-7.2 3 1050 7200 8250 3400x1500 117 7.5 5500



    Main Character of Cargo Lift Table
    1. Easily installation and maintenance
    2. The number of forks for the lift are different from one, two three or more, it depends on the size of the platform and the lifting height.
    3. Excellent mechanical structure, it works in lower initial lifting height with maximum lifting stroke.
    4. The antiskid design endows the platforms with excellent antiskid property
    5. Fine grinding cylinder in good sealing performance
    6. Equipped with safeguard valve to avoid hydraulic pipe rupture


    Application of Cargo Lift Table
    For different application purpose, the cargo lift table can be customized upon request, hereby below showing some customization cases
    Fences can be added on the platform as required
    The material is also by the manganese steel but stainless steel can also be used in meat processing factory for example
    The table can be made to be round shape or make it to be tilting type, or with nipple on it or with roller on it.
    The organ cover can also be made for the protection purpose



    Configurations:

    • Electric system:Schneider contactor, SANLICO button, CHNT electrical

    • Hydraulic System:Hycman brand power pack ,NOK sealing

    • Scissor Arm Support:Hi-strength Manganese steel rectangle tube Q345 B

    • Platform Surface: Antiskid checkered plate

    • High-pressure Oil Pip:Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V; manual pump

    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher

    • Extension Platform

    • Flame Proof Control Cabinet

    Fixed Cargo Lift Table Hydraulic Scissor Lift Platform 2000Kg Loading Capacity



    Why to choose Bestmax Hydraulic Lift Platform?

    • High Quality

    • Reasonable Price

    • Good after Service

    • 1 Year Warranty

    • More Than 20 Years Experience



    Communication with Customers

    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30 days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
