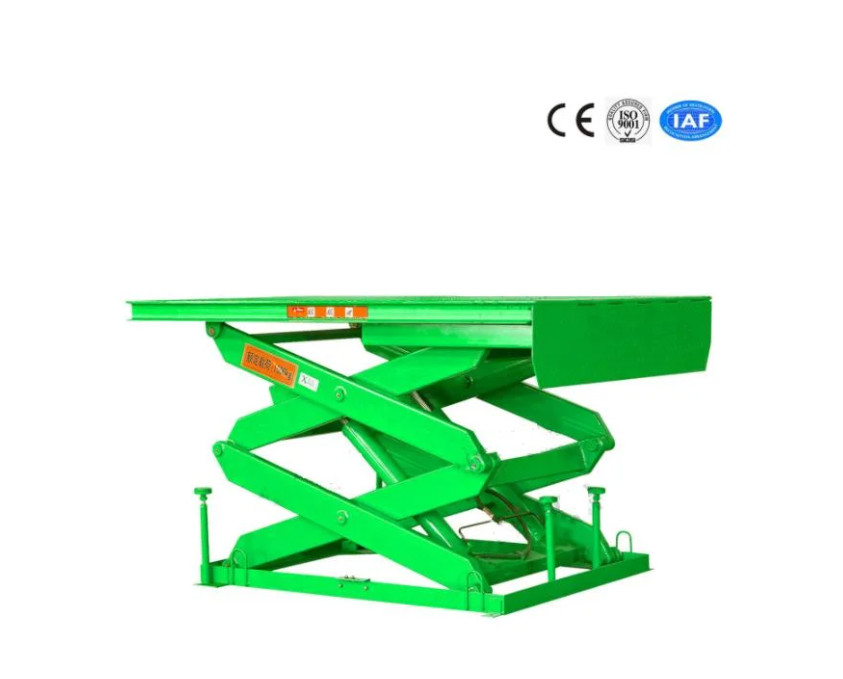

1.5M 5000Kg Heavy Duty Electrical Aerial Stationary Scissor Lift for Painting / Cleaning

1.5M 5000Kg Heavy Duty Electrical Aerial Stationary Scissor Lift for Painting / Cleaning

    • 1.5M 5000Kg Heavy Duty Electrical Aerial Stationary Scissor Lift for Painting / Cleaning
    • 1.5M 5000Kg Heavy Duty Electrical Aerial Stationary Scissor Lift for Painting / Cleaning
  • 1.5M 5000Kg Heavy Duty Electrical Aerial Stationary Scissor Lift for Painting / Cleaning

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: SJG 5-1.5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallet
    Delivery Time: 30 days
    Payment Terms: T/T L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 5000kg Lifting Height: 1.5m
    Platform Size: 1.7x1m Minimum Height: 0.46m
    Lifting Power: 4kw Power Supply: AC


    1.5M 5000Kg Heavy Duty Electrical Aerial Stationary Scissor Lift for Painting / Cleaning​


    Quick Detail:


    NameHydraulic Lift PlatformBrand NameXunte
    Loading Capacity5000KgLifting Height1.5m
    Platform Size1700*1000mmColorOptional
    Lifting Power4 KwPower Supply

    AC



    Description:

    Stationary Scissor Lifts can not be moved, it only can lift the goods in the fixed locations, the platform size, loading capacity and the lifting height can be customized based on different customers’ requirements. It is widely used in the workshop, 4S Shop to load and unload good with heavy duty.


    Main Features:

    1. Easily installation and maintenance
    2. Excellent mechanical structure, which works in lower initial lifting height with maximum lifting stroke.
    3. The antiskid design endows the platforms with excellent antiskid property
    4. Fine grinding cylinder in good sealing performance
    5. Gas Shield Welding (in stronger hardness and everlasting)
    6. Built-in pressure release valve
    7. Auxiliary platform lowering when electricity off
    8. Oil less bearing mounted in the joint parts, pin roll with grease fitting.
    9. Overall hook by CNC torch flame cut


    Major Parameters:


    ModelSJG5-1.5
    Lifting Height1.5m
    Loading Capacity5000KG
    Platform Size1700*1000mm
    Minimum Height460mm
    Motor Power4Kw
    Voltage380V/50Hz



    Configurations:

    • Electric system:Schneider contactor, SANLICO button, CHNT electrical

    • Hydraulic System:Hycman brand power pack ,NOK sealing

    • Scissor Arm Support:Hi-strength Manganese steel rectangle tube Q345 B

    • Platform Surface:Antiskid checkered plate

    • High-pressure Oil Pip:Double wire hydraulic intensifier rubber hose


    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V; manual pump

    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher

    • Extension Platform

    • Flame Proof Control Cabinet


    Applications:

    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.


    Why to choose Xunte Hydraulic Lift Platform?

    • High Quality

    • Reasonable Price

    • Good after Service

    • 1 Year Warranty

    • More Than 10 Years Experience
