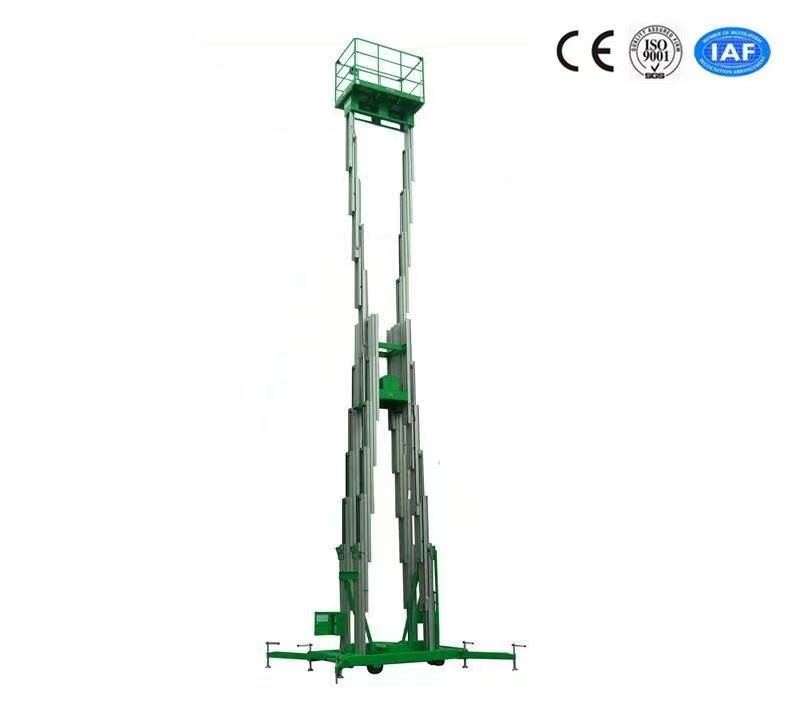

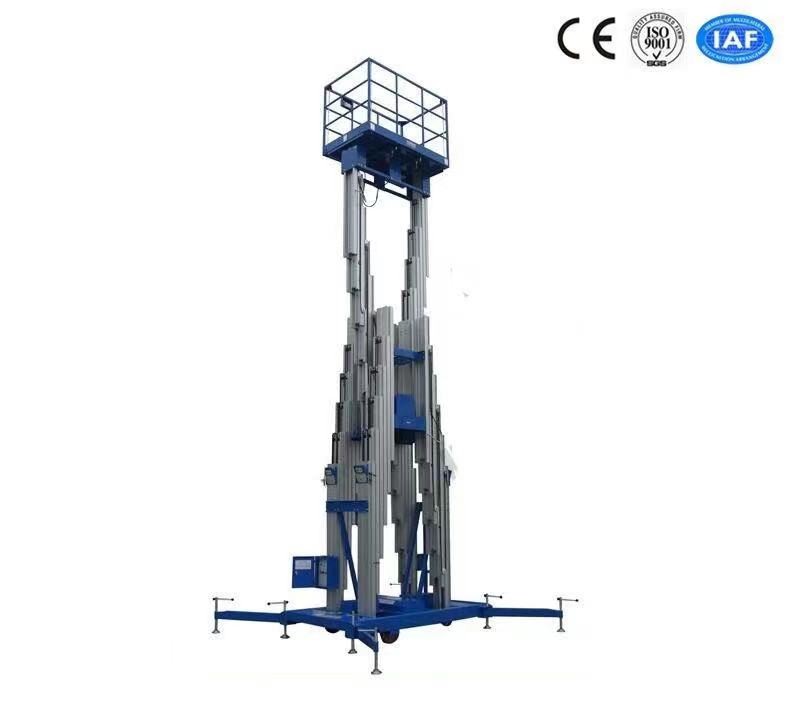

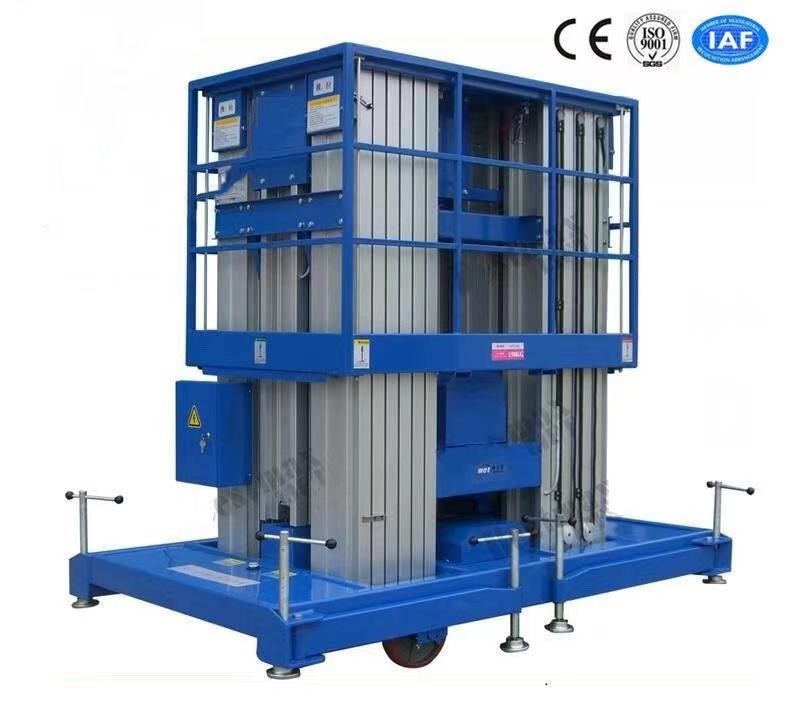

Multi Mast Aluminum Profile Aerial Work Platform 16m Platform Height with Motorized Wheel

Multi Mast Aluminum Profile Aerial Work Platform 16m Platform Height with Motorized Wheel

    • Multi Mast Aluminum Profile Aerial Work Platform 16m Platform Height with Motorized Wheel
    • Multi Mast Aluminum Profile Aerial Work Platform 16m Platform Height with Motorized Wheel
    • Multi Mast Aluminum Profile Aerial Work Platform 16m Platform Height with Motorized Wheel
    • Multi Mast Aluminum Profile Aerial Work Platform 16m Platform Height with Motorized Wheel
  • Multi Mast Aluminum Profile Aerial Work Platform 16m Platform Height with Motorized Wheel

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: GTWY16-420 (ME1600-6)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallet or in wooden case
    Delivery Time: 30 days after down payment
    Payment Terms: T/T, L/C
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Lift Capacity: 150kg Platform Height: 16m
    Working Height: 18m Platform Size: 1.55x1.0m
    Lifting Power: 2.2kw/1.1kw Lifting Time: 124s
    Outrigger Footprint: 3.2x3.0m Overall Size: 2.28x1.45x2.18m
    Weight: 1750kg


     Multi Mast Aluminum Profile Aerial Work Platform 16m Platform Height with Motorized Wheel

    Quick Detail:


    Name Mobile Aerial Work Platform Brand Name Bestmax
    Loading Capacity 150Kg Platform Height 16m
    Platform Size 1.55*1.0m Color Green or Optional
    Motor Power 2.2Kw Power Supply AC/DC


    Descriptions:


    Mobile aluminum aerial work platform with motorized pulling device, compared with mast aluminum AWP, it is equipped with the electric motorized device with moving and turning function. It is in manually traction; easily move, saving manpower and time. Driven by hydraulic motor, turning and lifting by battery in DC power, no external power required. It brings more efficiency and convenience as an ideal and most useful aerial working facility. The electric Self-propelled device can be configured in any of the lifts.

    Applications:

    It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 16m to 20m and lifting capacity is 150Kg.The power sources could be 220V, 380V or chargeable battery.


    Main Features:

    1. Most rigid aluminum alloy profile
    2. Auxiliary platform lowering
    3. Multi-guide pulley on mast
    4. Durable base system
    5. Chassis with level gauge
    6. DC working power on the platform
    7. Easily rolls through a narrow space
    8. Emergency stop button
    9. Over load protection
    10 .Built-in pressure release valve
    11. Dual activated up/down switch
    12. Locking Key Switch
    13. Optional extended platform
    14. Entry ladder



    Specifications:



    MODEL GTWY16-420 (ME1600-6)
    PRODUCTIVITY US Metric
    Lift capacity 331lbs 150kg
    Working height 59ft 0.66 in 18m
    Platform floor height 52ft 5.92 in 16m
    Platform length 5ft 1.02 in 1.55m
    Platform width 3ft 3.37in 1.00m
    Ground Clearance 5.91in 0.15m
    Lifting Power 2.2kw
    Lifting Speed 0.09-0.1m/s
    Motorized Power 0.75Kw
    Descending Speed 0.08m/s
    Anti Wind Capacity Max. force 5
    Overall length 7ft 5.76in 2.28m
    Overall width 4ft 5.98in 1.45m
    Overall height 7ft 1.83in 2.18m
    Outrigger footprint:
    A Length 10ft 10.11in 3.20m
    B Width 9ft 10.11in 3.00m
    C Corner access 3.94in 0.10m
    D Wall access front 1ft 3.74in 0.4m
    E Wall access side 2ft 9.46in 0.85m
    Weight 3858lbs 1750kg

    Multi Mast Aluminum Profile Aerial Work Platform 16m Platform Height with Motorized Wheel




    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Flame proof electric cabinet

     Multi Mast Aluminum Profile Aerial Work Platform 16m Platform Height with Motorized Wheel
    Competitive Advantage:


    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience




    Communication with Customers:

    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
    B: The main difference is from the structure and the material
    The scissor lift is in scissor structure with steel material
    The aerial work platform is in mast structure with aluminum material

    A: How is that for quality control in your factory?
    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


    A: What is the delivery time for your goods?
    B: it is 30days after order confirmation

    A: What spare parts that you can offer?
    B: Find the list below which we are offering with the machine when shipment for free:

    Item Model Quantity
    O-shape rubber ring 40×3.1 4
    O-shape rubber ring 11×1.9 2
    O-shape rubber ring 40×30×6 1
    Spanner   1
    screwdriver 4# 1


    A: How long is your quality guarantee period?
    B: We have one year warranty.
