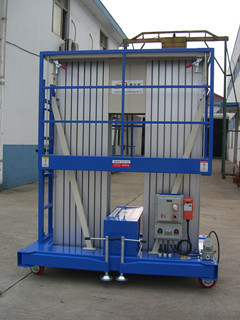

9m 200Kg Aluminum Dual Mast Aerial Work Platform , Truck - Mounted Type

9m 200Kg Aluminum Dual Mast Aerial Work Platform , Truck - Mounted Type

    • 9m 200Kg Aluminum Dual Mast Aerial Work Platform , Truck - Mounted Type
    • 9m 200Kg Aluminum Dual Mast Aerial Work Platform , Truck - Mounted Type
    • 9m 200Kg Aluminum Dual Mast Aerial Work Platform , Truck - Mounted Type
  • 9m 200Kg Aluminum Dual Mast Aerial Work Platform , Truck - Mounted Type

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: GTWY9-200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallet or in wooden case
    Delivery Time: 30day after down payment
    Payment Terms: T/T L/C
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Lift Capacity: 200kg Platform Height: 9m
    Working Height: 11m Platform Size: 1.30x0.62m
    Overall Size: 1.54*1.00*2.00m Outrigger Footprint: 1.77*1.82m
    Ground Clearance: 0.05m Lifting Motor: 1.1Kw
    Weight: 730Kg


    9m Platform Height 200Kg Loading Capacity Aluminum Dual Mast Aerial Work Platform , Truck - Mounted Type



    Quick Detail:


    Name Mobile Aerial Work Platform Brand Name Xunte
    Loading Capacity 200Kg Platform Height 9m
    Platform Size 1.30*0.62m Color Orange or Optional
    Motor Power 1.1Kw Power Supply AC/DC

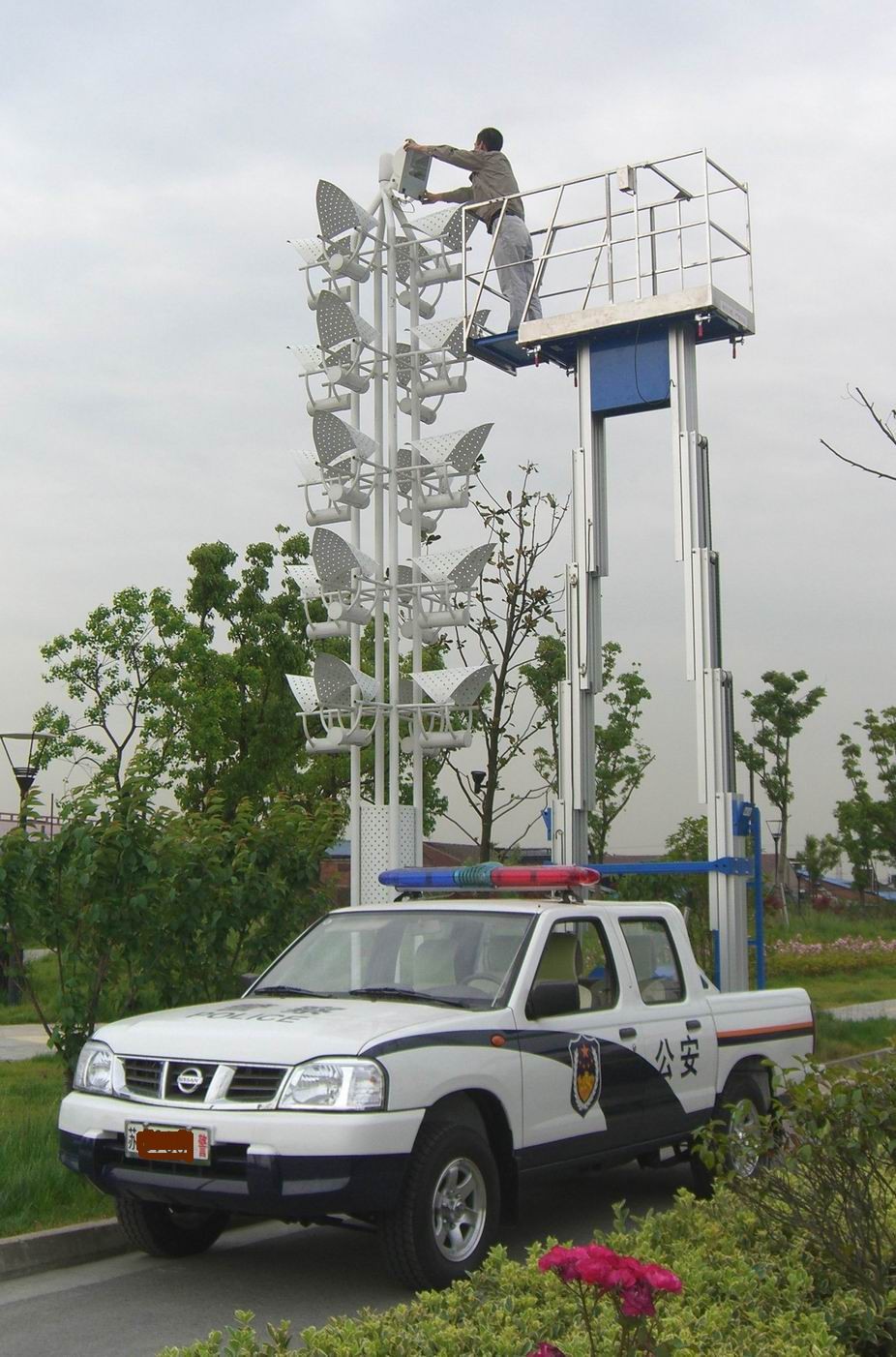

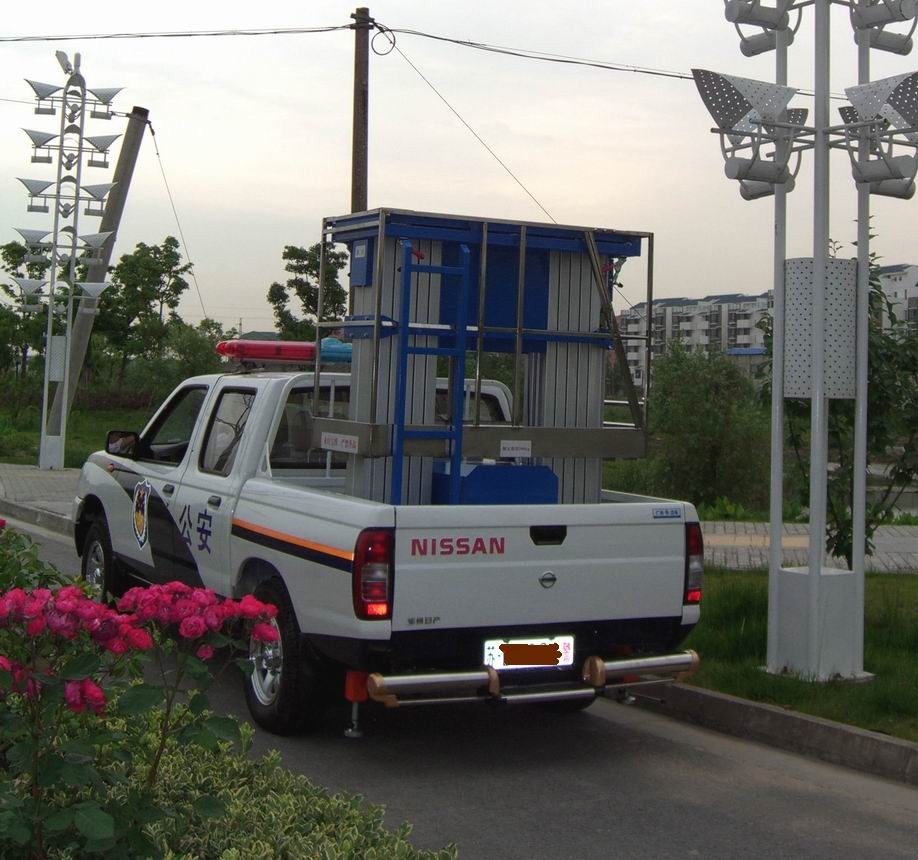

    Truck-Mounted Aerial Work Platform is to fixed the aerial work platform on a pickup or truck for the long time and distance transportation . This design is very convenient for moving the machine here andd there .

    And in the case of unsafety, only single mast and double mast can bemade into this type.





    It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.



    Main Features:


    1. Most rigid aluminum alloy profile

    2. Auxiliary platform lowering

    3. Multi-guide pulley on mast

    4. Durable base system

    5. Chassis with level gauge

    6. DC working power on the platform

    7. Easily rolls through a narrow space

    8. Emergency stop button

    9. Over load protection

    10 .Built-in pressure release valve

    11. Dual activated up/down switch

    12. Locking Key Switch

    13. Optional extended platform

    14. Entry ladder





    MODEL GTWY9-200
    Lift capacity 441lbs 200kg
    Working height 36ft 1.07in 11m
    Platform floor height 29ft 6.33 9m
    Platform length 5ft 0.63in 1.54m
    Platform width 2ft 3.37in 1.00m
    Ground Clearance 1.97in 0.05m
    Lifting Power 1.1kw
    Lifting Speed 0.09-0.1m/s
    Motorized Power 0.75Kw
    Descending Speed 0.08m/s
    Anti Wind Capacity Max. force 5
    Overall length 5ft 2.20in 1.58m
    Overall width 3ft 1.40in 0.95m
    Overall height 6ft 6.74in 2.00m
    Outrigger footprint:
    A Length 5ft 11.65in 1.82m
    B Width 5ft 9.69in 1.77m
    C Corner access 3.94in 0.10m
    D Wall access front 11.42in 0.29m
    E Wall access side 2ft 0.02in 0.61m
    Weight 1609lbs 730kg

    9m 200Kg Aluminum Dual Mast Aerial Work Platform , Truck - Mounted Type



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Flame proof electric cabinet


    Competitive Advantage:


    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience



    Communication with Customers


    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material


    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation


    A: What spare parts that you can offer?

    B: Find the list below which we are offering with the machine when shipment for free:

    Item Model Quantity
    O-shape rubber ring 40×3.1 4
    O-shape rubber ring 11×1.9 2
    O-shape rubber ring 40×30×6 1
    Spanner   1
    screwdriver 4# 1


    A: How long is your quality guarantee period?

    B: We have one year warranty.
